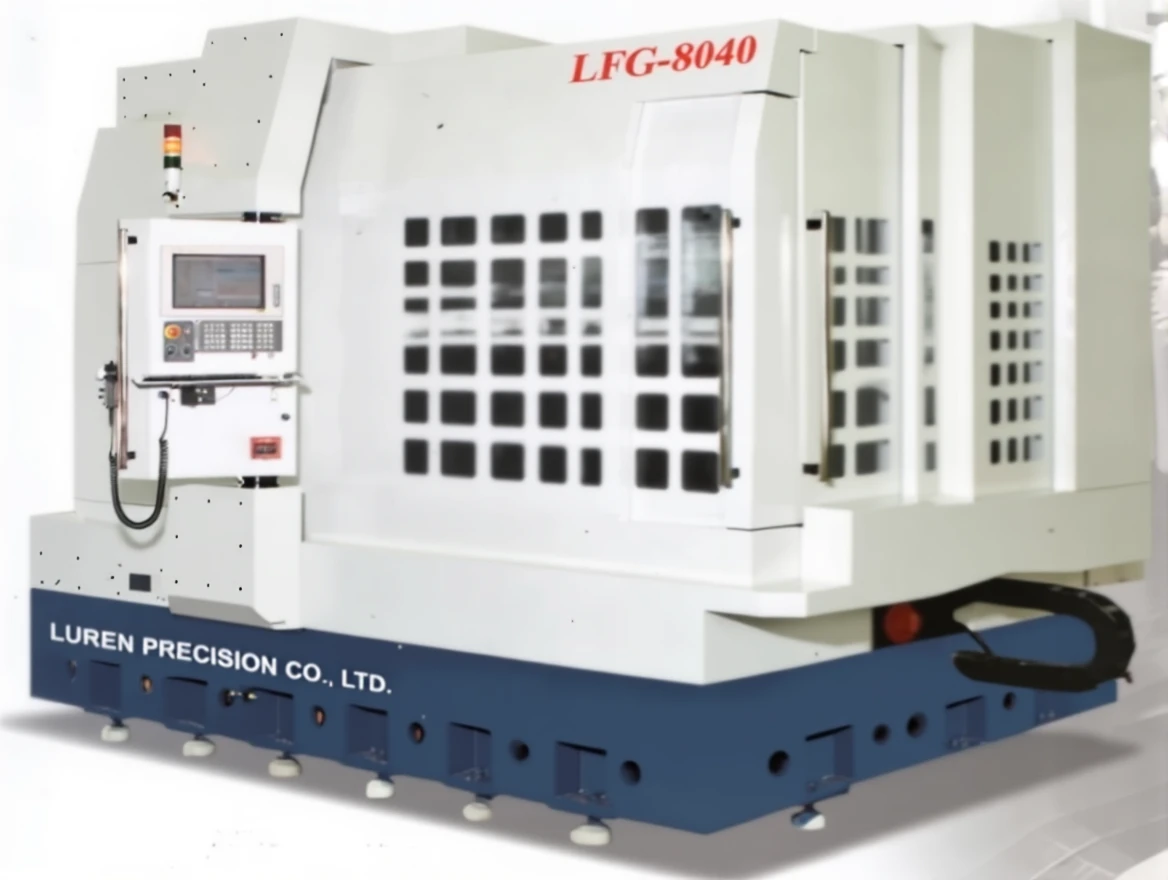

Ø 50-800 mm Gear Grinding Machine

LGF-8040

MIN./MAX. WORKPIECE DIAMETER Ø50 / Ø800 mm

HELICAL ANGLE ±45°

MAX. GRINDING SLIDE MOVEMENT (Y AXIS) 400mm

MAX. WORKPIECE SLIDE MOVEMENT (Z AXIS) 400mm

DISTANCE BETWEEN CENTER AND TABLE 600-1300mm

TABLE DIAMETER 740mm

TABLE LOAD CAPACITY 2500kg

MIN./MAX. GRINDING WHEEL DIAMETER 280/400mm

MAX. GRINDING WHEEL SPEED 4000rpm

MAX. GRINDING WHEEL WIDTH 90mm

GRINDING WHEEL MOTOR POWER 15kw

VOLTAGE 220V

FANUC 3li-MB

LENGTH X WIDTH X HEIGHT 6400 X 5700 X 4200mm

WEIGHT 15000kg

Supplied with Fanuc Control Unit and Standard Accessories.
