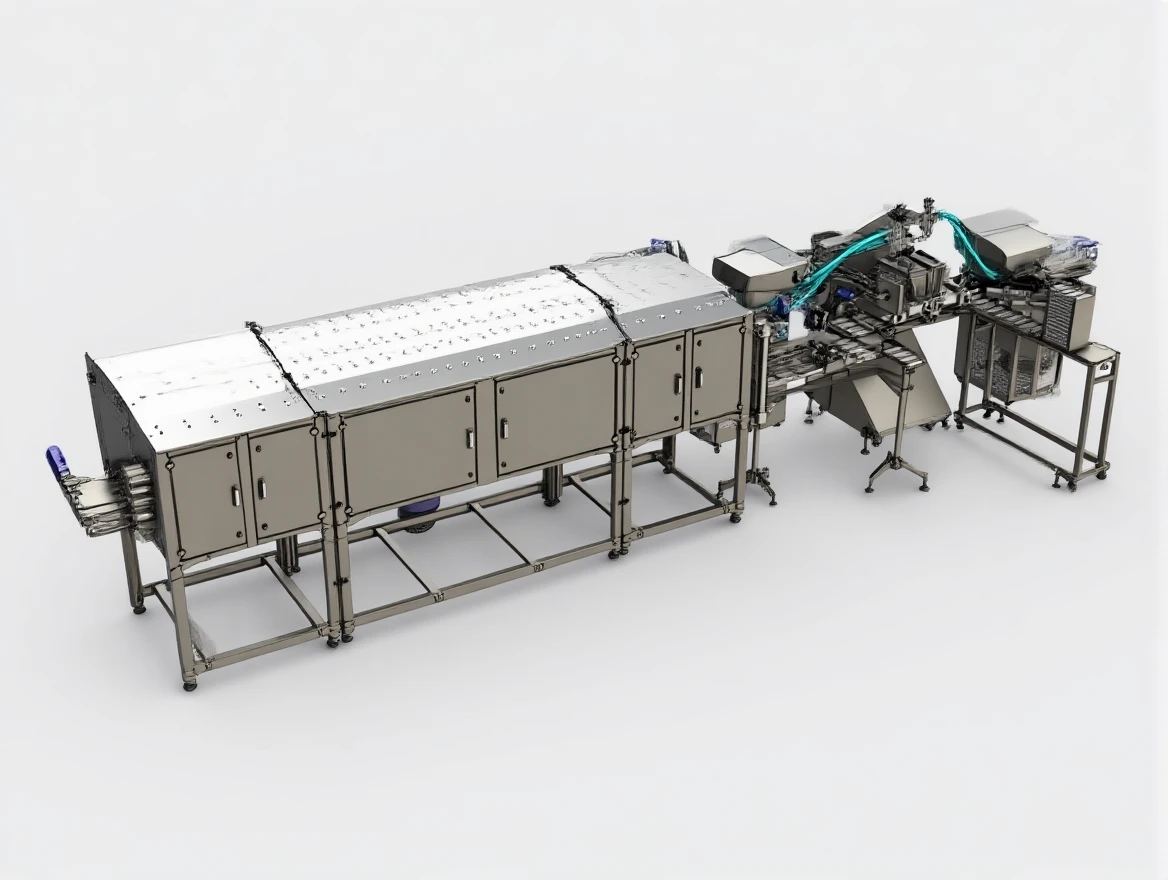

50 Kg / Hour Mini Chocolate Molding Line
| Brand | Akaygam |
|---|---|
| Model Type |
MMEL50 |
Description
Akaygam MMEL50
50 Kg / Hour Mini Chocolate Molding Line
Completely made of AISI304 grade stainless steel, engineering plastics and aluminum.
PID controlled dry heating elements.
Chocolate depositor with servo driven vertical motion.
Chocolate suction / outpouring controlled by servo motors.
All variables can be adjusted on HMI, no need for mechanical adjustment.
Cooling tunnel insulated with CFC free rubber.
Multi storey cooling tunnel with rails and belt. Air conditioner with semihermetic compressor.
Molding line can be used as enrobing line.
Required min. number of polycarbonate molds is 100pcs.
Polycarbonate mold dimensions 175 x 275.
Production capacity 50kg./h.
Total power consumption 380V 8KW.
