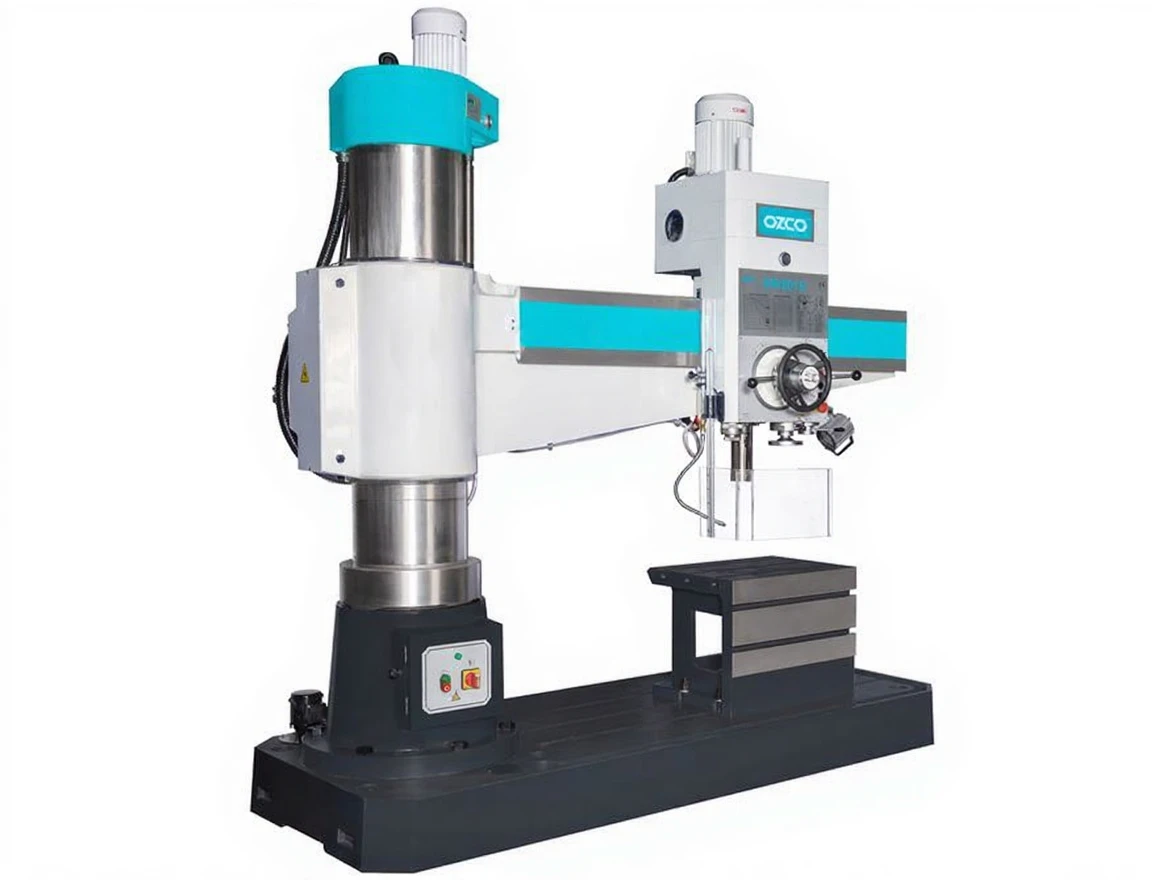

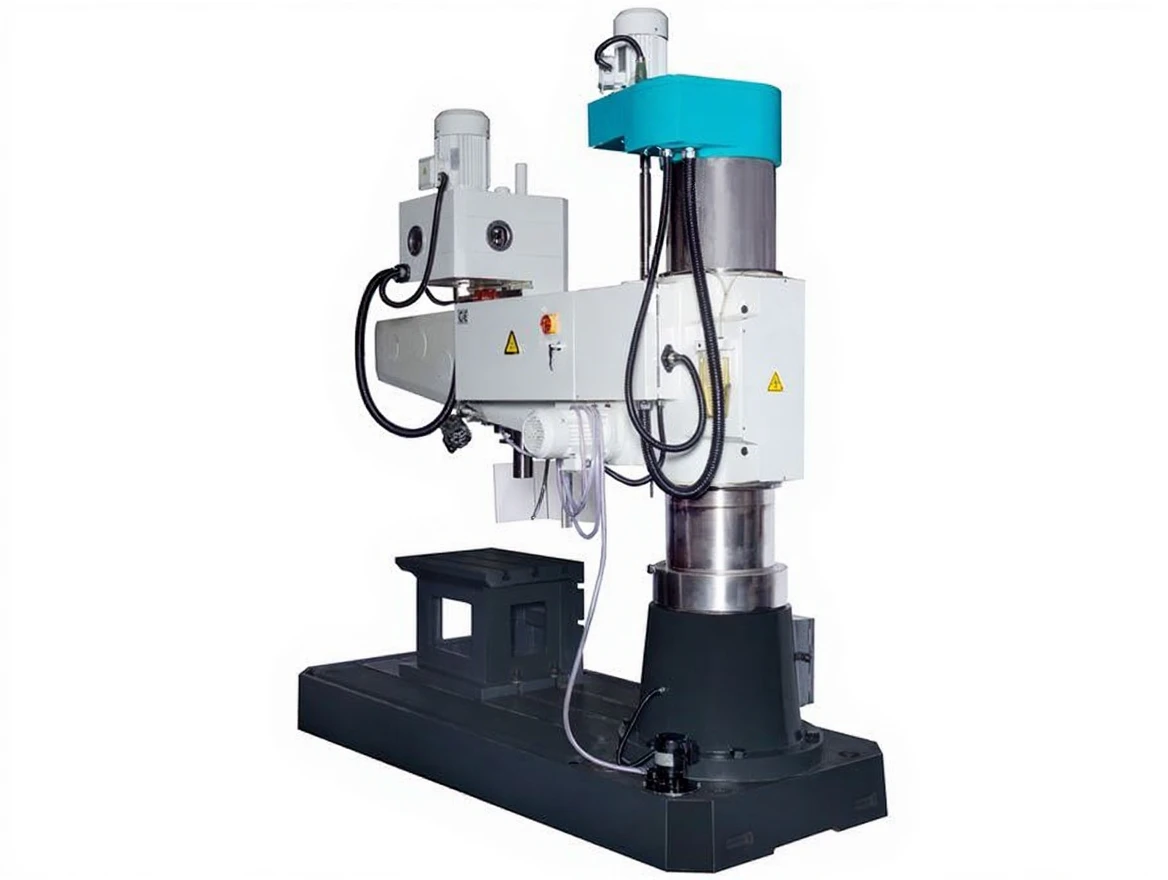

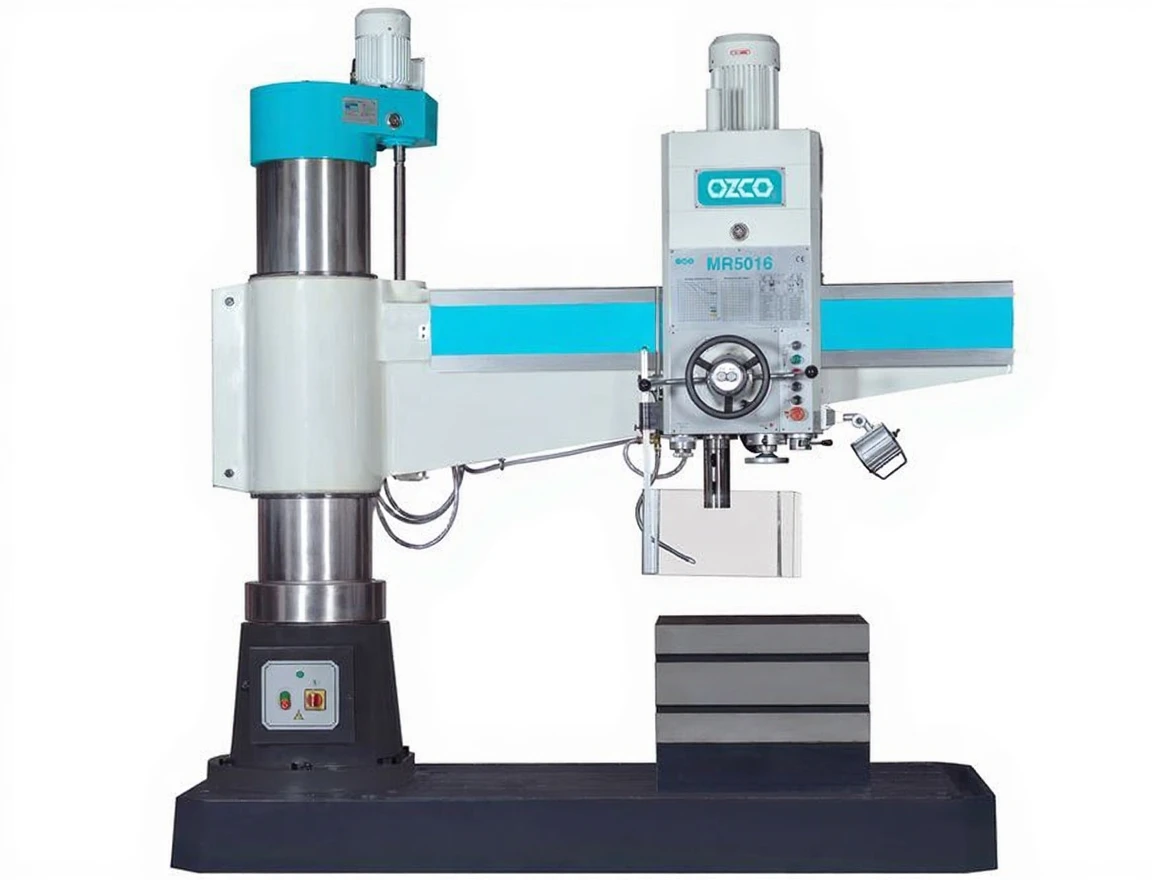

50 mm Radial Drill Press

50 mm Radial Drill Press

OZCO MR5016 Radial Drill Technical Specifications:

50 mm radial drill press. Arm length 1600 mm.

OZCO MR5016 Radial Drill General Specifications:

Hydraulic locking, Column & carriage selection button, Drilling depth adjustment mechanism, Hydraulic speed & feed adjustment scale, Up & down motorized movement, Feed & speed table, Work table, Halogen work lamp, Cooling system

Technical Specifications OZCO MR5016 Radial Drill

Motor Power     4 KW

Operation Type   Gearbox

Cooling Pump Power         90 W

Drilling Capacity       50 mm

Spindle Connection MK5

Spindle Movement/Stroke    315 mm

Distance Between Spindle and Column          350-1600 mm

Distance Between Spindle and Table           350-1220 mm

Distance Between Spindle and Base          1320 mm

Column Diameter       350 mm

Speed        25-2000 rpm

Stages            16

Table Dimensions               630x500x500 mm

T Channel Dimensions          5x22x160 mm

Base Dimensions              730×500 mm

Spindle Feed   0.04-3.2 mm/rev (16 stages)

Machine Dimensions (LxWxH)       2500x1070x2840 mm

Packaging Dimensions         2580x1140x2550 mm

Net Weight       3500 Kg

Gross Weight     3700 Kg
