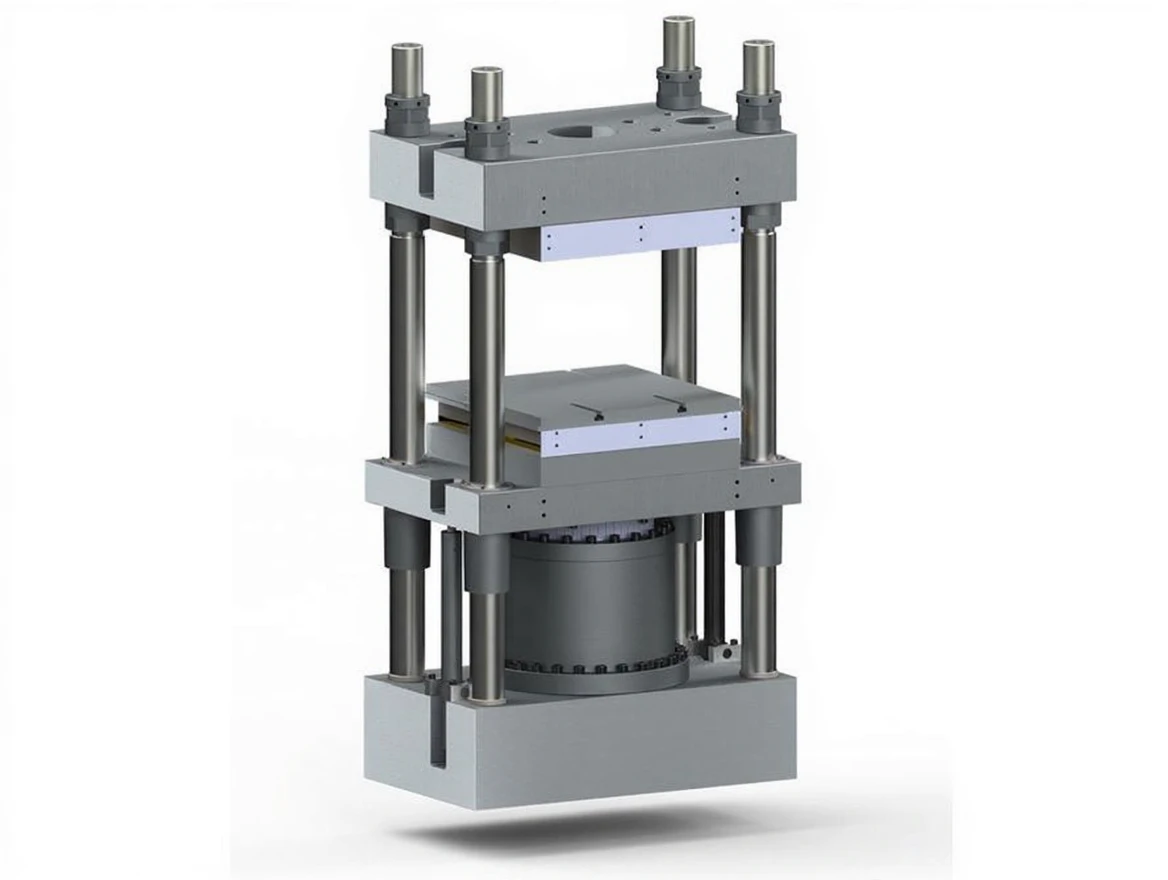

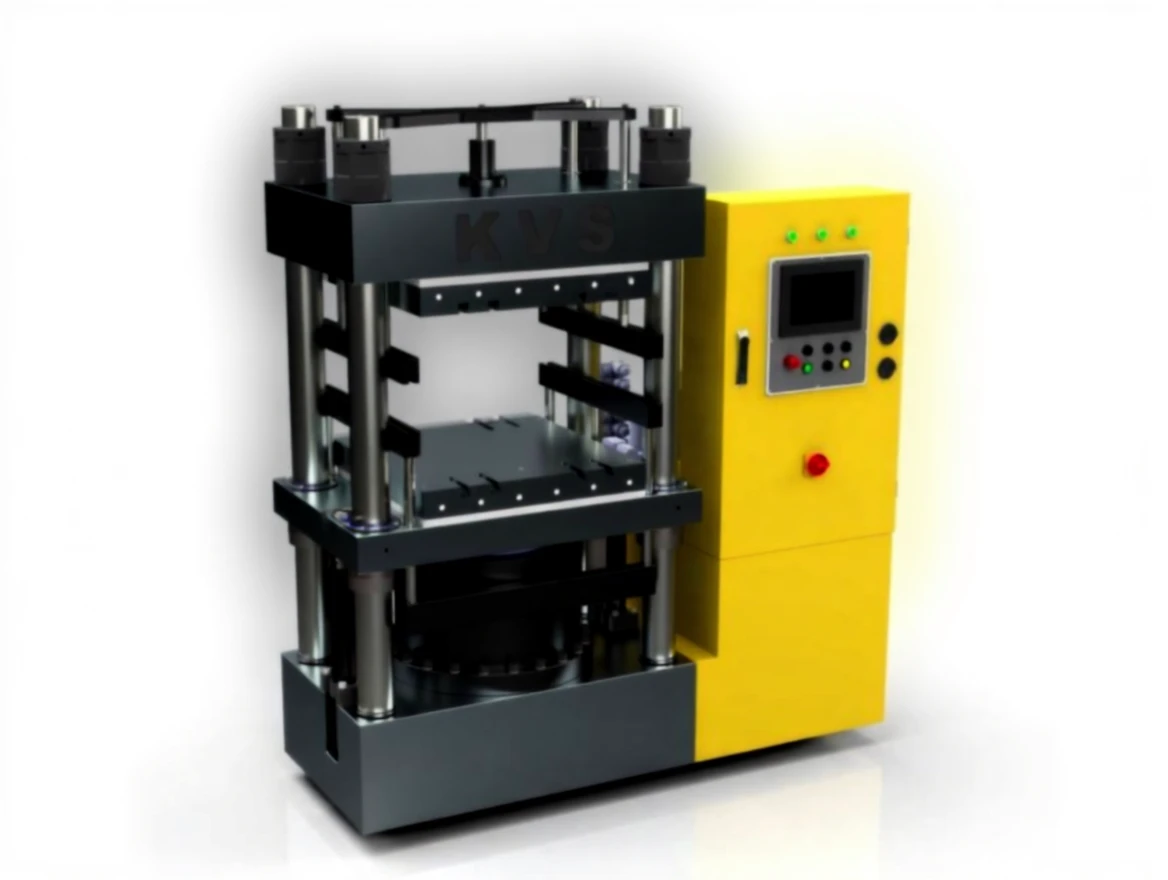

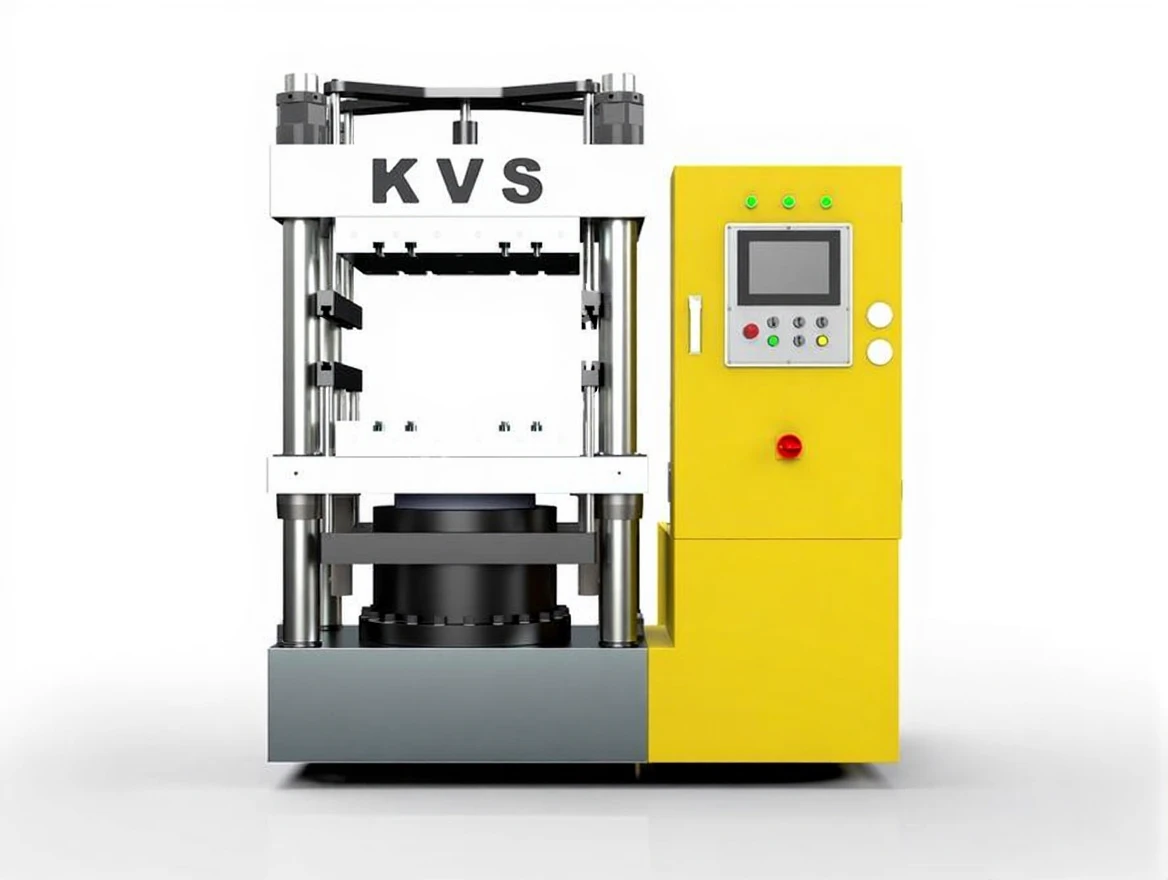

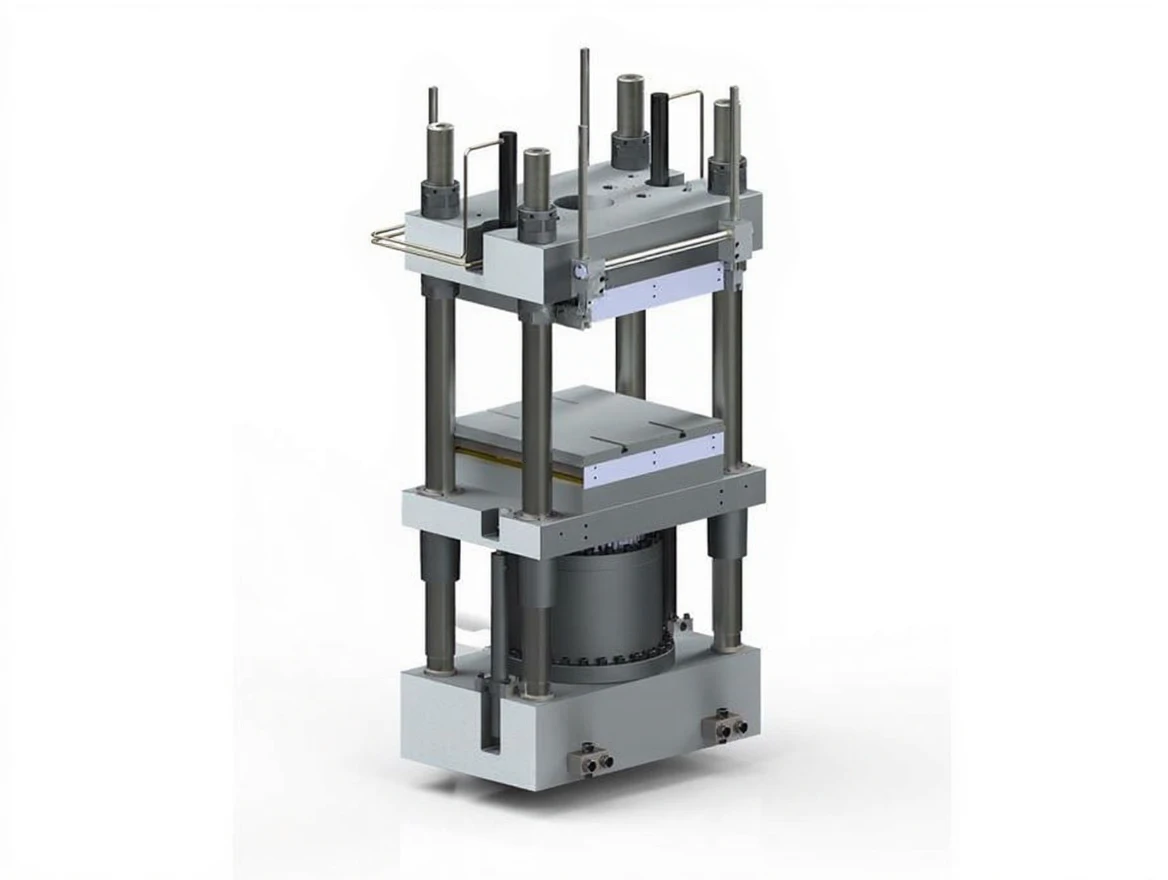

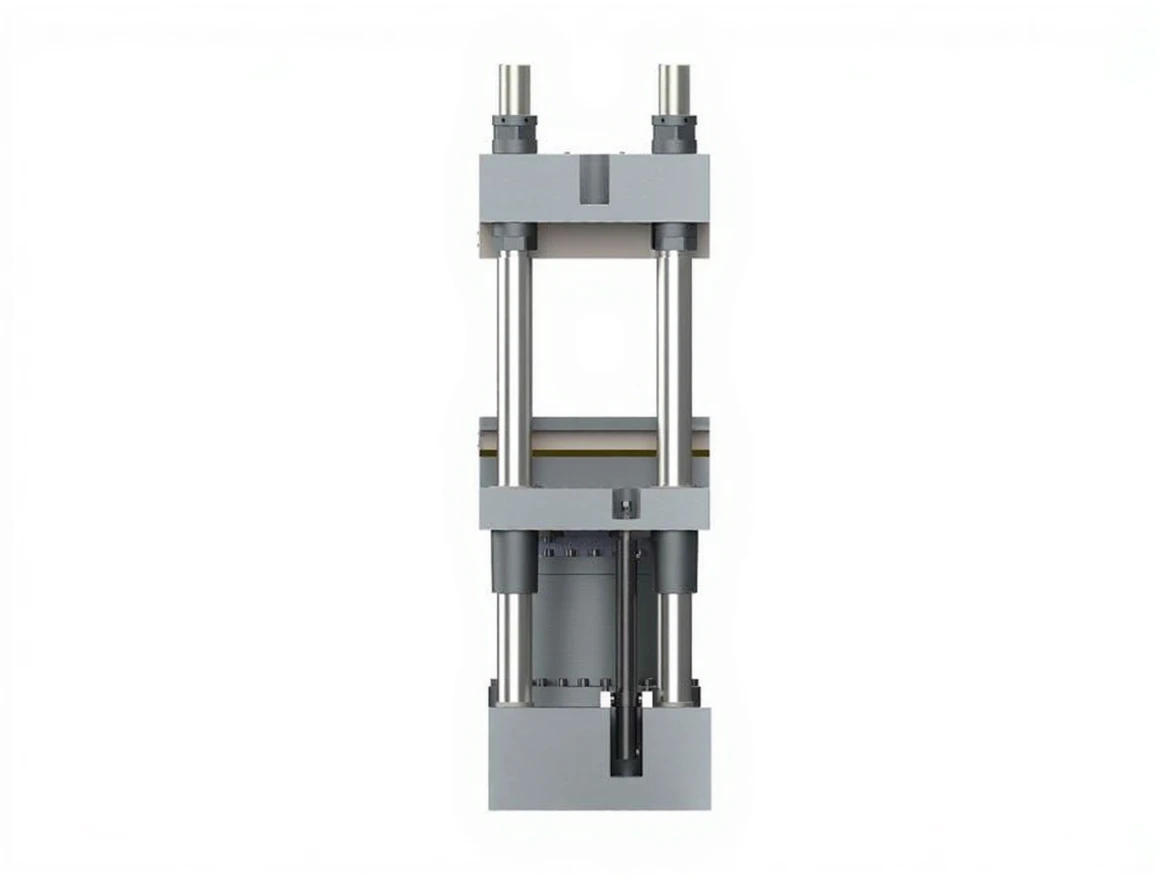

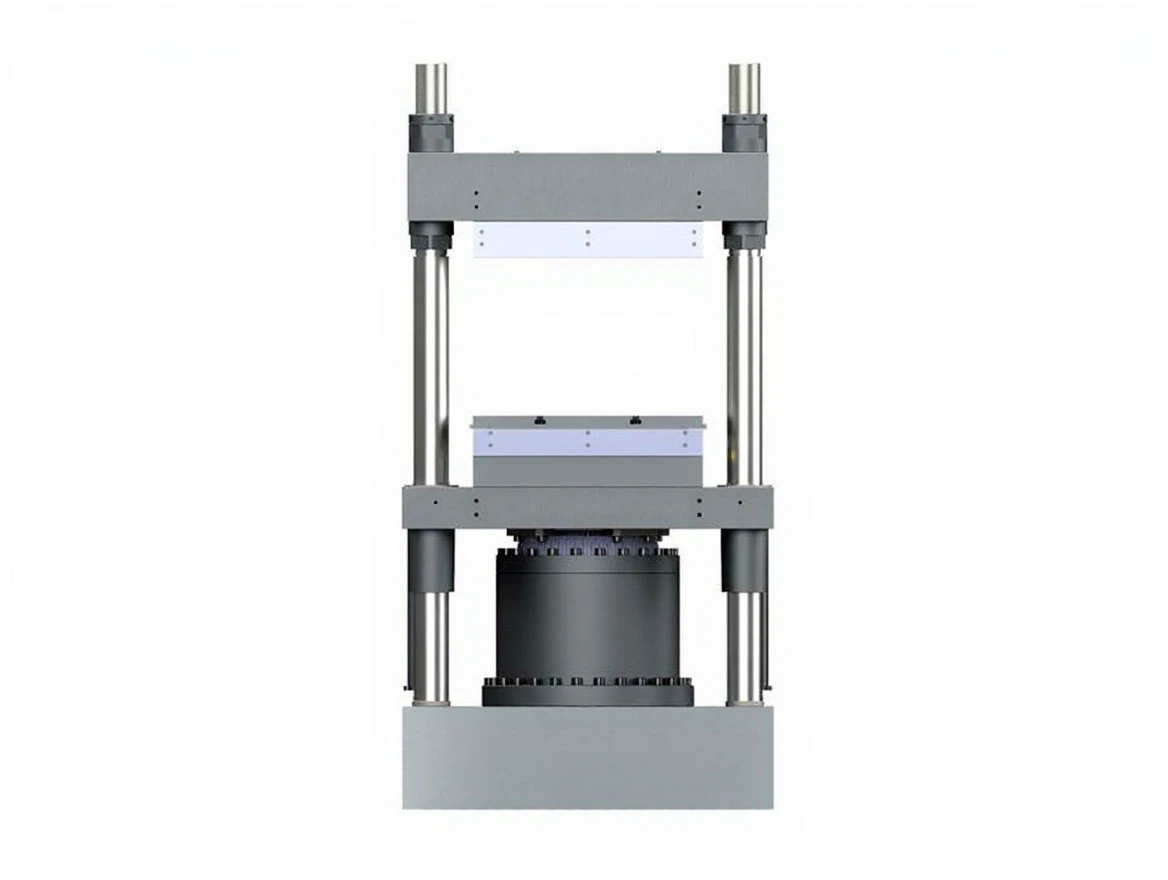

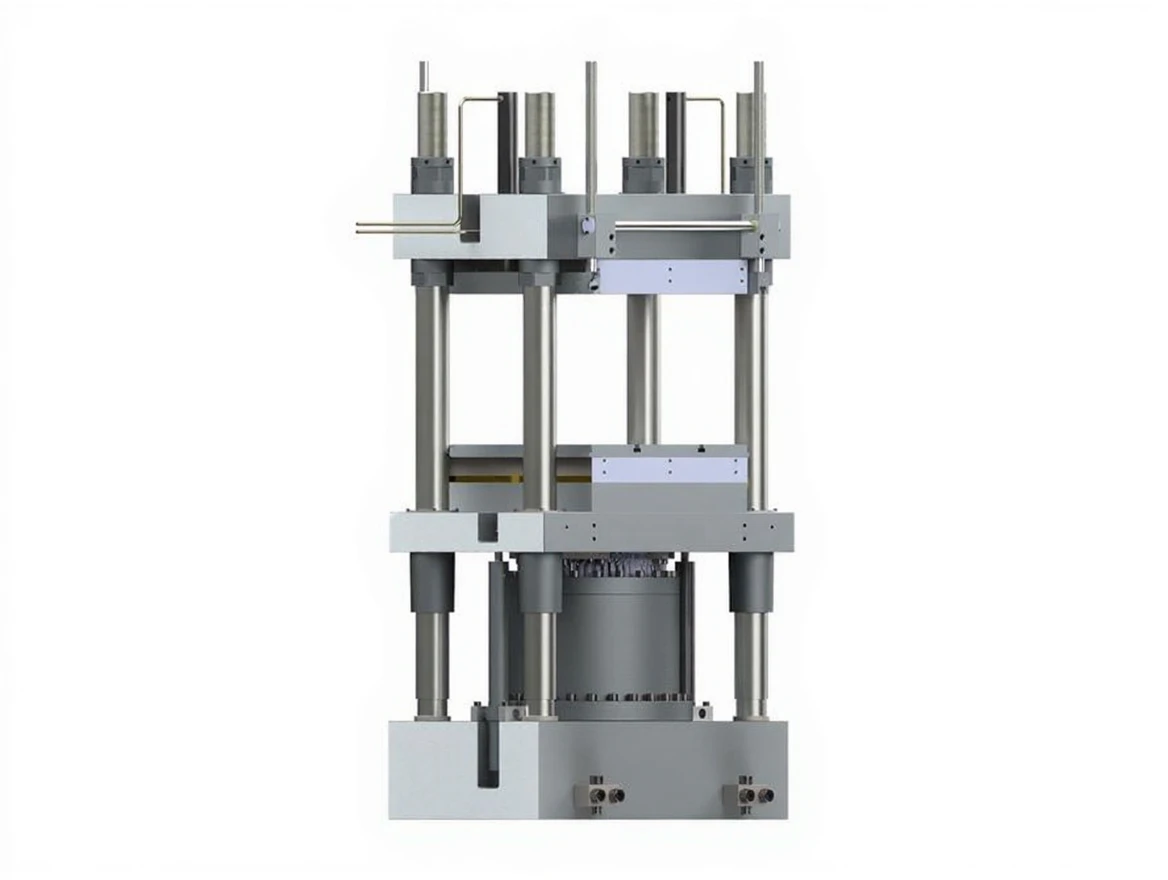

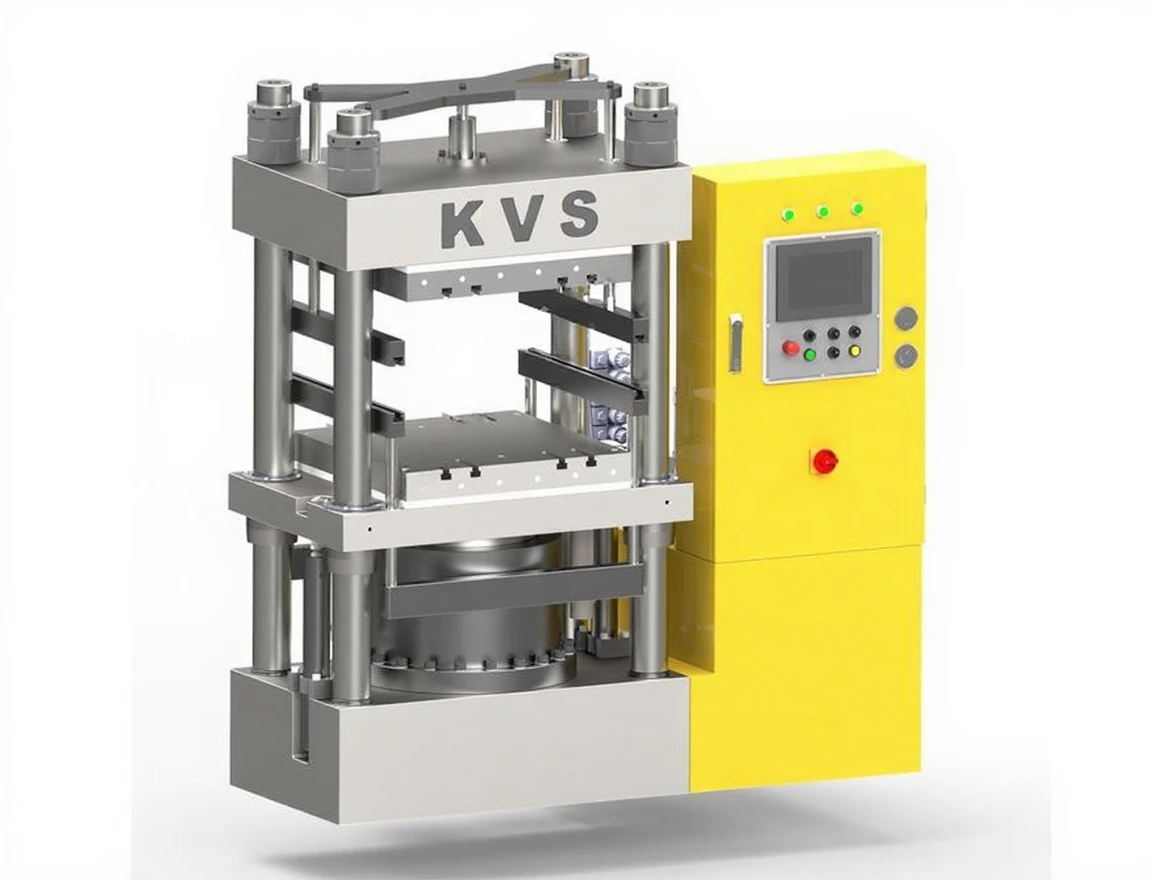

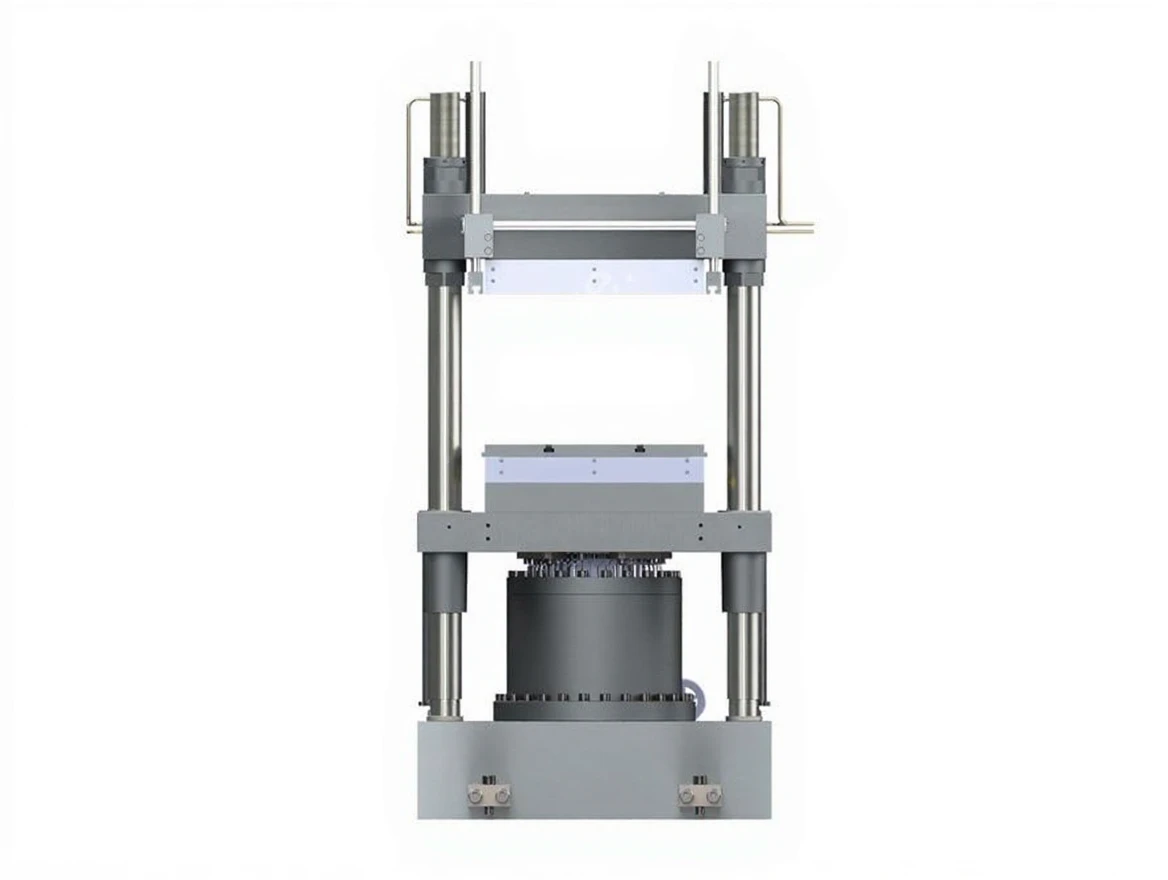

50 Ton Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
PRS / N-50 |
Description
50 Ton Rubber Vulcanization Machine
| MODEL | TYPE | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ |
| N-50 | N-80 | N-100 | N-150 | N-200 | N-250 | N-300 | N-400 | N-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 250 | 250 | 250 | 250 | 300 | 300 | 400 | 400 | 400 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mould Size | mm | 400*300 | 500*400 | 550*450 | 600*500 | 700*600 | 750*650 | 800*700 | 850*750 | 1,000*900 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 10 | 10 | 12 | 12 | 15 | 18 | 20 | 25 | 30 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 150 | 200 | 200 | 250 | 250 | 400 | 400 | 450 |
| Pump Type | Blade | |||||||||
| Dimensions Width/Length | Mt | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | Kg | 4.5 | 5 | 5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 |
| Height | Mt | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Machines that enable the easiest production of rubber products.
As Kavis Machine, we manufacture machines ranging from 50 tons to 5,000 tons.
The 2RT, 3RT, 4RT mold separation systems used in other machines can also be easily used in this machine, providing a highly efficient production process with high security.
Compatible with CE safety procedure with full enclosed cabin.
Options:
- Top Plate Lifter
- Bottom Plate Lifter
- Product extraction ejector
- 2RT / 3RT / 4RT
- External top and bottom ejectors
- Mold Plate rotation 180 degrees
