50 Ton Vacuum Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
VKM / V-50 |
Description
50 Ton Vacuum Rubber Vulcanization Machine
| MODEL | TYPE | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ |
| V-50 | V-80 | V-100 | V-150 | V-200 | V-250 | V-300 | V-400 | V-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 250*250 | 350*350 | 400*400 | 450*450 | 550*550 | 600*600 | 650*650 | 700*700 | 950*950 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 5 | 10 | 12 | 12 | 13 | 15 | 20 | 30 | 35 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 200 | 200 | 200 | 250 | 250 | 400 | 400 | 500 |
| Pump Type | Pallet | |||||||||
| Dimensions W/H | Mt | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | Kg | 5000 | 5500 | 5500 | 5500 | 6500 | 7000 | 7500 | 9500 | 13000 |
| Height | Mt | 2.3 | 2.3 | 2.4 | 2.5 | 2.4 | 2.6 | 2.6 | 2.6 | 2.6 |

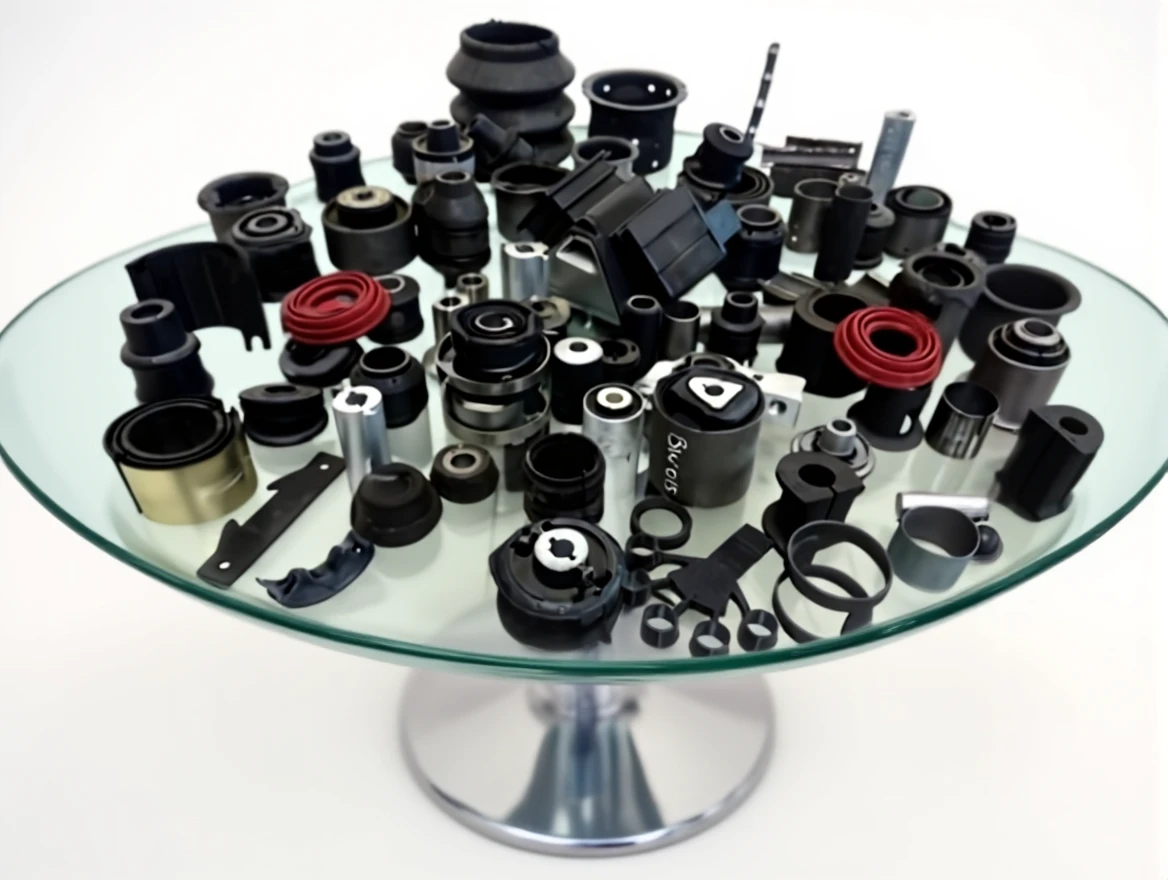

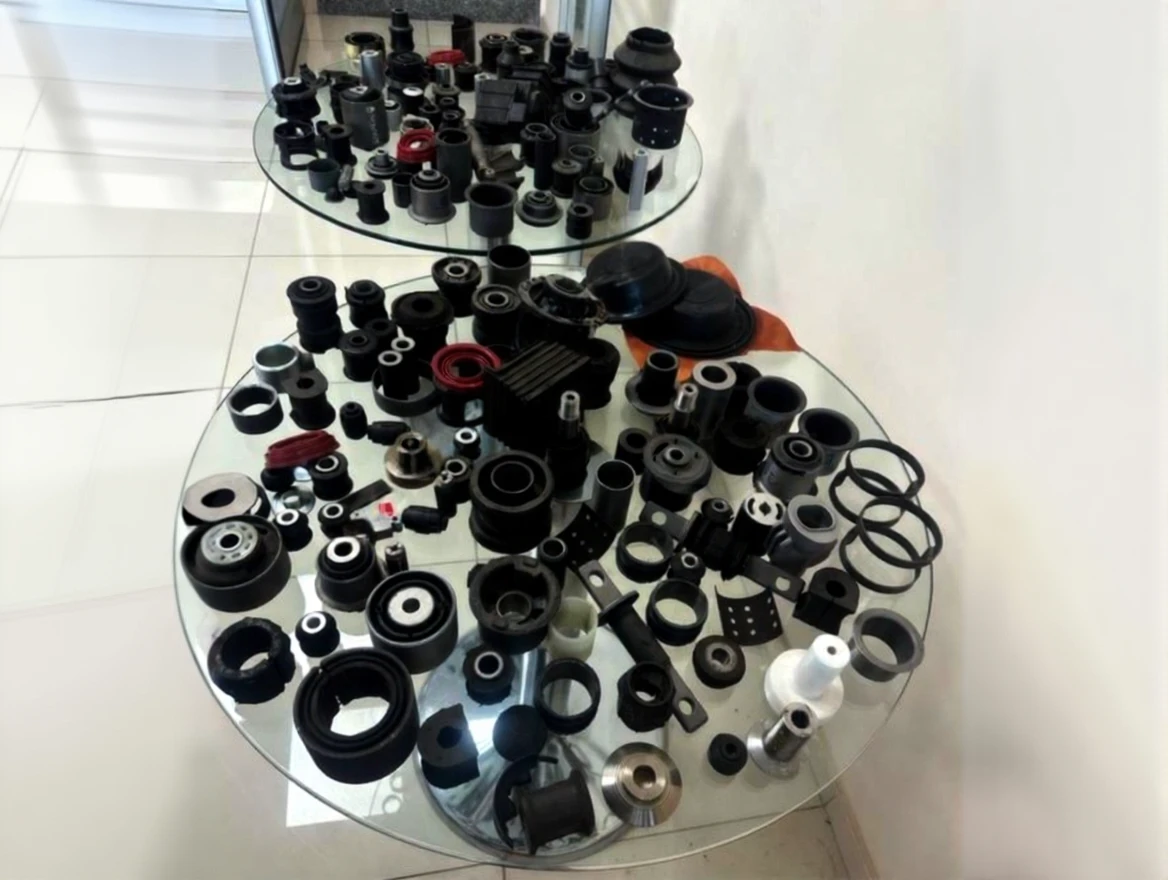

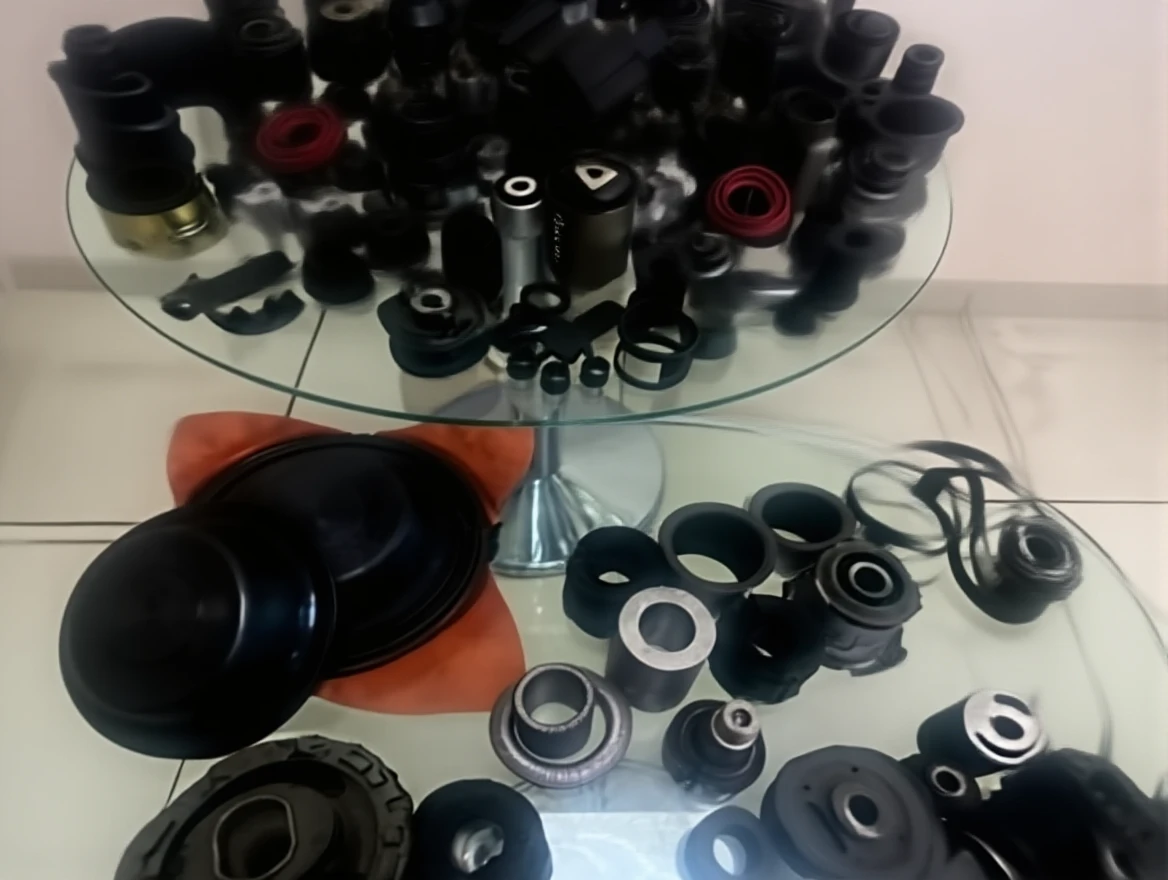

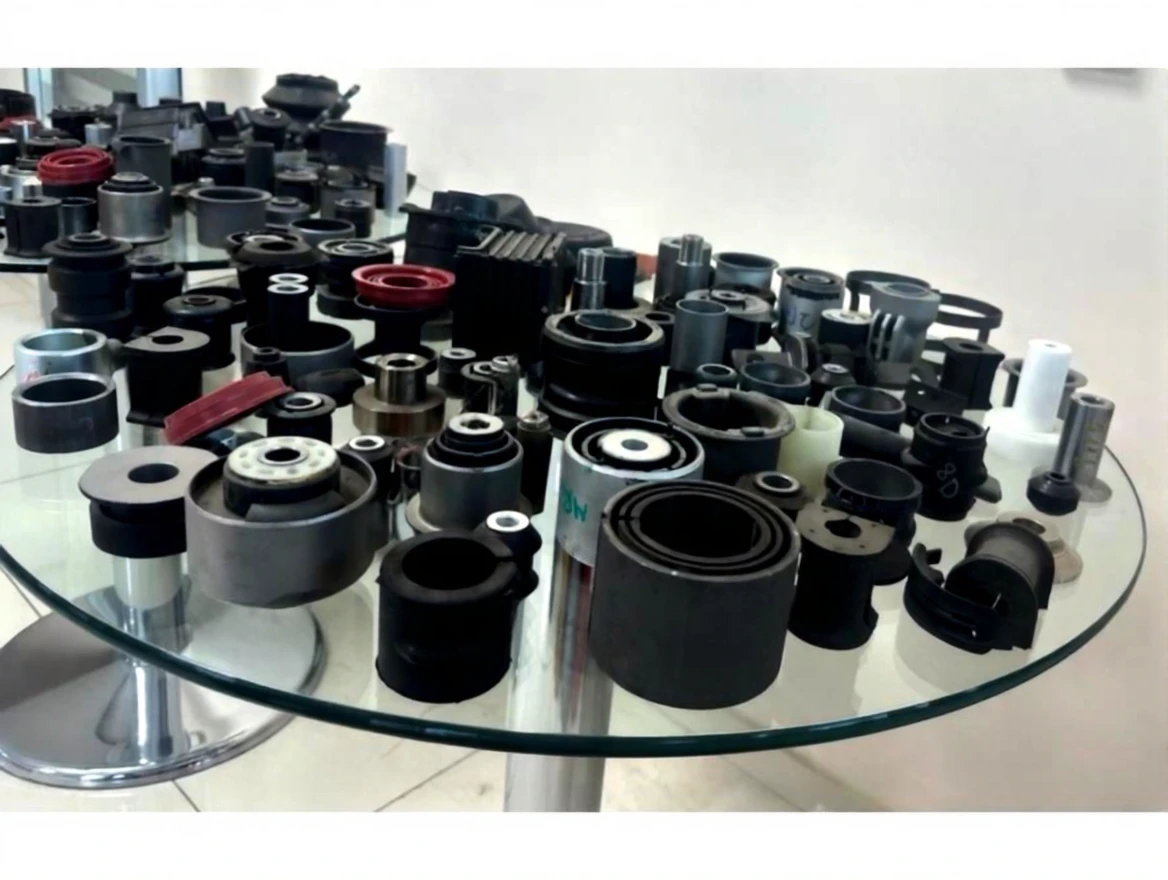

Machines that enable the easiest production of rubber products.
As Kavis Machine, we manufacture machines from 50 tons to 5,000 tons.

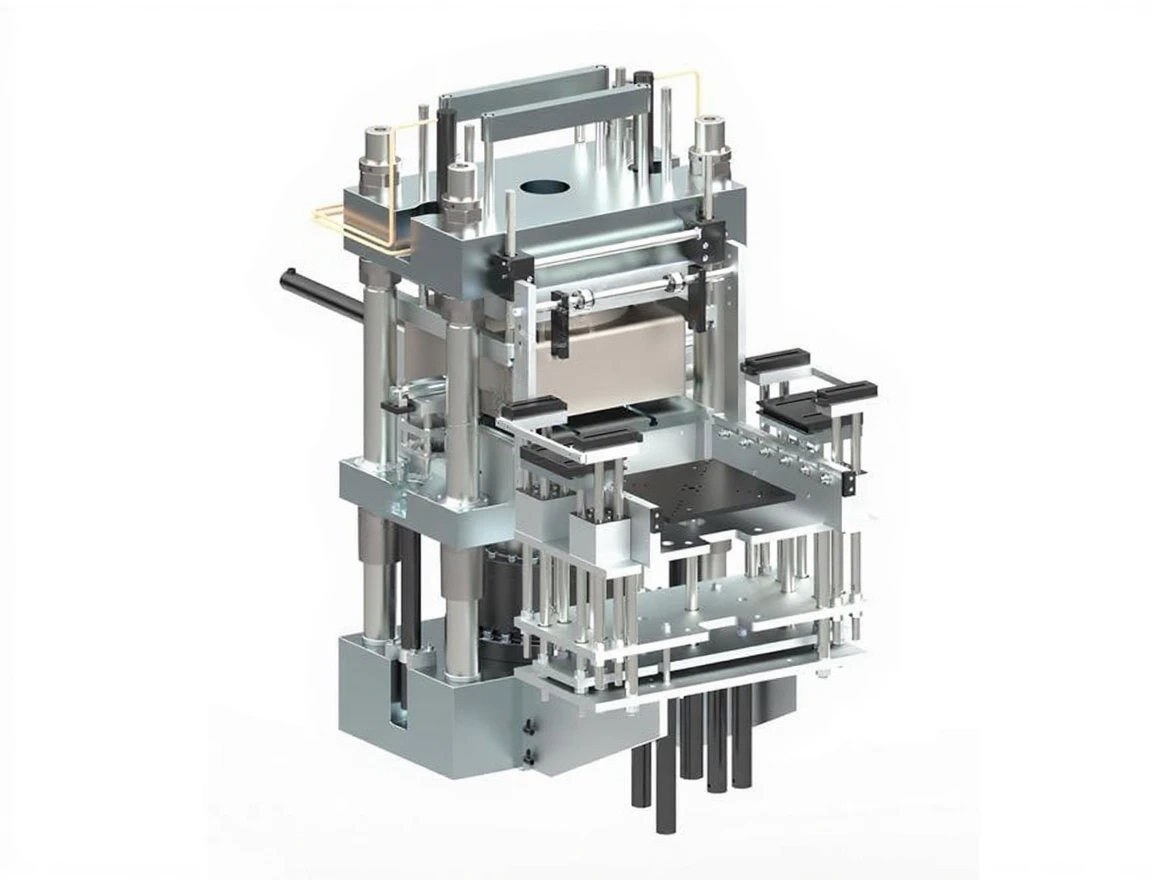

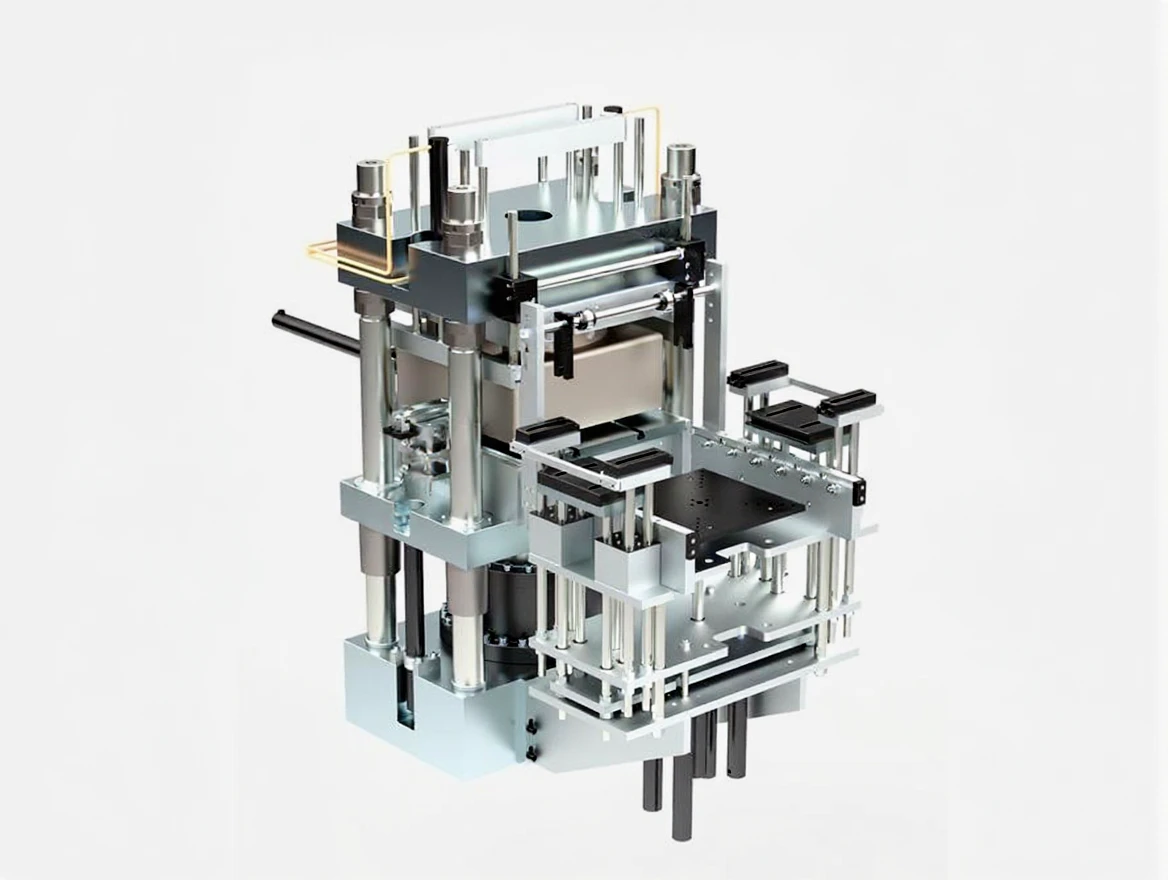

The 2RT, 3RT, 4RT mold separation systems used in other machines can also be easily used in this machine, offering a highly efficient production process with high safety.

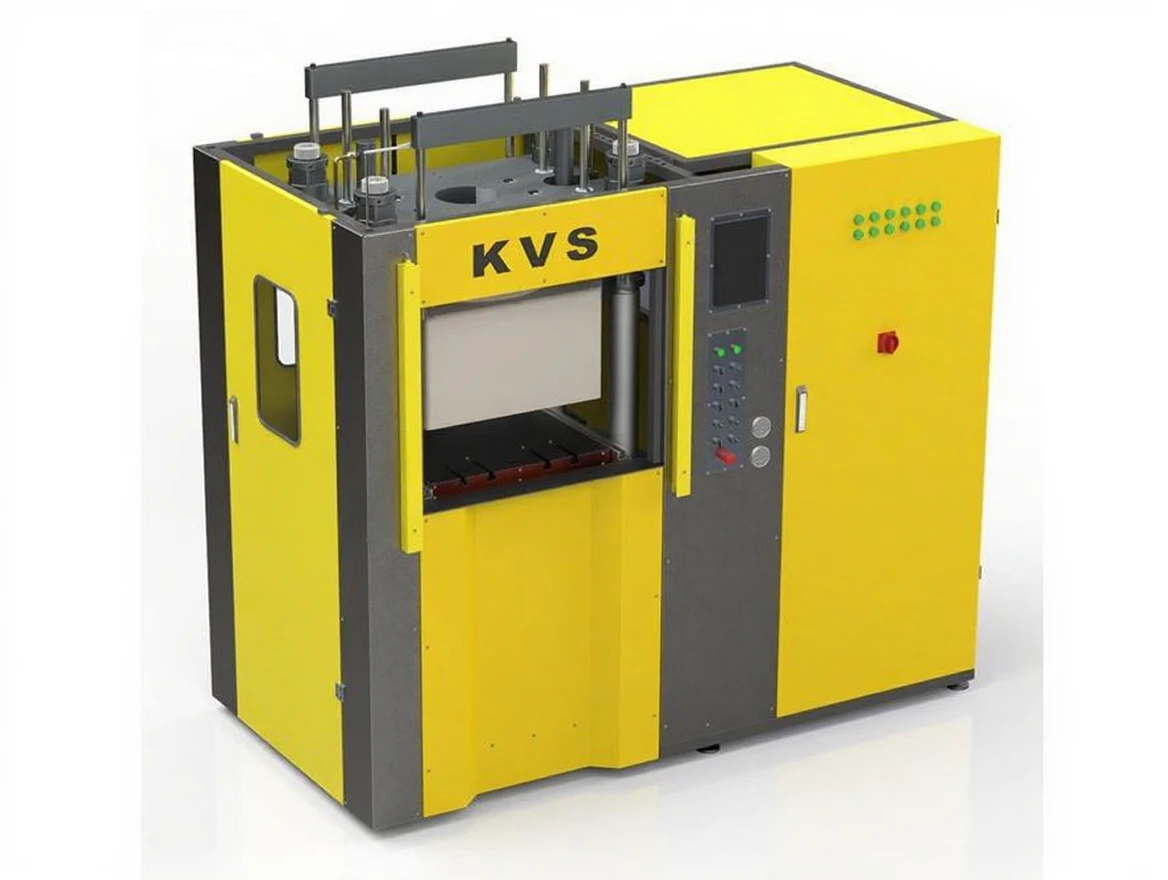

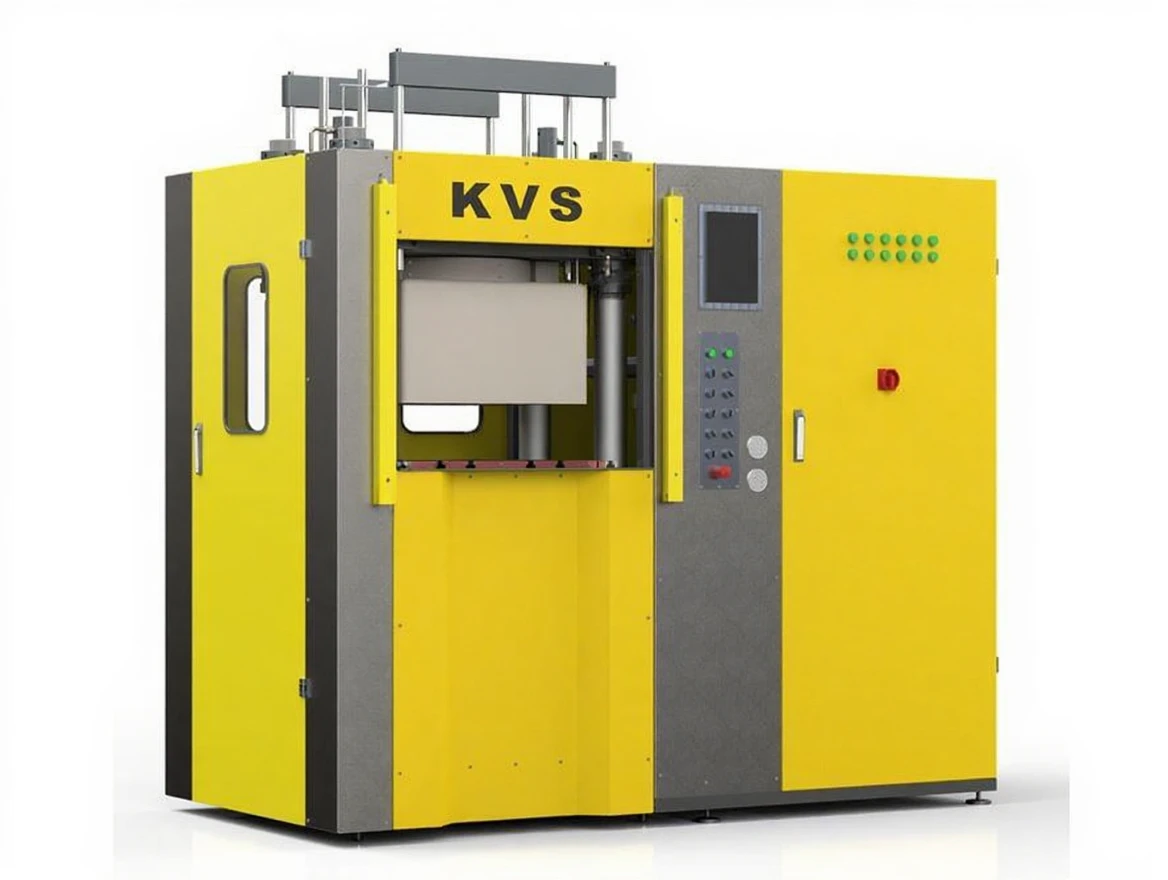

Fully enclosed cabin is suitable for CE safety procedures.
Options:
- Upper Plate Lifter
- Lower Plate Lifter
- Product Extractor Ejector
- 2RT / 3RT / 4RT
- External upper and lower ejectors
- Mold Plate rotation 180 degrees
