50 W Modern Motorized Table Laser Marking Machine
| Brand | Flymark |
|---|---|
| Model Type |
PF20 M |

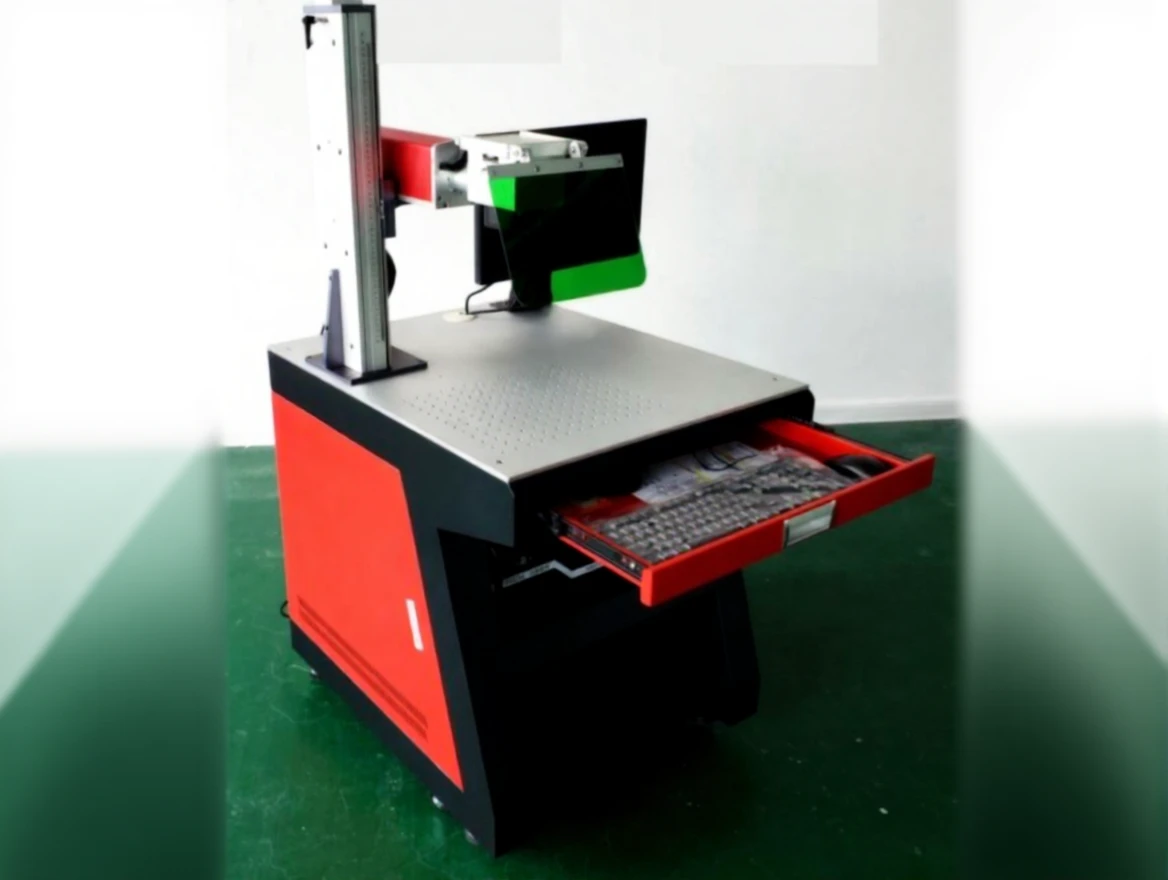

50 W Table Laser Marking Machine
• New Generation computerized design.
• Table with integrated aluminum table, modern design.
• Motorized focus system.
• Turkish/English branding design interface.
• Possibility to change marking quality by setting power, speed, frequency and scanning frequency.
• Marking position estimation with pilot light before marking. Ease of focusing with double red light.
• Easy marking opportunity for different products at different power levels.
• Powerful air cooling, installation possibility up to 100W.
• Much more economical and environmentally friendly than coding with ink.
• Ease of use with Windows 10 software in computerized options.
• Option to work more comfortably at the desk with its keyboard
| Technical Data | |
|---|---|
| Marking Area | 70x70mm, 110x110mm (standard), 150x150mm, 200x200mm |
| Required Voltage – Current Power Values | AC 220V – 50HZ* |
| Marking Speed | 8000mm/s (High quality Scanner Head) |
| Laser Welding Output Power | 20W / 30W / 50W / 100W |
| Laser Source Life | 100,000* hours |
| PRF Rate | 30-60 kHz (for 30W) |
| Pulse Lengths (ns) | 120 – 150ns (for 30kHz) |
| Wavelength | ~1064nm |
| Cooling Type | Air Cooled (Fan assisted) |
| Power Consumption | 300W (at 20°C for 30W) |
| Ambient Humidity and Temperature | 80% – 0°C ~ 45°C |
| Certification and Warranty Period | CE Certified and 3 years Warranty |
| Focus System | Manual (Autofocus is optional) |
| Communication Methods | Suitable for data acquisition and marking via RS232, Ethernet, SQL Protocols |
