500 Kg Elektrikli Asma İskele
| Brand | Bmunit |
|---|---|
| Model Type |
STM 500 |

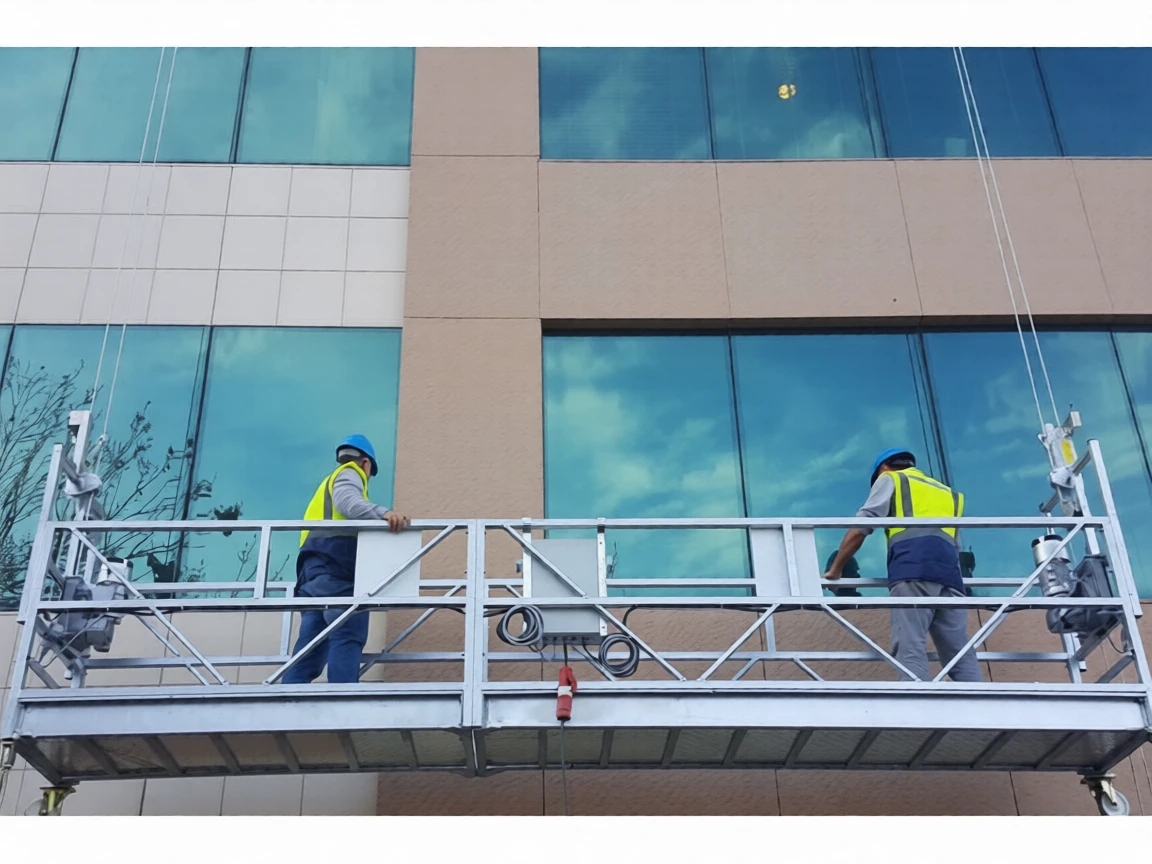

500 Kg Electric Overhead Gantry
There is a multi-purpose usage opportunity for skinning, painting, plastering, repair… works on the exterior facade of the building. Thanks to the practical installation and easy movement features of the overhead gantry, it saves time and labor. Electric overhead gantries can have platforms divided between 1 – 6 meters according to the building facade. Lifting speed is 7 meters per minute.
Since it is a system that moves on a rope, infinite working distance is provided. Custom work platforms suitable for your building are produced according to your request. Platforms are protected with a motor brake and block stop brake system.
There is a second rope system for worker and platform safety. In the event of a possible power outage, it can be manually lowered. Our products have a 2-year warranty. All our products are in compliance with European standards and have CE conformity certificate.
Safety Standards
• Speed-sensitive parachute brake system
• Electromagnetic brake system
• Emergency stop button
• Platform lower and upper limit stop system
• Stop system at final height thanks to final mas
• Audio warning system during up and down movements
• Stop working when the door is open system
• Warning system for telescopic extensions
• Motor fault warning system
• Phase fault warning system
• Connect with anchorage system every 6 meters
• Railing and edge safety system
• Automatic balance system in double use
• Emergency manual platform lowering system
• Balance system with movable feet
• Easy transportation system with polyamide wheels
• 220 V socket option on the panel
• Upon your request, air and fixed chassis are produced.
• All mechanical movements that occur during use are provided by the driwer (speed control system) on all our platforms.
• Balance switches are used in double platforms to prevent mechanical shrinkage and balance malfunctions.
• Control and inspection of all our products are provided online from our production center.
• Mobile chassis are produced as standard, upon your request polimet chassis production is made.
• Prevent rusting with hot-dip galvanizing system
Technical Specifications:
| TECHNICAL SPECIFICATIONS | STM 300 | STM 500 | STM 800 | STM-[ PHONE HIDDEN ]-2500 |
|---|---|---|---|---|
| Lifting Capacity | 300 | 500 | 800 | [ PHONE HIDDEN ] |
| Motor Power and Quantity | 1.1 kW (1 PC) | 2.2 kW (2 x 1.1 kW) | 2.5 kW (2 x 1.25 kW) | 3 – 5 kW (2 x 1.5 kW) |
| Climbing Speed | 7 Mt/Min | 7 Mt/Min | 7 Mt/Min | 7 Mt/Min |
| Platform Dimensions (Cm) | 100 x 66 x 110 / 600 x 66 x 110 | 200, 300, 400, 500, 600, 700 x 66 x 110 | 200, 300, 400, 500 | 200, 300, 400, 500, 700 |
| Safety System | Electromechanical Brake / 1 Block Stop | Electromechanical Brake / 2 Block Stop | Electromechanical Brake / 2 Block Stop | Electromechanical Brake / 2 Block Stop |
| Rope Thickness & Length | 8 mm (6 x 19) Galvanized | 8 mm (6 x 19) Galvanized | 10 mm (6 x 19) Galvanized | 10 – 12 mm (6 x 19 – 5 x 26) Galvanized |
| Voltage | 380 V | 380 V | 380 V | 380 V |
