500 Kg Four-Column Pneumatic Vacuum Lifting System for Marble Ceramic Glass

SL-PVL-500VRT/PL – Special Design Vacuum Lifting System for Advanced Balanced Transportation

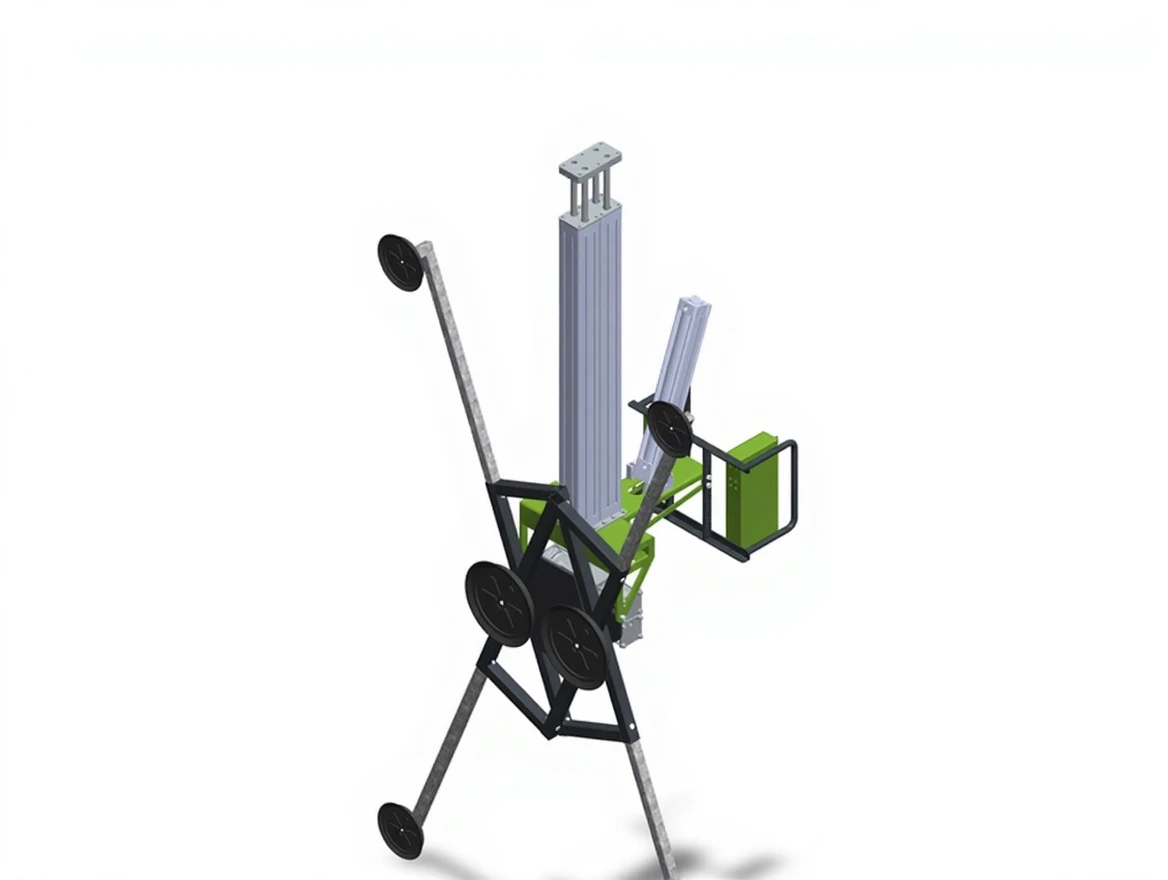

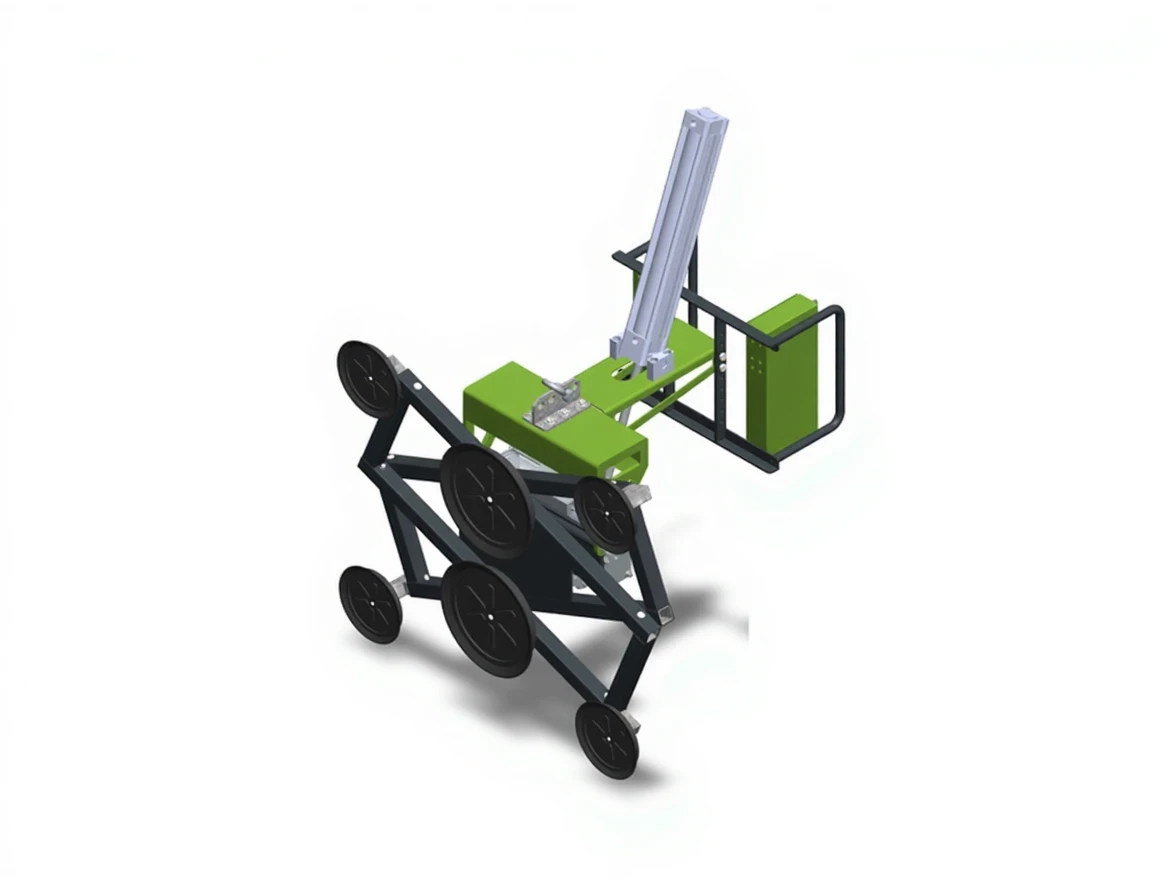

Part of SingleLift's Bat Series, SL-PVL-500VRT/PL is a highly secure vacuum lifting solution specially developed for the vertical lifting, 90° tilting, and 90° rotating of delicate materials such as glass, ceramic, marble, and panels.

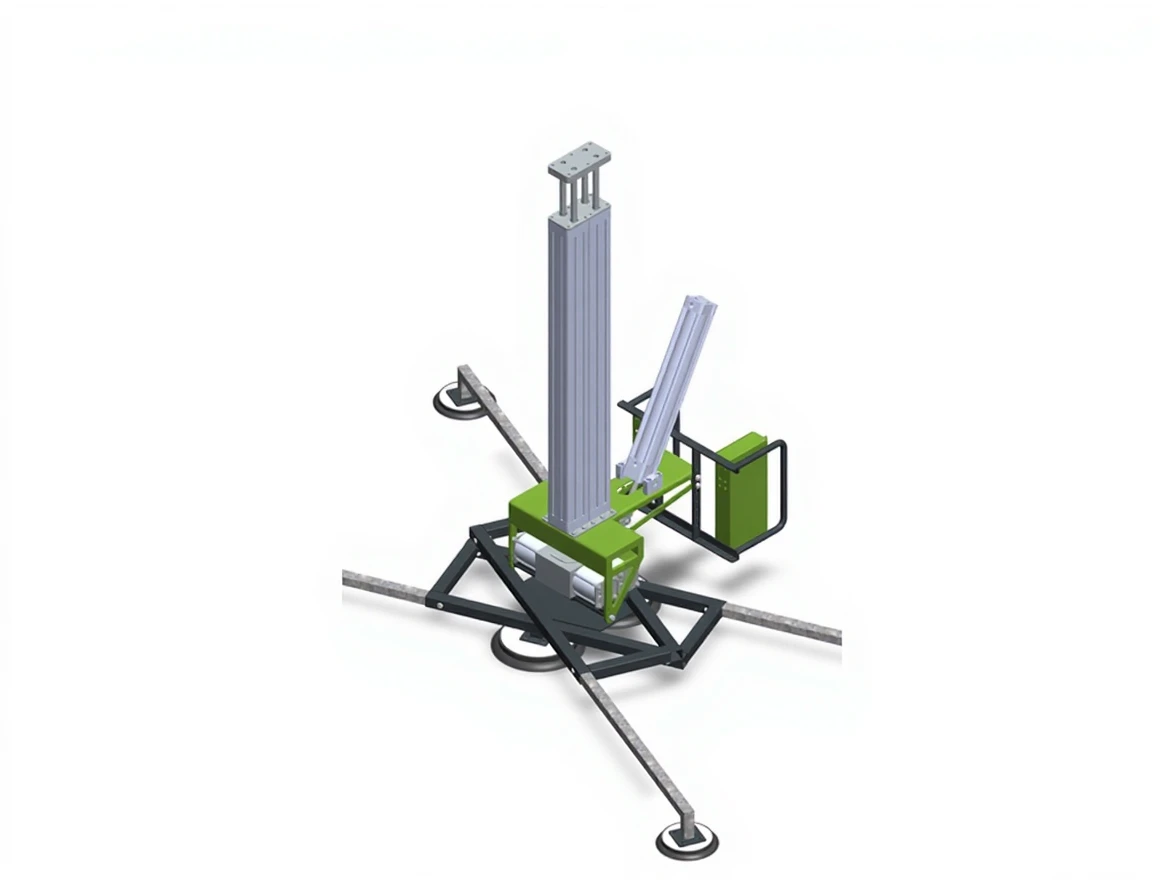

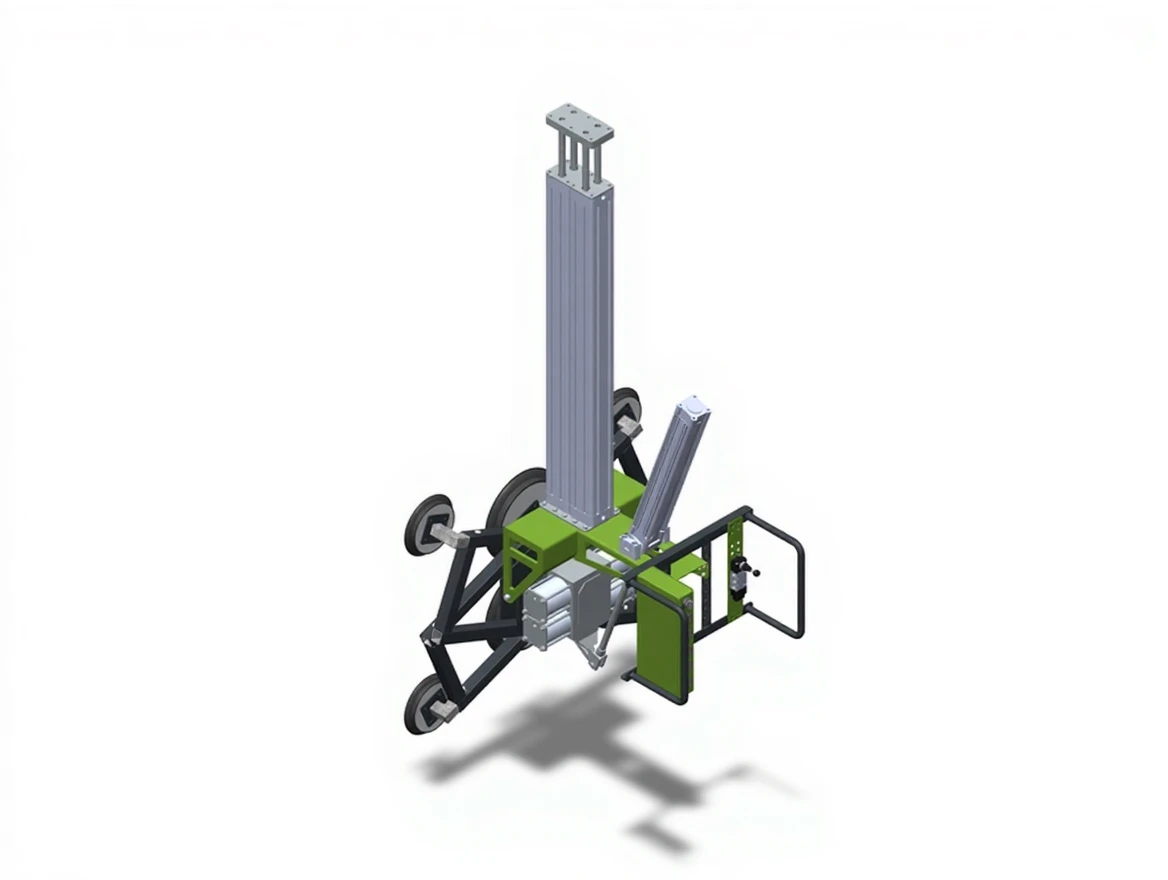

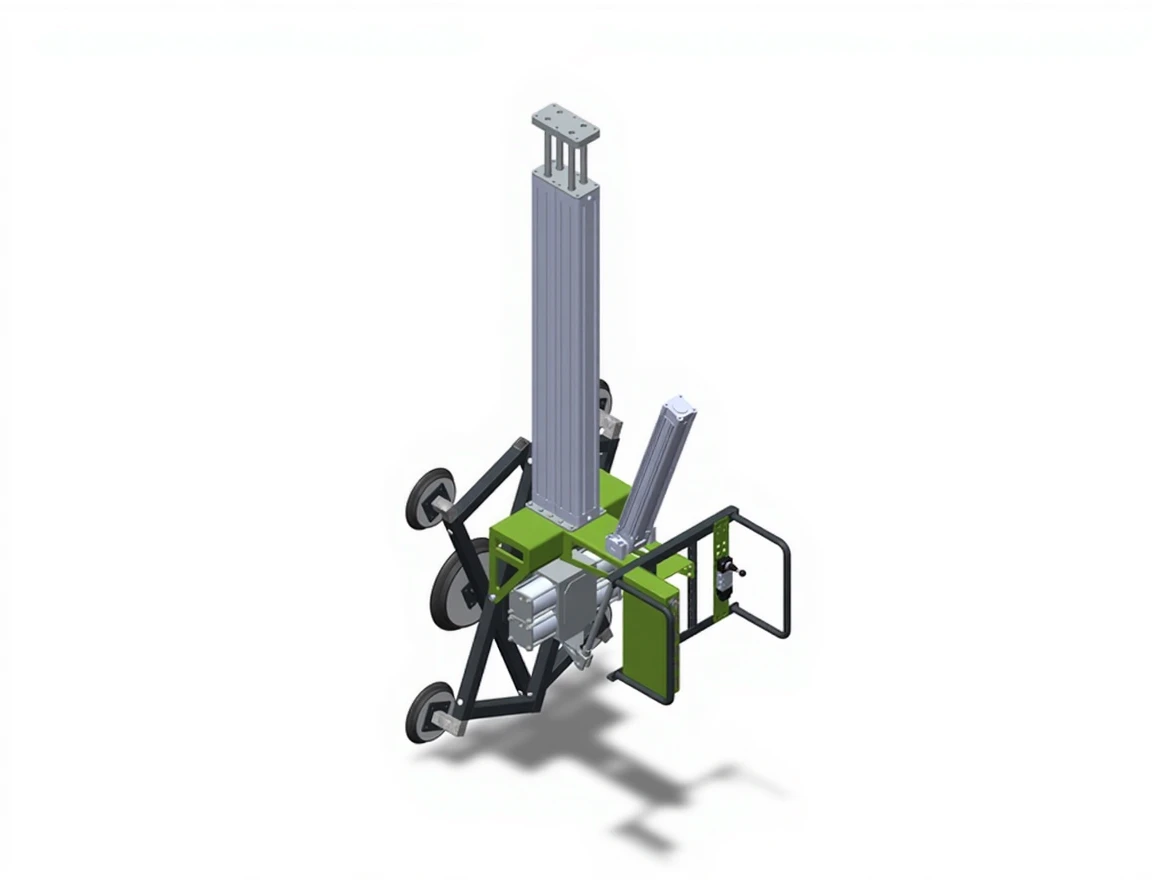

The most prominent feature of this model is the special design four-column pneumatic lifting cylinder that prevents mass swaying during transportation. This structure ensures maximum balance during the movement of the load and provides the operator with a safe usage.

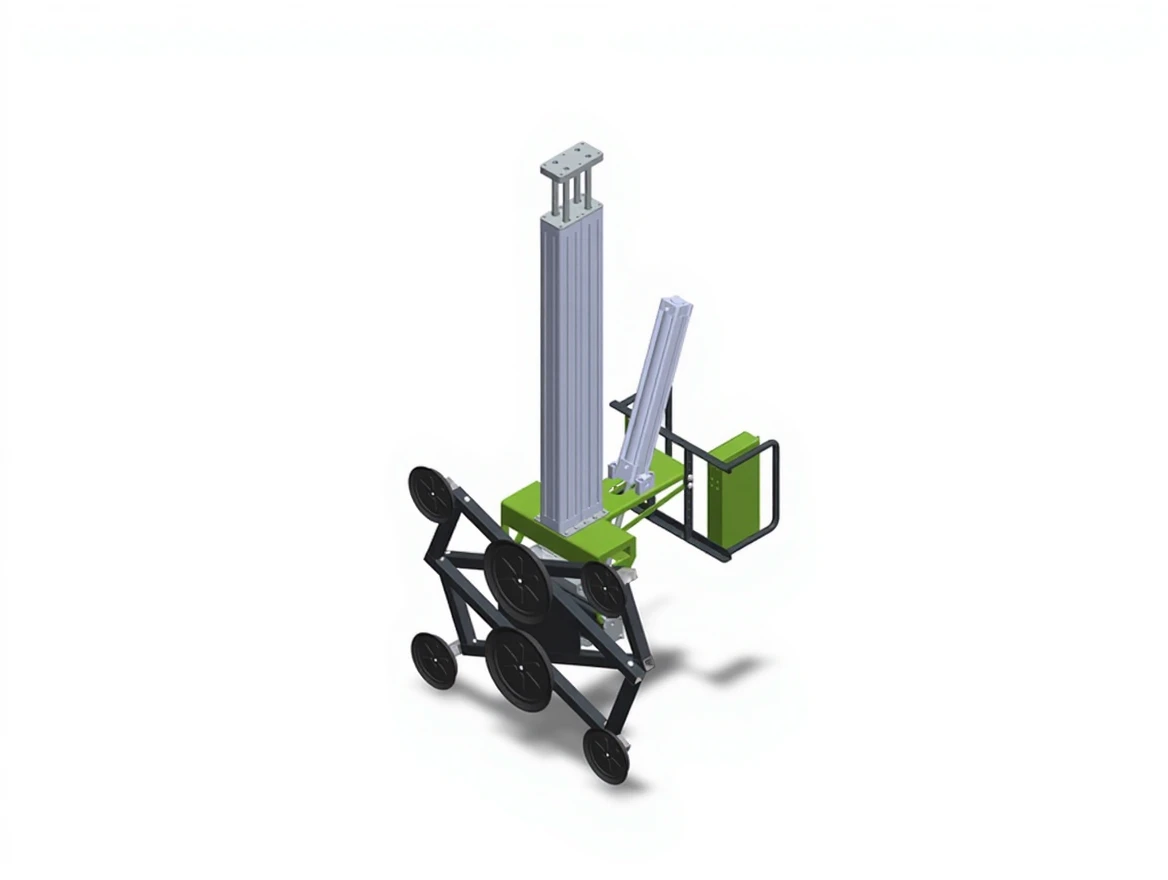

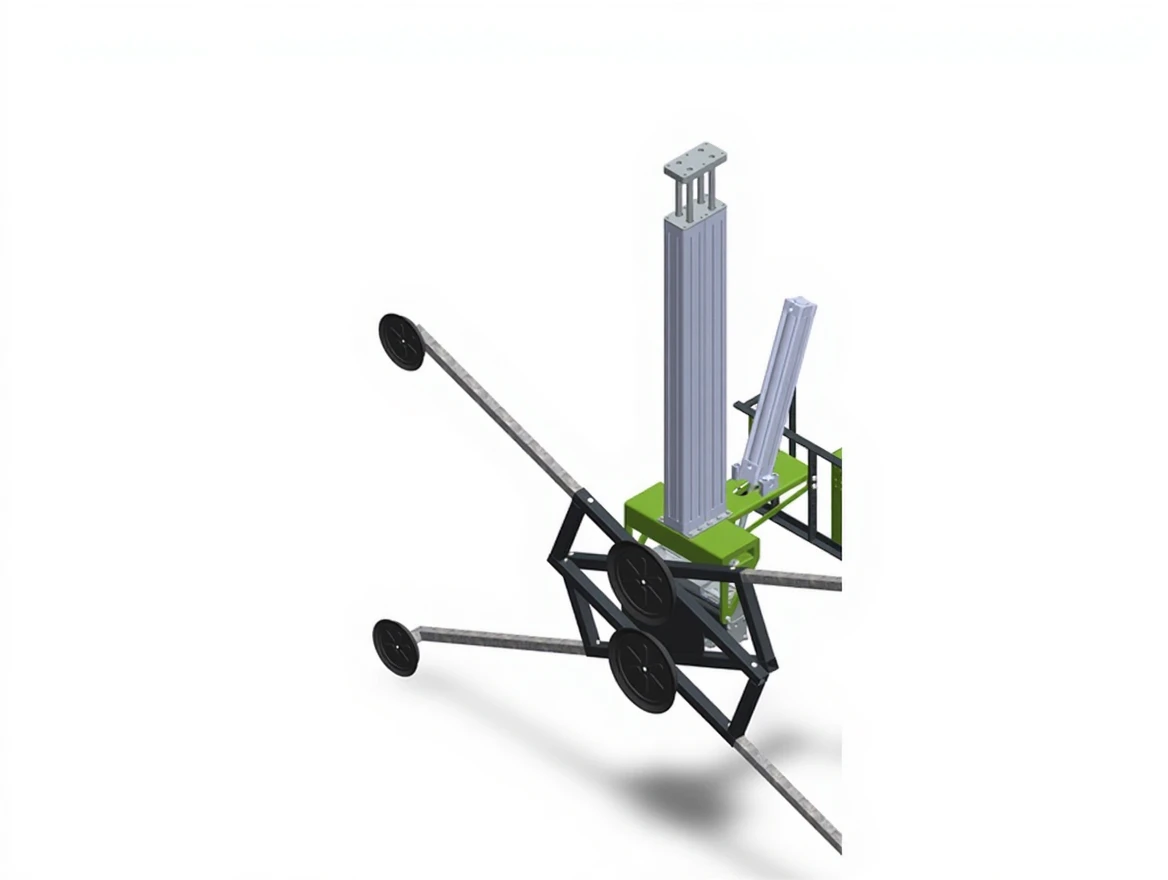

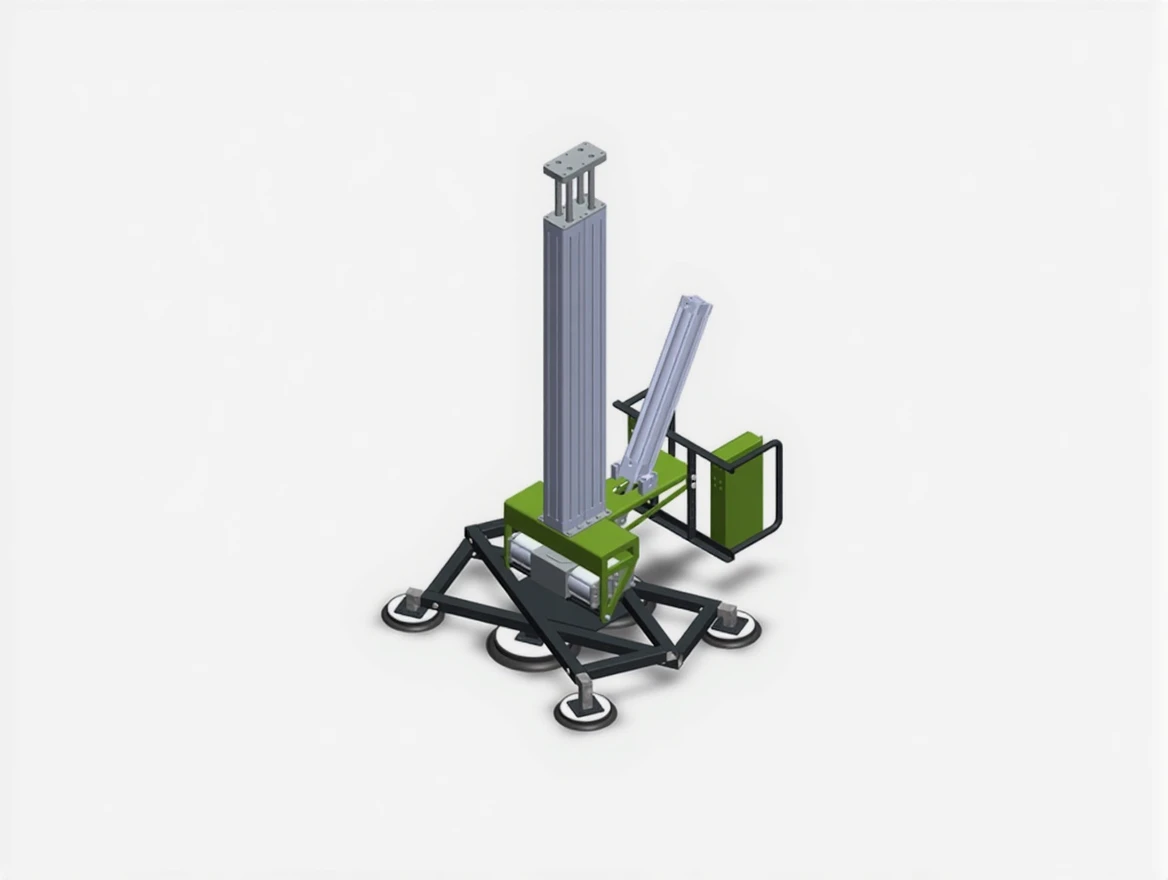

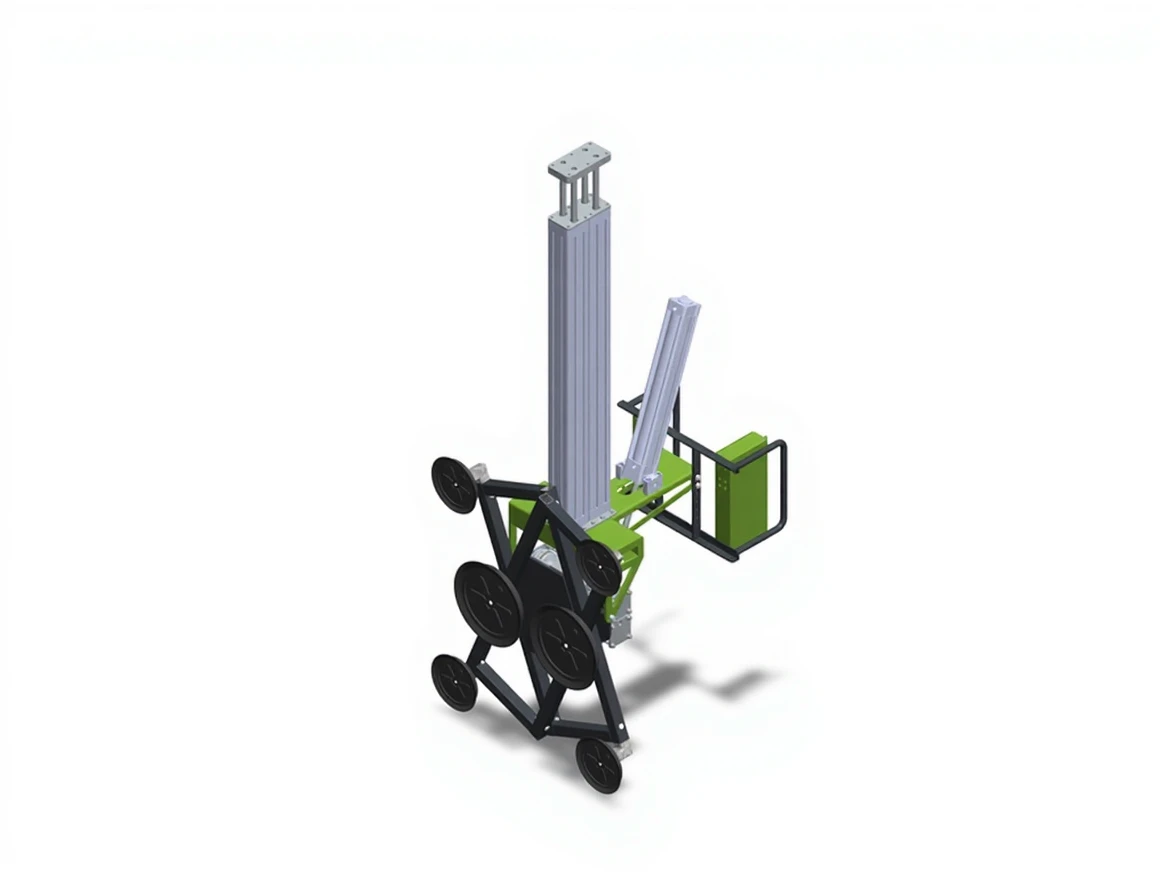

Equipped with a total of 6 suction cups with a diameter of 290 mm (2 center + 4 perimeter), the system enables the safe transportation of large and heavy materials. Extendable suction arms allow for easy gripping of large panels and glass.

The ergonomic and lightweight structure of SL-PVL-500VRT/PL reduces operator fatigue during long-term operations in production areas. Additionally, the design optimized according to shape and topology combines high durability with minimal weight.

Technical Specifications

• Lifting Capacity: 500 kg

• Number of Suction Cups: 6 (2 center + 4 perimeter)

• Suction Cup Diameter: 290 mm

• Tilting Angle: 90°

• Rotating Angle: 90°

• Lifting System: Special design 4-column pneumatic cylinder

• Body Structure: Ergonomic, lightweight, optimized design

• Safety: Maximum balance against mass swaying

Areas of Use

• Facade glass assembly and production lines

• Precise positioning of marble, ceramic, and panels

• Transition from vertical to horizontal position in construction sites and factory environments

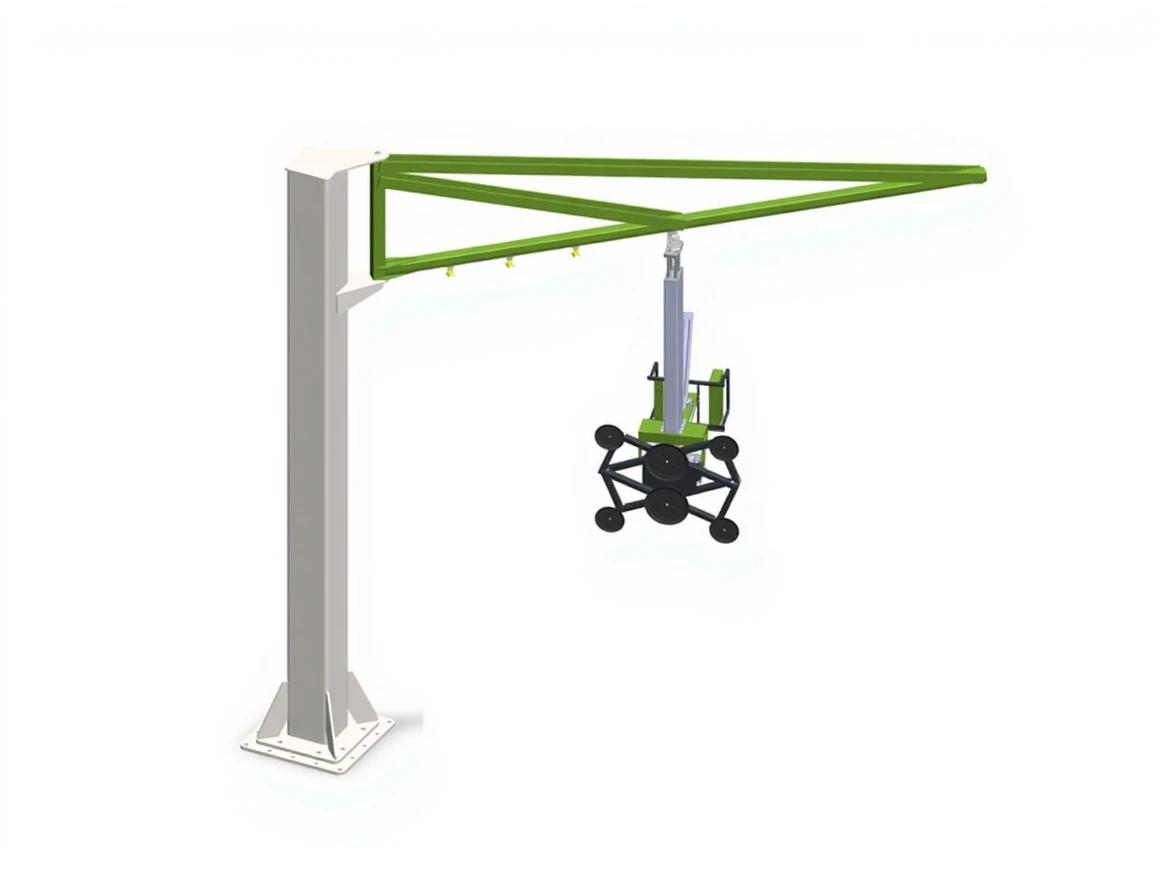

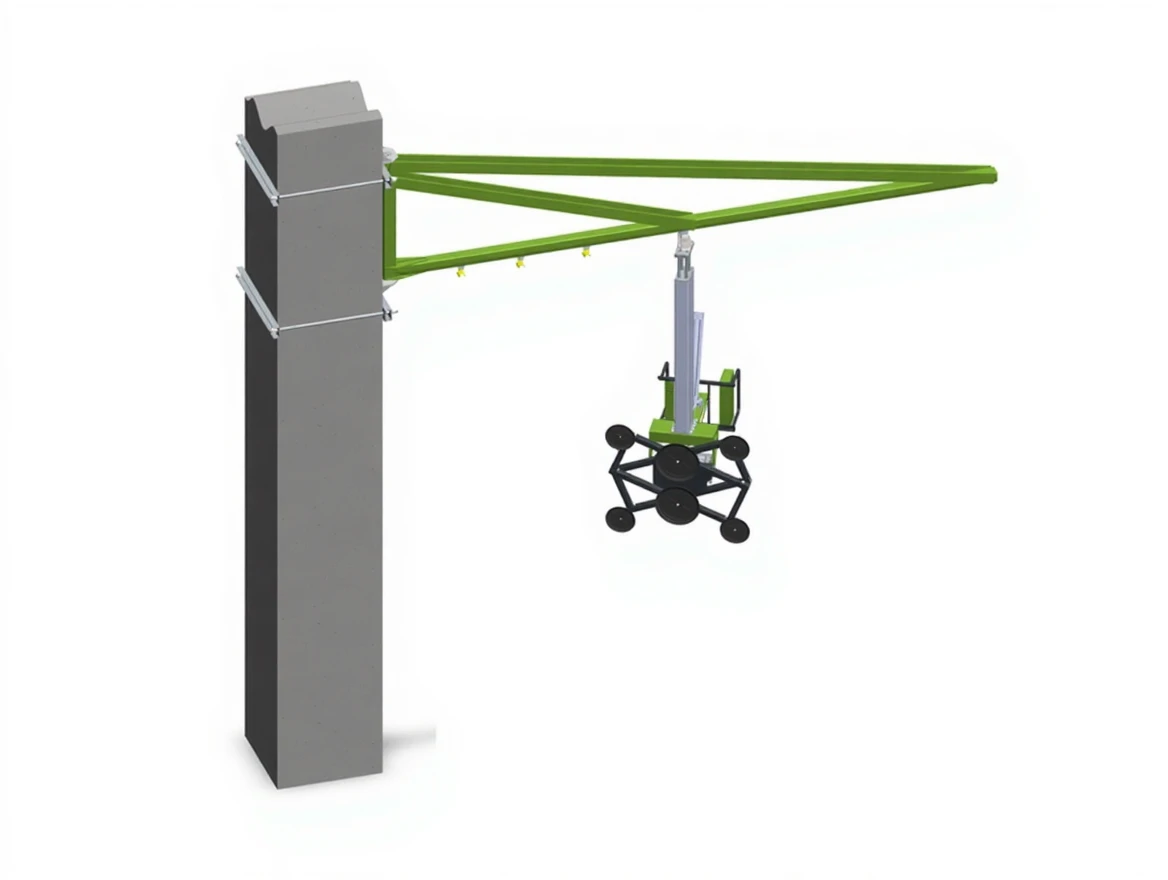

• Integration with manual and automatic transportation systems in glass processing centers
