500 Kg/Hour Compact Steam Generator
| Brand | Universal |
|---|---|
| Model Type |
KBJ 500 |
Description

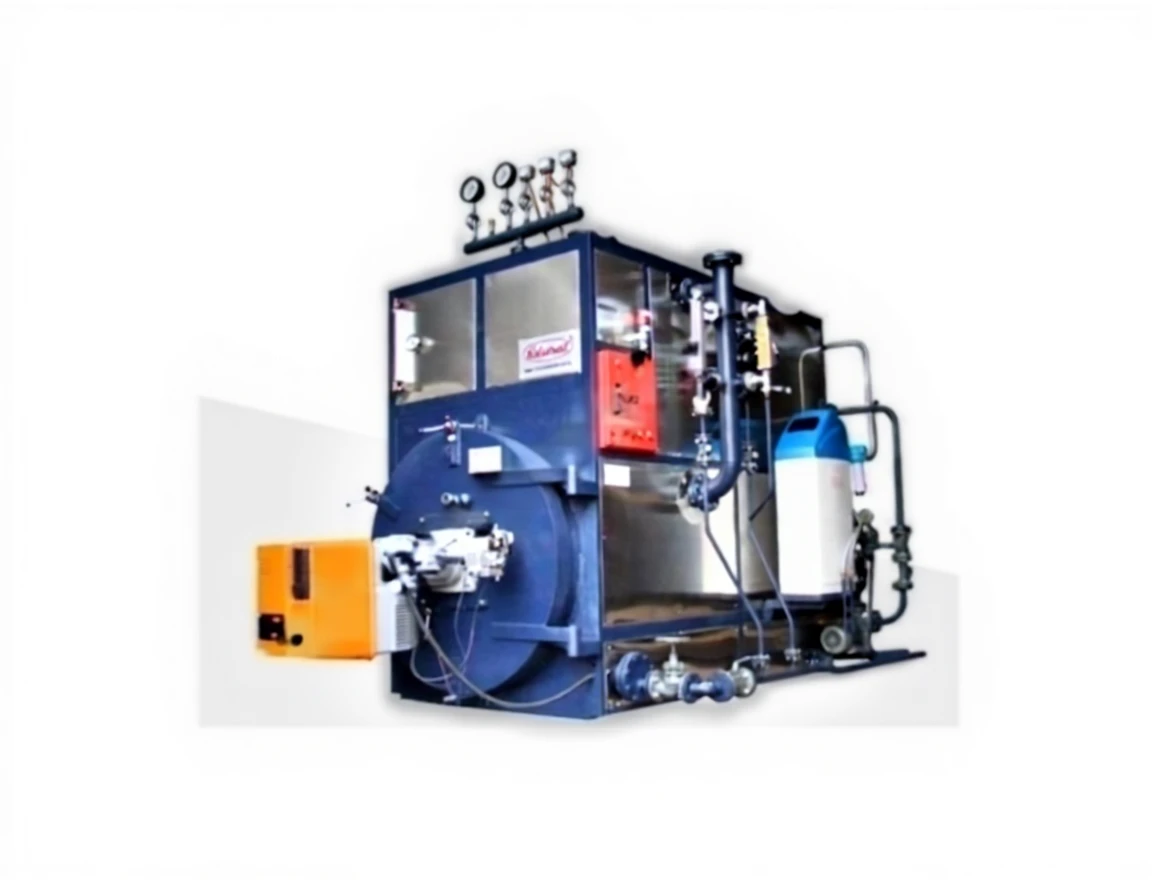

500 Kg/Hour Compact Steam Generator
Universal Boiler KBJ 500
GENERAL FEATURES
- Takes up little space and produces economical steam in a very short time.
- Manufactured according to heavy-duty conditions. Not easily affected by hard and turbid waters.
- Operates automatically and safely. Has sequential safety systems.
- Works without requiring excessive information, maintenance, and supervision.
- Proven itself with hundreds of examples operating in Turkey and abroad for years.
- It is a compact unit with a boiler, feed water pump, condensate tank, water filter, automatic water softening unit, and electrical panel.
DESIGN
An ideal steam producer for hotels, laundries, garment and knitwear factories, feed industry, concrete curing, dry cleaning, beverage bottling industry, steam washing and cleaning, sock industry, and similar industrial facilities.
COMPONENTS
- Steam generator
- Boiler fittings
- Safety systems
- Feed water (condensate) tank and fittings
- Boiler feed pump and fittings
- Burner
- Automatic water softening device
- Water filter
- Electrical panel and installation
|
|
Steam Capacity (kg/h) |

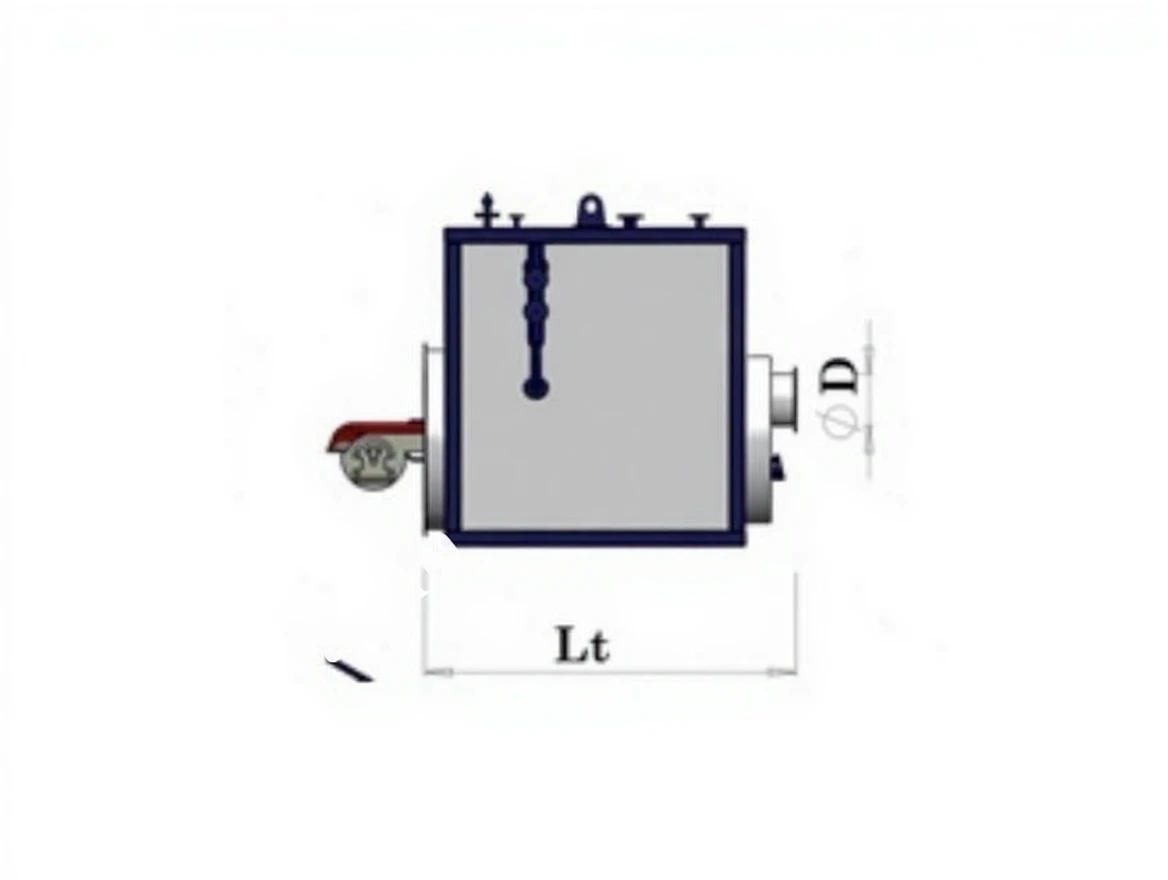

Length Without Fittings L (mm) |
Length With Fittings L (mm) |

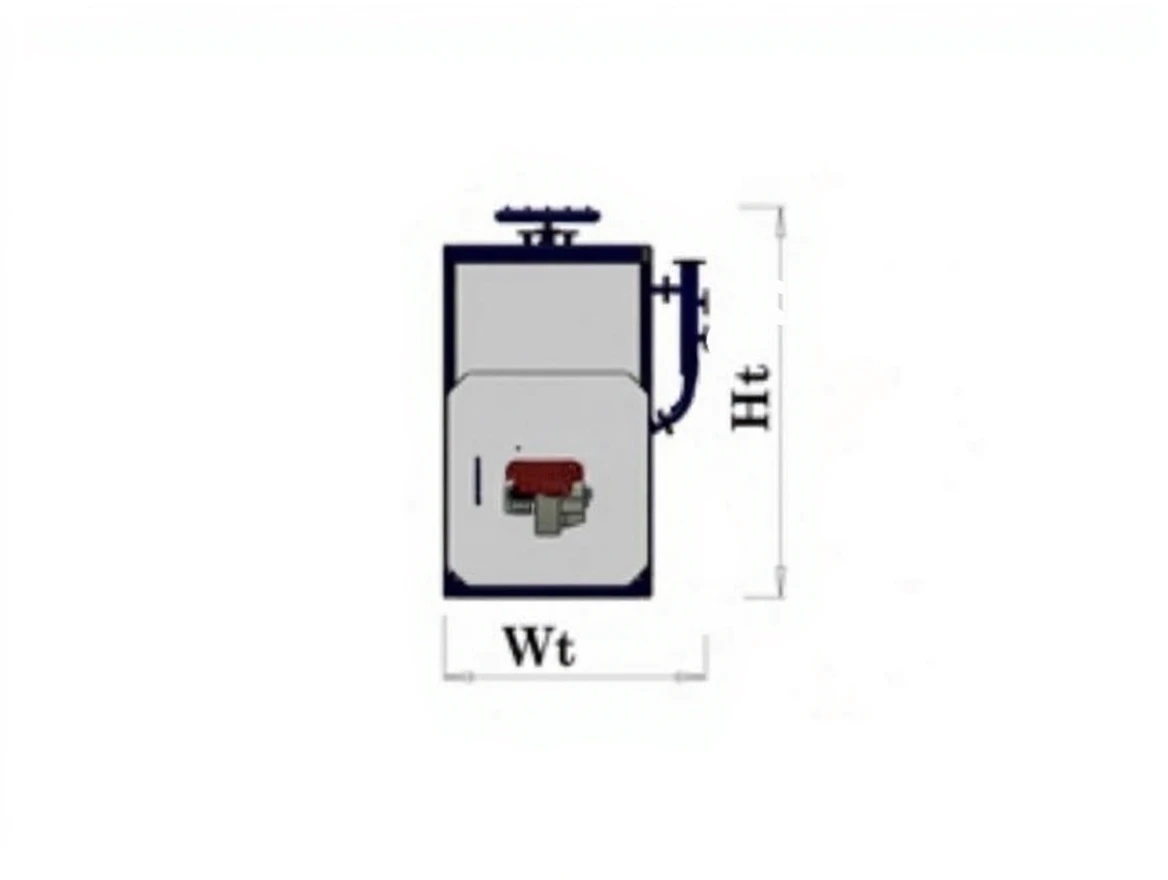

Width With Fittings E (mm) |
Height Without Fittings H (mm) |
Height With Fittings H (mm) |
Water Volume (lt) |
Chimney Diameter (mm) |
Approximate Weight (kg) |
Smoke Duct Resistance (mmSS) |
|
KBJ |
500 |
2,600 |
3,400 |
1,550 |
2,270 |
2,520 |
772 |
300 |
2,641 |
20 |
