500 Kg Single Mill Pneumatic Cylinder Vacuum Lifting System

SL-PVL-500VT/SPL – Single Mill Pneumatic Cylinder Vacuum Vertical Lifting and Tilting System

The SL-PVL-500VT/SPL in SingleLift's Bat Series is specially designed for vertical transportation and 90° tilting operations of glass, marble, ceramic, and composite panels in production lines, offering a compact and user-friendly vacuum lifting solution.

The single mill pneumatic lifting cylinder used in this model ensures that the system operates economically and in a balanced manner. The SL-PVL-500VT/SPL provides a carrying capacity of up to 500 kg, making it suitable for use even in tight spaces due to its lightweight body and optimized design.

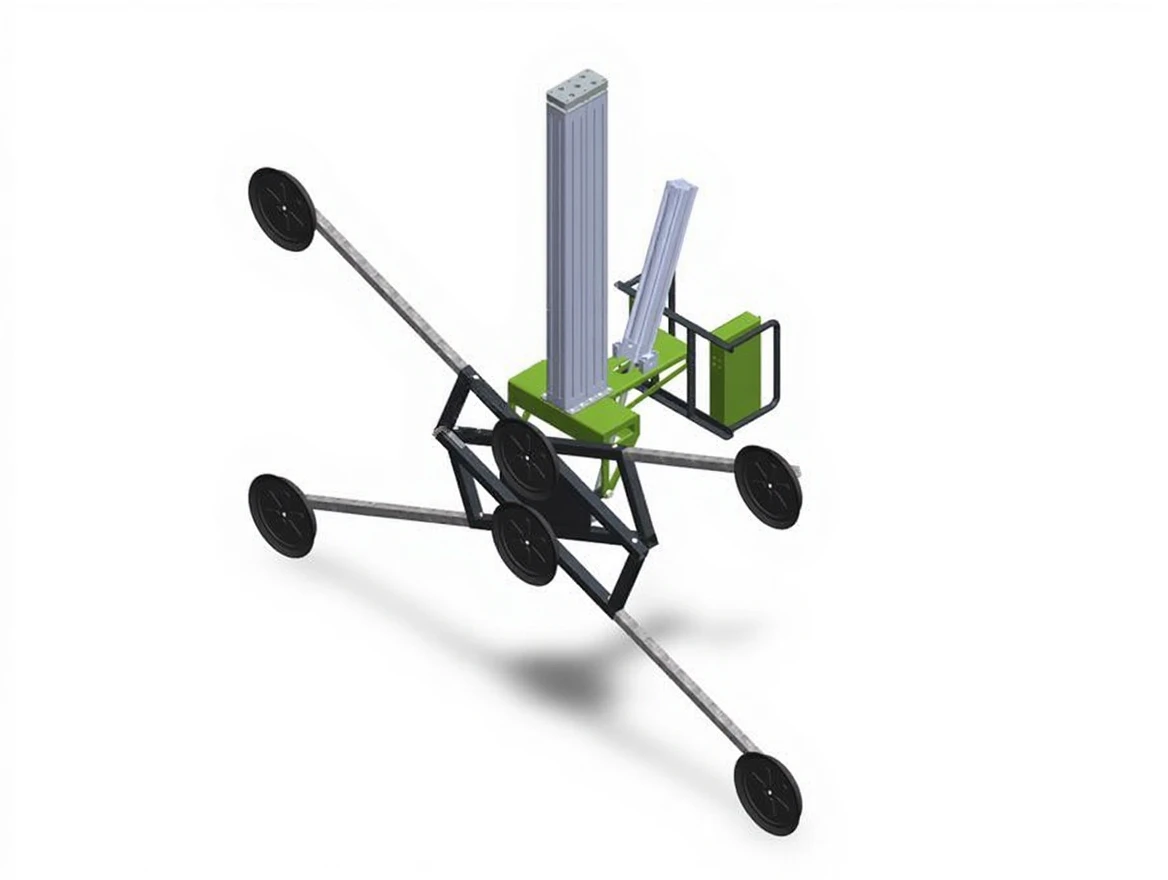

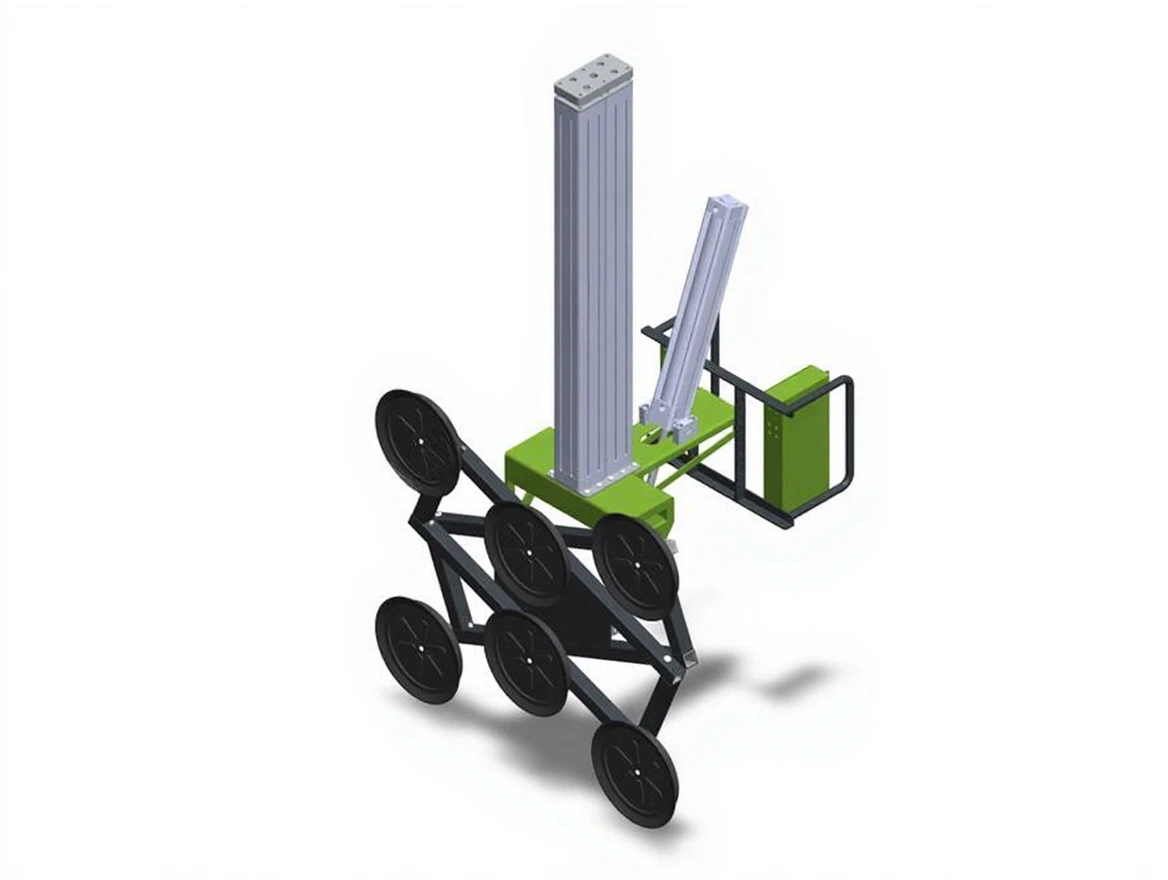

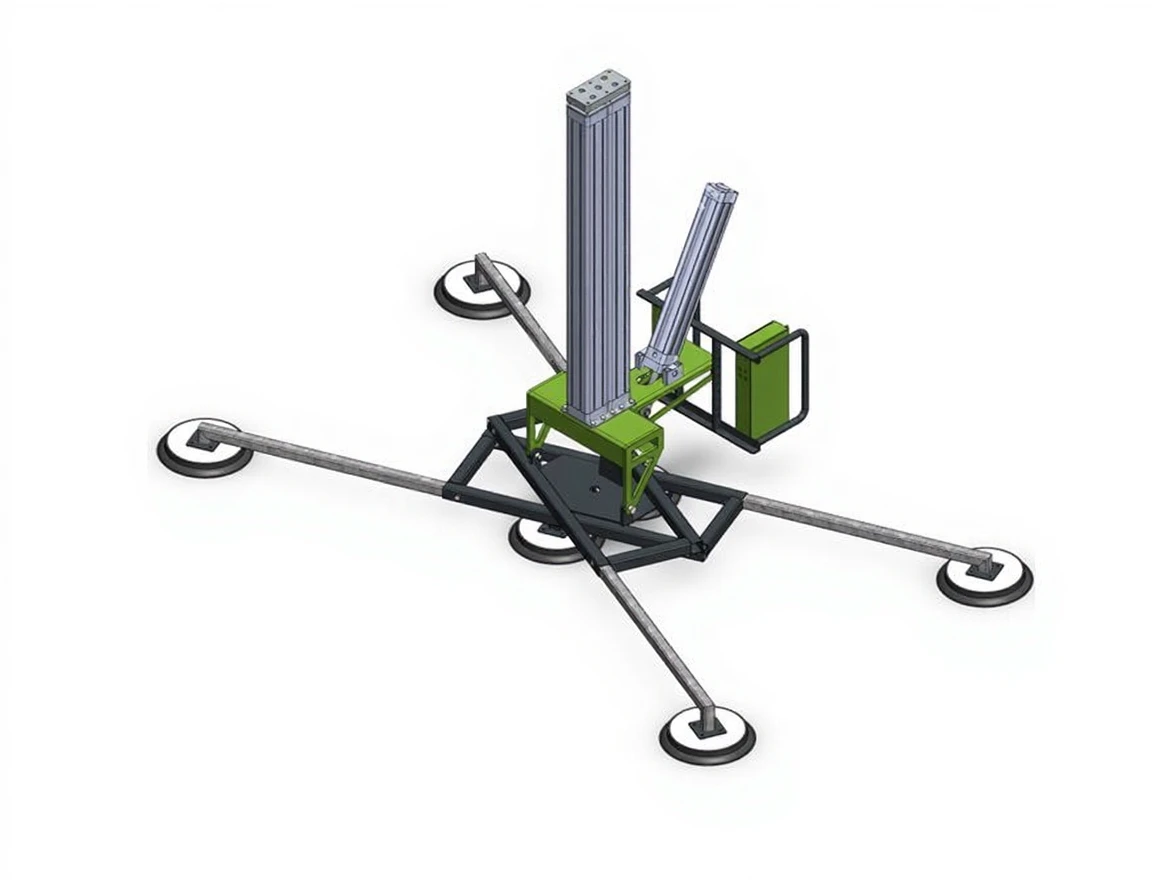

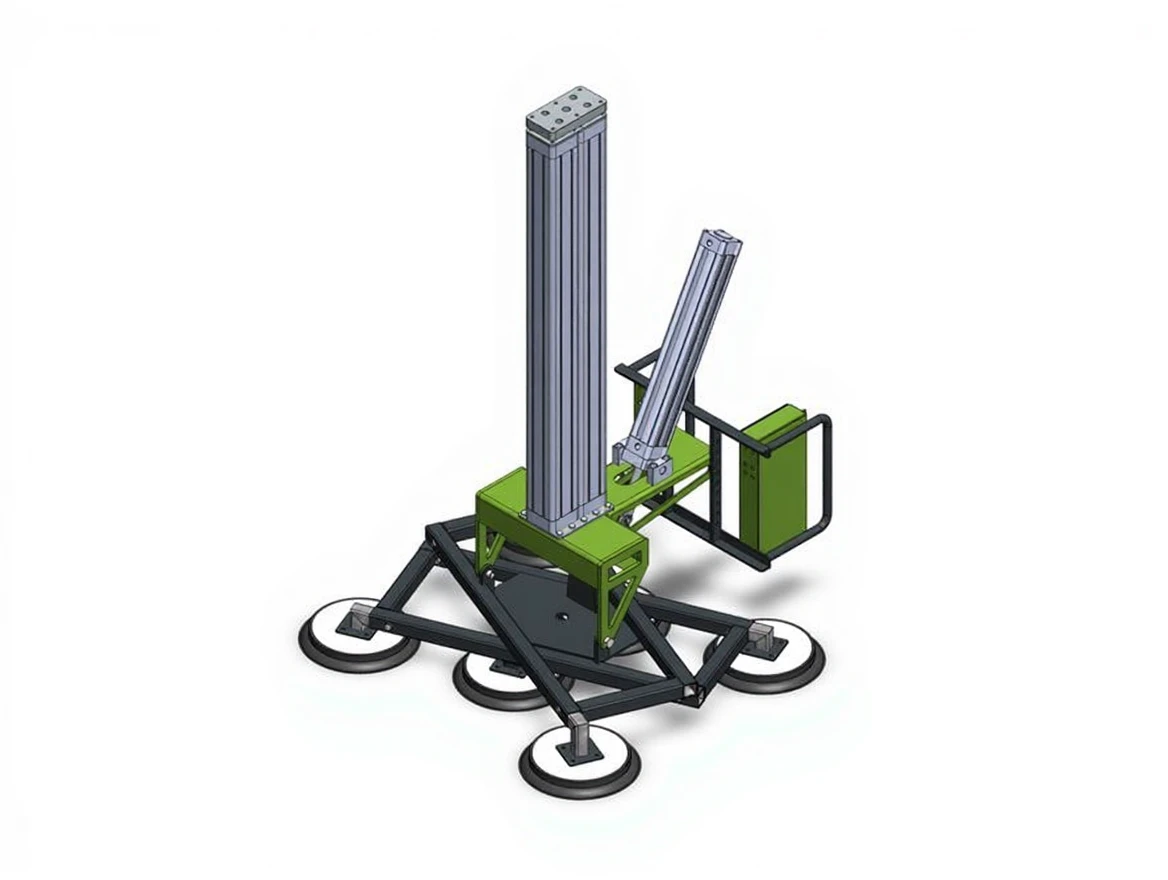

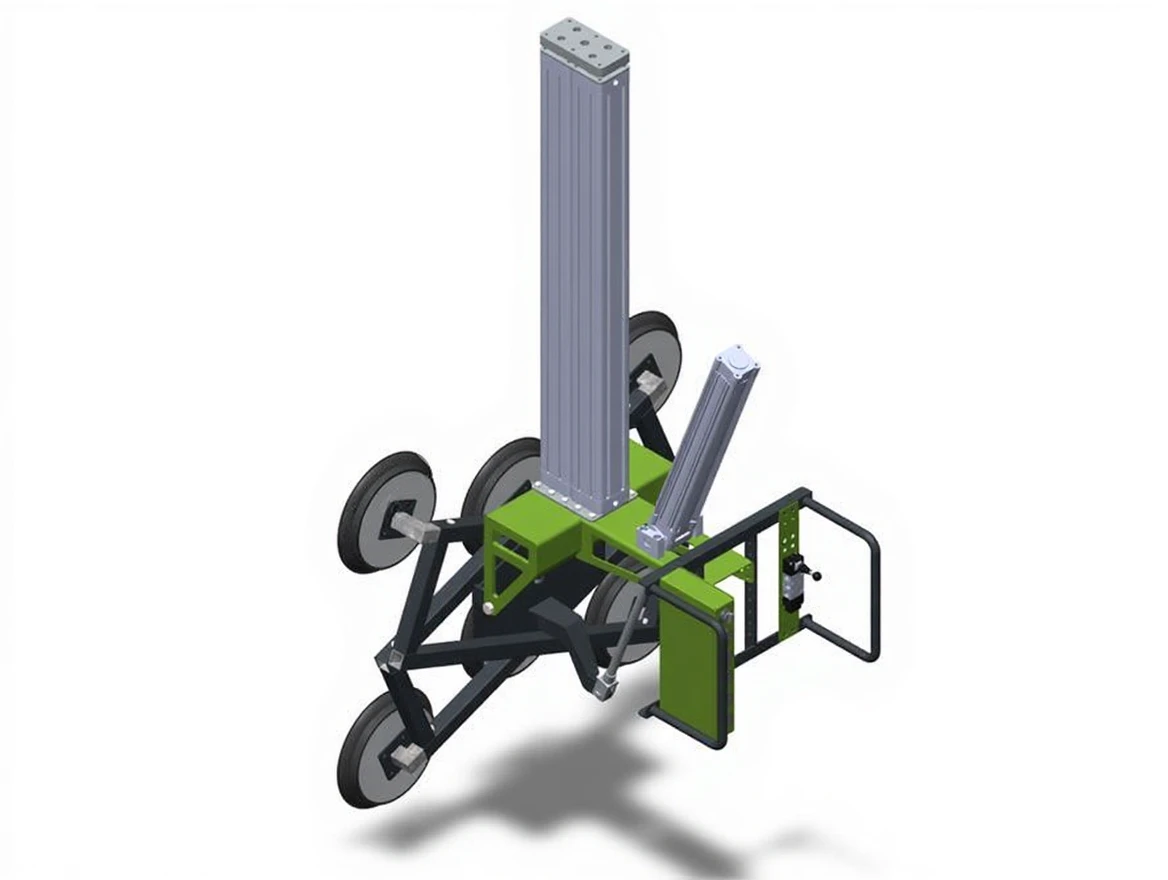

This model is equipped with a total of 6 suction cups (290 mm in diameter), with 2 in the center and 4 around the perimeter, providing safe transportation of large surface materials. Extendable suction arms facilitate the gripping of large panels.

Technical Specifications

• Carrying Capacity: 500 kg

• Number of Suction Cups: 6 (2 center + 4 perimeter)

• Suction Cup Diameter: 290 mm

• Tilting Angle: 90° (vertical-horizontal transition)

• Lifting System: Single mill pneumatic cylinder

• Body: Lightweight and ergonomic design

• Usage: Manual control or pneumatic-assisted tilting

Areas of Use

• Glass and facade installation applications

• Marble and ceramic production lines

• Panel transportation and installation operations

• Factory applications requiring vertical-horizontal transportation

• Safe transportation operations in production facilities with limited space
