500 Kg Single Shaft Pneumatic Cylinder Vacuum Marble Ceramic Glass Lifting System

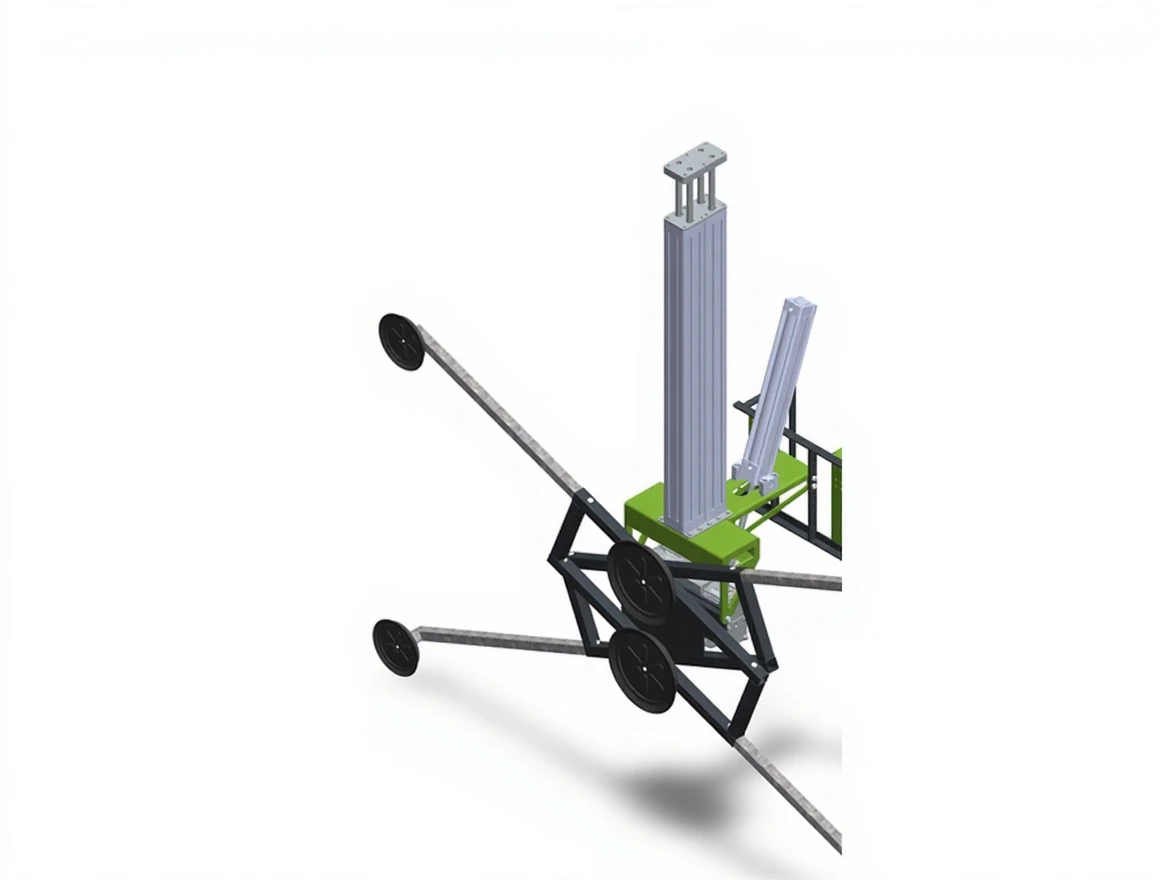

SL-PVL-500VRT/SPL – Vacuum Transport System with Single Shaft Pneumatic Cylinder for Rotating and Tilting

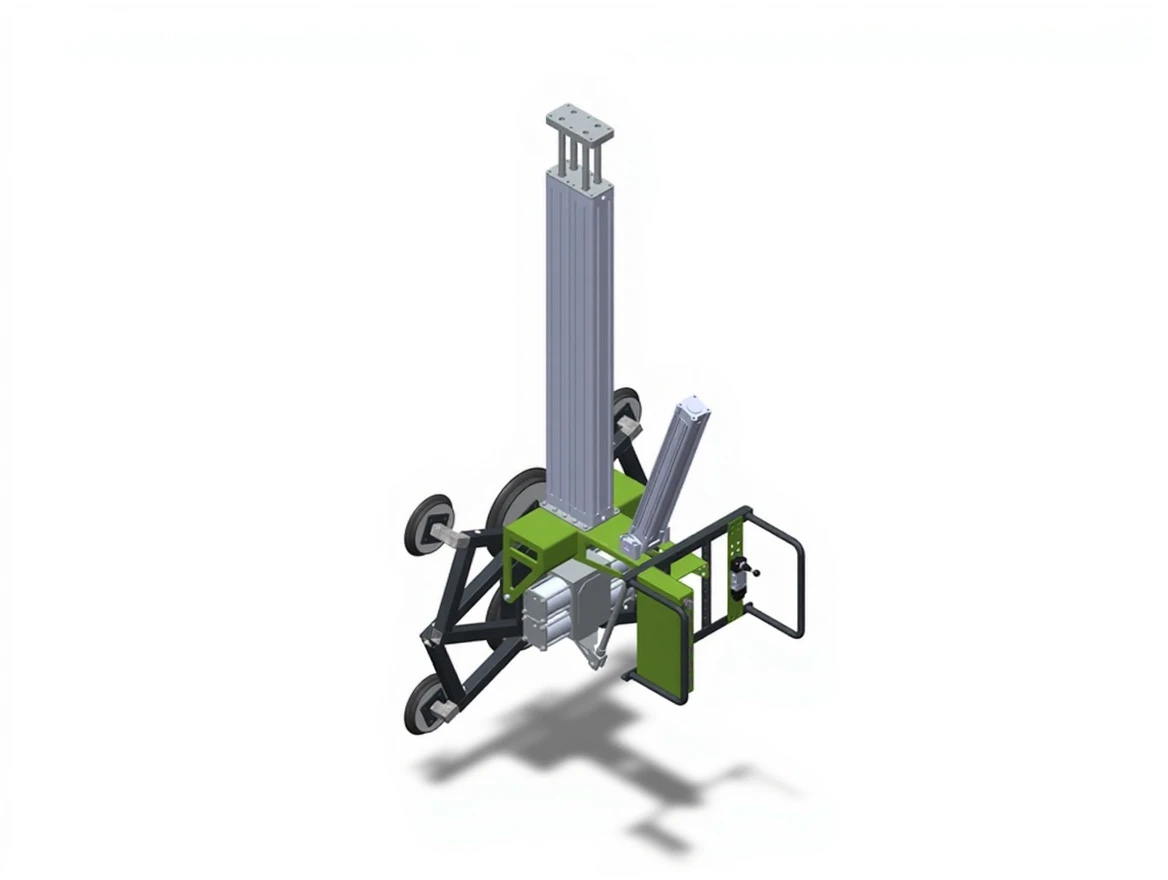

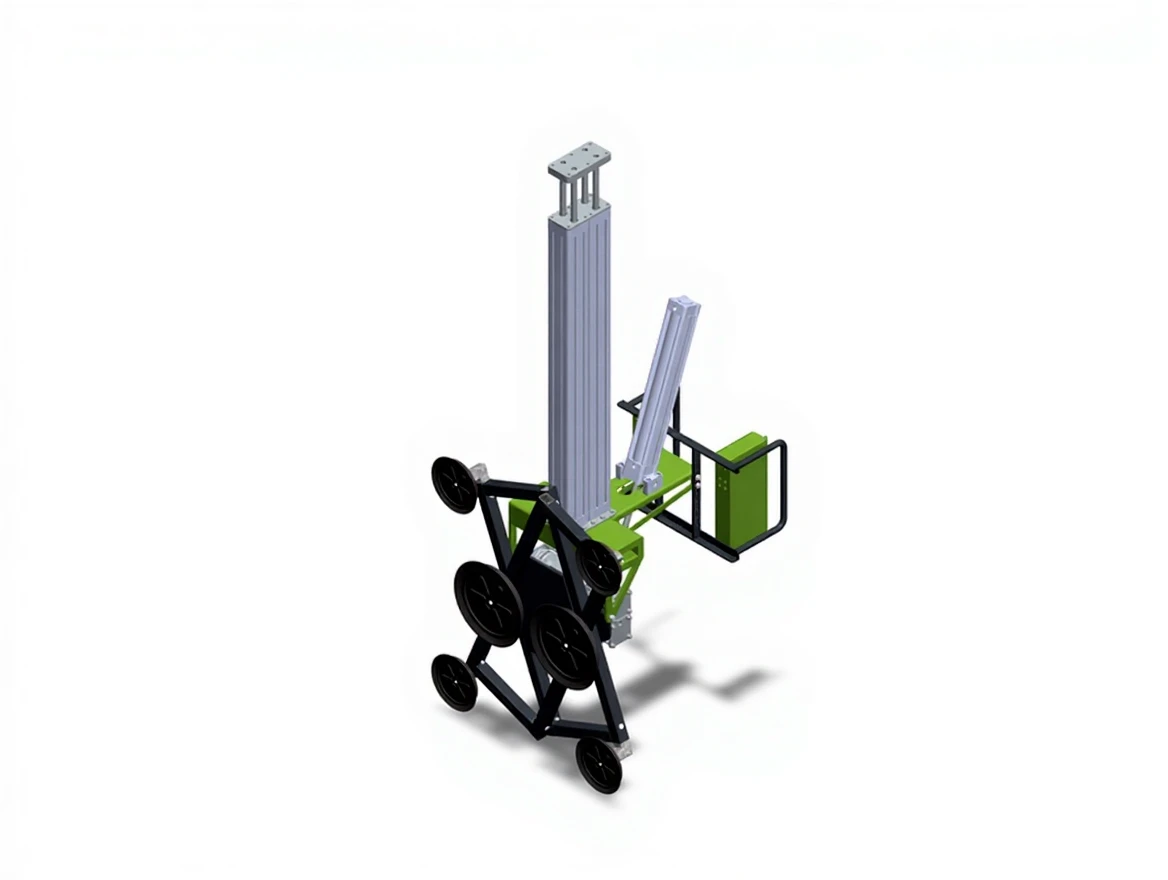

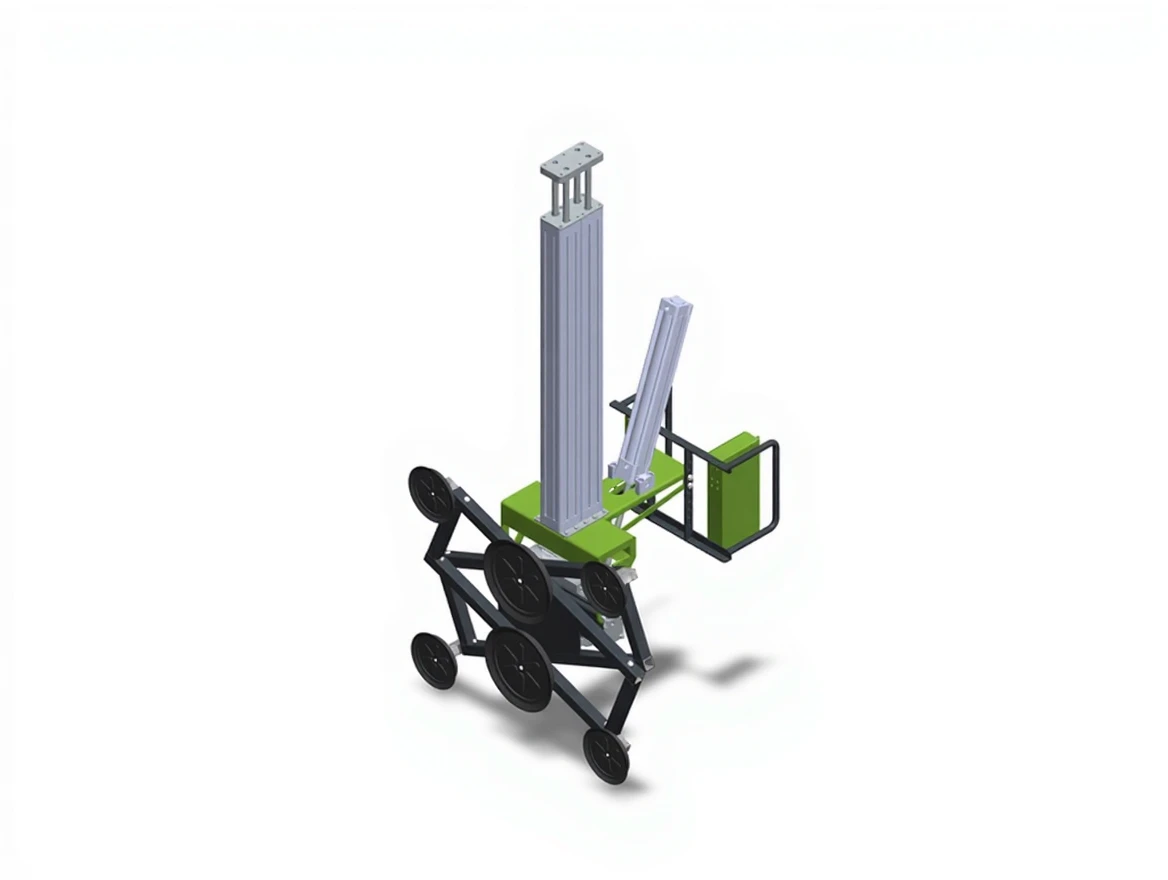

Bat Series within SingleLift, SL-PVL-500VRT/SPL is specially designed for vertical lifting, 90° tilting, and 90° rotating of delicate materials such as glass, marble, ceramic, and similar ones; it is a compact and versatile vacuum transport system.

The most distinctive feature of the model is that it is equipped with a single shaft pneumatic lifting cylinder providing a simpler and more economical structure. This structure ensures balanced and controlled movement in lifting operations.

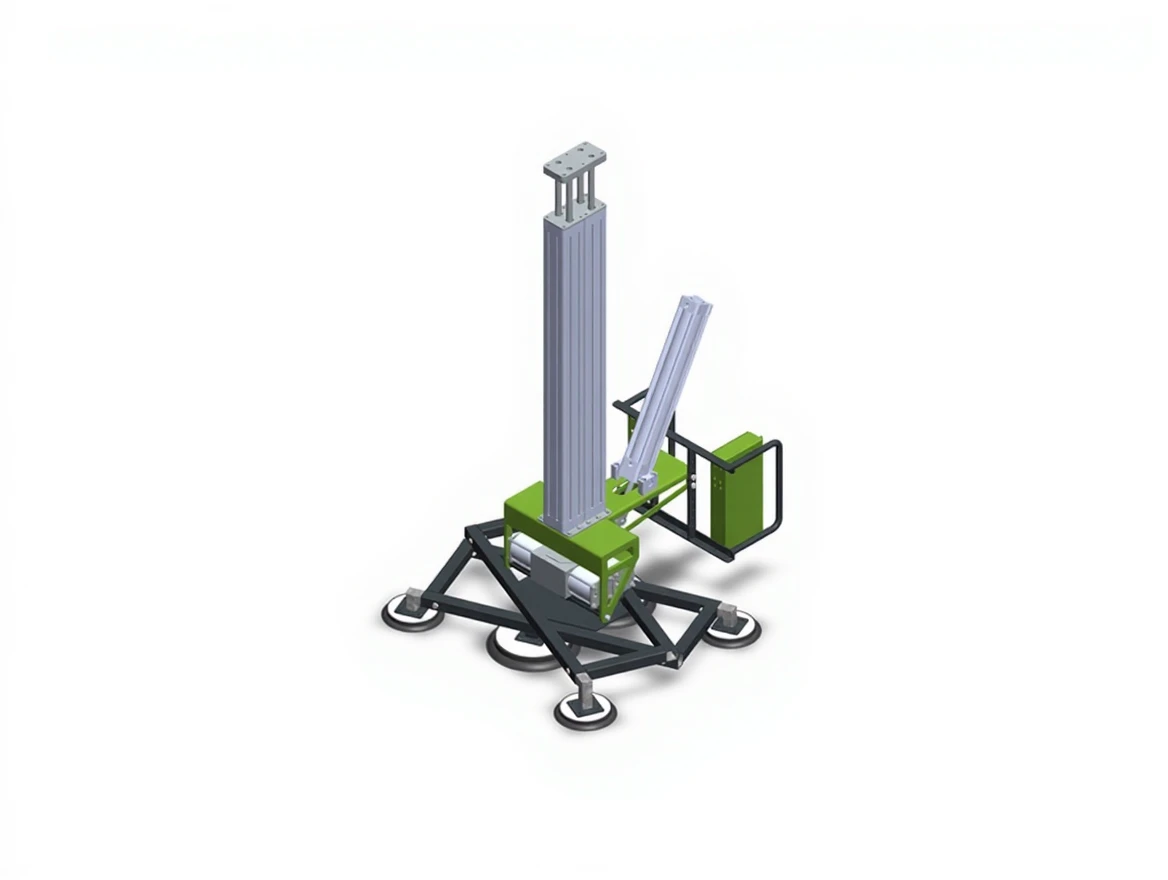

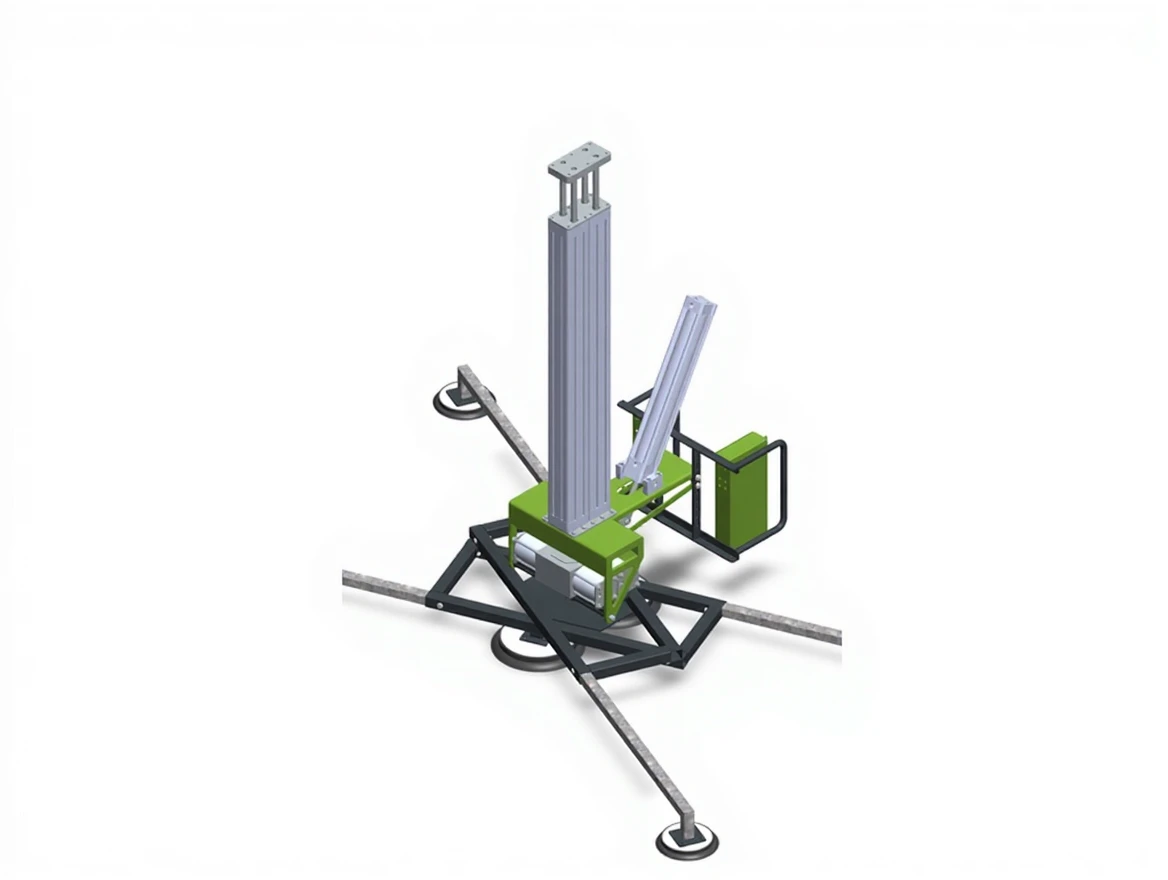

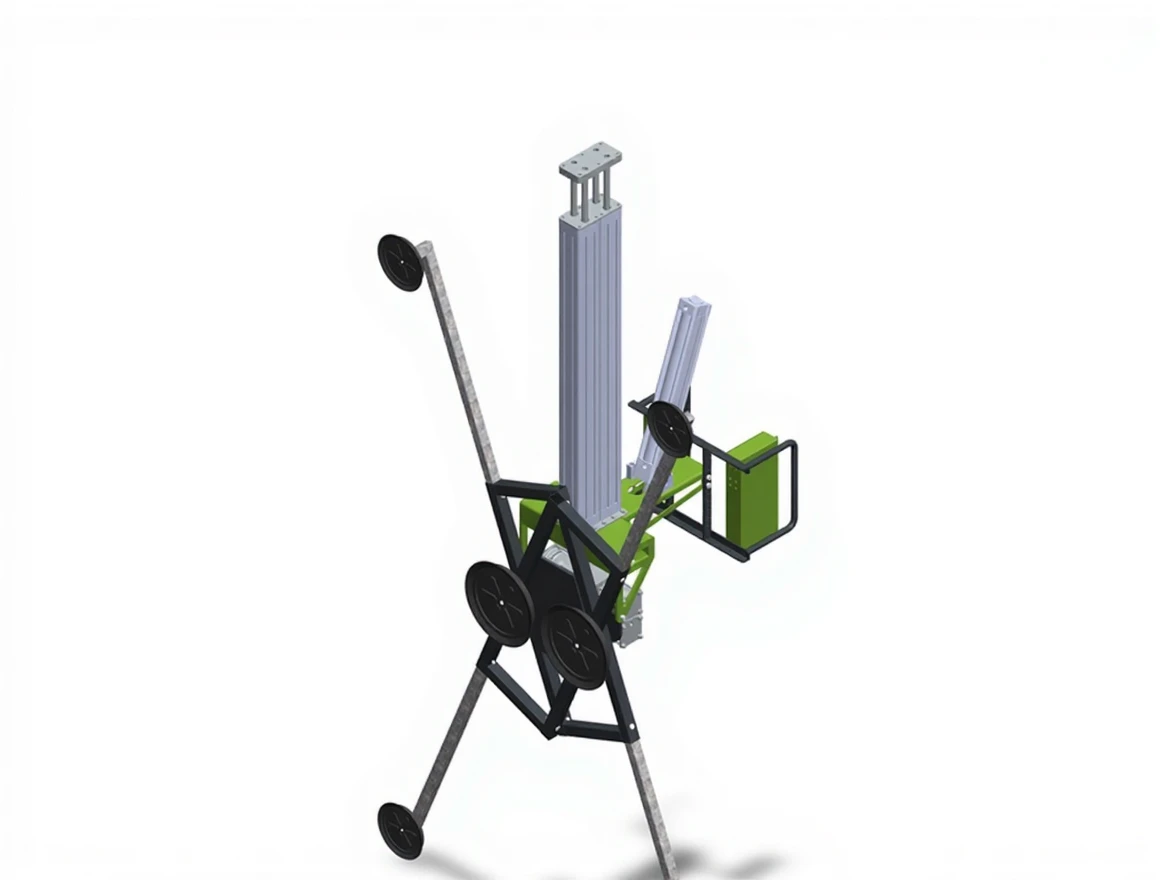

SL-PVL-500VRT/SPL is equipped with a total of 6 suction cups of 290 mm in diameter, 2 at the center and 4 around. It can securely grip large surface glass and panels; thanks to extendable suction arms, it can also work comfortably with large-sized materials.

With its lightweight body structure, optimized ergonomics, and manual/pneumatic controlled movement capability, it allows easy use and safe transport even in confined spaces.

Technical Specifications

• Lifting Capacity: 500 kg

• Number of Suction Cups: 6 pieces (2 center + 4 perimeter)

• Suction Cup Diameter: 290 mm

• Tilting Angle: 90°

• Rotating Angle: 90°

• Lifting System: Single shaft pneumatic cylinder

• Body Structure: Lightweight, compact, and ergonomic

• Usage Type: Manual and pneumatic control

Areas of Use

• Facade installation applications for glass

• Ceramic and marble transportation processes

• Production lines requiring positional change from vertical to horizontal

• Light and medium-sized panel installation works

• Mobile use within the factory and on-site
