500 m/Min Pallet Stretch and Aluminum Foil Wrapping Machine

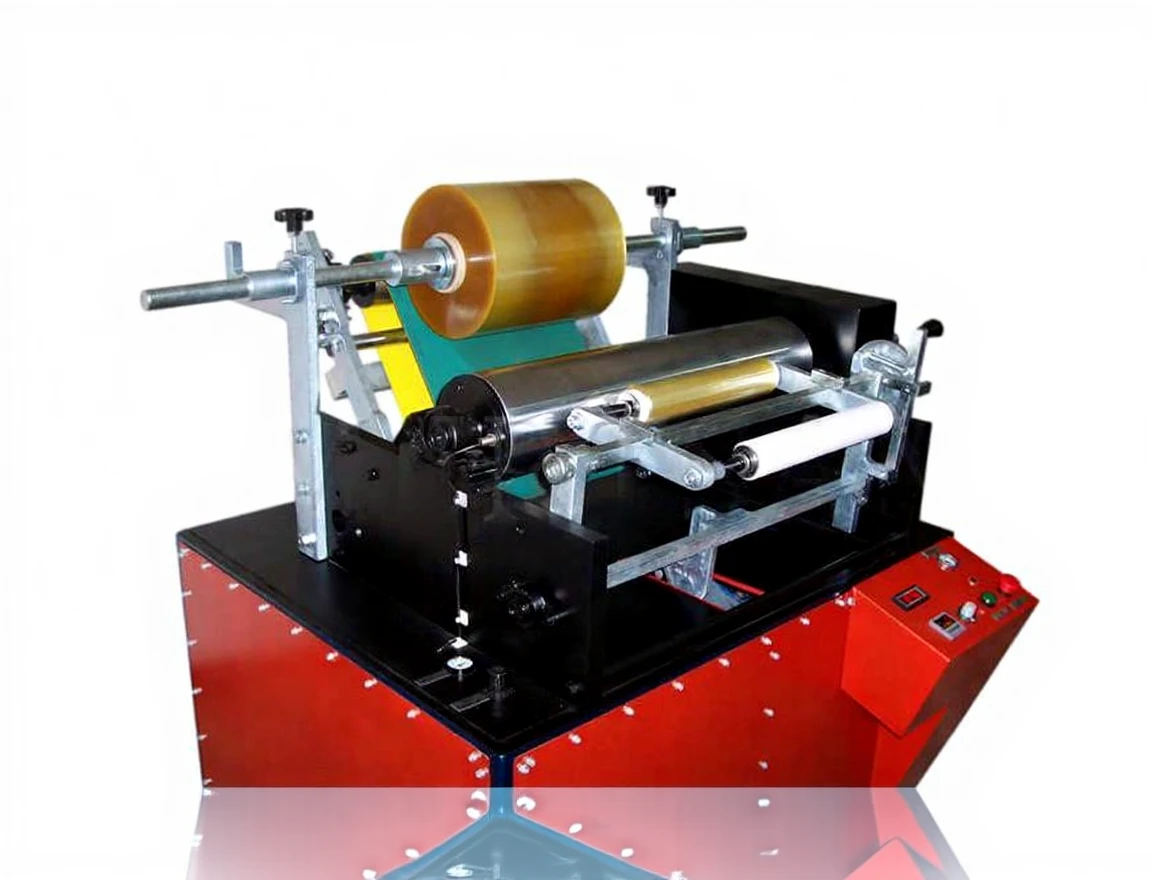

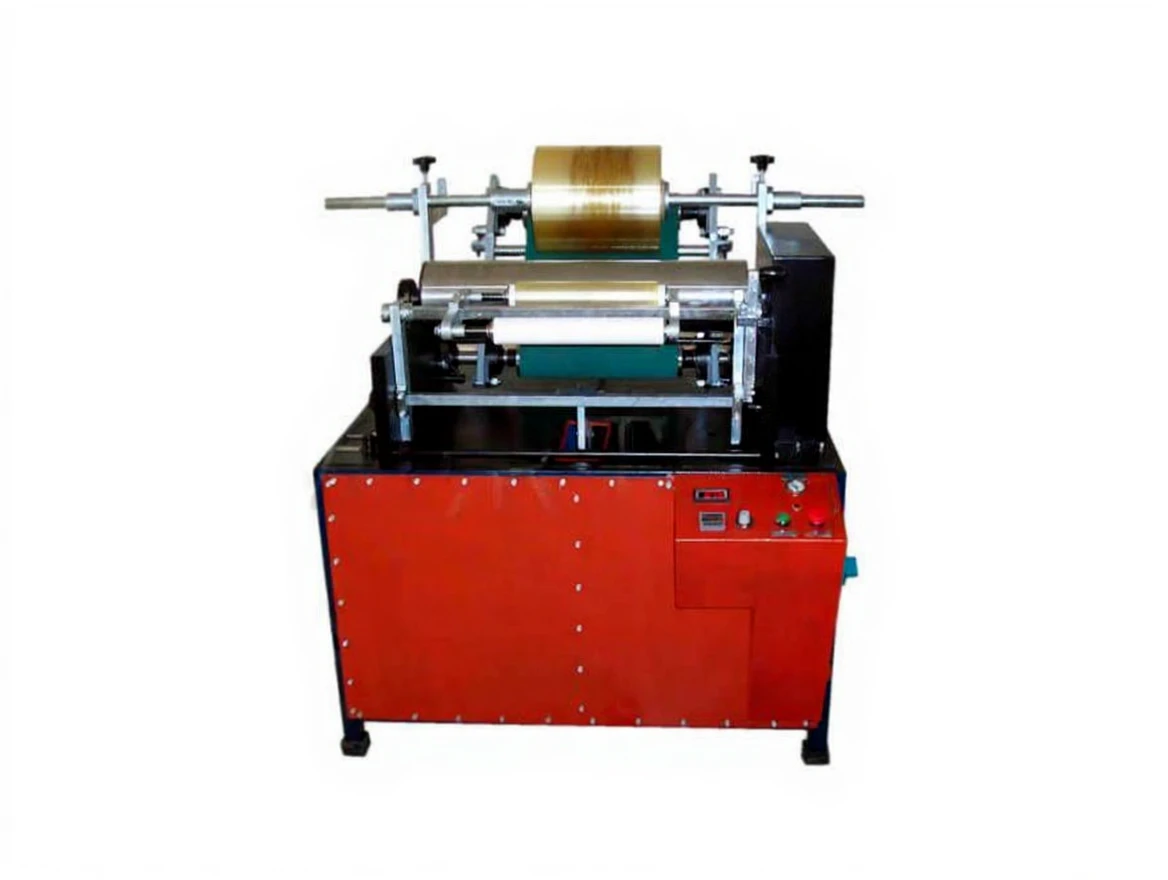

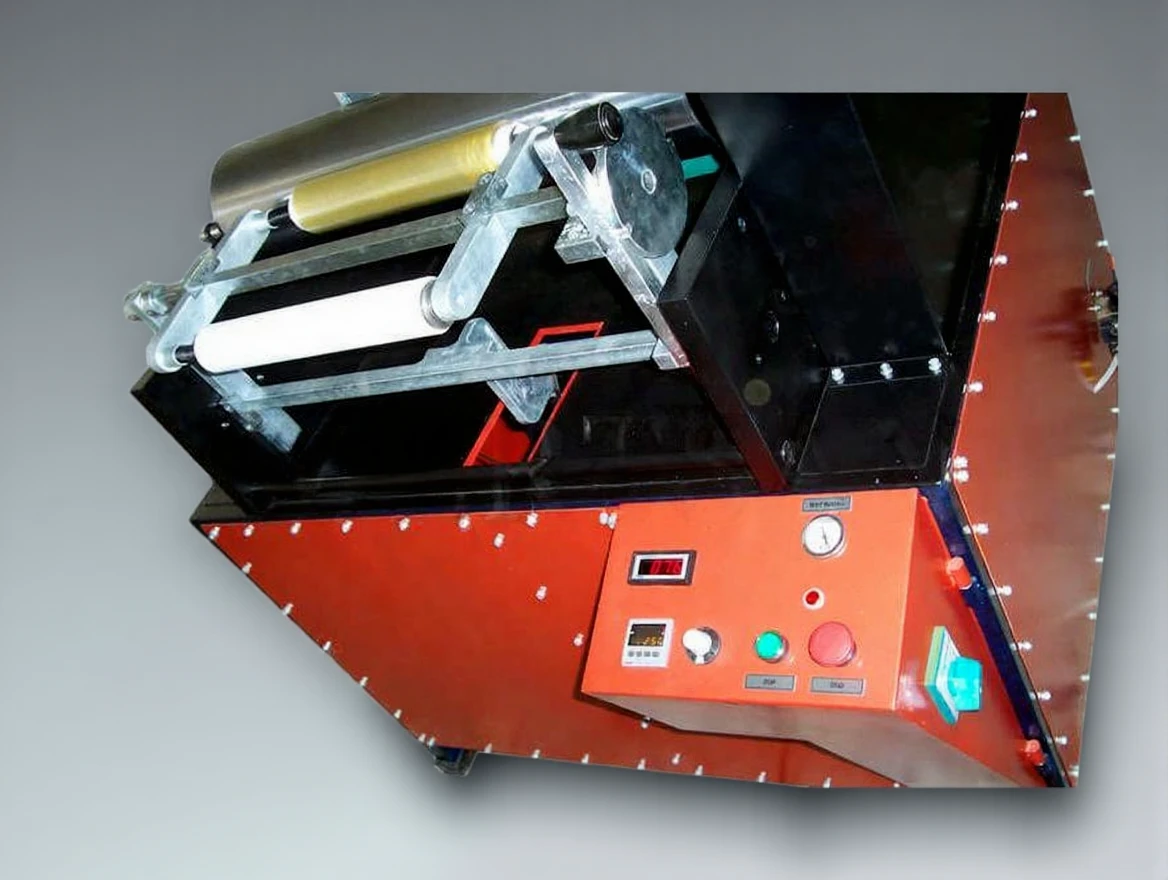

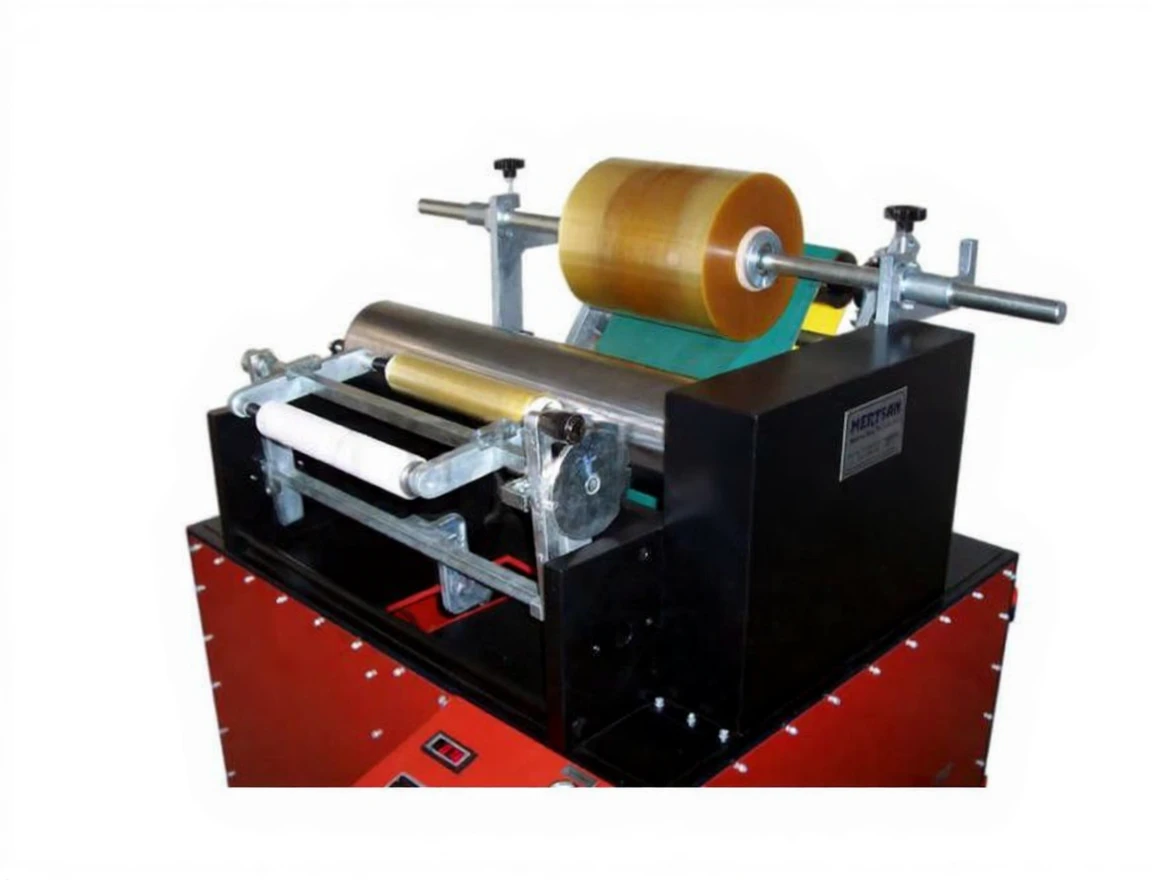

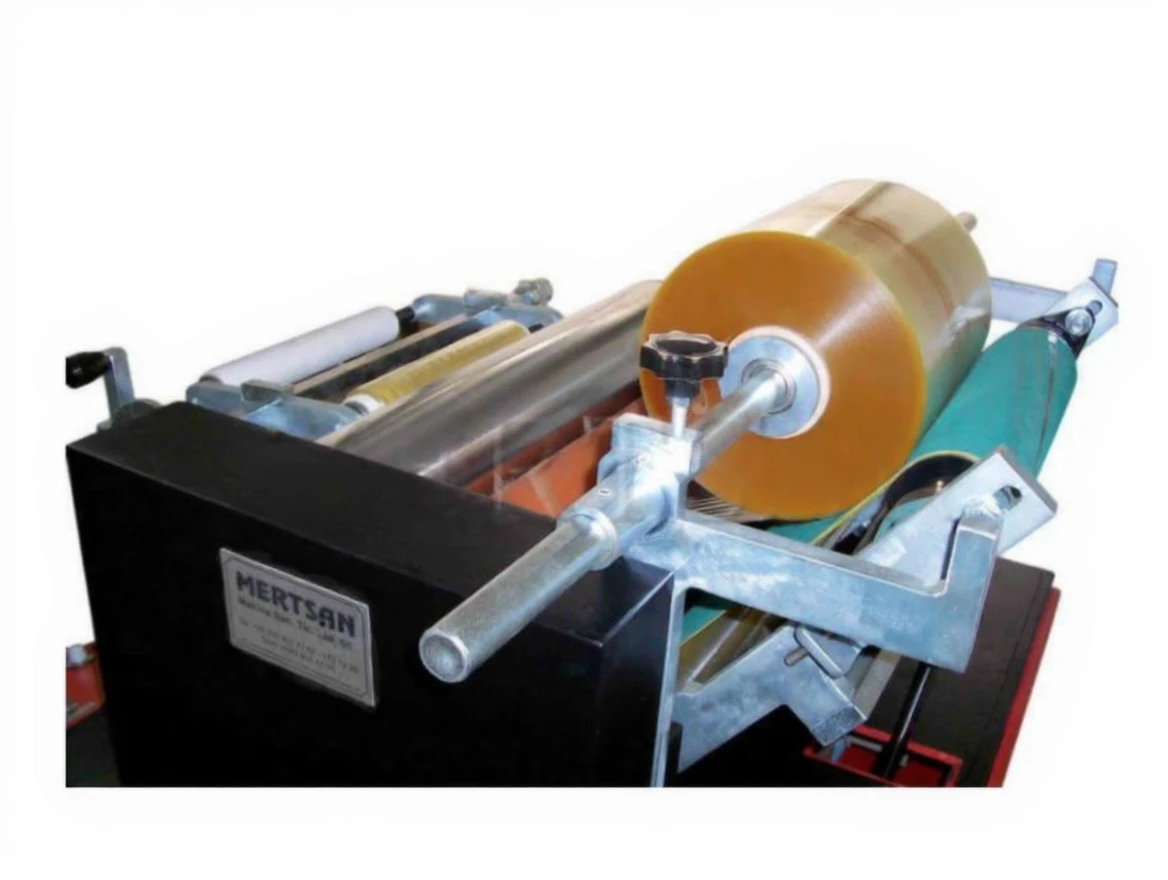

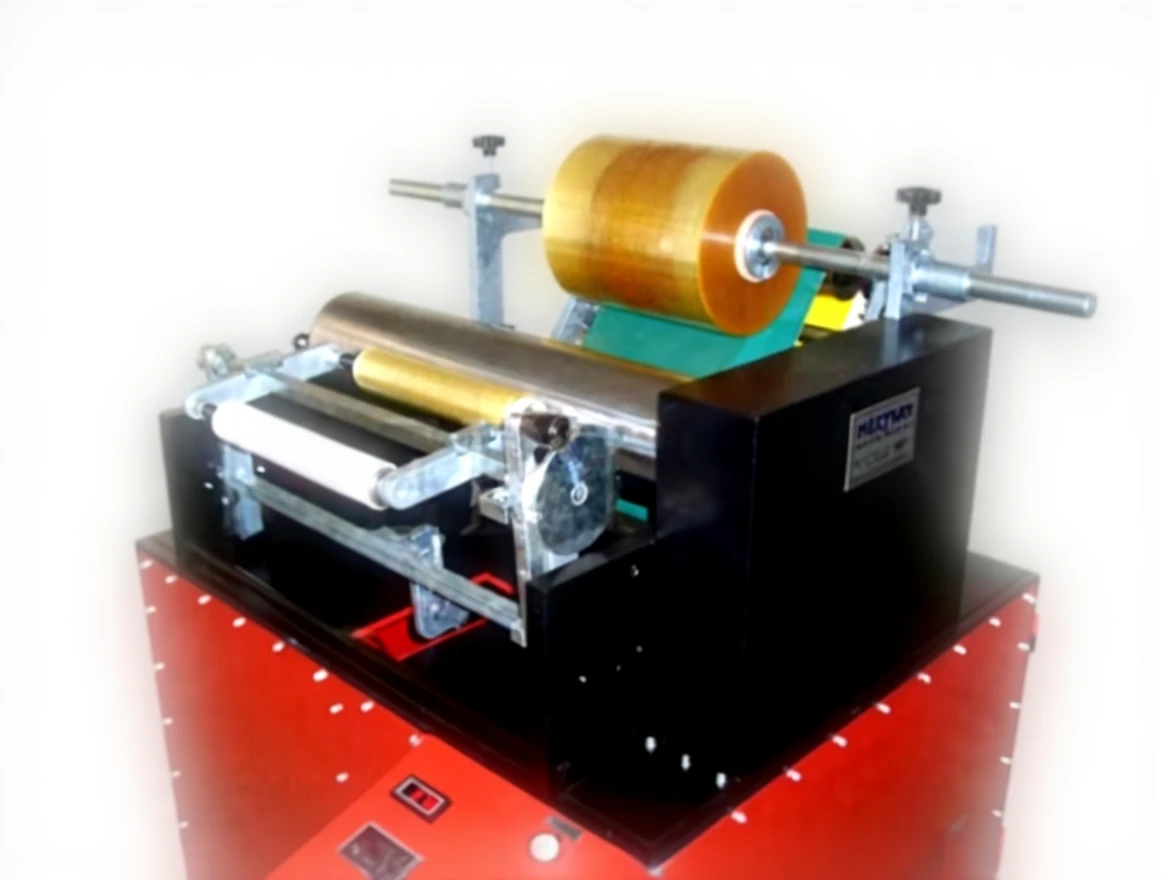

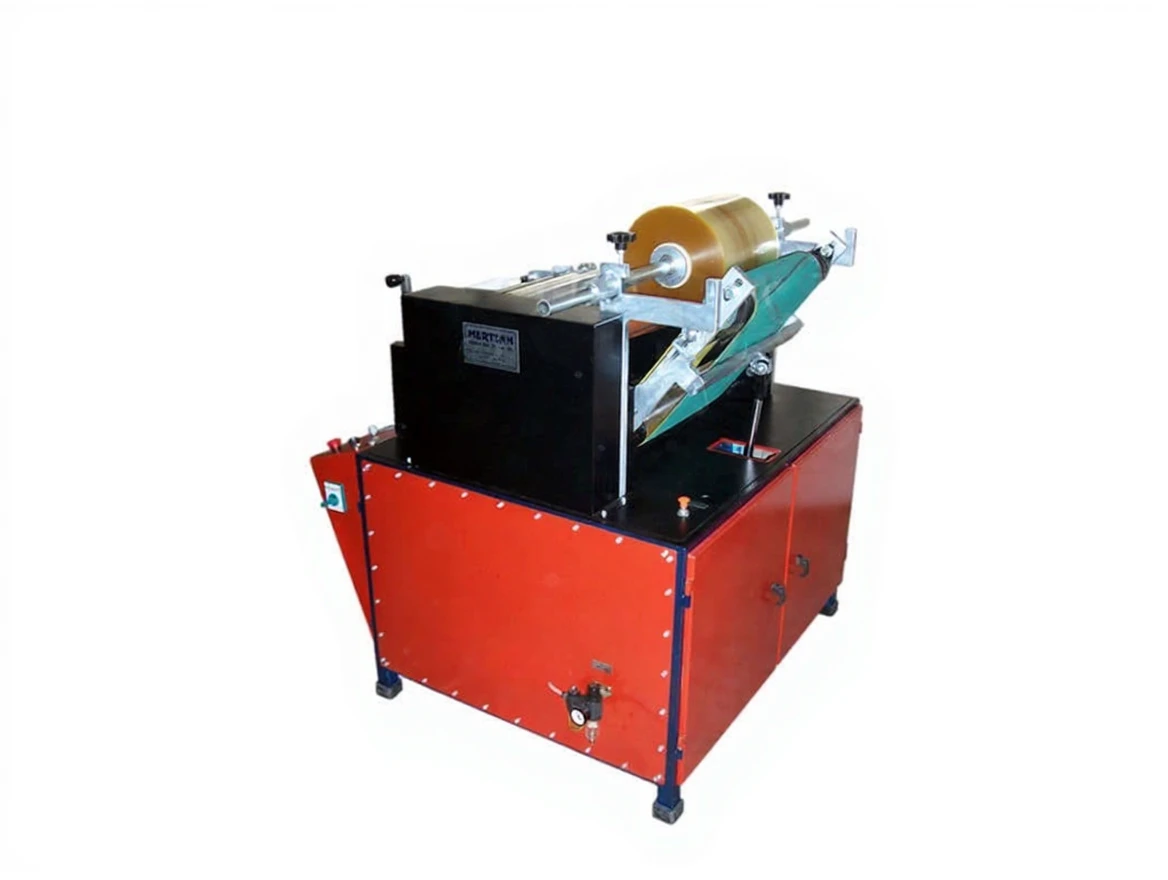

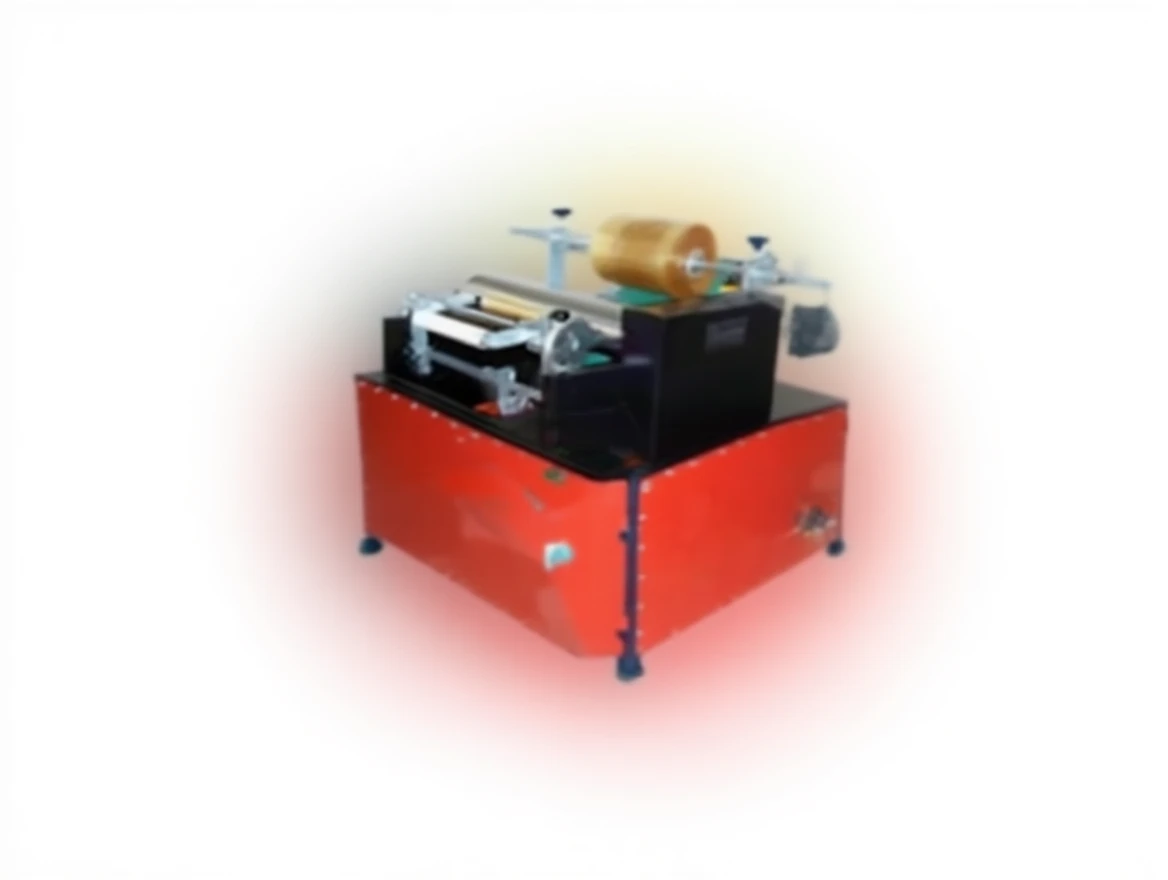

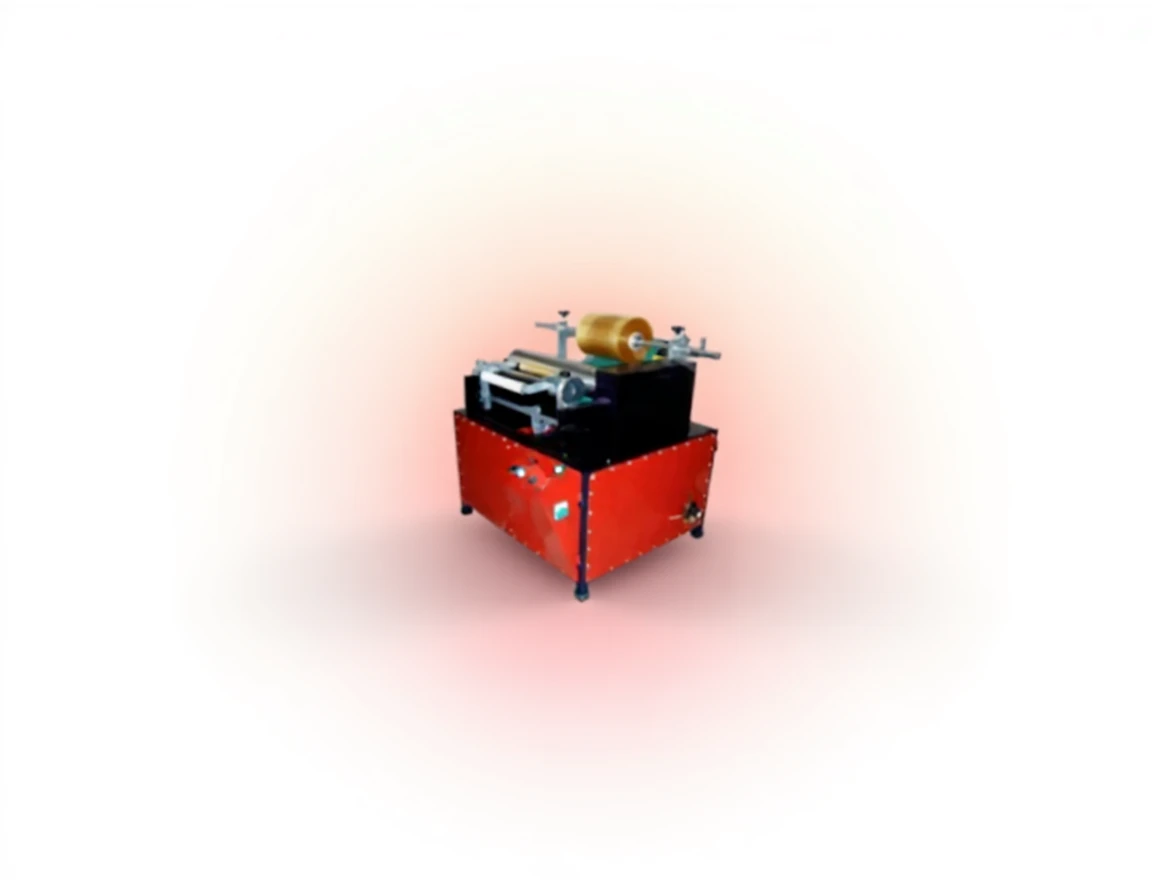

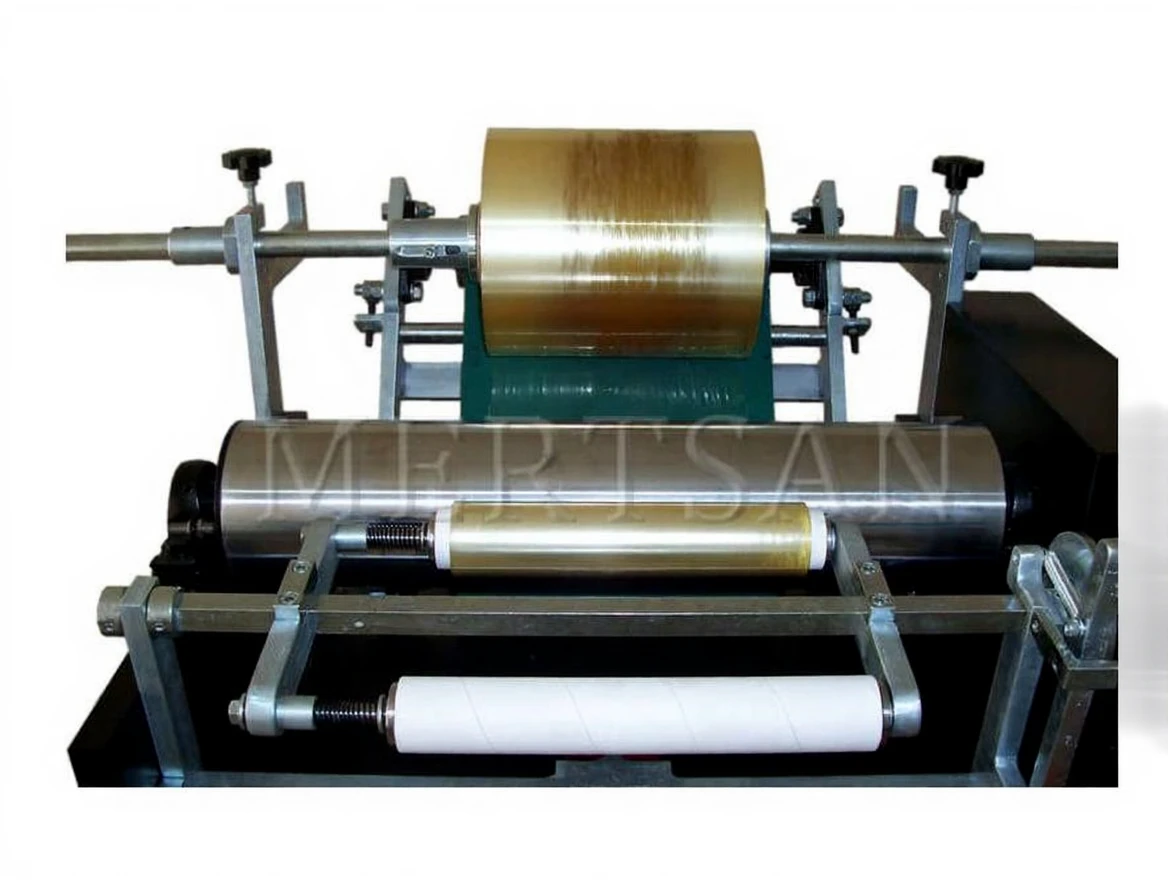

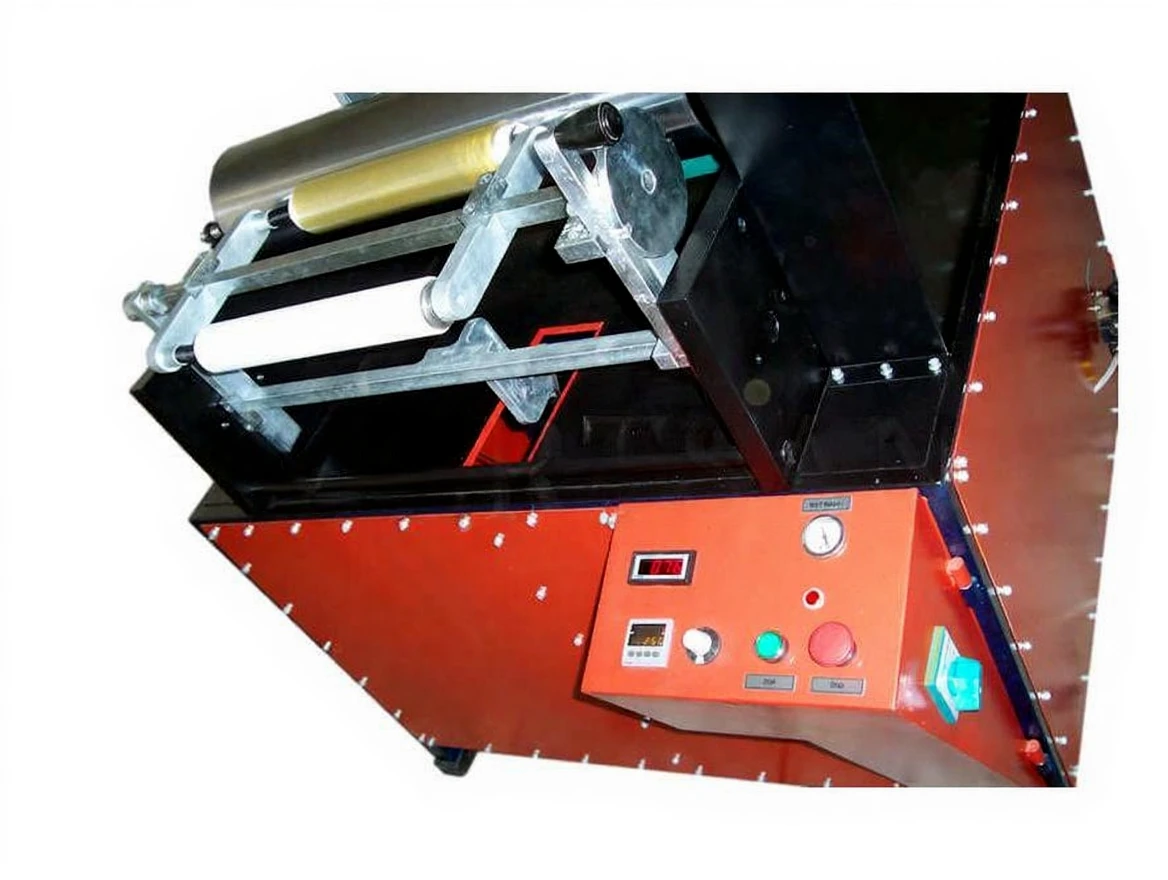

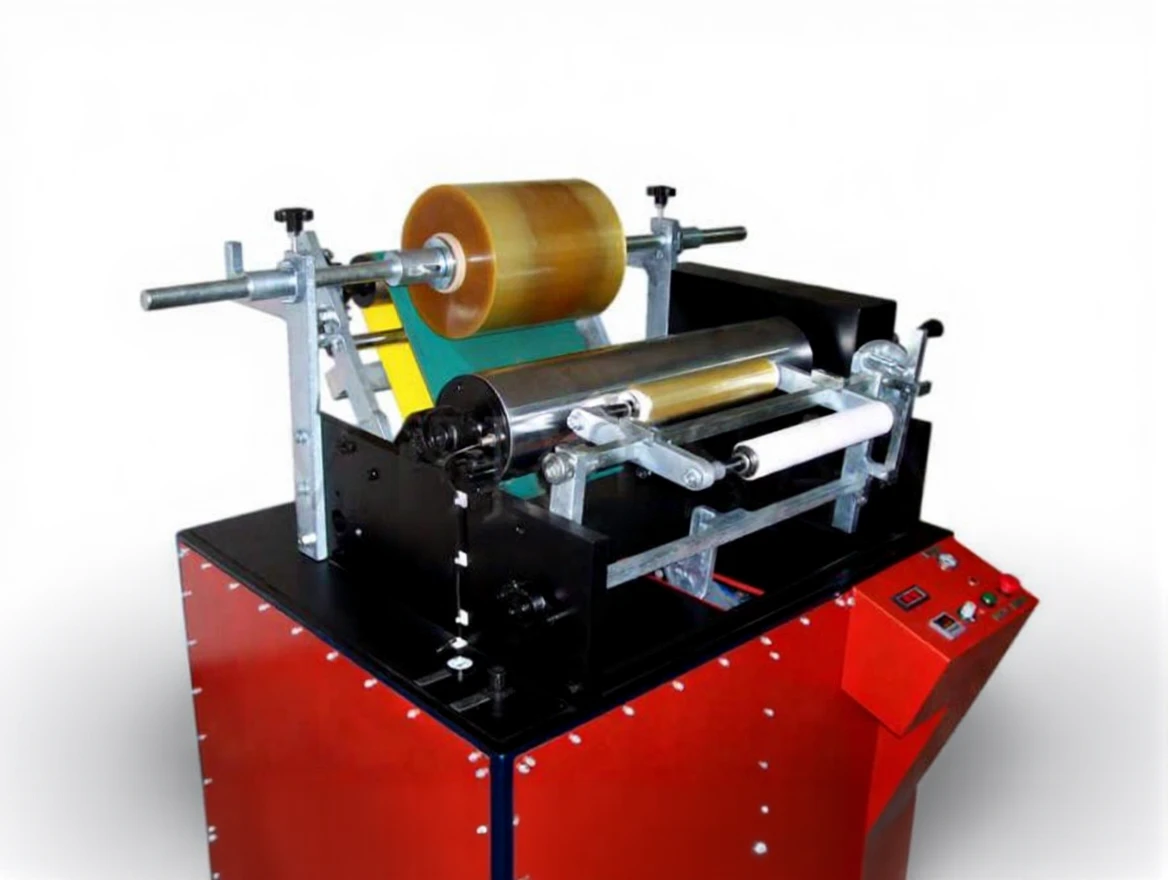

Mertsan MSN 60 Stretch Wrapping Machine
Product Features

• Food stretch film, pallet stretch film, and aluminum foil wrapping.
• Electrostatic paint and galvanized metal parts for rust resistance, meeting health requirements.
• High wrapping speed (400 m/min).
• Consistent wrapping quality even at high speeds.
• Adjustable pneumatic system support.
• Pneumatic pressure adjustment (for wrapping and opening band pressure).
• Electronic regulator system.

Mertsan MSN 60 Technical Specifications

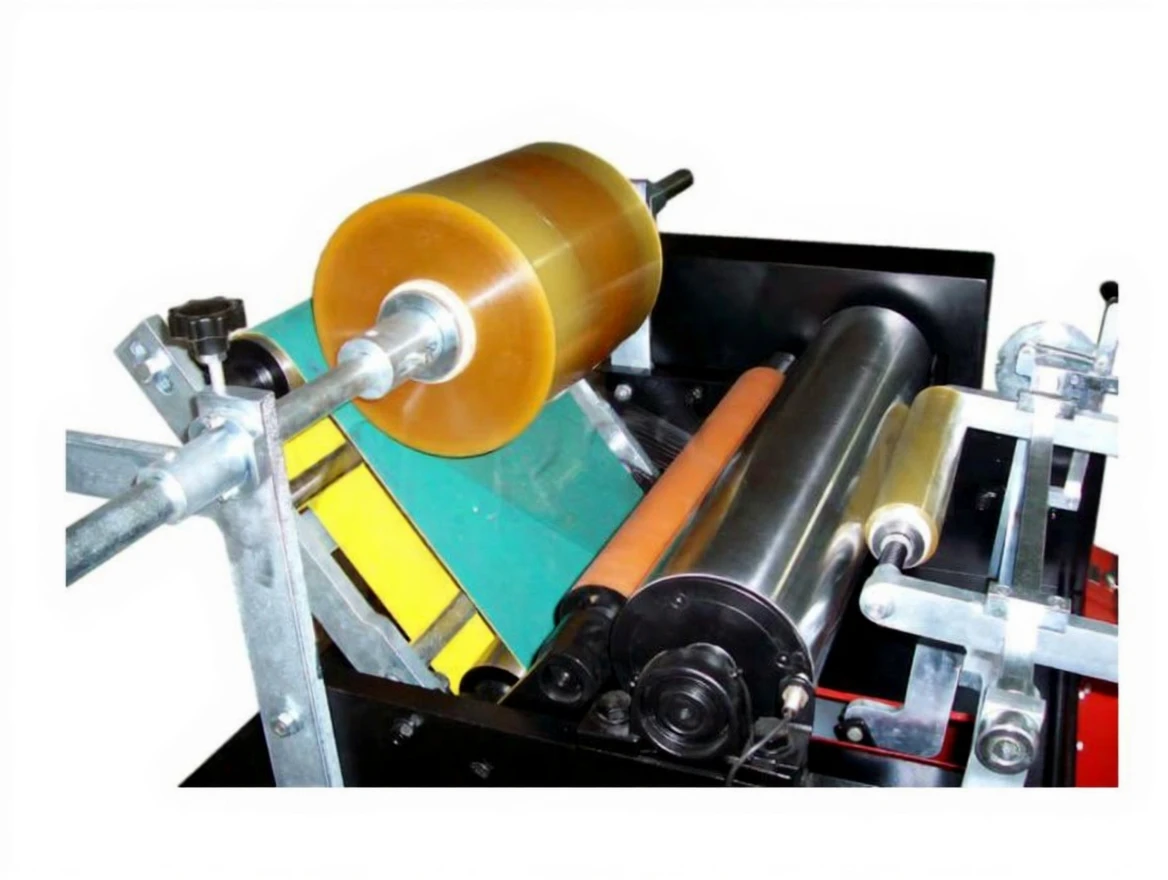

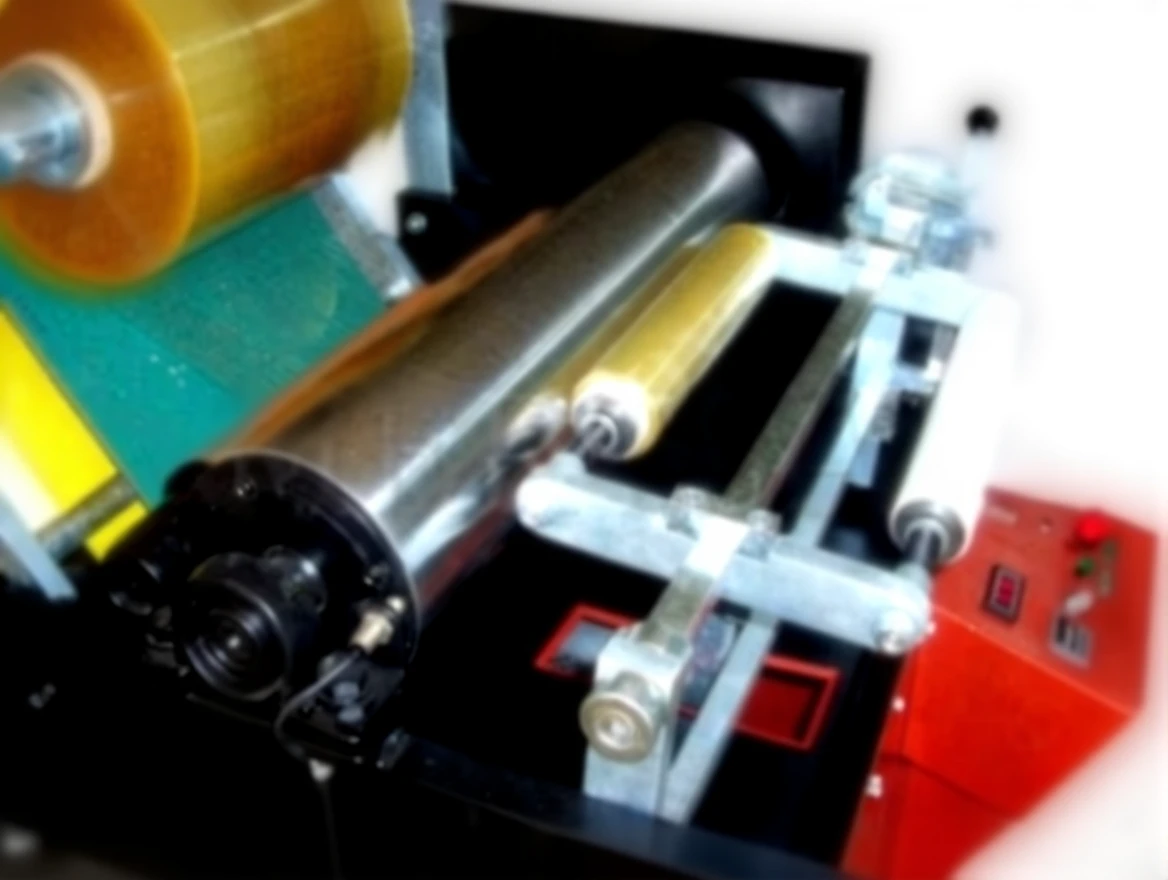

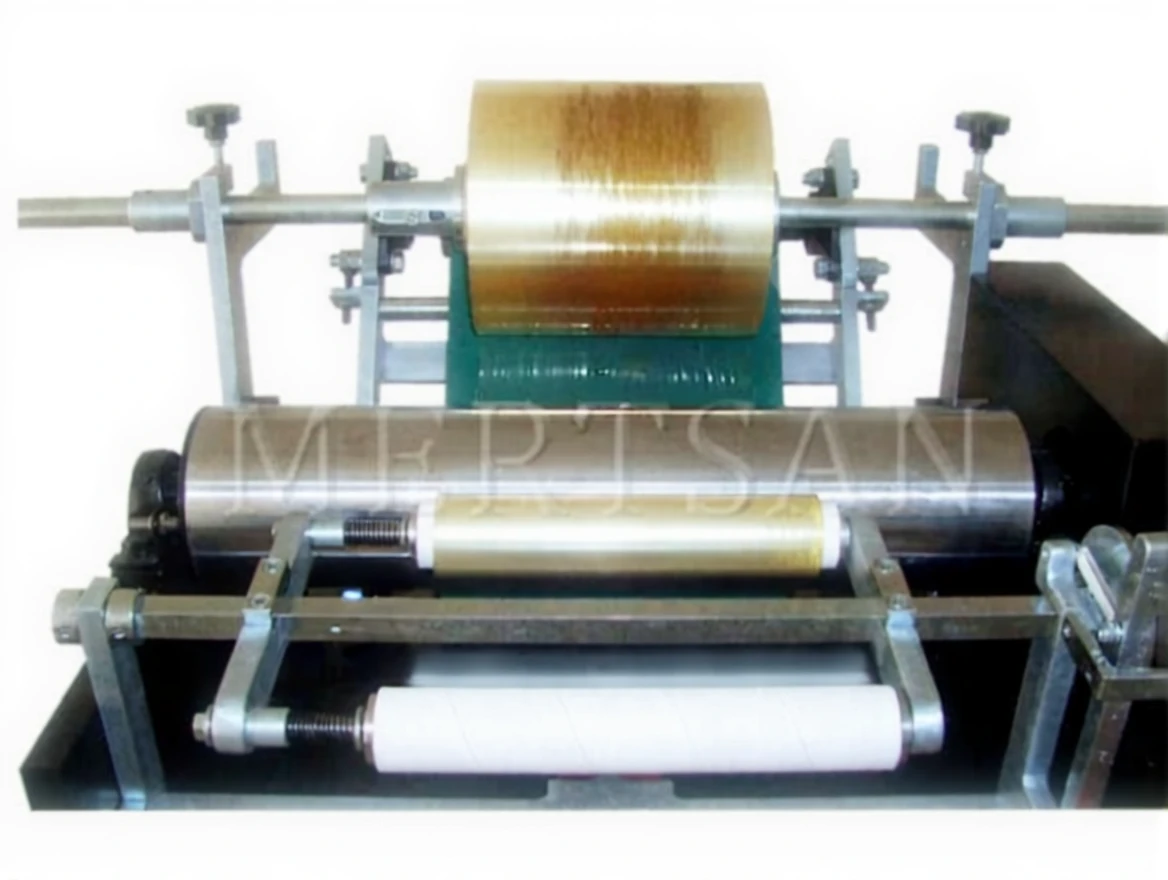

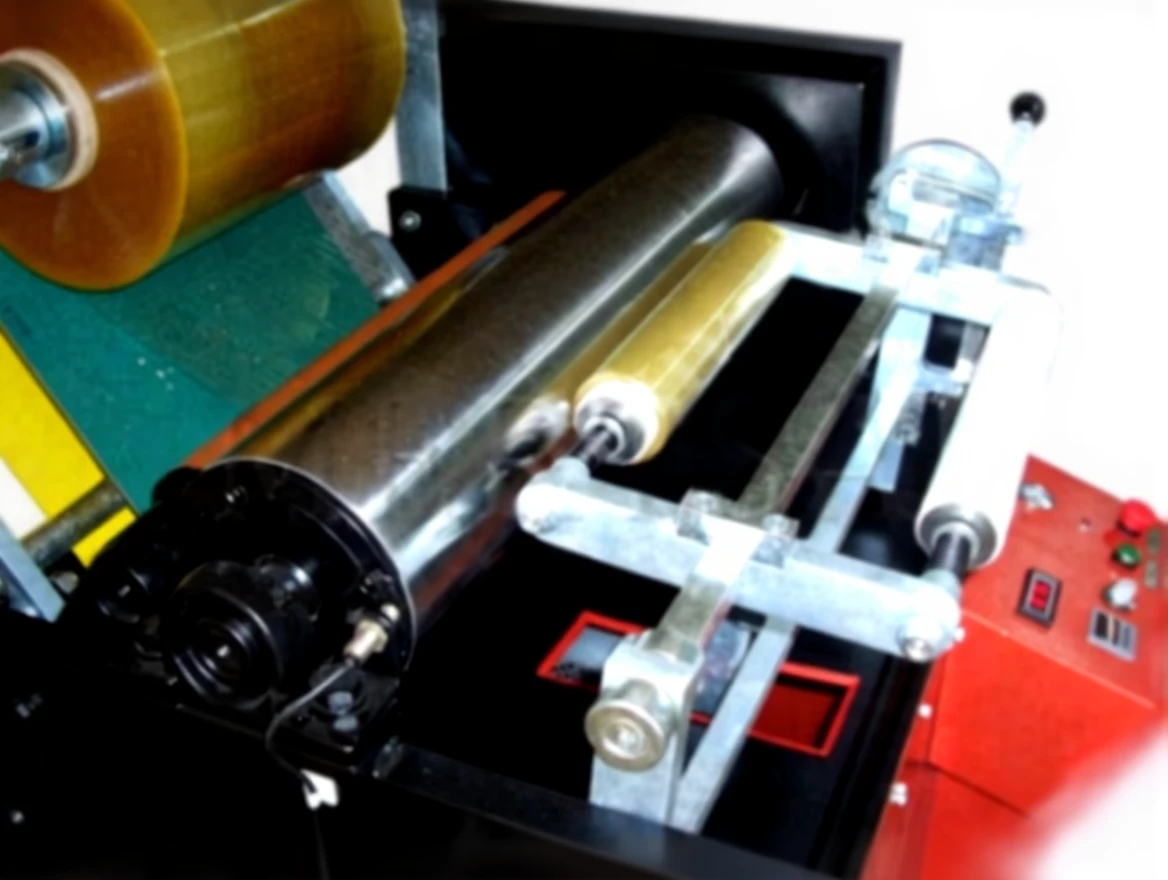

Unwinding Unit Specifications | Winding Unit Specifications

• Max Coil Width: 50 cm | Max Coil Width: 55 cm
• Max Coil Diameter: 40 cm | Min Core Diameter: 28 mm
• Max Coil Weight: 180 kg | Max Core Diameter: 76 mm
• Standard Core Diameter: 76 – 150 mm | Max Coil Diameter: 20 cm

Mertsan MSN 60 Technical Data

• Physical Dimensions: 100 x 100 x 70 cm
• Operating Voltage: 220 V, 50/60 Hz (+/- 10%)
• Motor Power: 2.2 kW 3P Asynchronous Motor
• Pneumatic Air Pressure: 6 Atm
• Wrapping Speed: 400 m/min

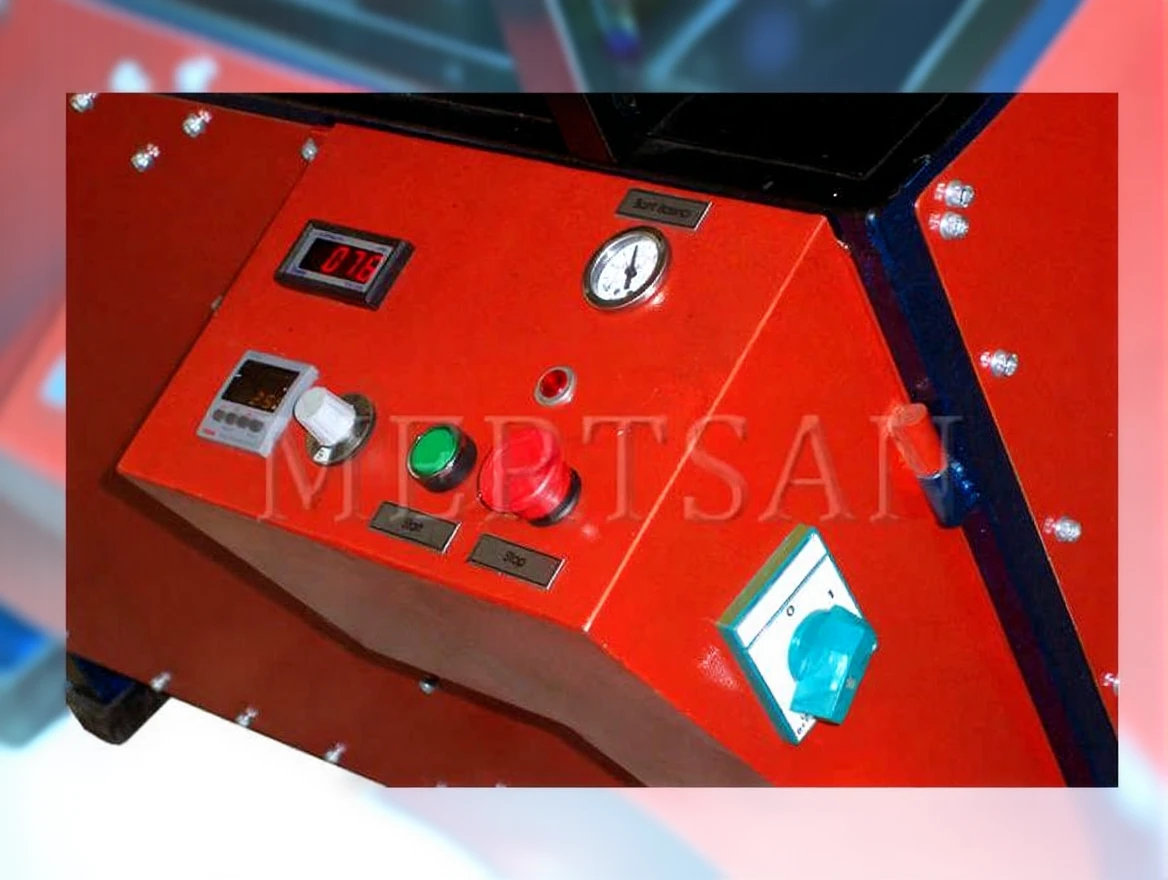

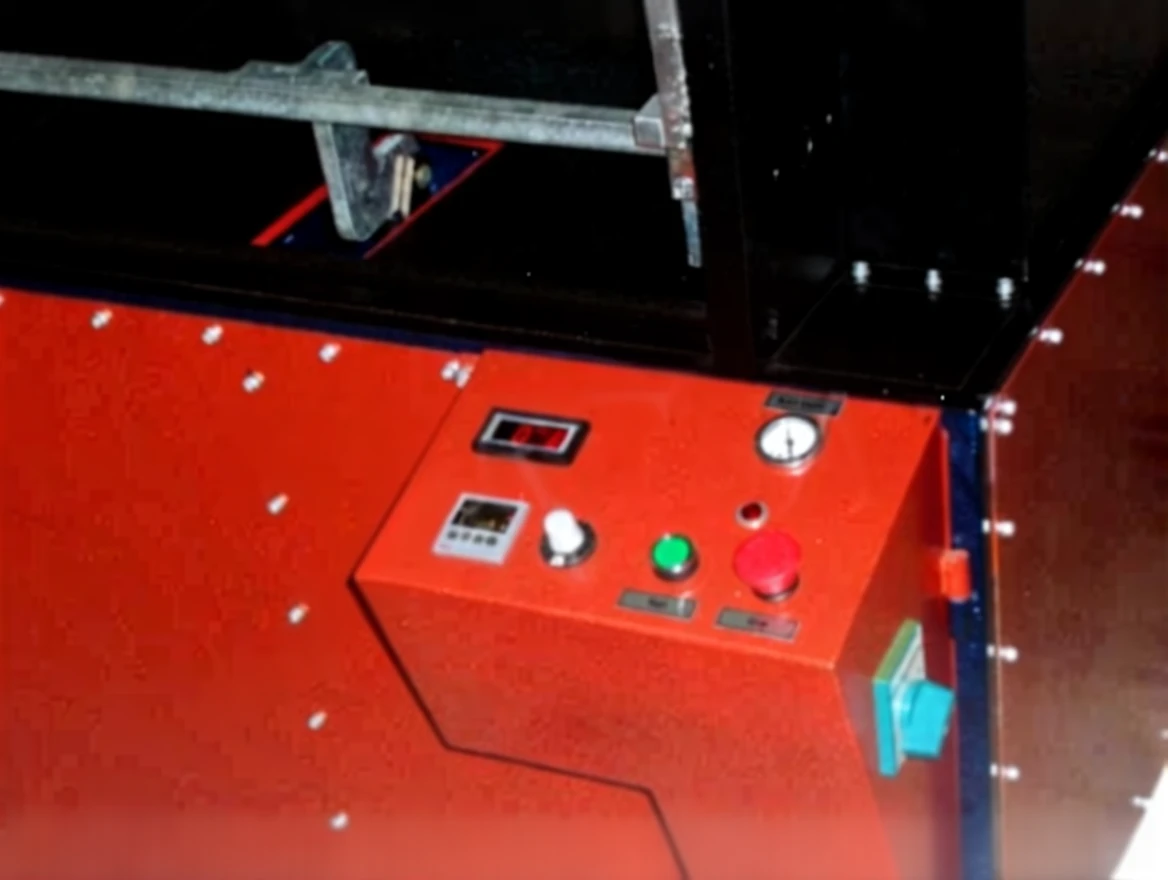

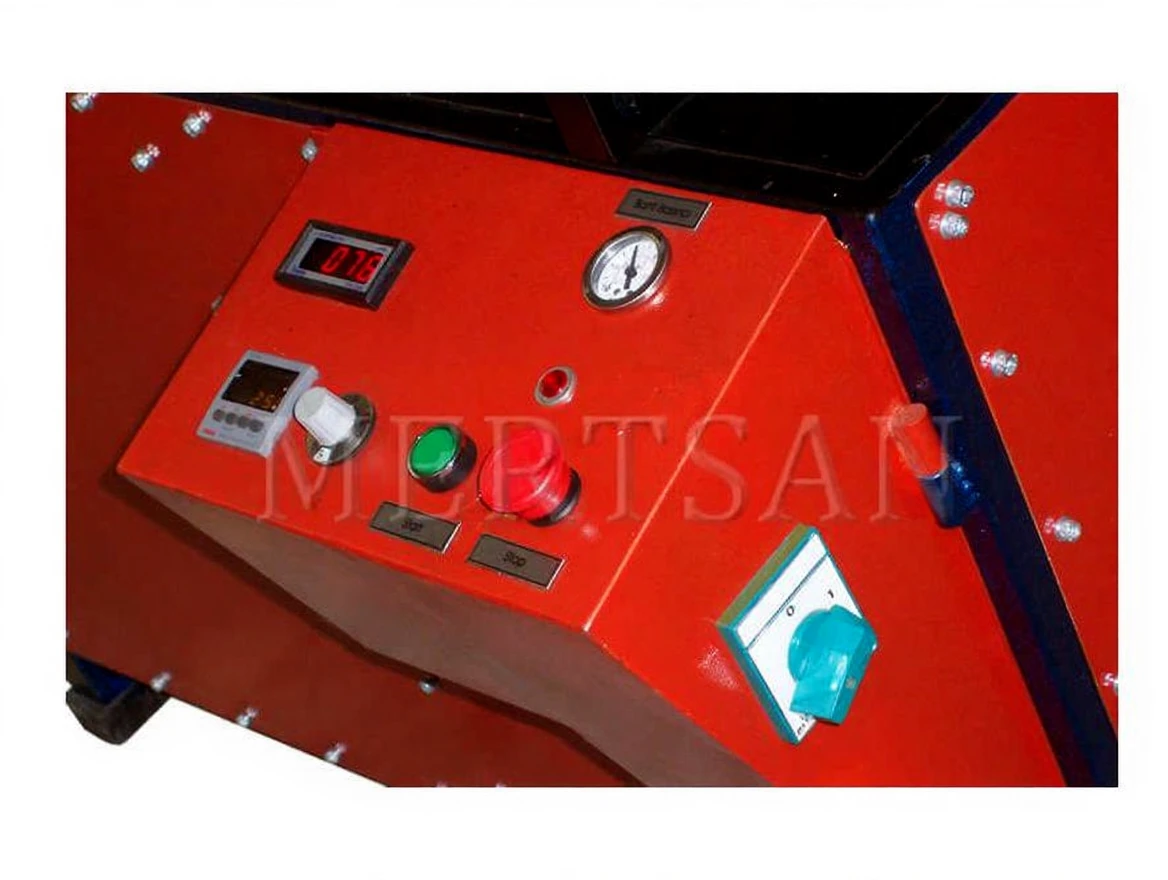

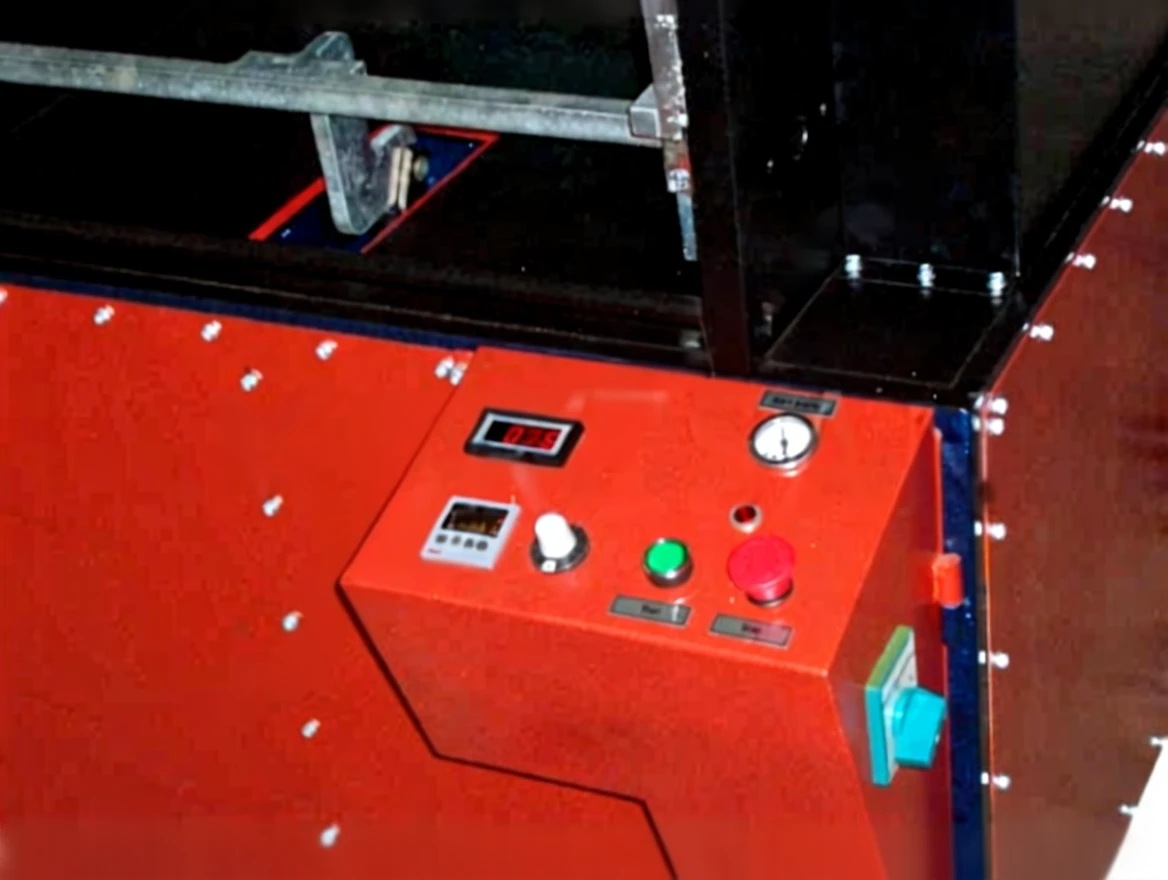

• Control Type: Manual Control – Standard Automation System
