500 M/Min Slice Stretch Wrapping Machine
| Brand | Mertsan |
|---|---|
| Model Type |
MSN 70 DL |
Description

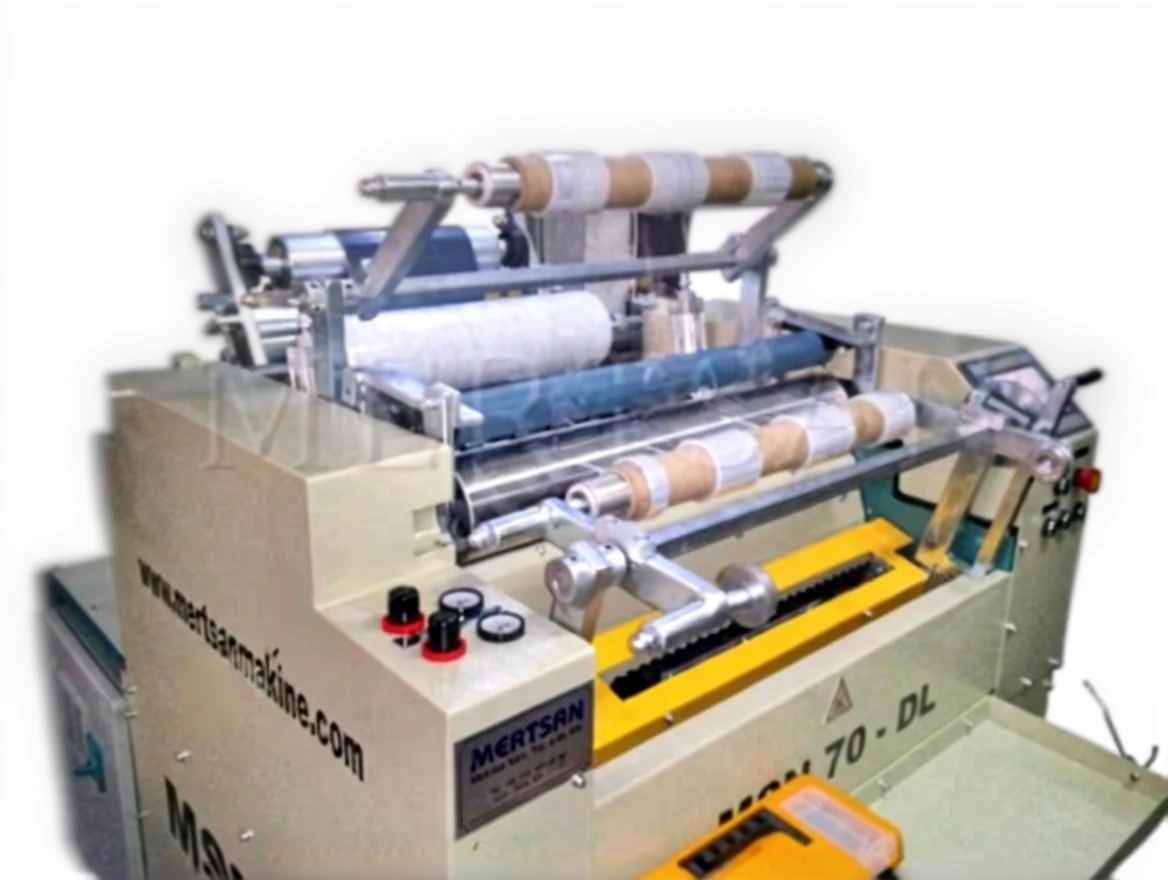

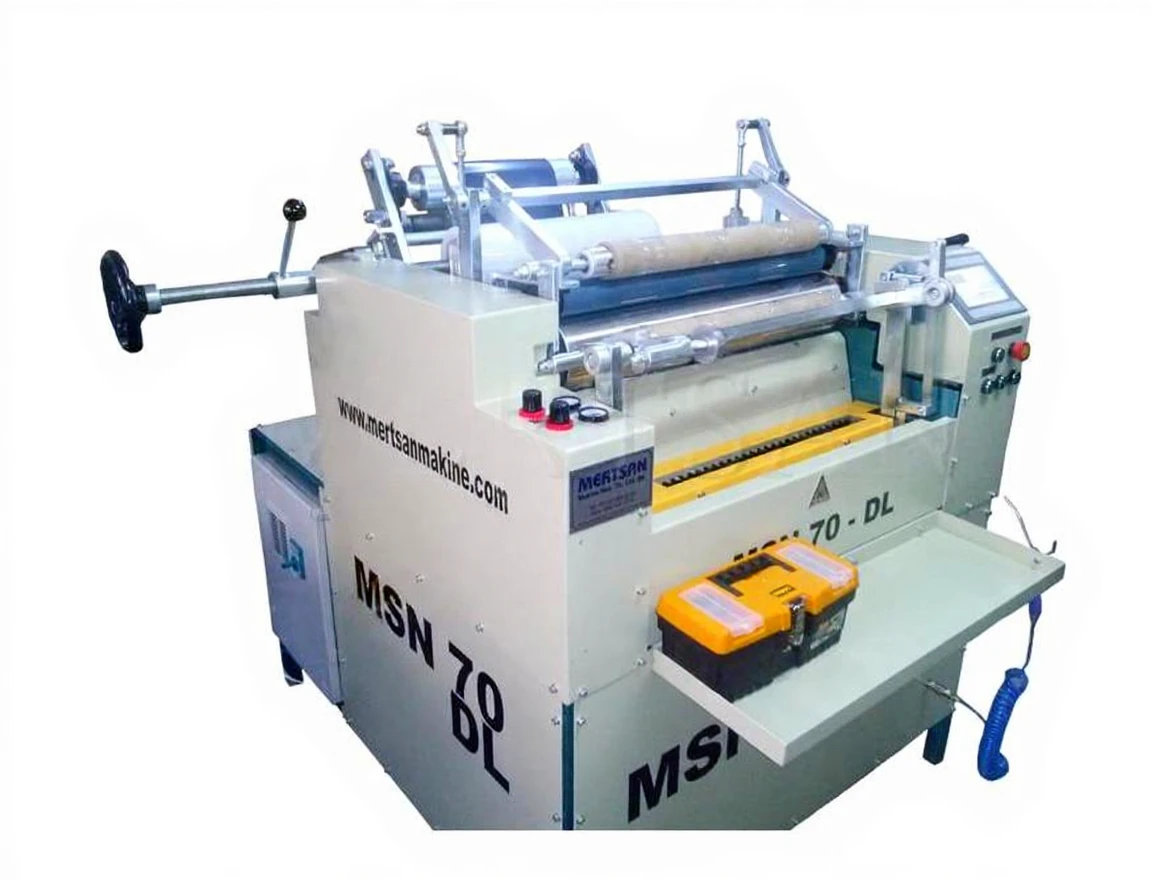

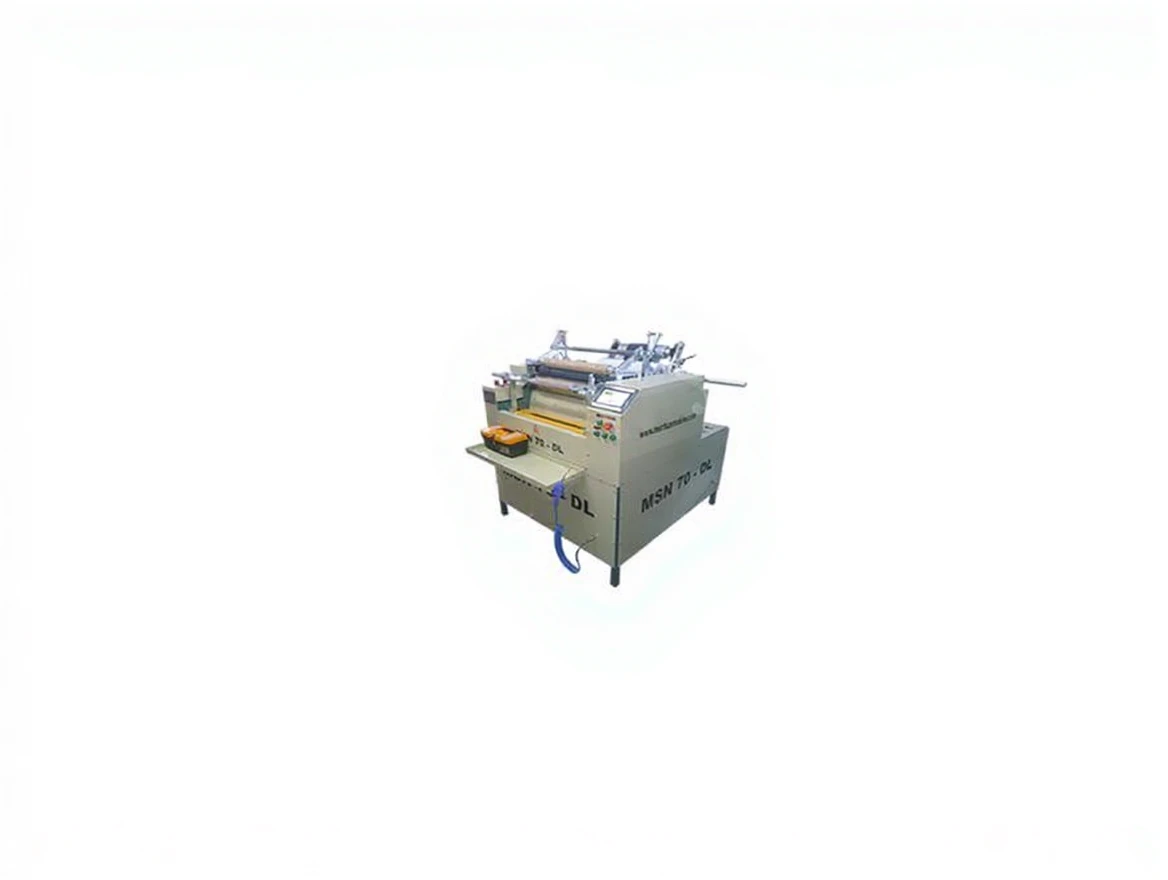

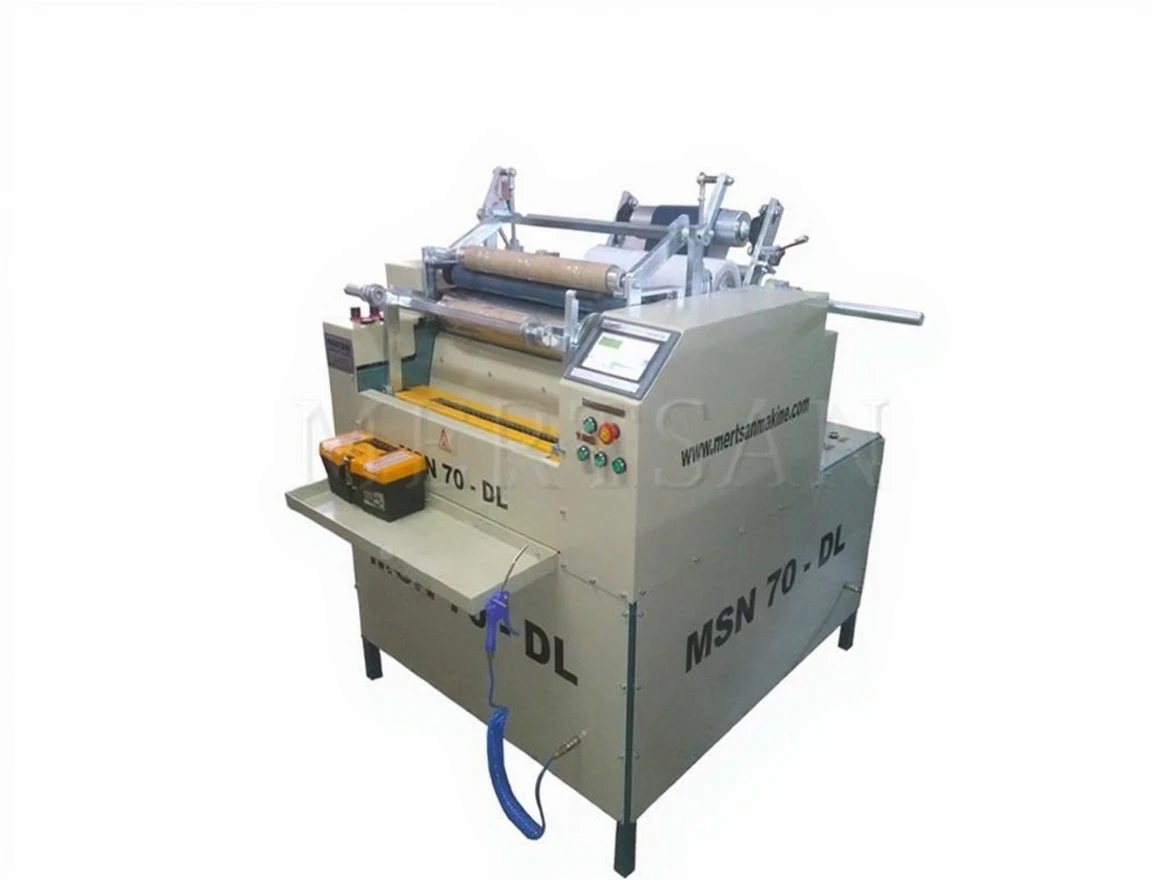

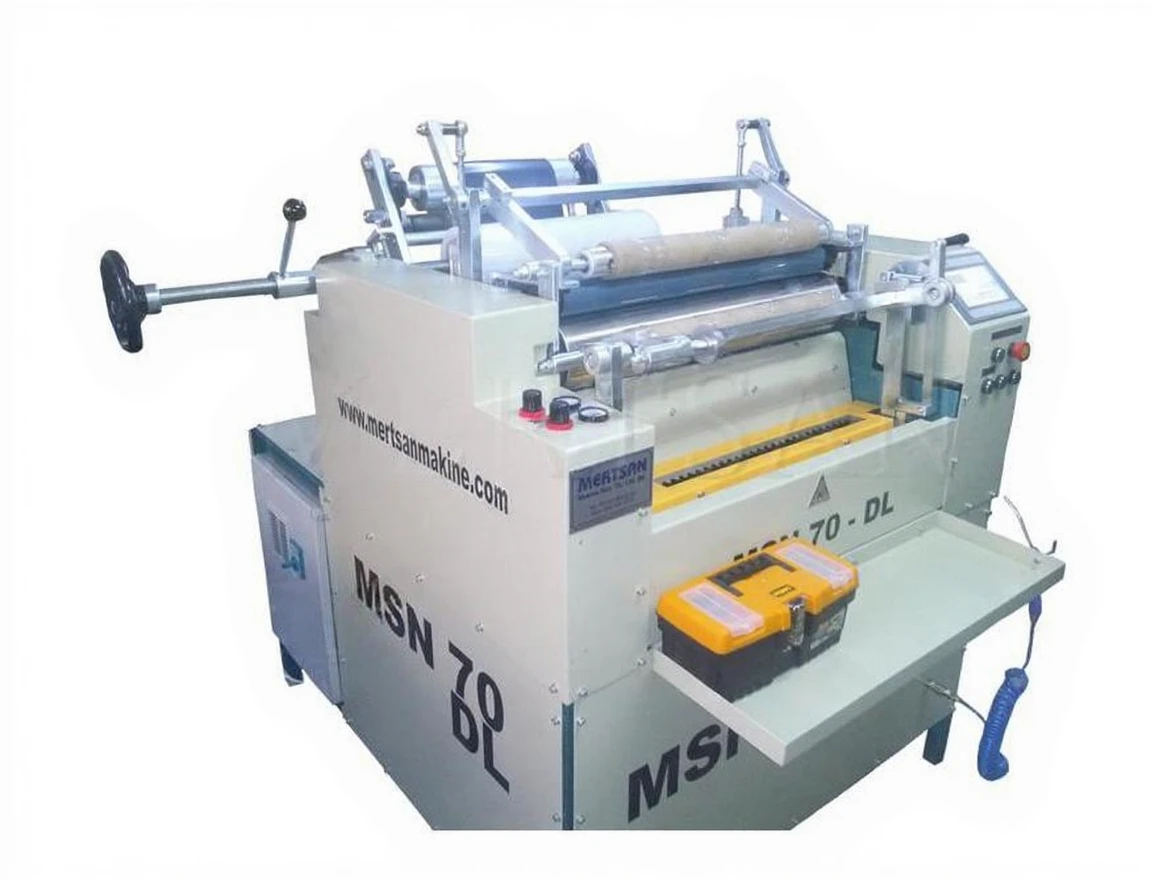

Mertsan MSN 70 DL Stretch Wrapping Machine
Product Features
The MSN 70 DL model machine is used by our customers for precise metering of food stretch film, industrial stretch film, aluminum foil, and many other products.
This model is especially demanded by our customers who wrap food stretch film and aluminum foil.
The main reason for this is the material used, which is suitable for food, and the high wrapping precision.
Mertsan MSN 70 DL Technical Specifications
Unwinding Unit Specifications | Winding Unit Specifications
- Max Coil Width: 50 cm | Max Coil Width: 55 cm
- Max Coil Diameter: 80 cm | Min Core Diameter: 28 mm
- Max Coil Weight: 280 kg | Max Core Diameter: 76 mm
- Standard Core Diameter: 76 – 150 mm | Max Coil Diameter: 20 cm
Mertsan MSN 70 DL Technical Details
- Physical Dimensions: 100 x 100 x 70 cm
- Operating Voltage: 380 V, 50/60 Hz (+/- 10%)
- Motor Power: 4 kW 3P Asynchronous Motor
- Pneumatic Air Pressure: 6 Atm
- Wrapping Speed: 500 m/min
- Control Type: Semi-Automatic – Computerized Control System
