500 mm Digital Universal Lathe

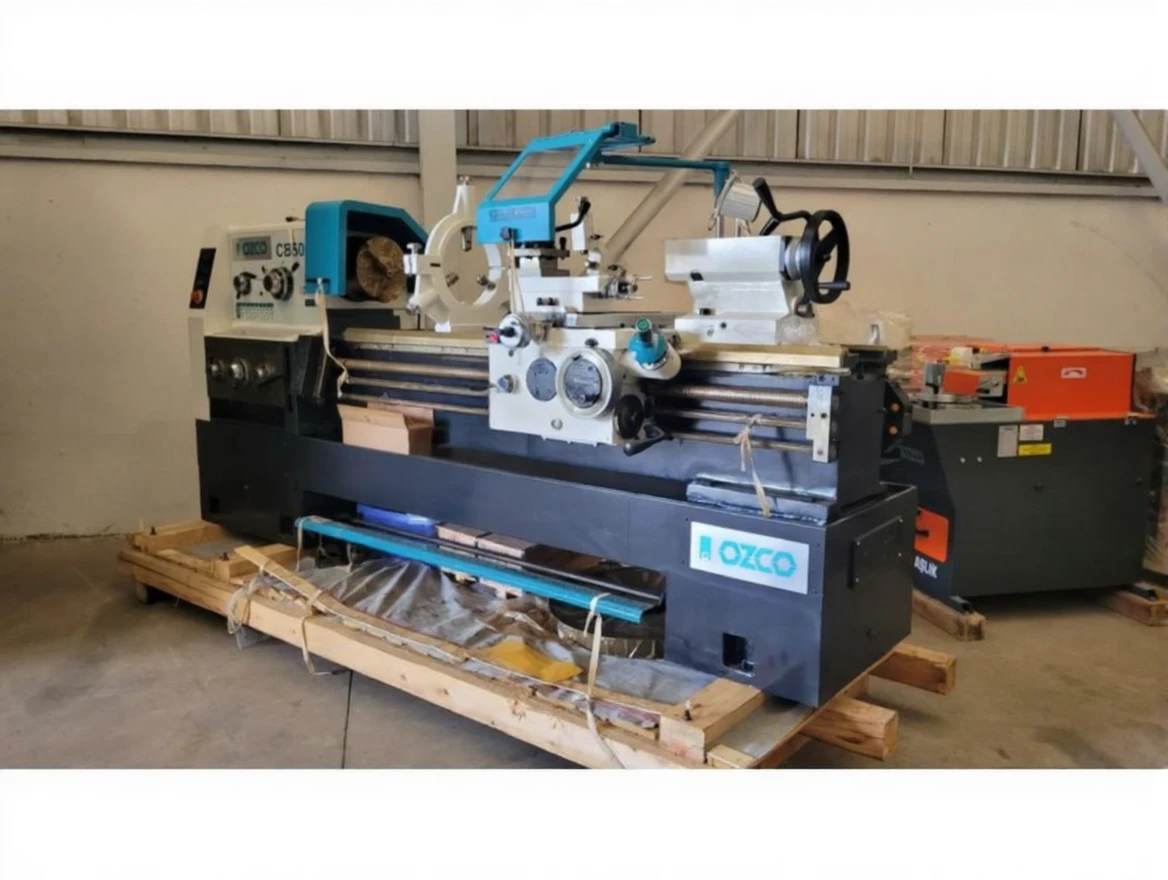

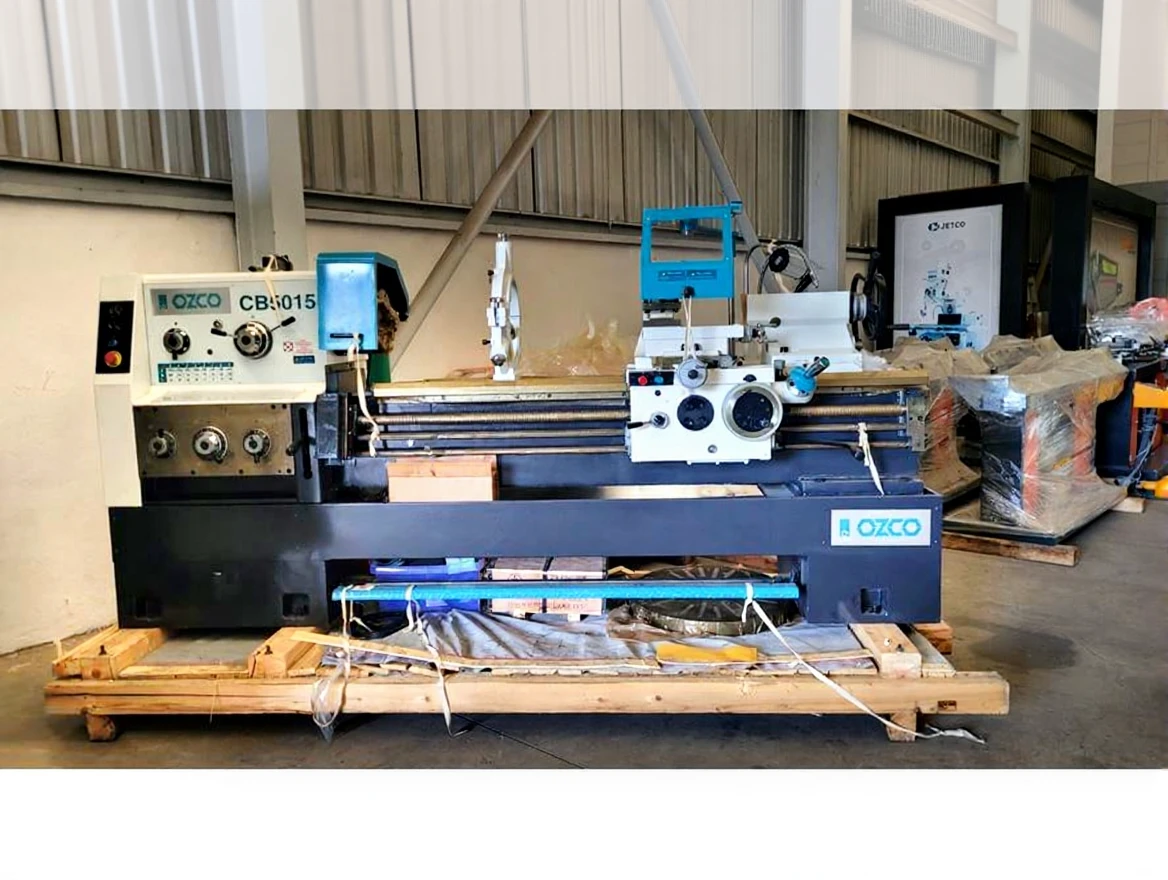

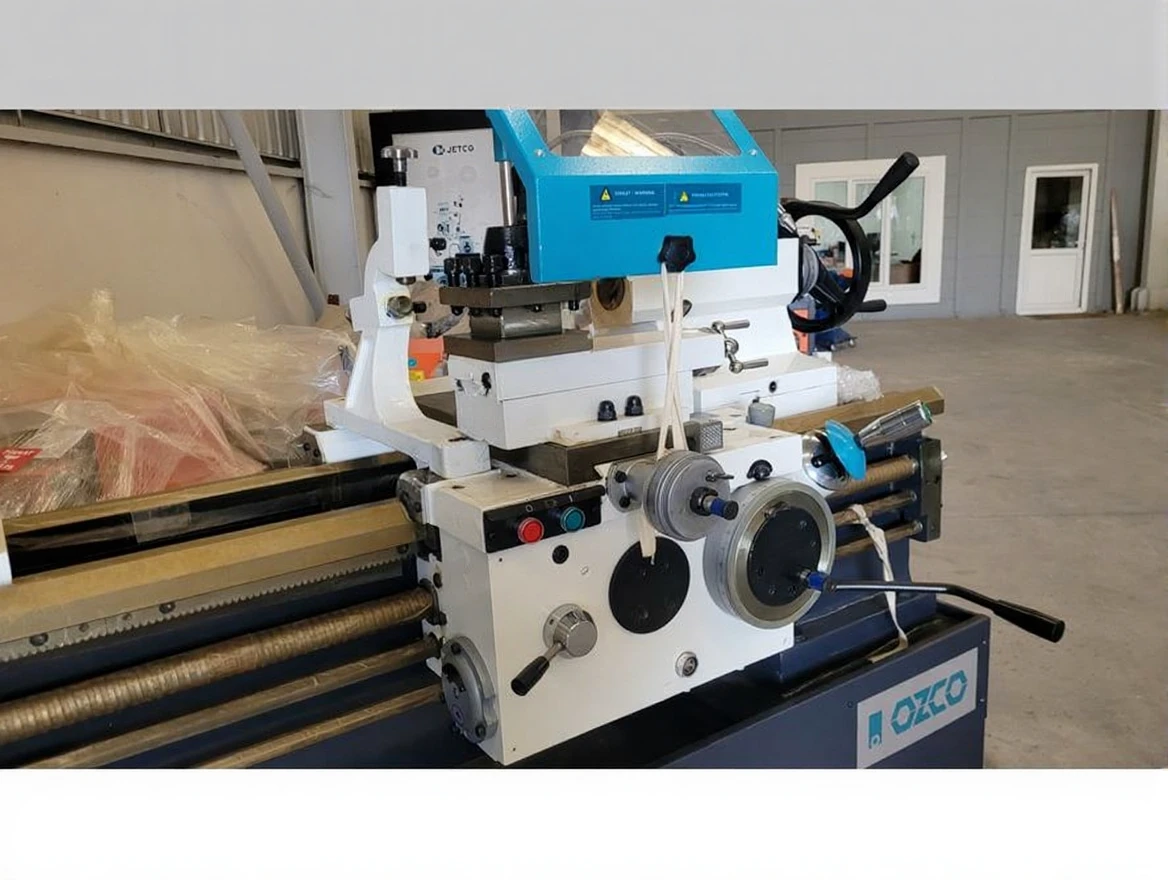

YUNNAN CB 5015 Universal Lathe

YUNNAN CB 5015 Universal Lathe Capacity

It has a processing capacity of 500mm on the bench, 300mm on the support, and 710mm in the bridge gap. The spindle diameter is 82mm, and the distance between centers is 2000mm.

YUNNAN CB 5015 Universal Lathe Shipment Scope

Includes digital coordinate reader, 3-legged chuck Ø 250 mm, 4-legged chuck Ø 400 mm, flat chuck 400 mm, fixed bed, movable bed, MK5 rotating tailstock, MK6 fixed tailstock, thread gauge, 4-way tool holder, halogen lamp, change gears, foot brake, cooling system, and equipment.

YUNNAN CB 5015 Universal Lathe General Features

Compliant with CE standards, mechanical clutch system, emergency stop button, safety switch chuck guard, joystick for easy movement, Siemens electrical system, cooling system, and foot brake, chuck and tool holder guard.

Technical Specifications YUNNAN CB 5015 Universal Lathe

Motor Power         7.5 kW, 400 V w

Bench Diameter 500 mm

Bridge Diameter 710 mm

Car Diameter 300 mm

Bench Width  390 mm

Intermediate Piece Length         240 mm

Distance Between Centers     1500 mm

Maximum Material Capacity   300 kg with chuck, 400 kg with chuck + movable tailstock

Speed         9-1600 rpm

Stages 24

Spindle Cone MK6              MK6

Spindle Tip D8    D8

Spindle Diameter 82 mm

Cross Support Movement 340 mm

Diagonal Support Movement 150 mm

Movable Tailstock Cone MK5          MK5

Movable Tailstock Diameter              75 mm

Movable Tailstock Movement      150 mm

Linear Feed            [ PHONE HIDDEN ] mm/rev

Engine Feed   [ PHONE HIDDEN ] mm/rev

Metric Thread and Ratio         [ PHONE HIDDEN ] pieces) mm

Inch Thread and Ratio 72/1-8 TPI (46 pieces)

Module Thread Ratio           [ PHONE HIDDEN ] pieces)

Diametric Thread Ratio    56-1/4 DP (45 pieces)

Tool Holder Size 25×25 mm

Machine Dimensions (UxGxY) 3000x1150x1300 rpm

Packaging Dimensions              3250x1120x1940 mm

Weight  2400 kg

Gross Weight        2860 kg
