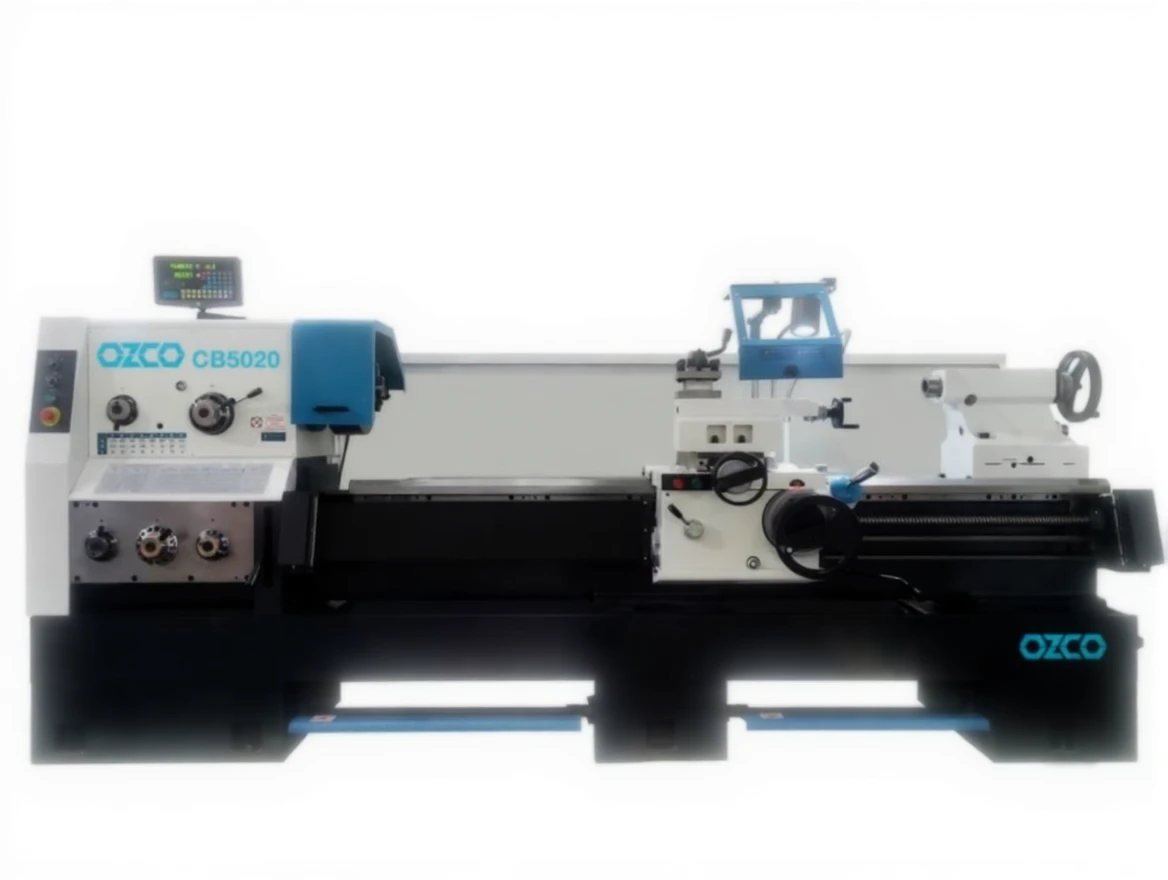

500 mm Digital Universal Lathe

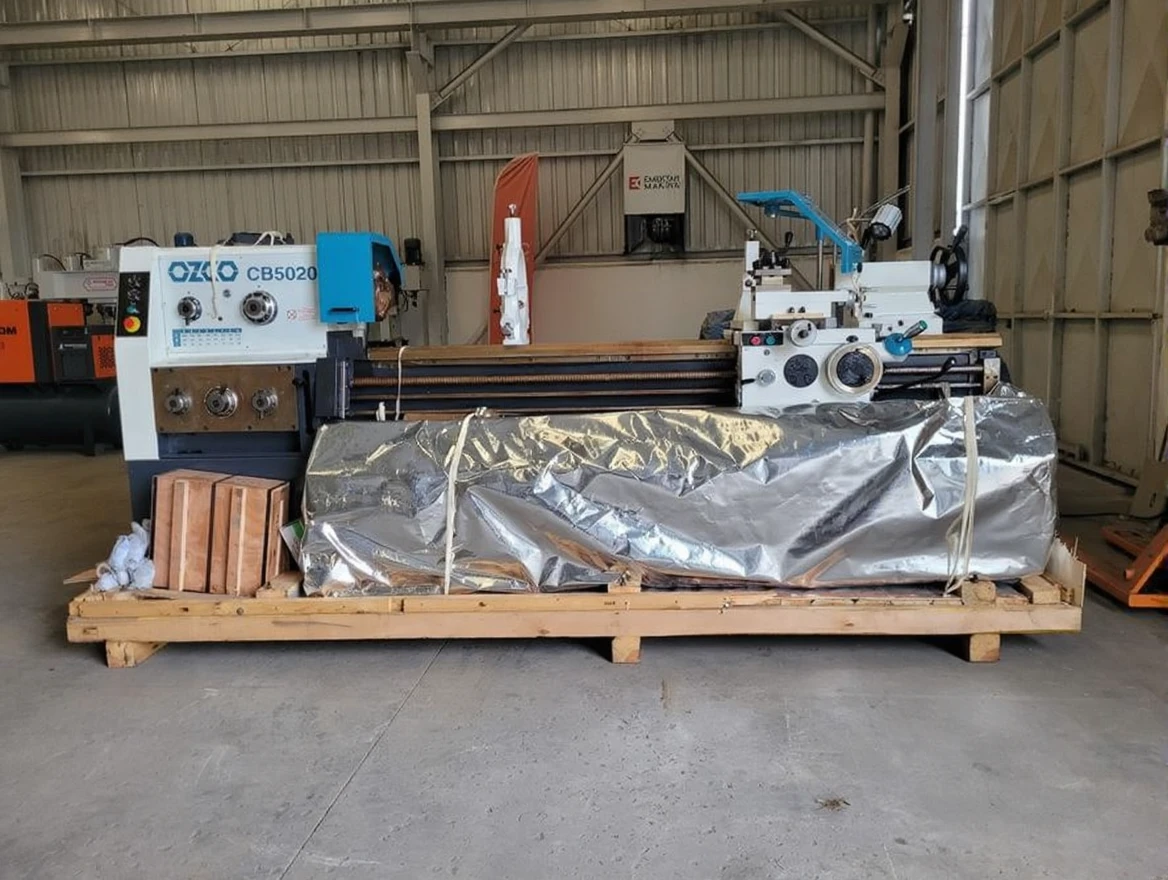

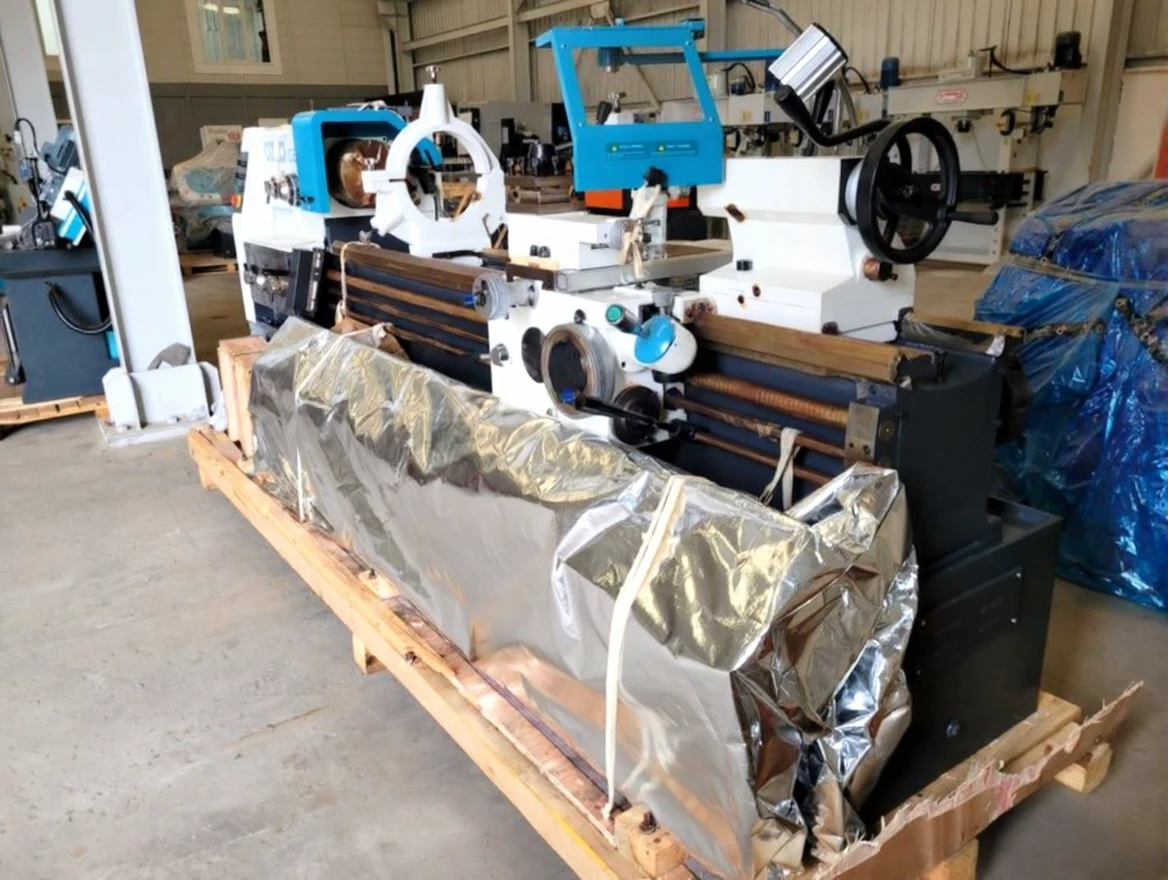

YUNNAN CB 5020 Universal Lathe

YUNNAN CB 5020 Universal Lathe Capacity

Has a processing capacity of 500mm over the bed, 300mm over the carriage, and 710mm in the gap. The spindle diameter is 82mm, and the distance between centers is 2000mm.

YUNNAN CB 5020 Universal Lathe Shipment Scope

Includes digital readout, 3-jaw chuck Ø 250 mm, 4-jaw chuck Ø 400 mm, flat chuck 400 mm, fixed bed, traveling bed, MK5 live center, MK6 dead center, thread gauge, 4-way tool post, halogen lamp, change gears, foot brake, cooling system, and accessories.

YUNNAN CB 5020 Universal Lathe General Features

Complies with CE standards, mechanical clutch system, emergency stop button, safety switch chuck guard, joystick for easy movement, Siemens electrical system, cooling system, and foot brake, chuck and tool post guard.

Technical Specifications YUNNAN CB 5020 Universal Lathe

Motor Power         7.5 kW, 400 V w

Bed Diameter 500 mm

Gap Diameter 710 mm

Carriage Diameter 300 mm

Bed Width  390 mm

Intermediate Piece Length         240 mm

Distance Between Centers     1500 mm

Maximum Material Capacity   300 kg with chuck, 400 kg with chuck+live center

Speed         9-1600 rpm

Gear 24

Spindle Taper              MK6

Spindle Nose    D8

Spindle Diameter  82 mm

Cross Support Movement  340 mm

Diagonal Support Movement 150 mm

Live Center Taper          MK5

Live Center Diameter              75 mm

Live Center Movement      150 mm

Linear Feed            [ PHONE HIDDEN ] mm/rev

Longitudinal Feed   [ PHONE HIDDEN ] mm/rev

Metric Thread and Ratio         [ PHONE HIDDEN ] pieces) mm

Inch Thread and Ratio 72/1-8 TPI (46 pieces)

Module Thread Ratio           [ PHONE HIDDEN ] pieces)

Diametric Thread Ratio    56-1/4 DP (45 pieces)

Tool Post Size 25×25 mm

Machine Dimensions (LxWxH) 3000x1150x1300 mm

Packaging Dimensions              3250x1120x1940 mm

Weight  2800 kg

Gross Weight        3200 kg
