500 mm Universal Lathe

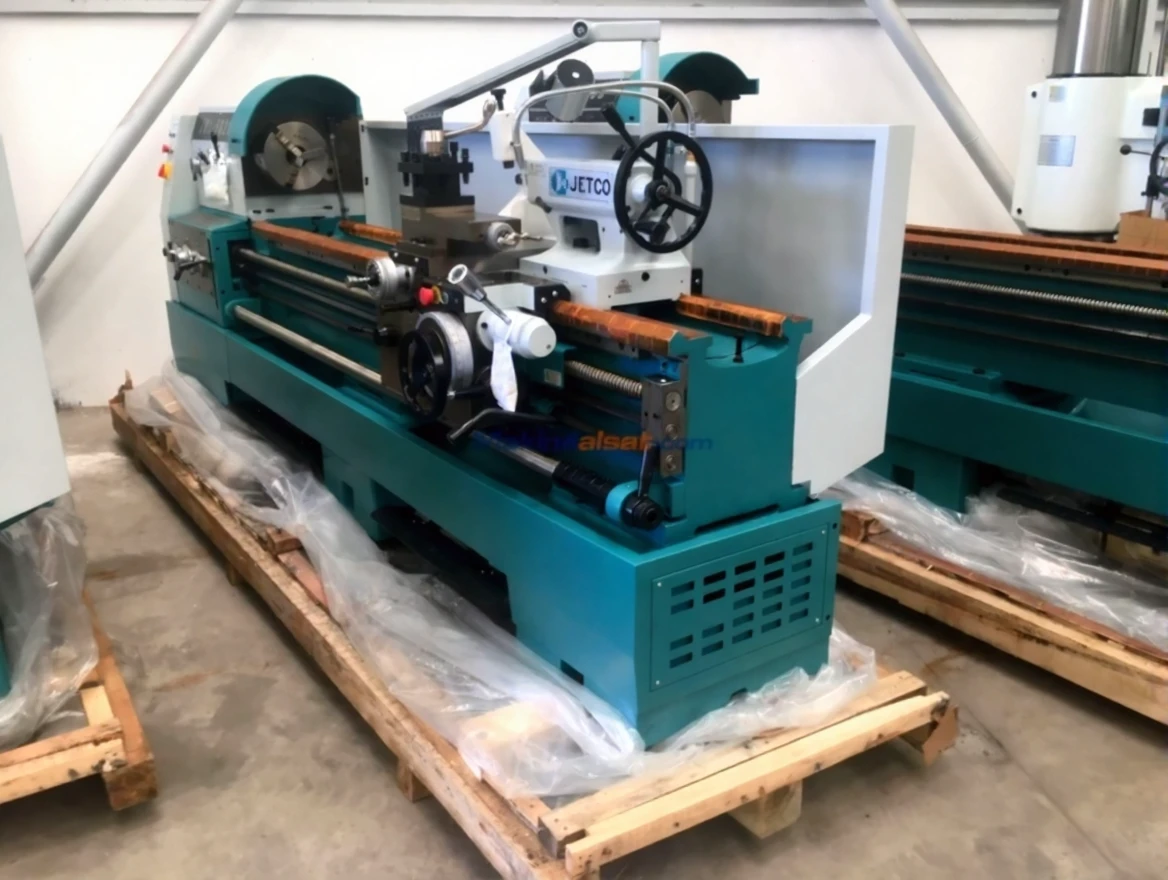

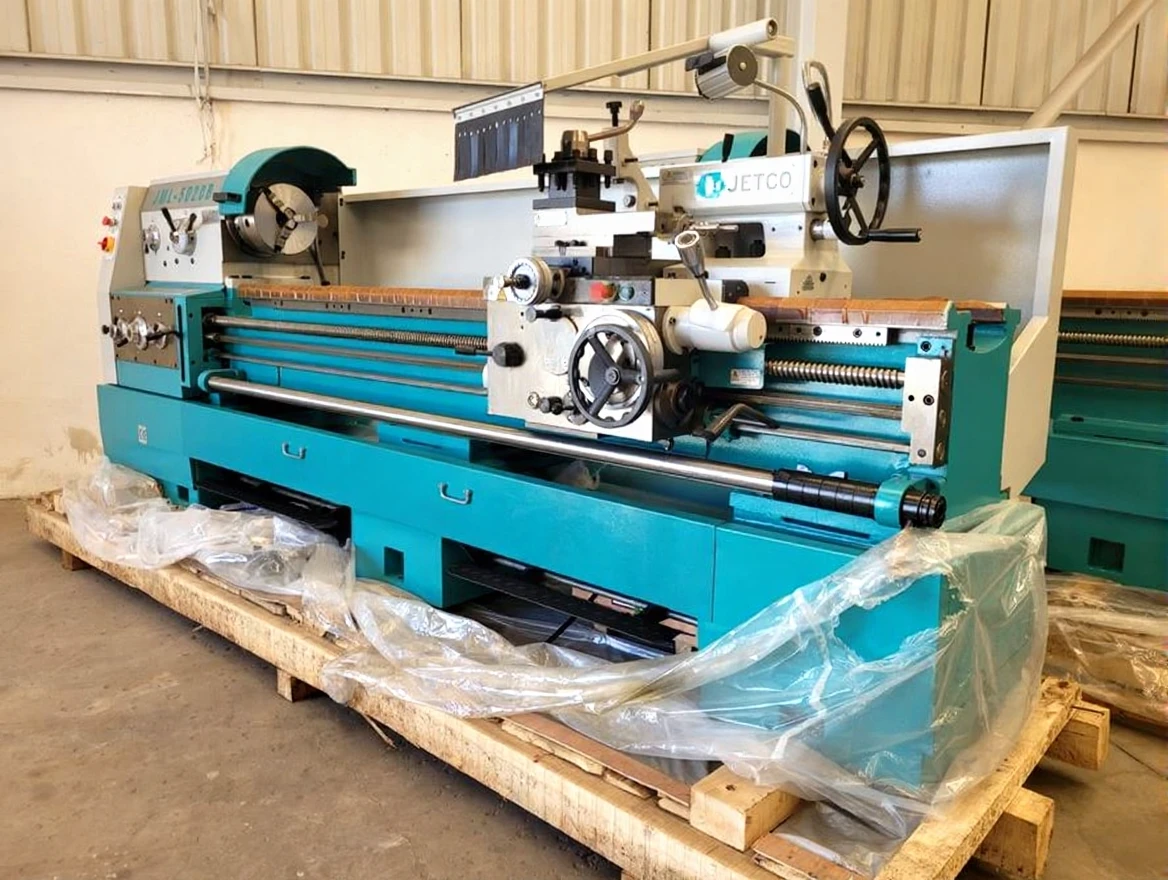

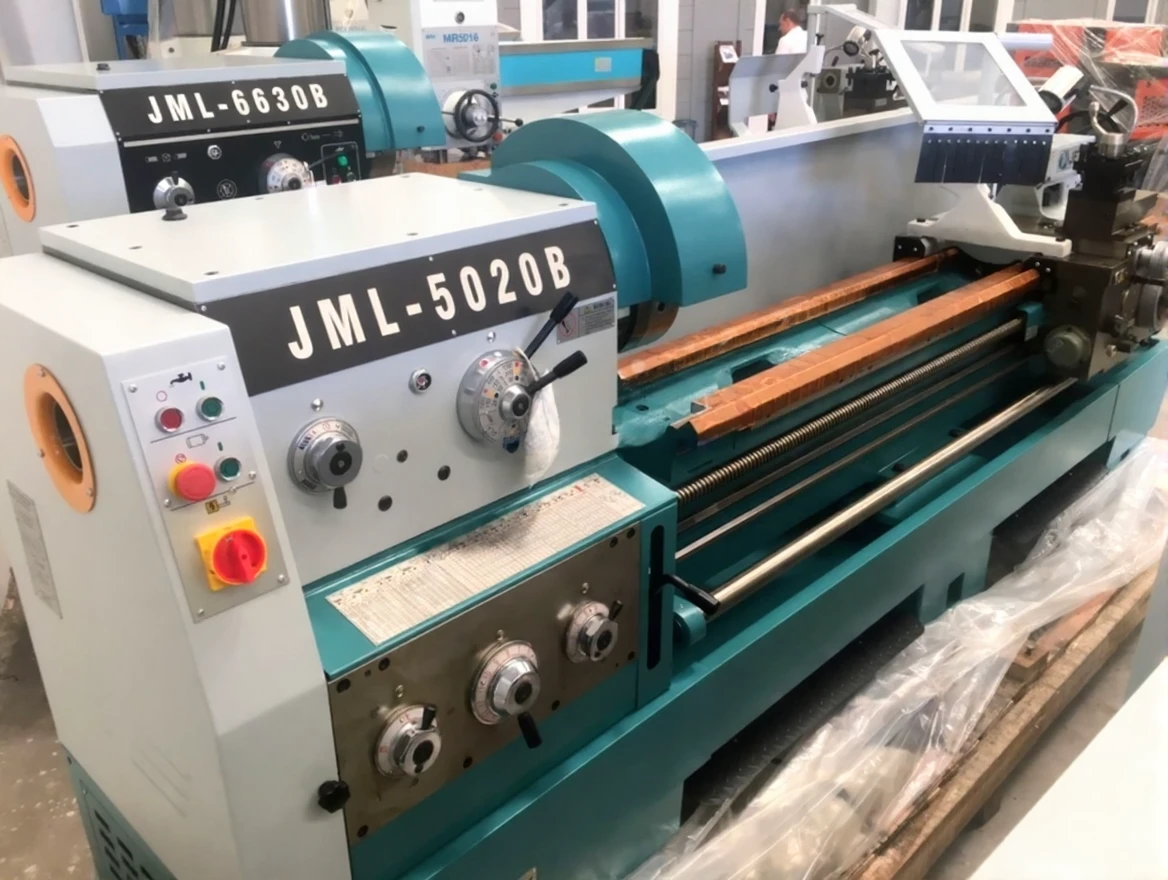

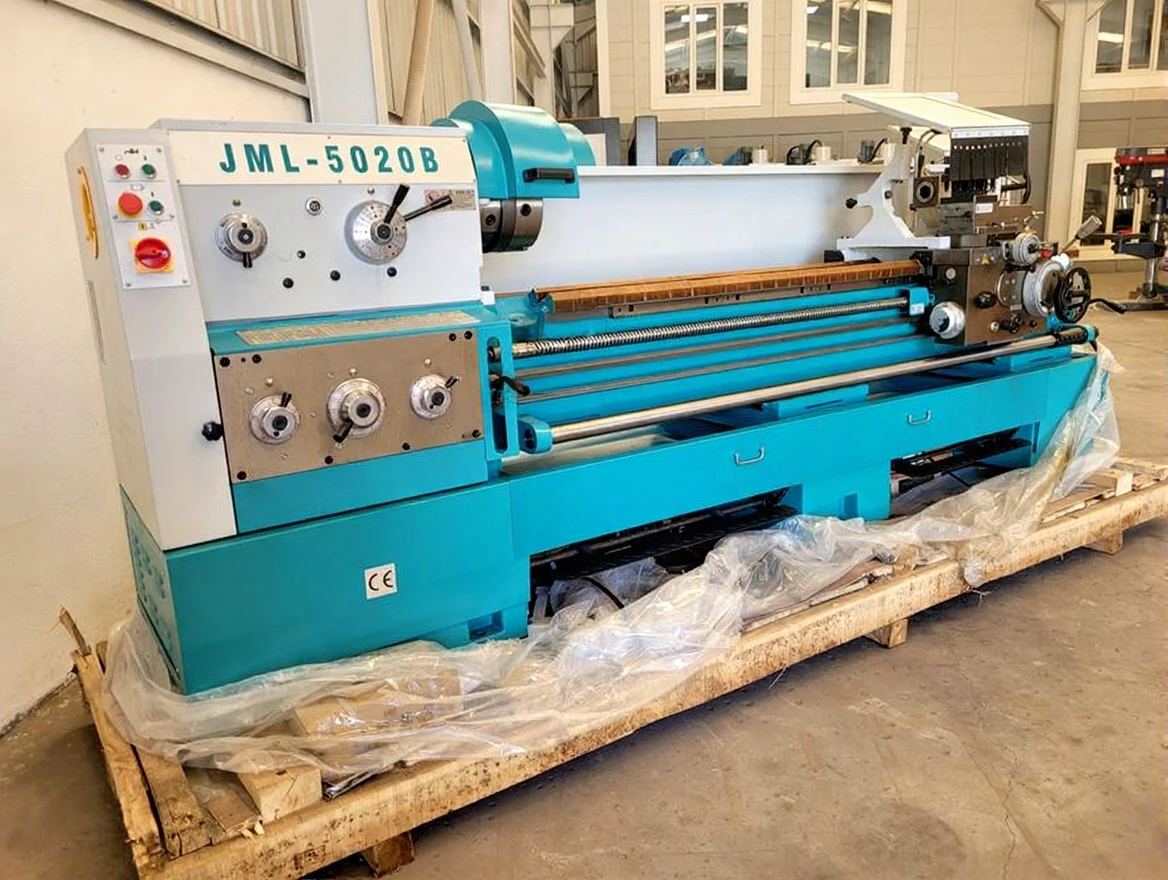

JETCO JML 5020B UNIVERSAL LATHE

Jetco JML 5020B Universal Lathe Capacity:

It has a processing capacity of 500mm over the bench, 300mm over the support, and 710mm in the bridge gap. The spindle diameter is 82mm, and the distance between centers is 2000mm.

Jetco JML 5020B Universal Lathe Standard Accessories

3-jaw chuck, Sliding chuck, Free-standing chuck, Rotary chuck, Spare chuck flanges, Live center, Dead center, Lubrication pump, Chip guard, Dead center, 4-way tool holder Chuck housing, Cooling system, Tailstock taper adjustment, Chuck Tool box, Foot-operated brake pedal.

Technical Specifications  Jetco JML 5020B Universal Lathe

Bench Top Turning Diameter     mm      500

Support Top Turning Diameter       mm      300

Bridge Gap Diameter          mm      710

Bench Width           mm      405

Distance Between Centers            mm      [ PHONE HIDDEN ]

Bridge Channel Length           mm      240

Spindle Nose             no         ISO702/II No:8 camlock

Hole Diameter               mm      82

Speed Steps                         24

Speed Range   rev/min              9 – 1600

Main Motor Power          kW        7.01.1900

Longitudinal Feed Range         mm/rev           0.028 ~ 6.43 ; (93 sorts)

Cross Feed Range             mm/rev           0.012 ~ 2.73 ; (93 sorts)

Metric Thread Range       mm

Inch Thread Range            tpi         72 ~ 1/8 tpi ; (46 sorts)

Module Thread Range       module             0.5 ~ 112 ; (42 sorts)

DP Thread Range DP         56 ~ 1/4 DP ; (45 sorts)

Cross Support Movement           mm      320

Diagonal Support Movement         mm      145

Pinole Diameter        mm      75

Pinole Tip         metric Morse No:5

Pinole Movement             mm      150

Number of Stations                            4

Cutting Edge Size  mm      25 x 25

Water Motor Power             kW        0.06

Length            mm      3632

Width            mm      975

Height         mm      1230

Weight kg          2800
