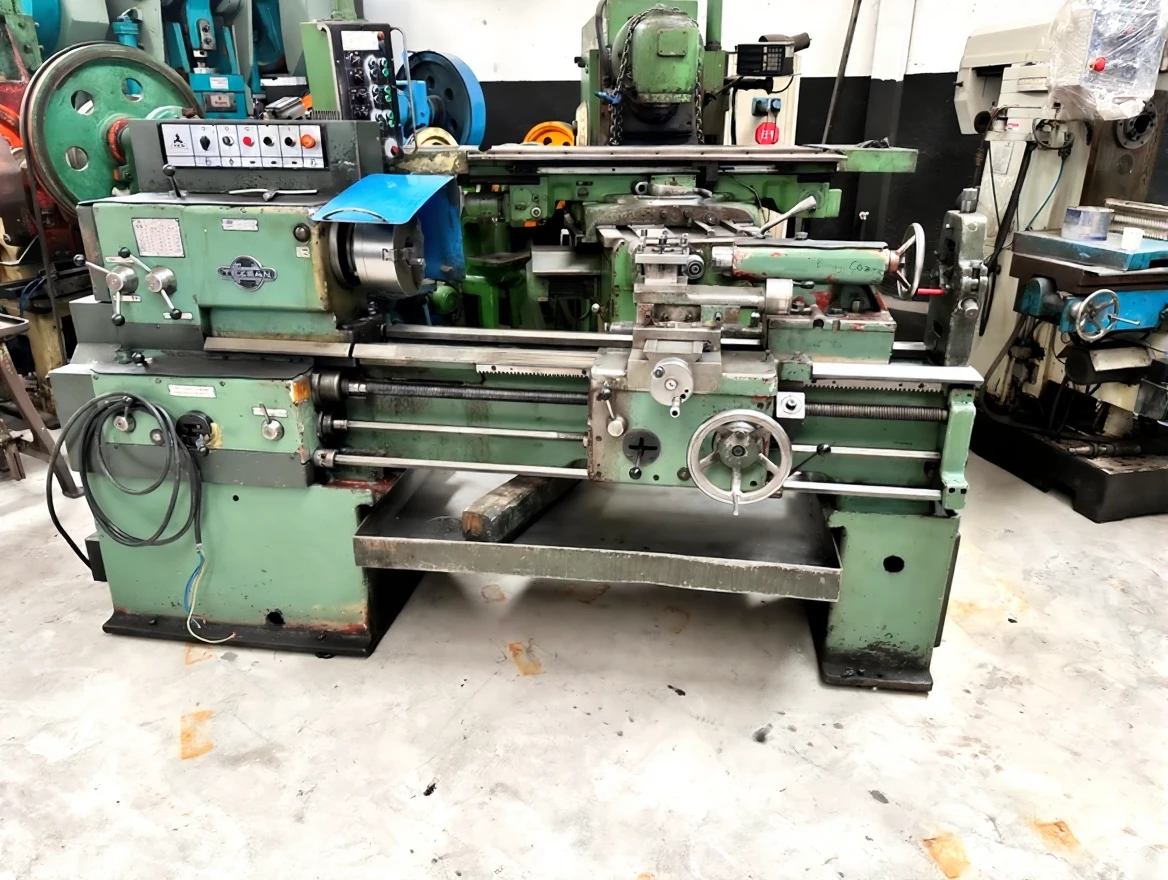

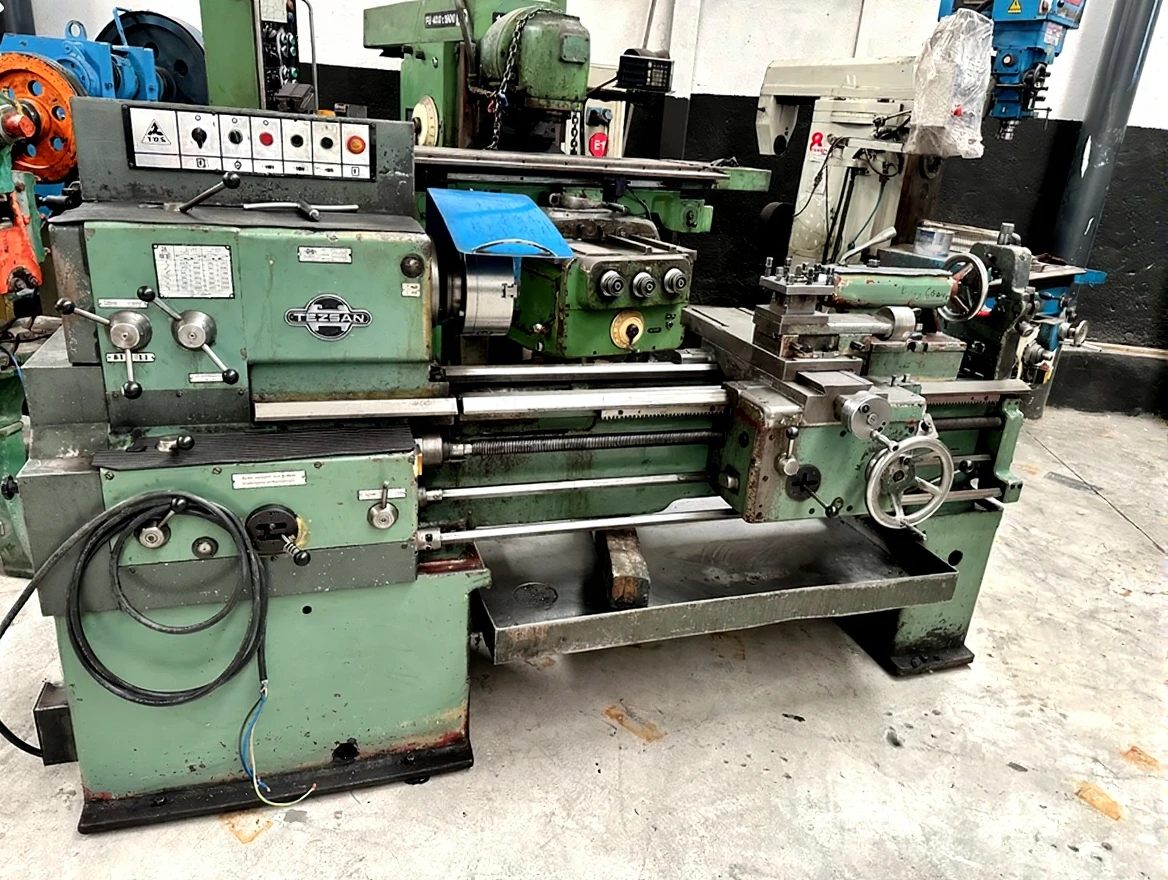

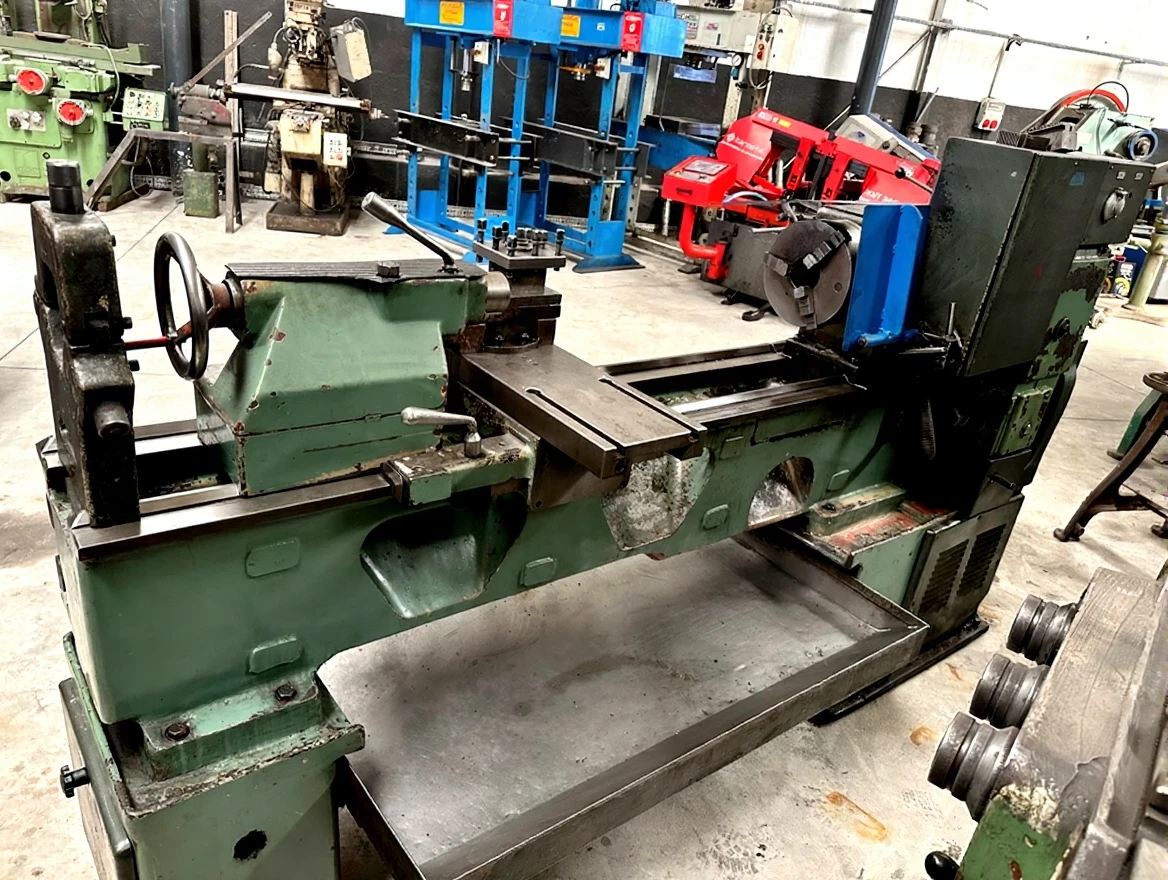

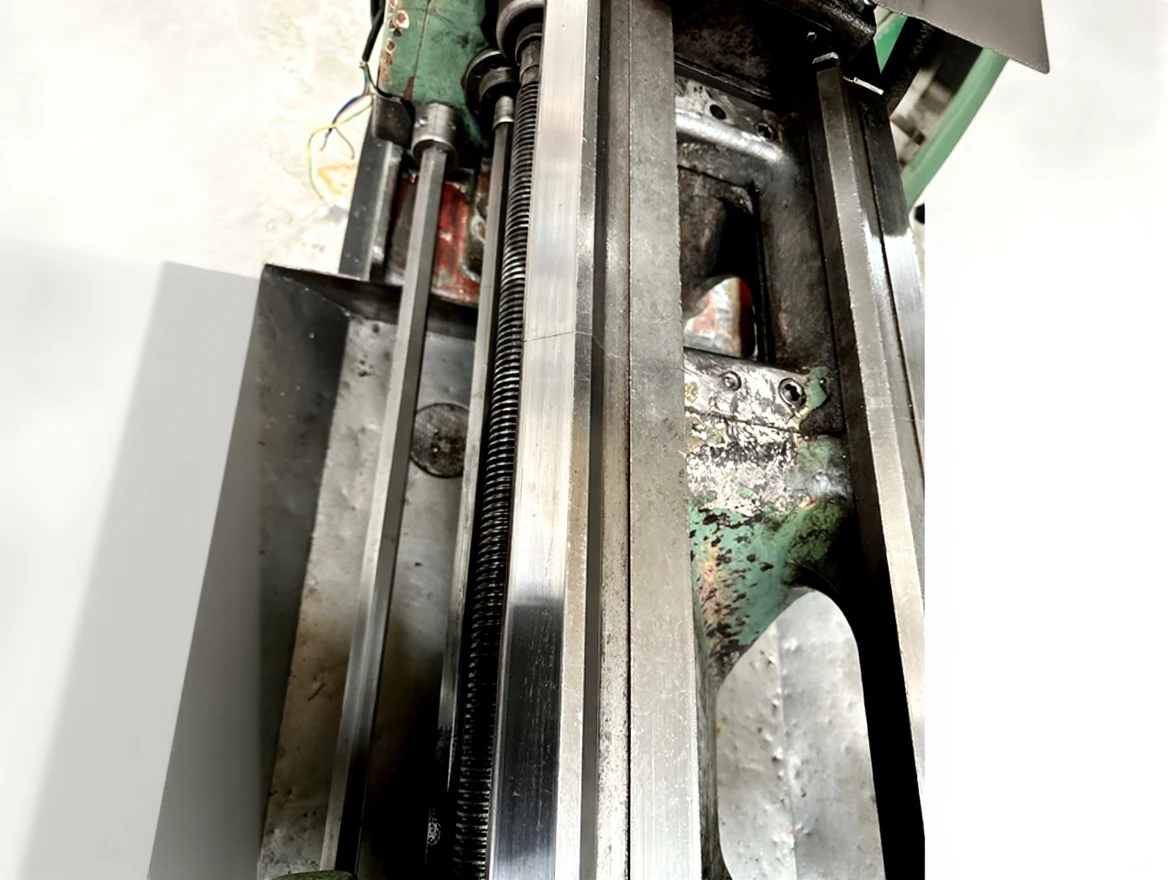

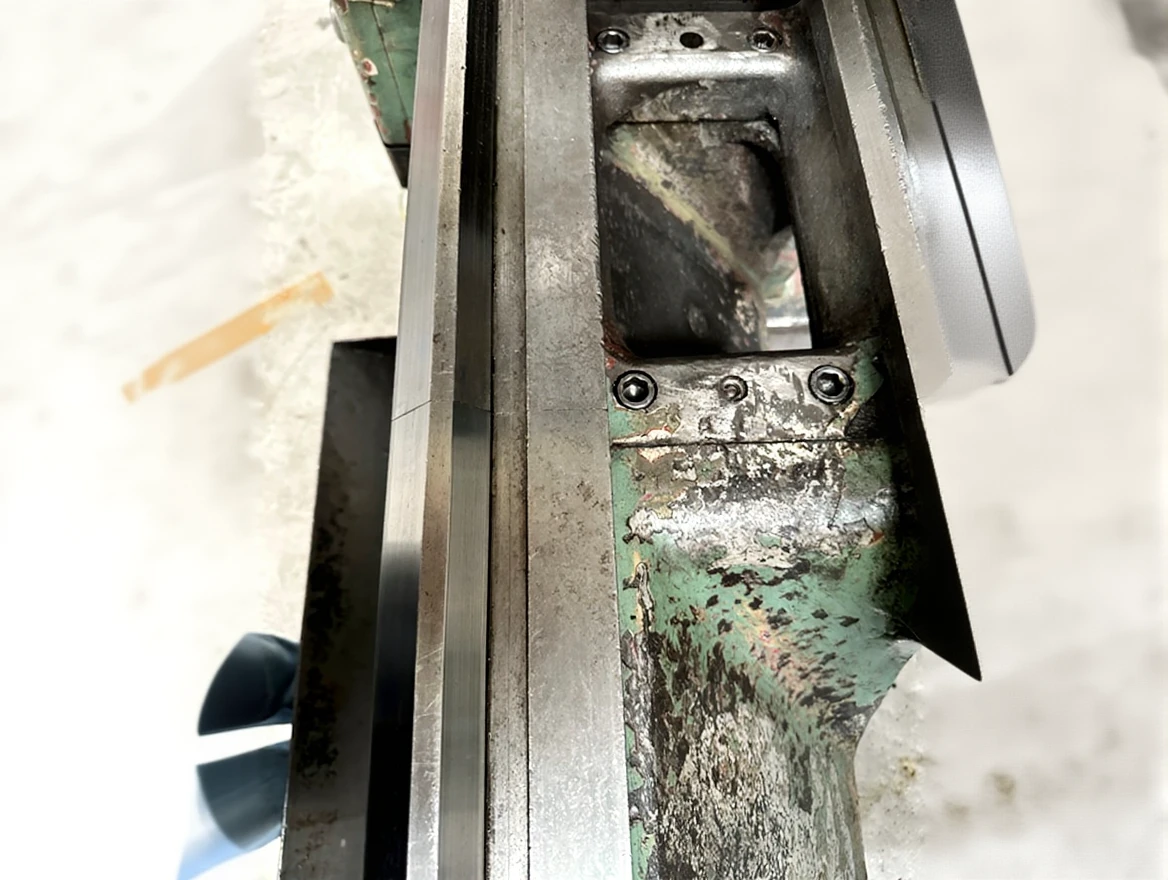

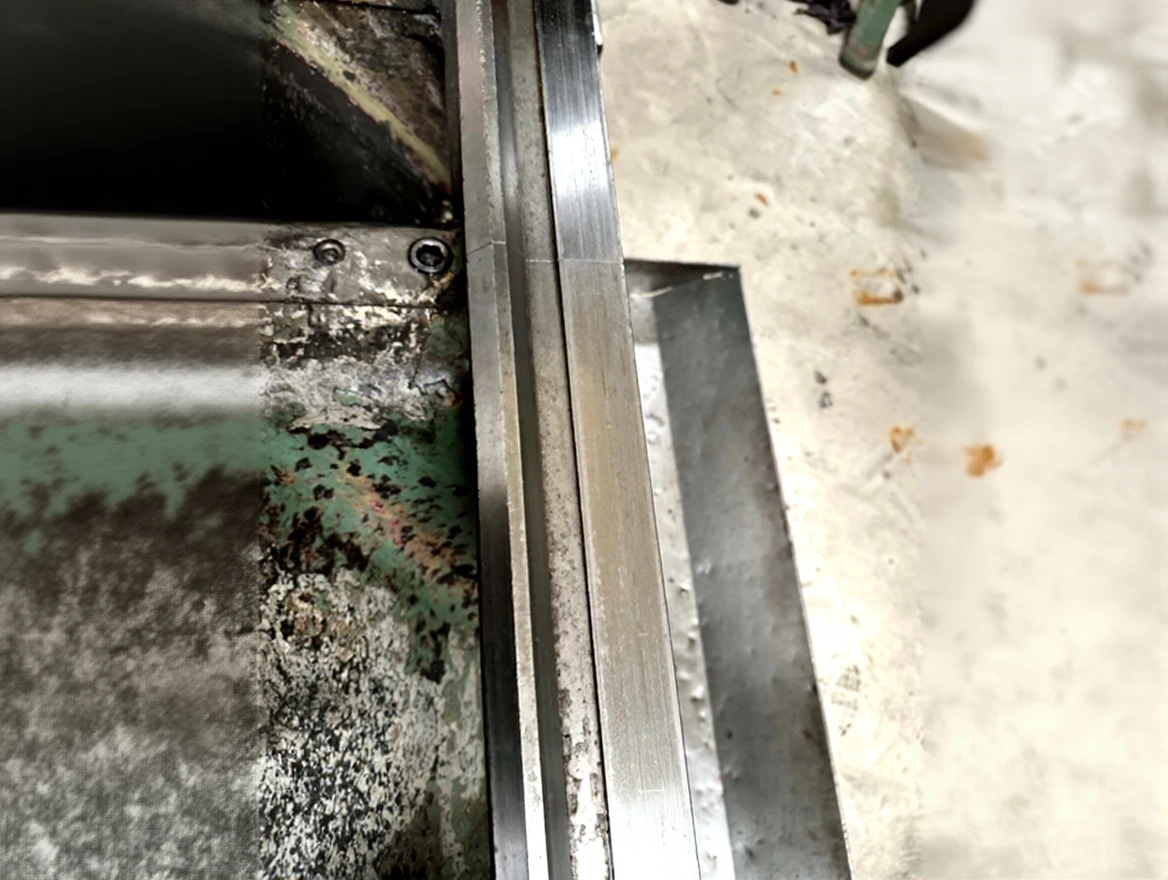

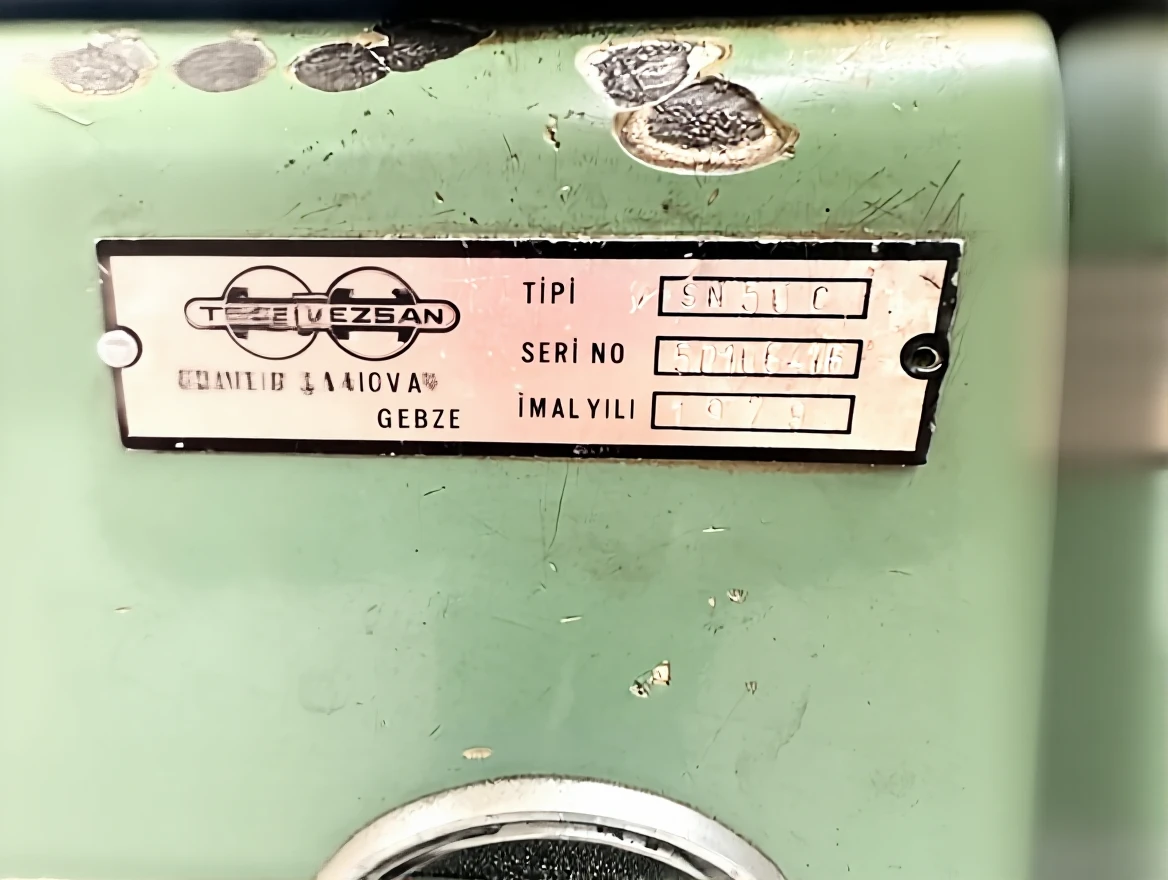

500 mm Universal Lathe Machine

Bench top diameter

500 mm

Carriage top diameter

270 mm

Diameter in the bridge gap

700 mm

Bridge gap width

230 mm

Distance between centers

1000, 1500, 2000 mm

Height of the center from the bench

250 mm

Speed range

22–2000 rpm

Spindle nose

STN ISO 702/III

Inner hole diameter

52 mm

Inner taper

MORSE 6

Maximum torque

1200 Nm (at 45 rpm)

Cross feed movement

300 mm

Diagonal feed movement

140 mm

Maximum tool size

32 × 20 mm

Number of feeds

38

Longitudinal feed range

0.05 – 6.4 mm/rev

Cross feed

0.025 – 3.2 mm/rev

Longitudinal rapid feed

3000 mm/min

Cross rapid feed

1500 mm/min

Diameter

70 mm

Stroke

180 mm

Inner taper

MORSE 5

Cross zeroing

±12 mm

Metric thread (number)

29

Metric thread range

0.5 – 40 mm

Whitworth thread (number)

38

Whitworth thread range

1 – 80 threads/1"

Module thread (number)

26

Module thread range

0.25 – 20 mm

Diametric thread (number)

31

DP thread number

2 – 72

Total power input

6.6 kVA

Supply voltage

3 × 400 V ±10

Main motor

5.5 kW

Cooling motor

0.09 kW

Series movement motor

0.55 kW

Piece connected between two centers

300 kg

Piece connected to the chuck

80 kg

Width × Height

1100 × 1505 mm

Length (for DBC 1000, 1500, 2000)

2640, 3145, 3630 mm
