500 Ton/Hour Electronic Conveyor Belt Scales

500 Ton/Hour Electronic Conveyor Belt Scales

Tuna T-BS Electronic Conveyor Belt Scales measure the flow weight of materials carried on the conveyor belt. With its practical installation, it provides important data source for businesses while saving labor, time, and capital.

ECI-BS Indicator consists of load cells, speed-read capable bidirectional encoder, and system control panel. It allows monitoring the quantity, instantaneous flow, and total flow of the material passing over the conveyor belt with the ability to connect an external display screen.

Real-time data can be archived via Tuna Conveyor Belt Scale Tracking Program on PC-Computer on a daily, monthly, or desired time interval basis. Archived data can be viewed in graphics and provides reporting in excel format. Tuna ECI-BS control terminal displays t/h, kg/s, kg/m, m/h, or kg.

Features

• Fast and Accurate Measurement

• Industrial Type IP66 Protection Class

• 2 Relay Outputs, RS232/RS485 Connection Possibility

• Tuna Reporting Program

• Steel/Stainless Steel

• Easy Adjustment and Calibration with Keypads

• Turkish, English Usage

• Stainless Steel, IP66 Loadcell

• Bidirectional Speed Reading

• Easy Installation and Assembly

• Control of Belt Speed at a Certain Level

Options

• Tuna Reporting Program

• External Display

Contents

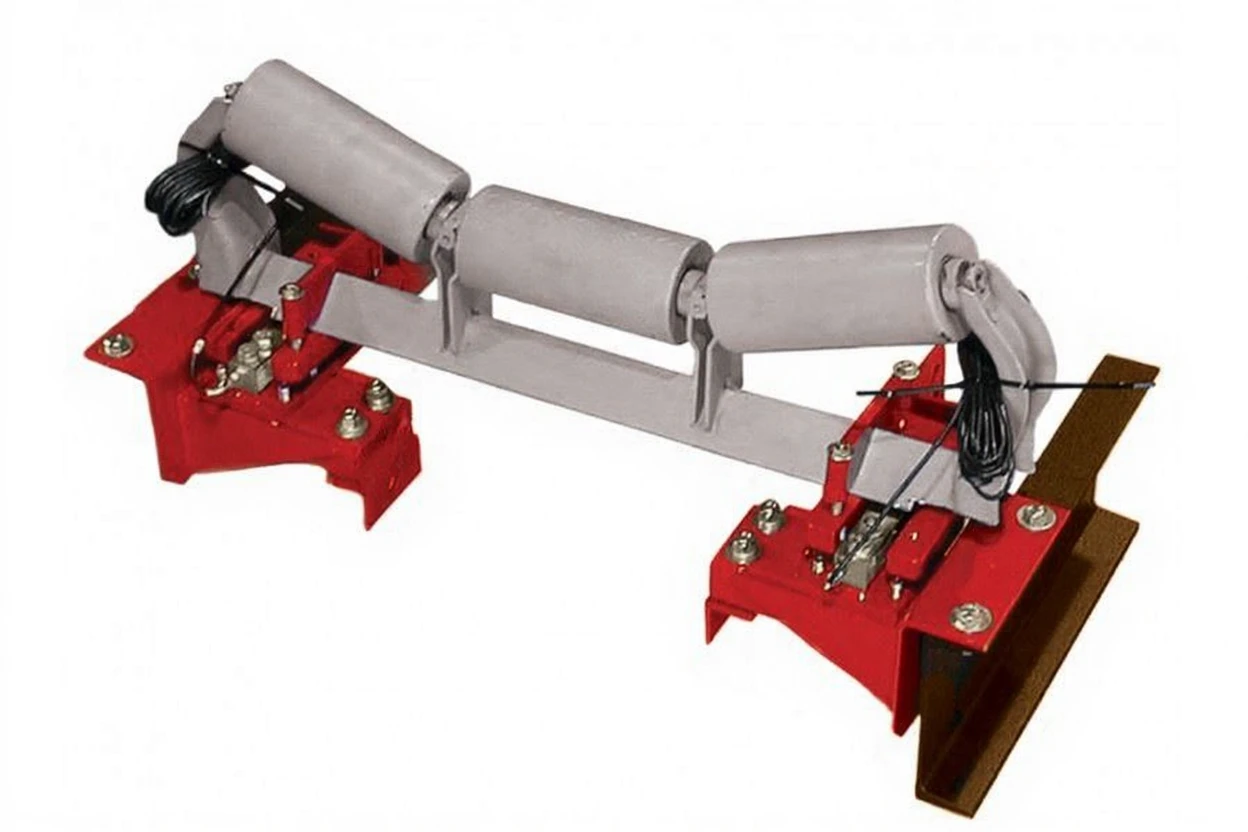

• 2 Stainless Steel Load Cells

• 1 2-Way Junction Box

• 1 Bidirectional Tachometer

• 1 Control Device (Analog Output)

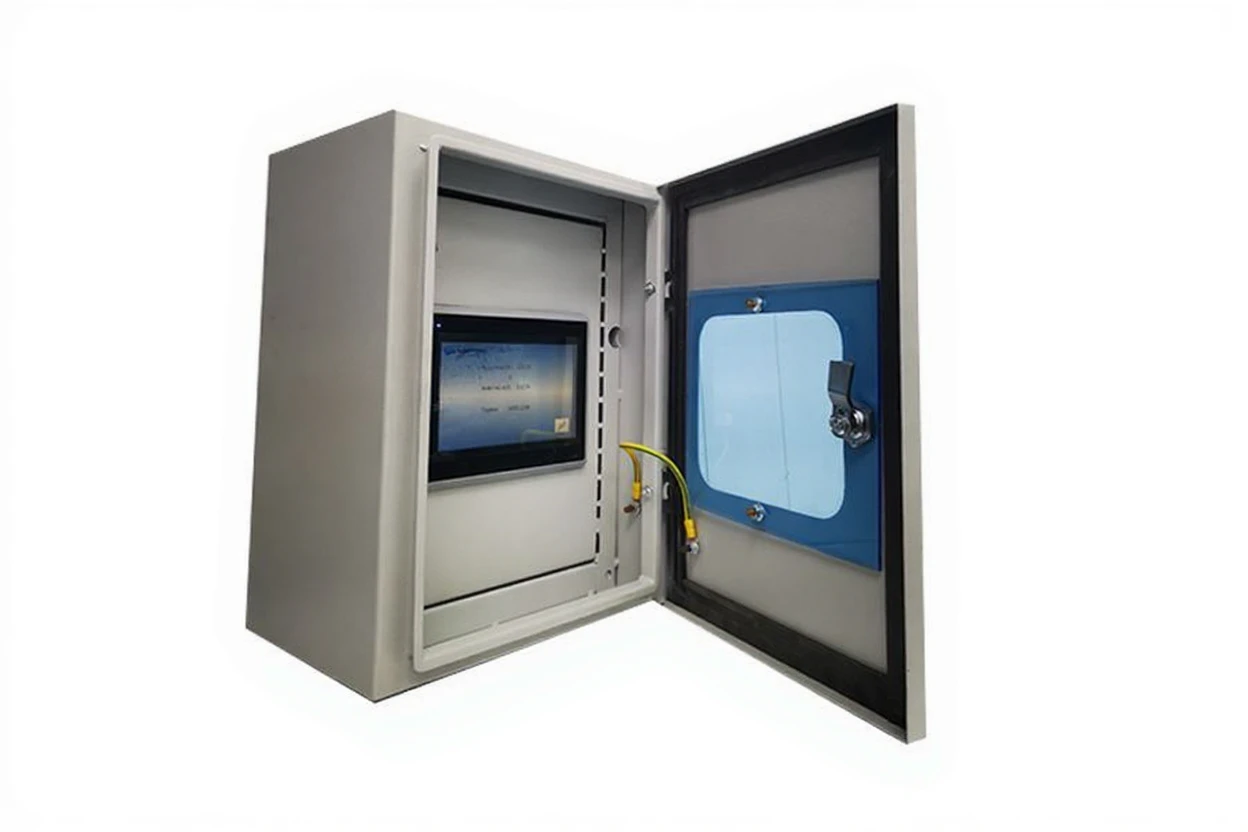

• 1 Panel

• 50 meters Communication Cable

T-BS500

• Maximum Capacity (t/h) : 500

• Average Capacity (t/h) : 250

• Minimum Capacity (t/h) : 50

• Speed (m/s) : 1.0-2.0

• Measurement Error (%) : 0.5 / 1 / 2
