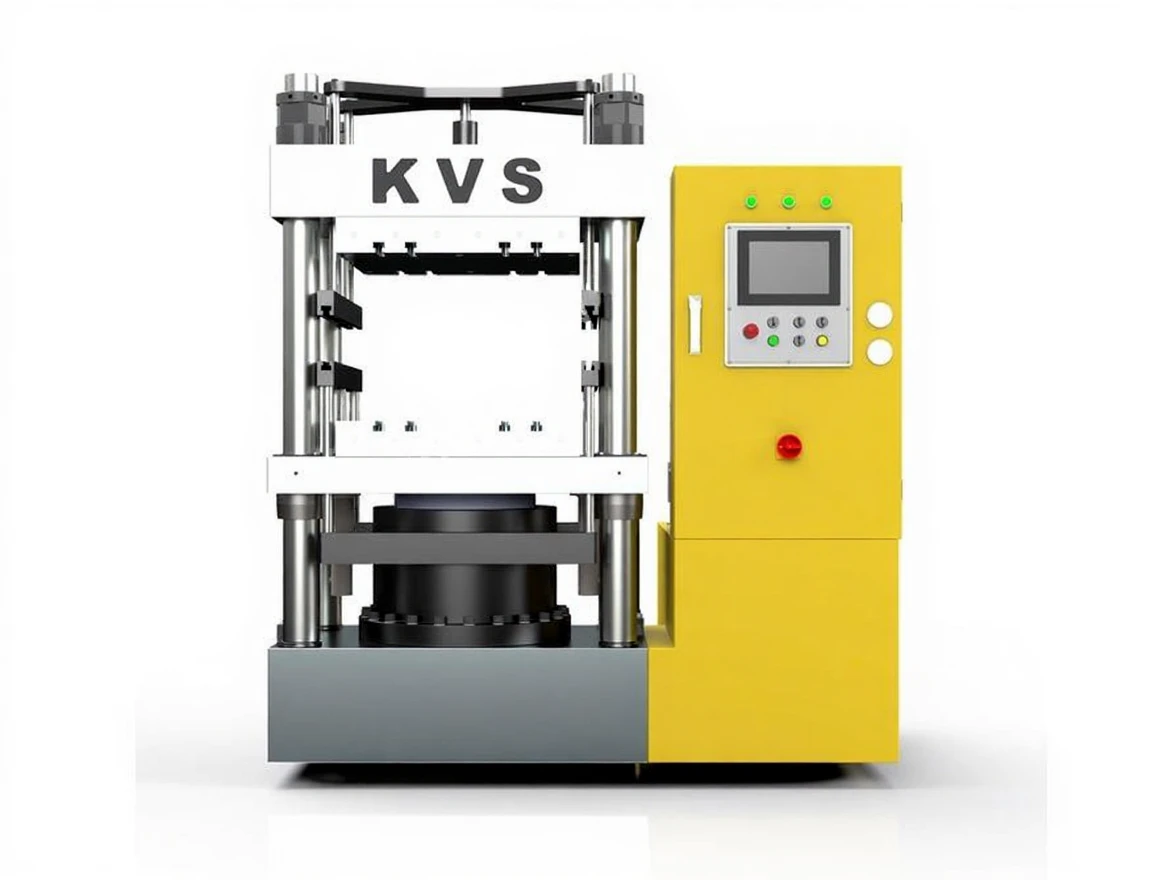

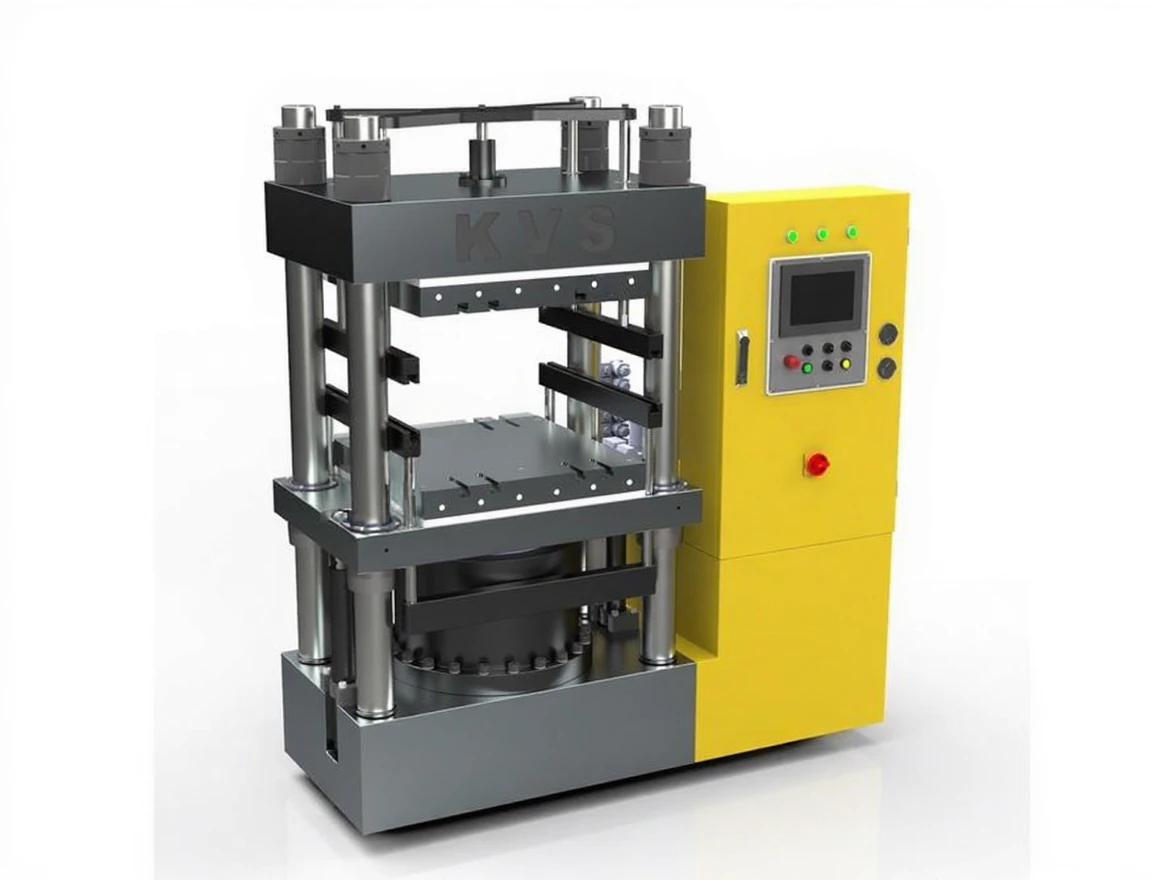

500 Ton Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
PRS / N-500 |
Description
500 Ton Rubber Vulcanization Machine
| MODEL | MEDICINE | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ |
| N-50 | N-80 | N-100 | N-150 | N-200 | N-250 | N-300 | N-400 | N-500 | ||
| Locking Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 250 | 250 | 250 | 250 | 300 | 300 | 400 | 400 | 400 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 400*300 | 500*400 | 550*450 | 600*500 | 700*600 | 750*650 | 800*700 | 850*750 | 1,000*900 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | kw | 10 | 10 | 12 | 12 | 15 | 18 | 20 | 25 | 30 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt. | 150 | 150 | 200 | 200 | 250 | 250 | 400 | 400 | 450 |
| Pump Type | crawler | |||||||||
| Dimensions Width/Length | Mt. | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | kg | 4.5 | 5 | 5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 |
| Height | Mt. | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
These are machines that enable the easiest production of rubber products.
As Kavis Makina, we produce machines from 50 tons to 5,000 tons.
2RT, 3RT, 4RT mold release systems used in other machines can be easily used in this machine and offer a highly efficient production process with high safety.
It complies with CE safety procedure with fully closed cabin.
Options/Options:
- Top Plate Lifter
- Bottom Plate Lifter
- Product extractor ejector
- 2RT/3RT/4RT
- External upper and lower ejectors
- Mold Plate rotation 180 degrees
