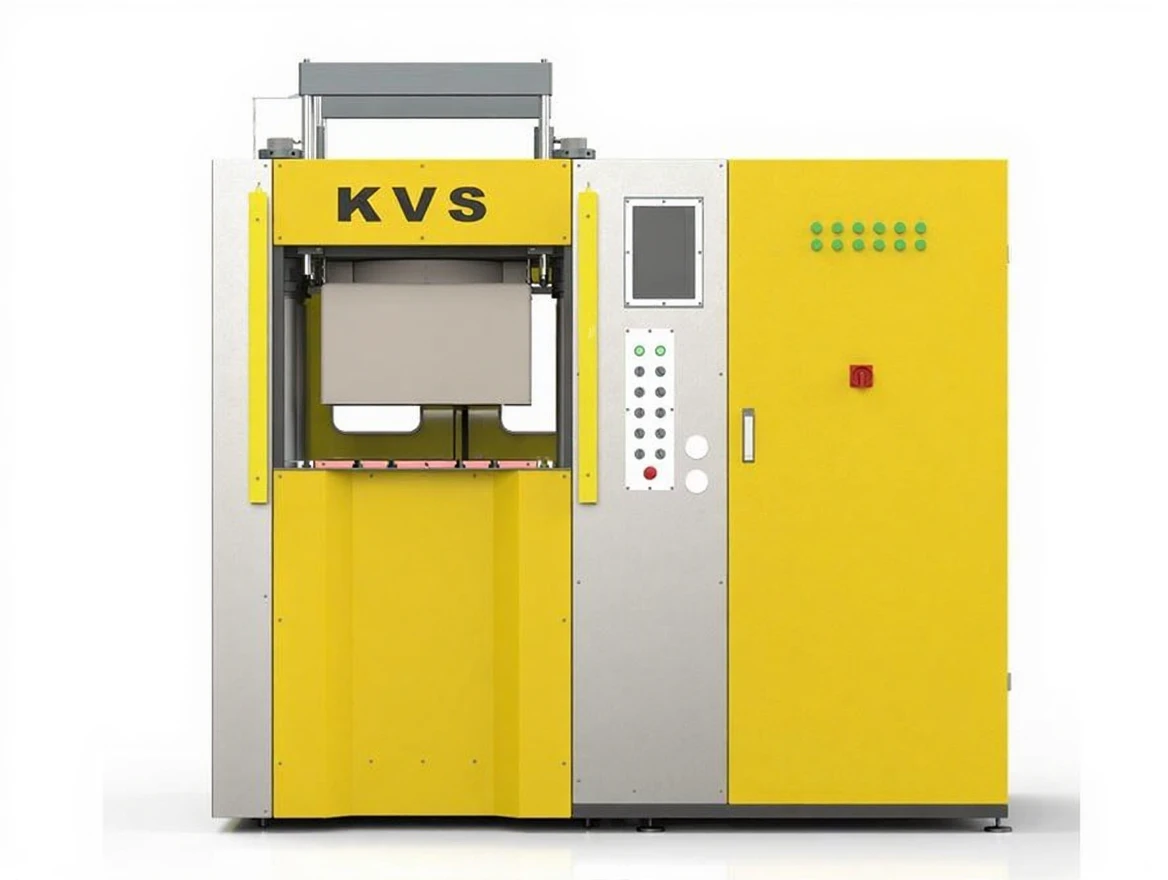

500 Ton Vacuum Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
VKM / V-500 |
Description
500 Ton Vacuum Rubber Vulcanization Machine
| MODEL | TYPE | VRM/ | VRM/ | VRM/ | VRM/ | VRM/ | VRM/ | VRM/ | VRM/ | VRM/ |
| V-50 | V-80 | V-100 | V-150 | V-200 | V-250 | V-300 | V-400 | V-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 250*250 | 350*350 | 400*400 | 450*450 | 550*550 | 600*600 | 650*650 | 700*700 | 950*950 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 5 | 10 | 12 | 12 | 13 | 15 | 20 | 30 | 35 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 200 | 200 | 200 | 250 | 250 | 400 | 400 | 500 |
| Pump Type | Pallet | |||||||||
| Dimensions Width/Length | Mt | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | Kg | 5000 | 5500 | 5500 | 5500 | 6500 | 7000 | 7500 | 9500 | 13000 |
| Height | Mt | 2.3 | 2.3 | 2.4 | 2.5 | 2.4 | 2.6 | 2.6 | 2.6 | 2.6 |

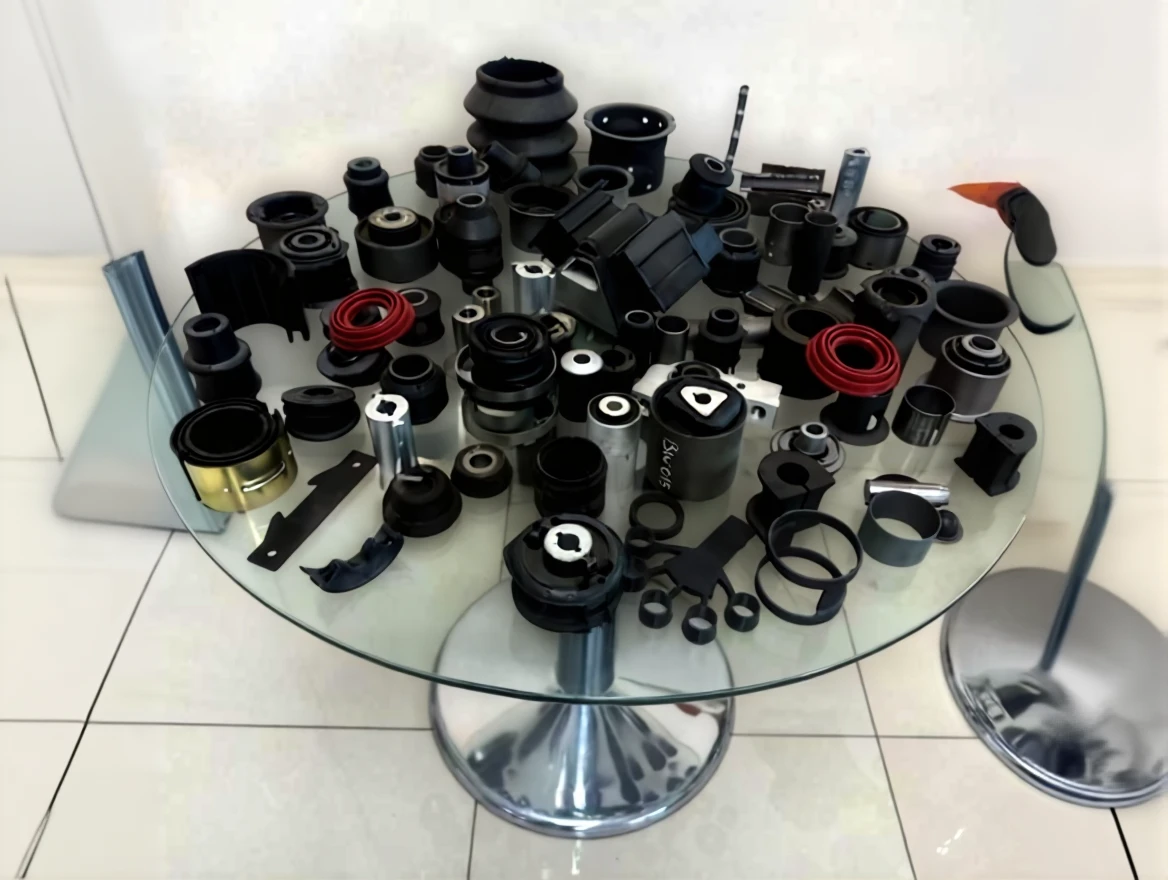

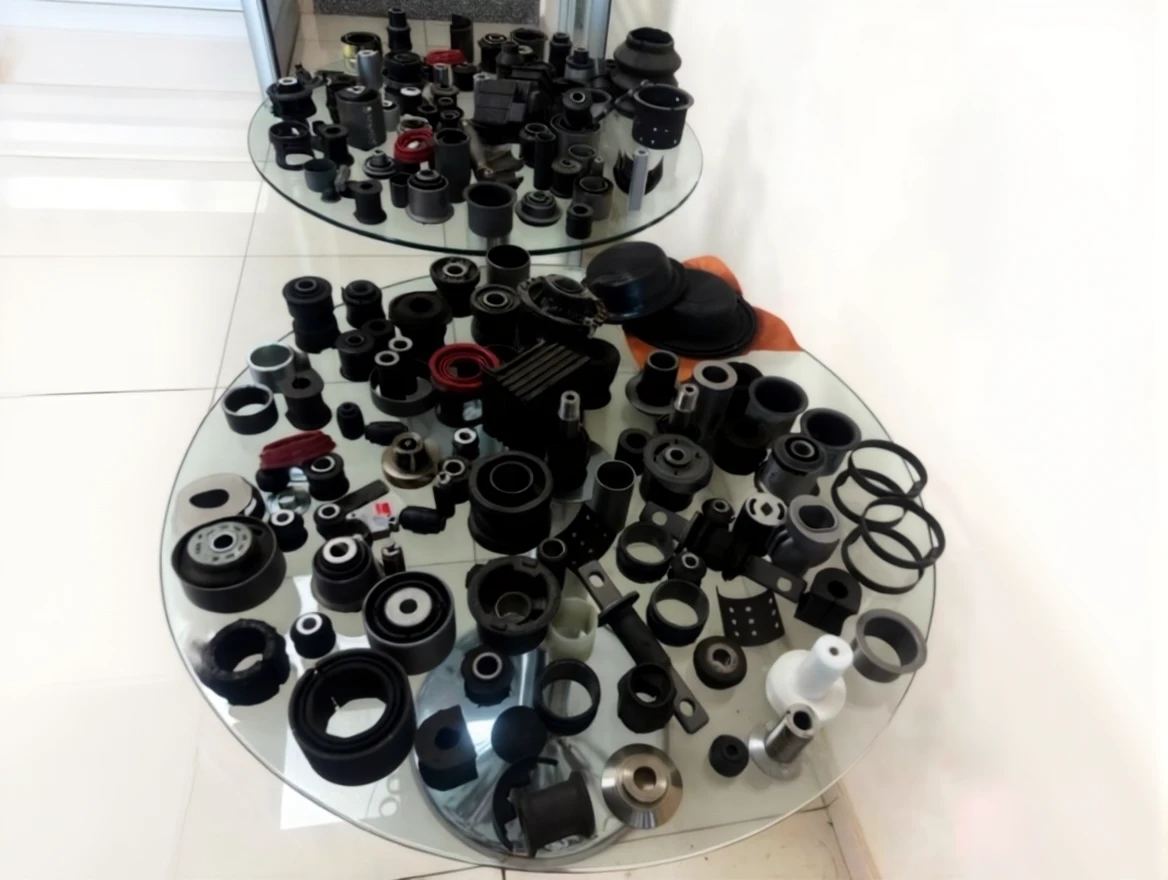

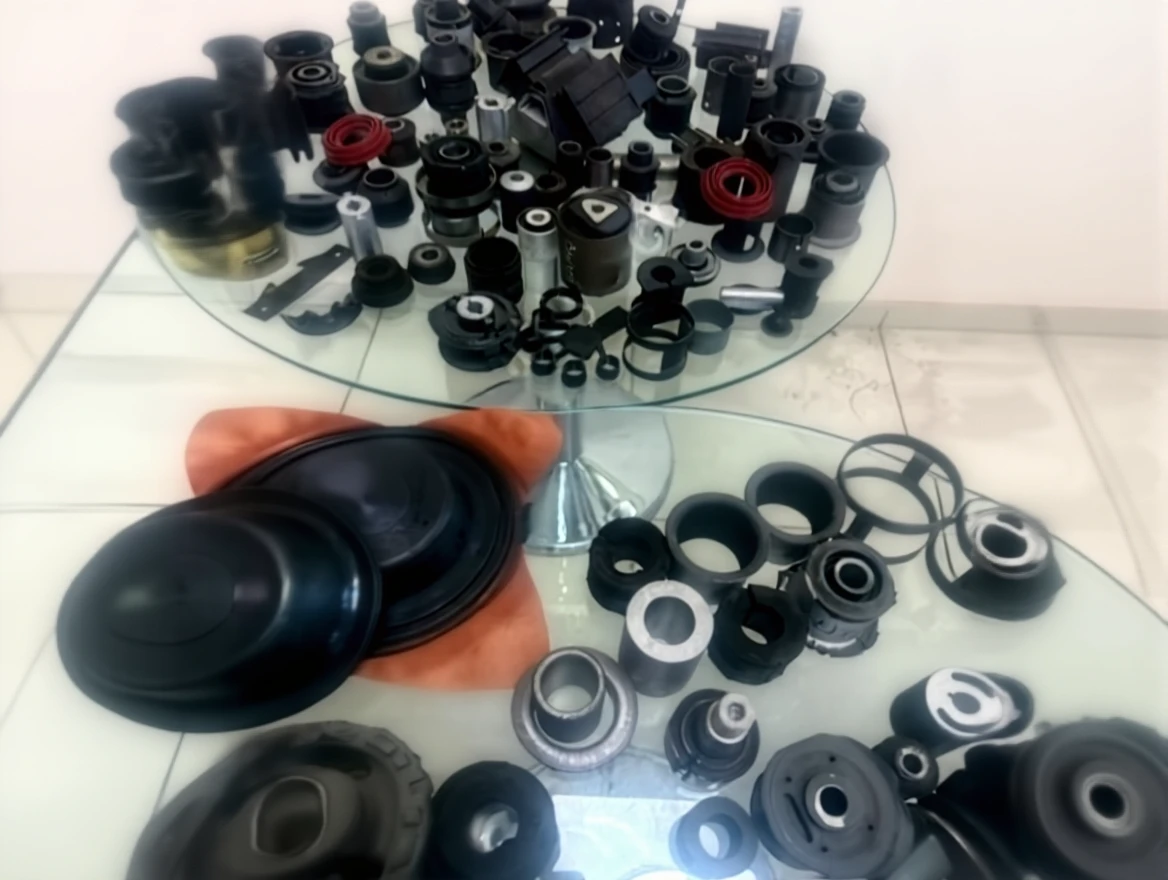

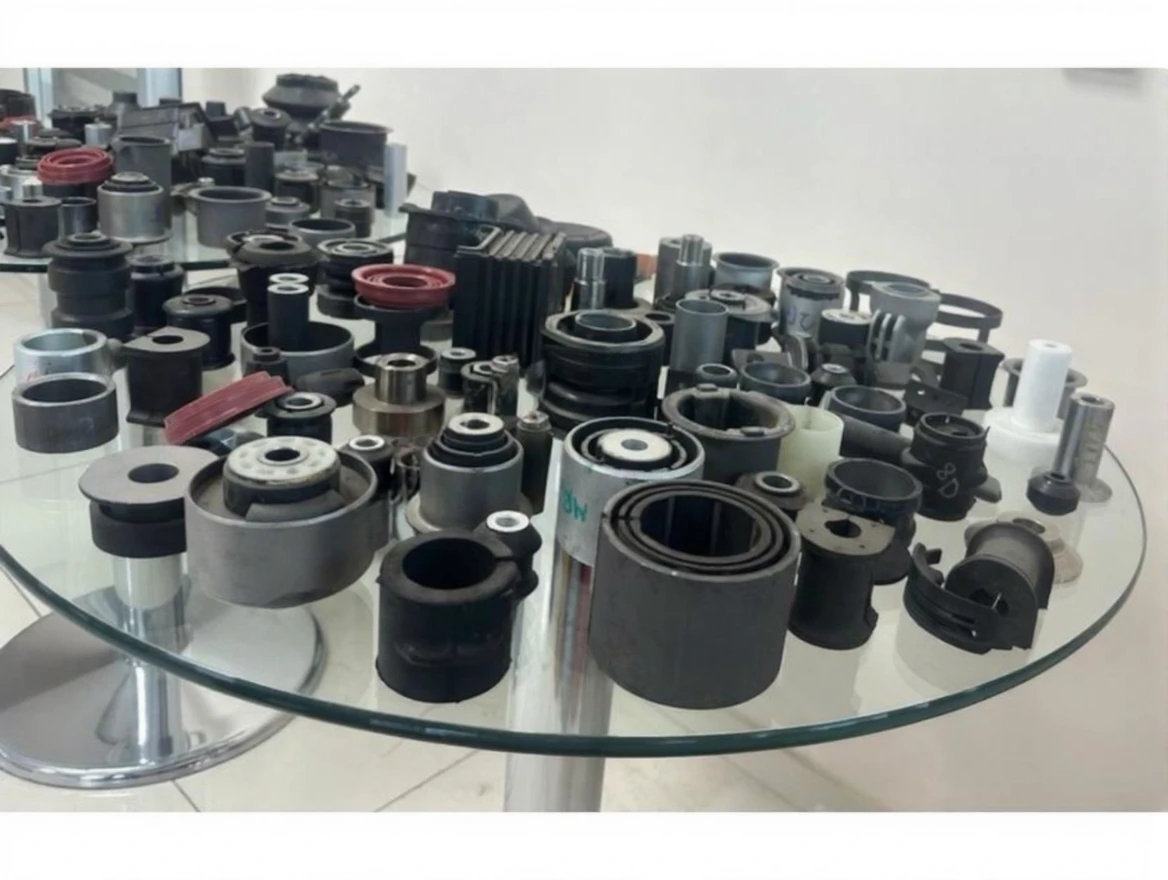

Machines that enable the easiest production of rubber products.
We produce machines from 50 tons to 5,000 tons as Kavis Machine.

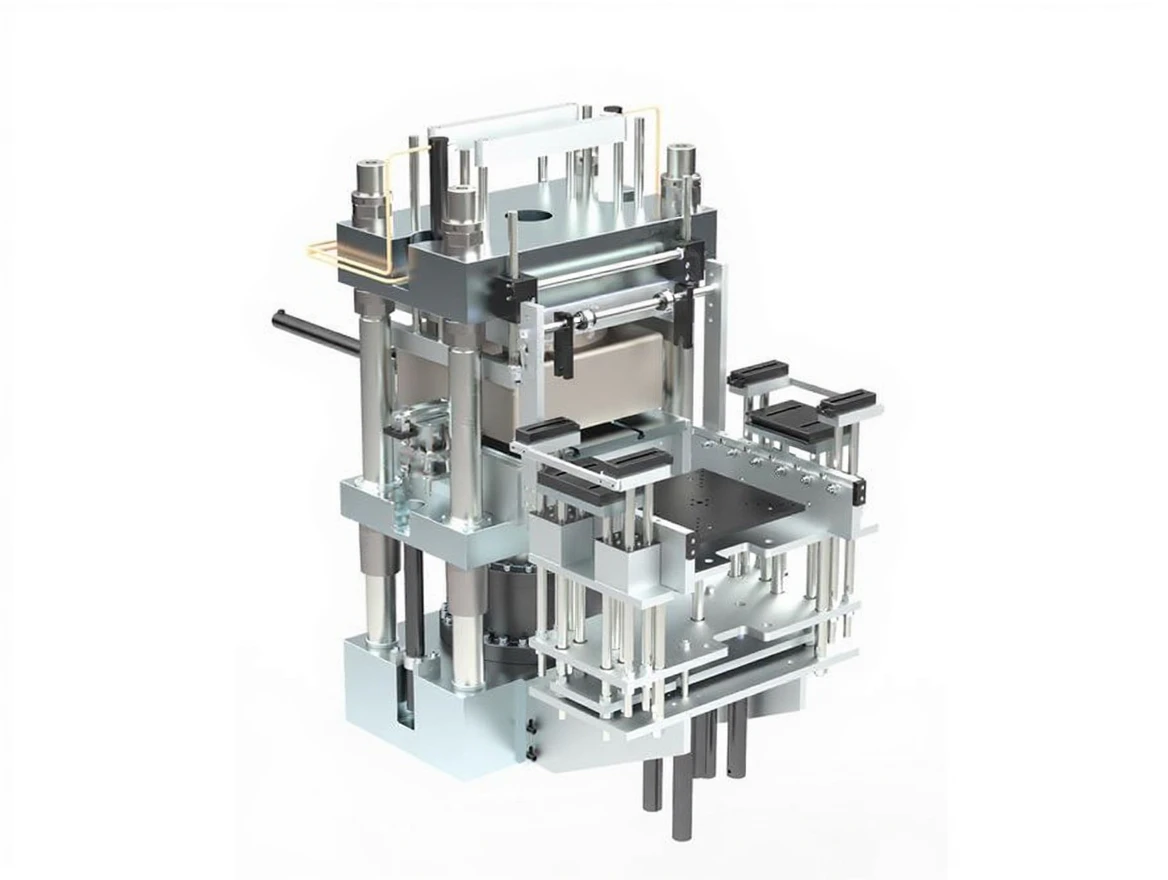

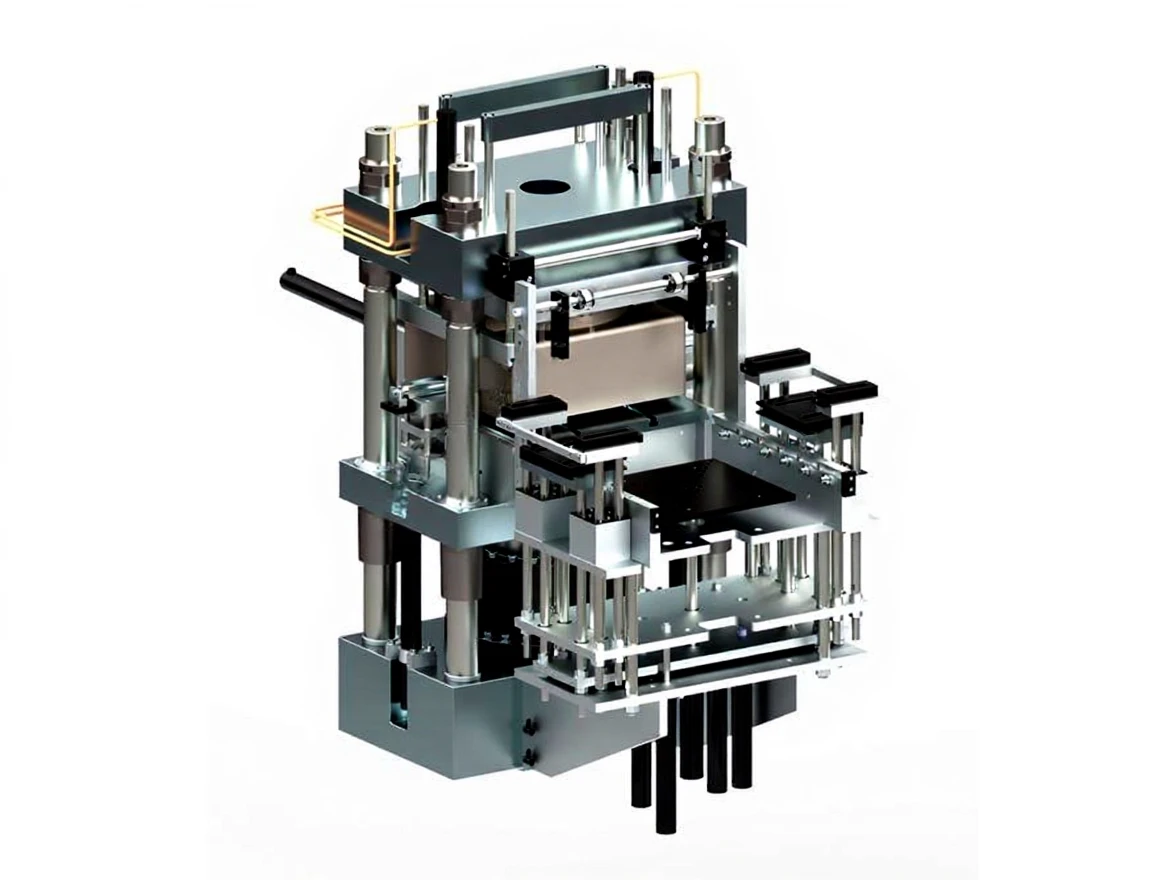

The 2RT, 3RT, 4RT mold separating systems used in other machines can also be easily used in this machine, providing a highly efficient production process with high safety.

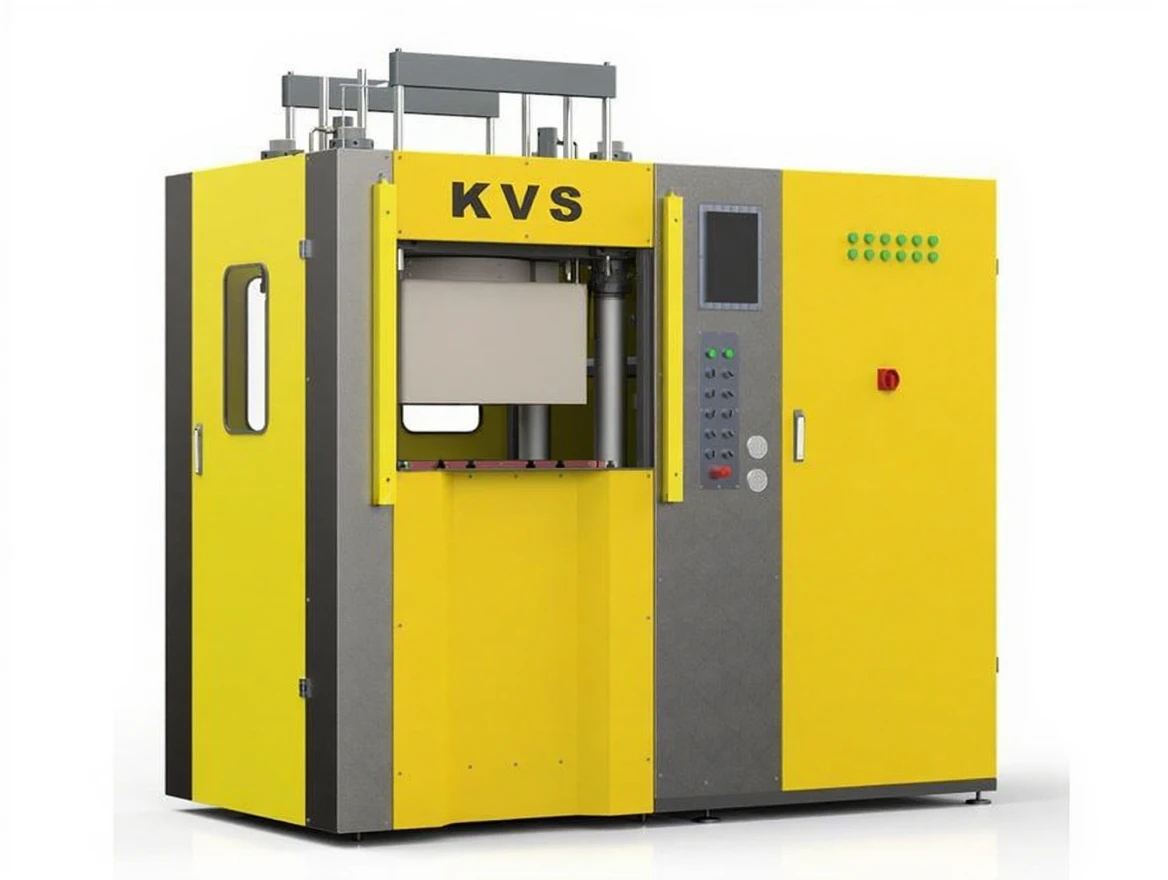

Complies with CE safety procedures with a fully enclosed cabin.
Options:
- Top Plate Lifter
- Bottom Plate Lifter
- Product extracting ejector
- 2RT / 3RT / 4RT
- External top and bottom ejectors
- Mold Plate rotating 180 degrees
