5000 Kg / Day Block Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-BLK / 5 T |
5000 Kg / Day Block Ice Machine

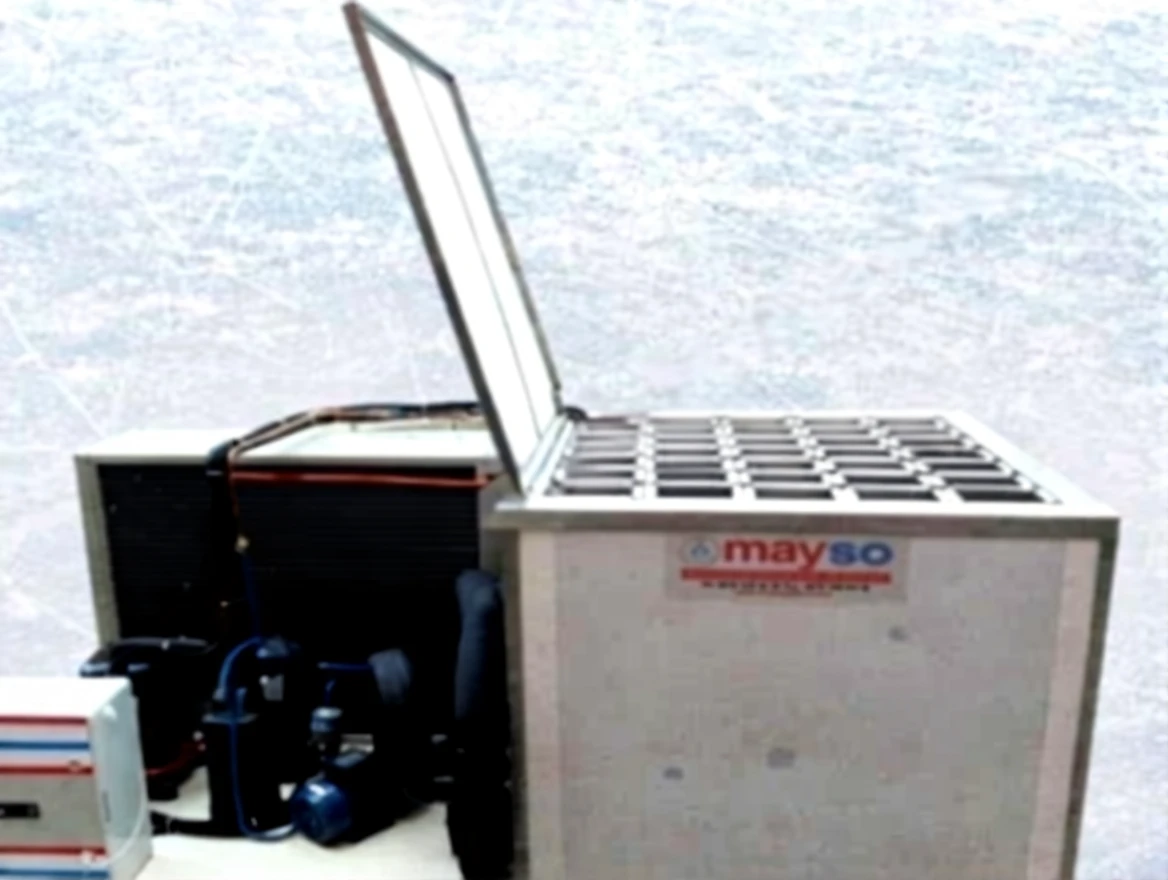

The MYBZ-BLK / 5 T model Block Ice Machine produced by Mayso Cooling provides high-efficiency block ice production with a capacity of 5000 kg/day. This machine produces block ice using fresh water in brine-cooled tanks. High-quality ice blocks are obtained thanks to water cooled at -15°C.
Features:
-
Capacity: An ideal solution for medium-sized businesses with a capacity of 5000 kg/day.
-
Block Ice Production: Block ice is produced in an environment of -15°C by cooling brine water using fresh water.
-
Electricity and Water Savings: Block ice machines increase efficiency by minimizing energy and water consumption.
-
High Performance: Offers continuous high performance and durability thanks to cooling technology.
Technical Specifications:
-
Capacity: 5000 kg/day ice production capacity
-
Ice Type: Block Ice
-
Water Type: Production is done using fresh water
-
Cooling System: Block ice production with brine cooling technology
Advantages:
-
Energy Savings: Reduces operating costs with low energy consumption.
-
Water Savings: Produces more ice using less water, environmentally friendly.
-
Stable and Reliable Performance: Provides high-efficiency and stable performance under various climate conditions.
-
Various Capacity Options: Solutions suitable for needs with different capacity options ranging from 250 kg to 10,000 kg.
Areas of Use:
-
Food Industry: Used in cooling, transportation, and storage processes.
-
Fishing and Maritime: An ideal solution for cooling and transportation processes.
-
Large Industrial Facilities: Used in facilities with advanced cooling requirements.
Block Ice Machines offer capacity options ranging from 250 kg to 10,000 kg, providing suitable solutions for all types of businesses. You can contact us for detailed information and quotes.
Mayso Cooling MYBZ-BLK / 5 T Technical Specifications
|
Machine Model |
MYBZ-BLK / 5 T |
|---|---|
|
Daily Ice Capacity |
5000 Kg / 24h |
|
Block Ice Weight |
15 Kg |
|
Number of Molds |
110 |
|
Daily Number of Ice Molds |
330 Pieces |
|
Ice Production Time |
7 Hours |
|
Ice Exit Temperature |
-10 / -12 °C |
|
Ice Color |
White Matte |
|
Water Inlet Temperature |
20 °C |
|
Cooling Capacity |
34,900 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Semi-Hermetic |
|
Total Power Consumption |
27 kW |
|
Compressor Power |
20.5 kW |
|
Condenser Fan Power |
4 kW |
|
Stirring Motor Power |
2.5 kW |
|
Energy Input |
3P/380V/50Hz |
|
Total Amperage |
48 Amp |
|
Evaporator Type |
Copper Coil Immersion |
|
Evaporator Temperature |
-20 °C |
|
Condenser Temperature |
45 °C |
|
Condenser Cooling Type |
Air-Cooled |
|
Ice Freezing Type |
Brine Water |
|
Machine Dimensions |
116x315x150 cm |
|
Machine Weight |
2400 kg |
