5000 Kg / Day Fresh Water Flake Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-FW / 5 T |

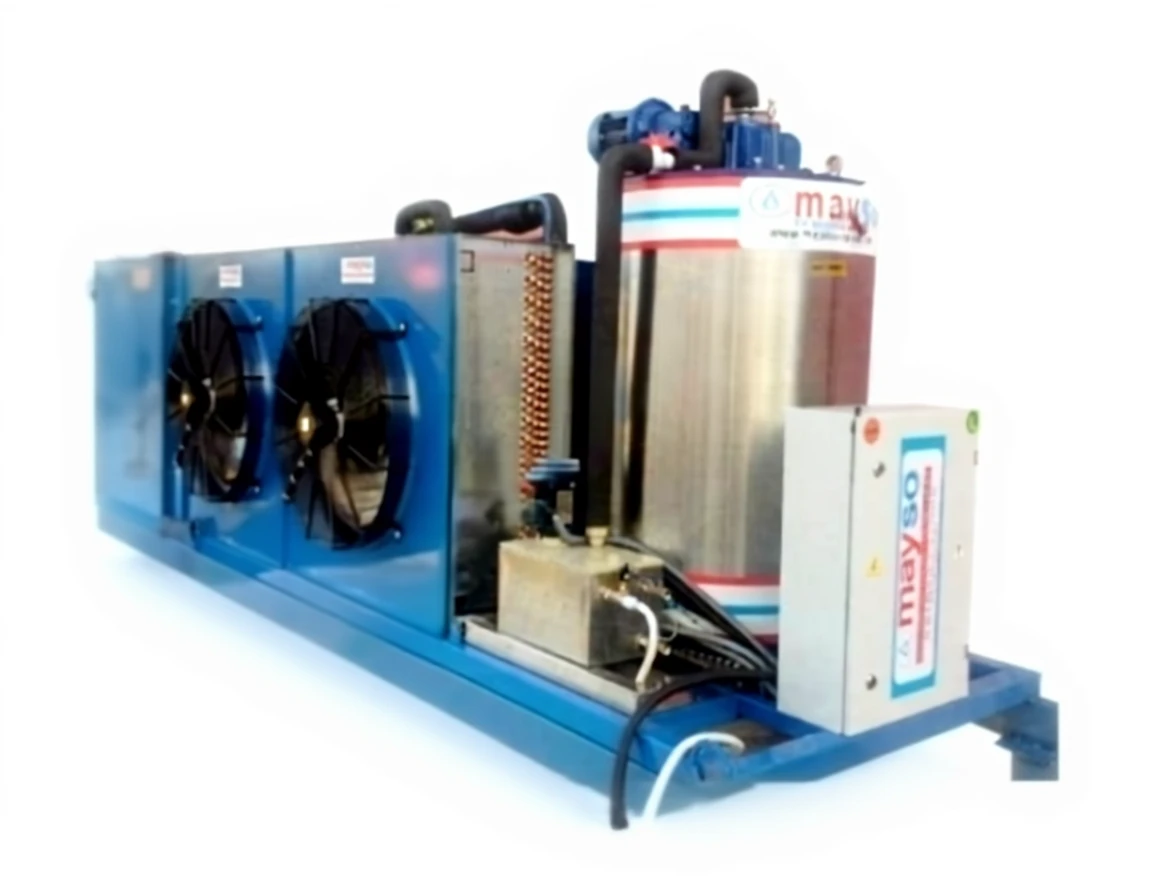

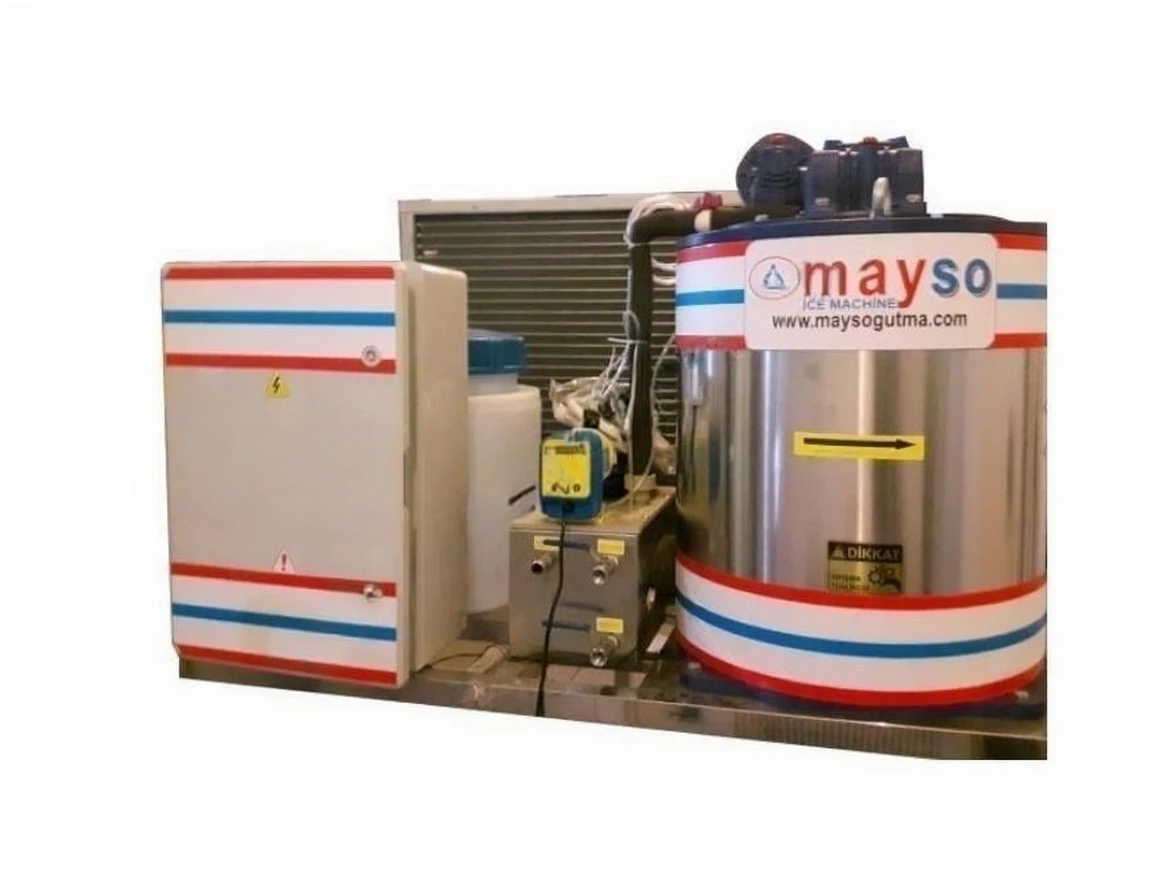

5000 Kg / Day Fresh Water Flake Ice Machine
Produced by Mayso Cooling, the MYBZ-FW / 5 T model provides effective and efficient ice production with a capacity of 5,000 kg per day. This model performs well in all weather conditions, including tropical climates.
Features:
-
High Capacity: Suitable for medium-sized businesses with a 5,000 kg/day ice production capacity.
-
Climate Compatible Performance: Can operate efficiently even in hot and humid climate conditions.
-
Efficient Ice Production: Provides energy savings with high efficiency, reducing operating costs.
-
Vertical and Horizontal Evaporator Options: Offers vertical and horizontal evaporator options according to user needs.
-
Fresh Water Operation: Ice production with fresh water provides an environmentally friendly and cost-effective solution.
Technical Specifications:
-
Capacity: Production capacity between 500 kg and 5,000 kg/day
-
Ice Type: Flake Ice (Crushed Ice)
-
Water Type: Operates with fresh water
-
Evaporator Type: Vertical and horizontal type options are available.
Advantages:
-
High Efficiency: Energy savings are achieved thanks to efficient production technology, reducing operating costs.
-
Performance in Any Climate: Provides efficient operation in all weather conditions, including tropical climates.
-
Capacity Flexibility: Can be customized according to needs with a production capacity range of 500 kg to 30,000 kg.
-
Durable Structure: Ensures trouble-free use with durable material and long-lasting design.
Areas of Use:
-
Food Industry: Cooling and food processing applications.
-
Medical and Pharmaceutical Sectors: Cooling and storage needs.
-
Industrial Cooling: Suitable for large-scale cooling needs.
Fresh Water Flake Ice Machines offer customers a wide range of capacities and efficient solutions. Machines that can be customized between 500 kg and 30,000 kg meet all needs in the industry. For detailed information and offers, you can contact us.
Mayso Cooling MYBZ-FW / 5 T Technical Specifications
|
Machine Model |
MYBZ-FW / 5 T |
|---|---|
|
Daily Ice Capacity |
5,000kg / 24h |
|
Cooling Capacity |
28,700 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Semi-Hermetic |
|
Total Power Consumption |
22.5kW |
|
Compressor Power |
19 kW |
|
Condenser Fan Power |
3 kW |
|
Reducer Power |
0.37 kW |
|
Water Pump Power |
0.12 kW |
|
Dosage Pump Power |
0.016 kW |
|
Power Supply |
380V/50Hz/3P |
|
Total Amperage |
39 A |
|
Cooling Type |
Air-Cooled |
|
Evaporator Channel |
Spiral channel |
|
Evaporator Temperature |
-20°C |
|
Condenser Temperature |
45°C |
|
Ice Output Temperature |
-4 / -8 °C |
|
Ice Thickness |
1.5-2.2mm |
|
Water Supply Pressure |
0.1Mpa－0.5Mpa |
|
Water Inlet Pipe Diameter |
5/8" |
|
Operating Ambient Temperature |
25°C |
|
Water Inlet Temperature |
20°C |
|
Evaporator Unit Weight |
450 kg |
|
Evaporator Unit Dimensions |
1140×890*1520 |
|
Machine Operating Water Type |
FRESH WATER |
