5000 Kg / Day Mobile Container Type Mold Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-BLK / 5 T |

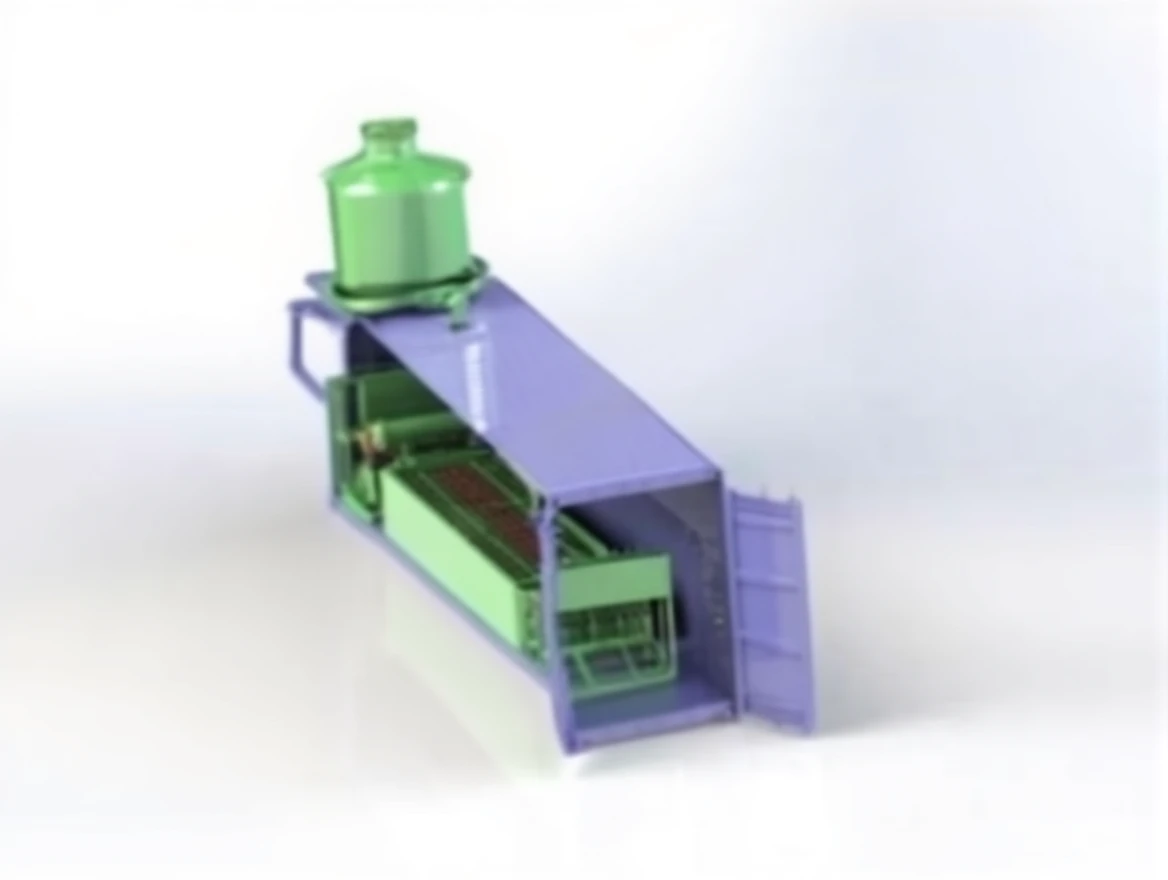

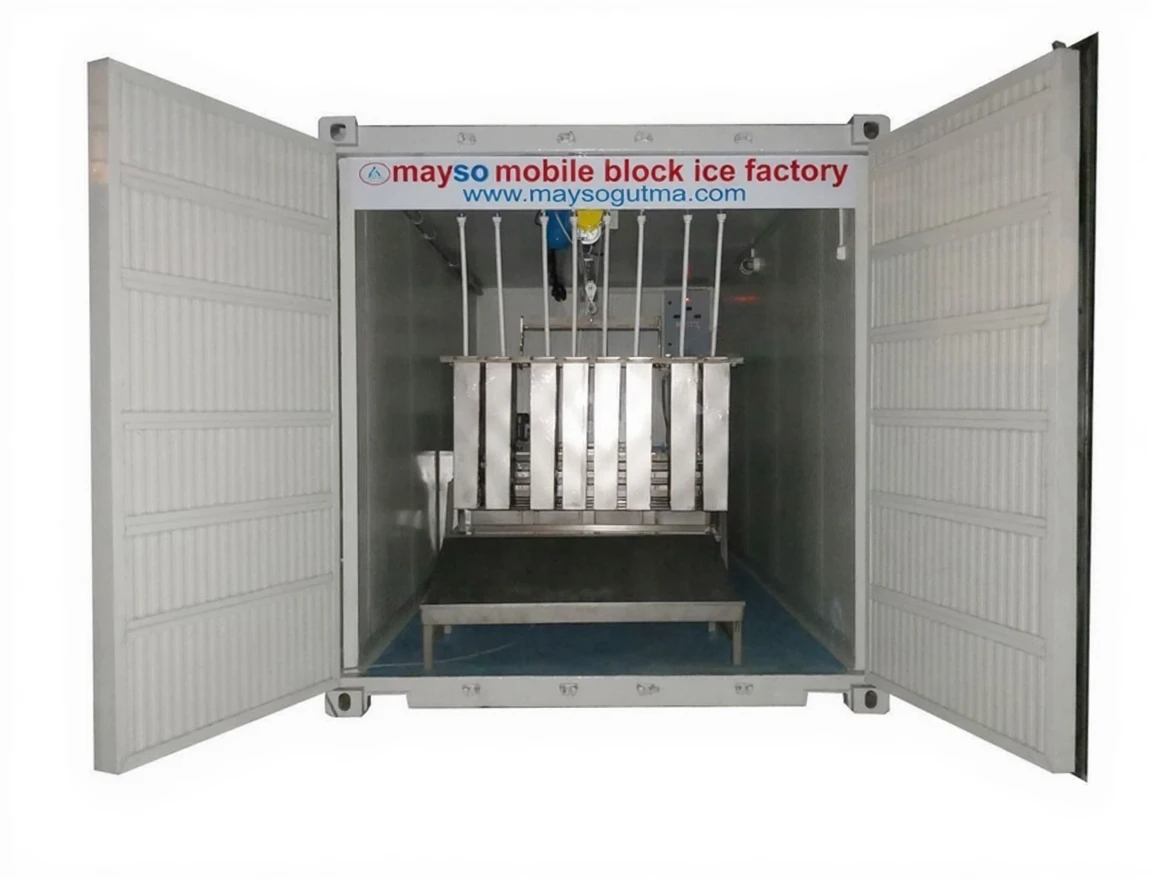

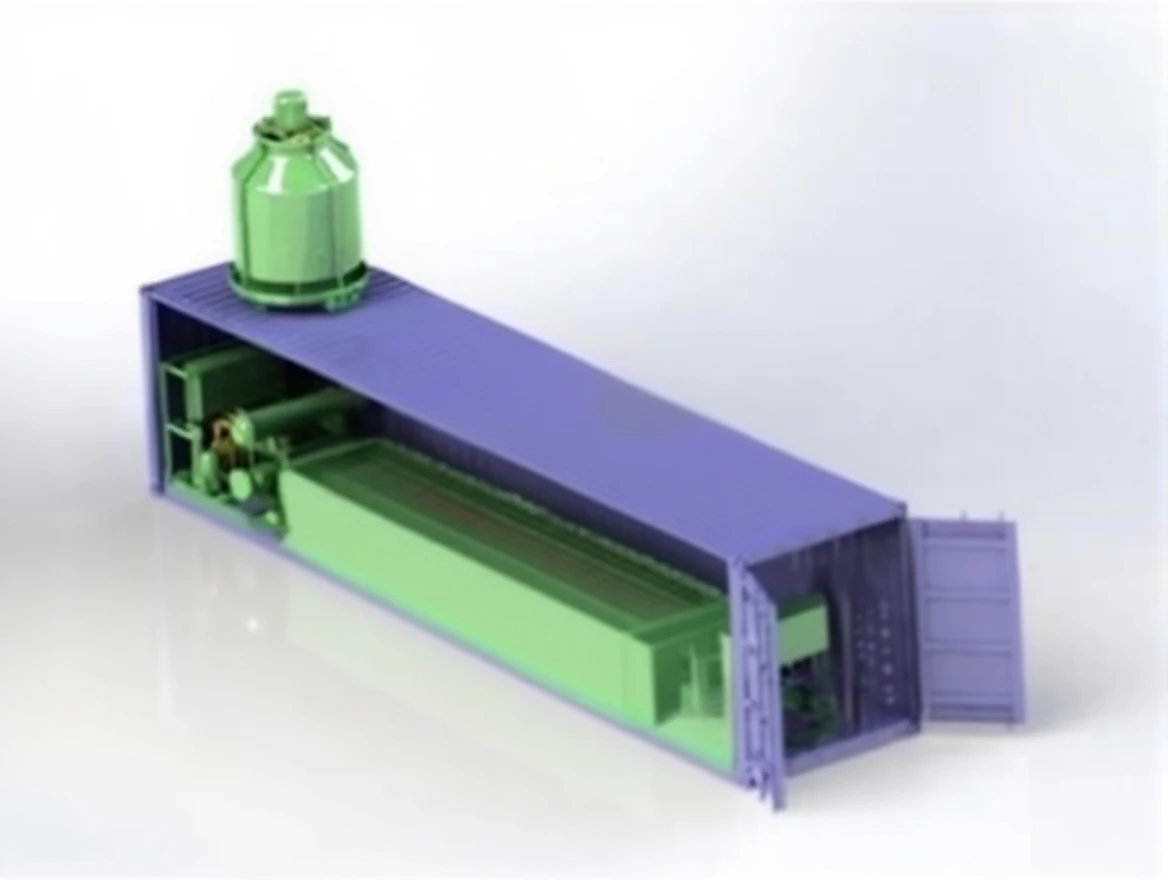

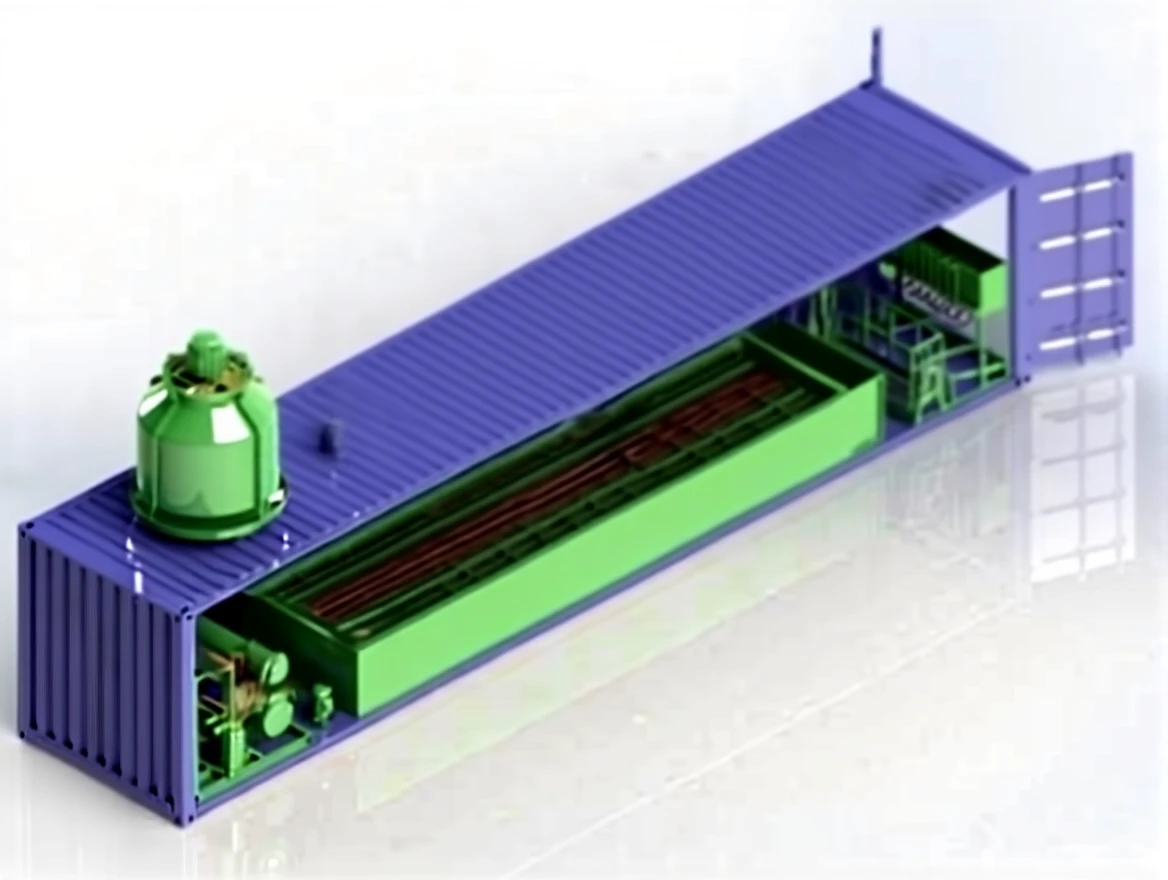

5000 Kg / Day Mobile Container Type Mold Ice Machine
Mayso Cooling introduces Mobile Container Type Mold Ice Machines that offer practical and fast solutions by producing the MYBZ-BLK / 5 T model. These machines eliminate the need for assembly and disassembly, allowing for quick block ice production anywhere.
Features:
-
Mobile Container Type: These machines are designed to be mobile, meaning they can be easily transported and do not require installation in any location. They can be quickly put into use.
-
Ice Production: The Container Mobile Type Mold Ice Machine fills boxes located in a brine tank with fresh water and produces block ice with -15°C cooling. This ensures the production of fresh and high-quality ice.
-
Capacity Options: Block ice capacity ranges from 1,000 kg to 10,000 kg. The 5,000 kg / day capacity is particularly suitable for medium-sized facilities and is also sufficient for large-scale enterprises.
-
Energy and Water Savings: Mayso Cooling’s machines provide savings in water and energy. With these features, they are both economical and environmentally friendly, ensuring efficient operation.
Advantages:
-
Practical and Portable: Thanks to their easy portability, they can be quickly set up in various locations. Additionally, they do not require assembly and disassembly, which increases operational efficiency.
-
Continuous Production: Ice production can continue at a high capacity continuously. The machine can be produced in different sizes according to the usage area and production capacity.
-
Sector-Specific: It can be used in many sectors that require ice, such as fishing, food processing, restaurants, and hotels.
-
Energy Efficiency: Machines that operate with low energy consumption reduce operational costs for businesses while minimizing environmental impacts.
Areas of Use:
-
Food and Fishing Sector: Fresh food transportation, cooling and storage of fish and seafood.
-
Industrial Applications: Any industrial production and cooling needs that require large amounts of ice.
-
Mobile and Temporary Needs: Temporary ice needs such as emergencies, construction sites, or outdoor events.
Container Type Mobile Mold Ice Machines offer flexible solutions to businesses with significant advantages such as large capacity, portability, and energy efficiency. These machines, with a 5,000 kg / day ice production capacity, are powerful and efficient devices that can meet all types of industrial cooling and ice needs.
They stand out from competitors in the industry with their water and energy saving features. These machines are an ideal choice for businesses where time is crucial due to their mobile usability and rapid production capabilities.
Mayso Cooling MYBZ-BLK / 5 T Technical Specifications
|
Machine Model |
MYBZ-BLK / 5 T |
|---|---|
|
Daily Ice Capacity |
5000 Kg / 24h |
|
Block Ice Weight |
15 Kg |
|
Number of Molds |
110 |
|
Daily Number of Ice Molds |
330 Pieces |
|
Ice Production Time |
7 Hours |
|
Ice Exit Temperature |
-10 / -12 °C |
|
Ice Color |
White Matte |
|
Water Inlet Temperature |
20 °C |
|
Cooling Capacity |
34,900 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Semi-Hermetic |
|
Total Power Consumption |
27 kW |
|
Compressor Power |
20.5 kW |
|
Condenser Fan Power |
4 kW |
|
Mixer Motor Power |
2.5 kW |
|
Energy Input |
3P/380V/50Hz |
|
Total Amperage |
48 Amp |
|
Evaporator Type |
Copper Coil Immersion |
|
Evaporator Temperature |
-20 °C |
|
Condenser Temperature |
45 °C |
|
Condenser Cooling Type |
Air-Cooled |
|
Ice Freezing Type |
Brine Water |
|
Machine Dimensions |
218x415x180 cm |
|
Machine Weight |
2500 kg |
