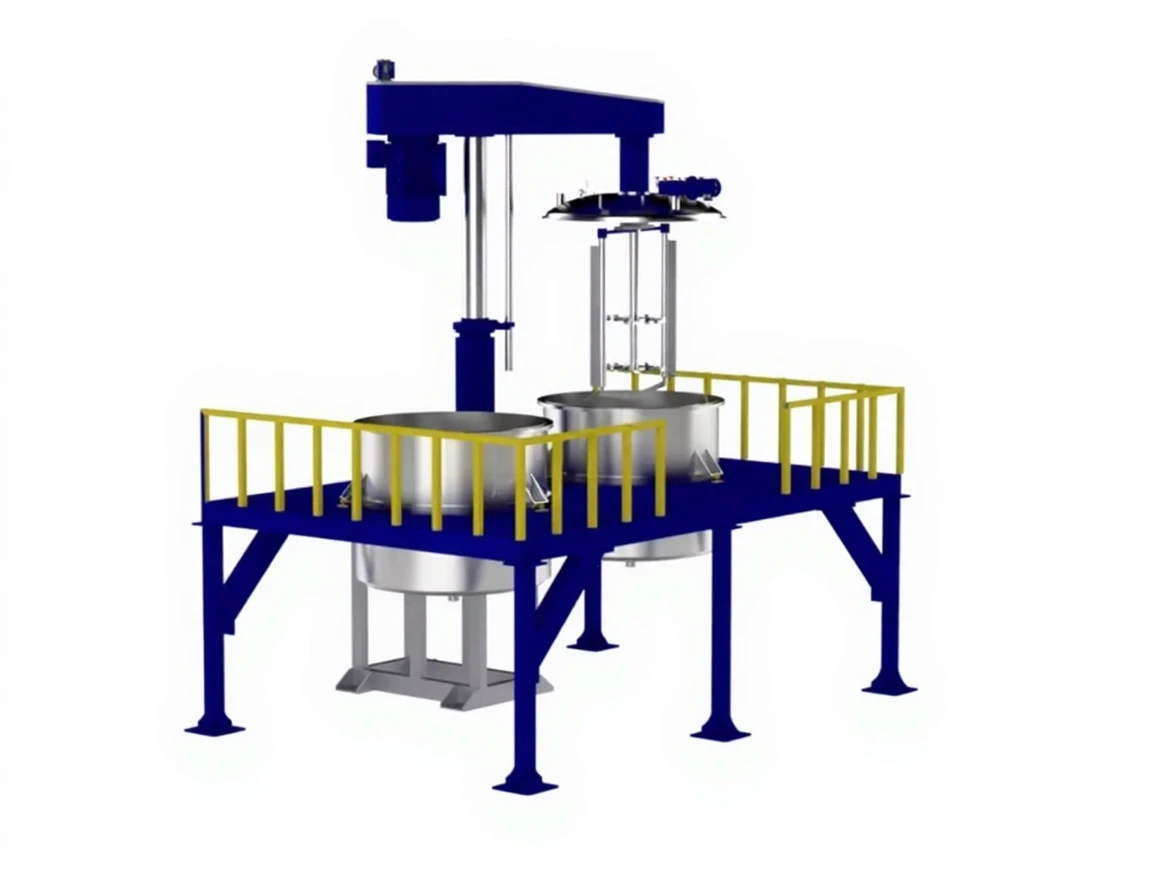

5000 Lt Capacity Platform-Type Paint Mixer

Itas Makina DPD5000: 5000 Lt Capacity Platform-Type Paint Mixer

The machine features hydraulic lift and lower capabilities, allowing for mixing at the desired height. Additionally, it offers fully automatic stepless speed control with a frequency inverter. The mixing shaft and impeller are made from AISI 304 stainless steel, ensuring durability and rust resistance.

The initial startup speed is always set to 100 RPM or any desired speed, providing safety and protection with low-speed start-up. The machine is commonly used in various industrial processes that require dispersion and homogeneous mixing, including the production of paints, inks, varnishes, pigment pastes, and petrochemical products.

Reverse Rotation:

Thanks to the reverse rotation feature, the speed is controlled by the frequency converter in addition to the mono speed. This system has the ability to provide more power than the motor's nominal rating, with the mixing rotation adjustable between 0 RPM and 1500 RPM.

Hydraulic Lifting:

The machine can mix at any desired height and operates with an electro-hydraulic system. In some models, the body can rotate 360 degrees, allowing it to serve in surrounding tanks.

Optional Features:

• ATEX Zone 1 EEx dIIB T4 Explosion-Proof Systems: Ensures safe operation in hazardous environments.
• Vacuum Application: Aims to achieve a homogeneous mixture by extracting air or gases from the environment.
• Tank Scraper: Cleans the material accumulated on the inner surface of the tank, enhancing efficiency, maintaining product quality, and simplifying maintenance.
• Semi or Fully Automatic Control System: Used to control and manage the mixing process.
• PLC Control System: Allows for programmable control of functions.
• Automatic Lifting and Lowering System Based on Tank Product Level: Detects the product level in the tank and automatically raises or lowers the tank during the process.
• Speed Control: Optimizes the mixing speed to achieve the desired result.

Itas Makina DPD5000 Technical Specifications:

Model: DPD5000
Max. Capacity (Lt.): 5000
Working Speed (rpm): 1000
Main Motor (Kw): 132
