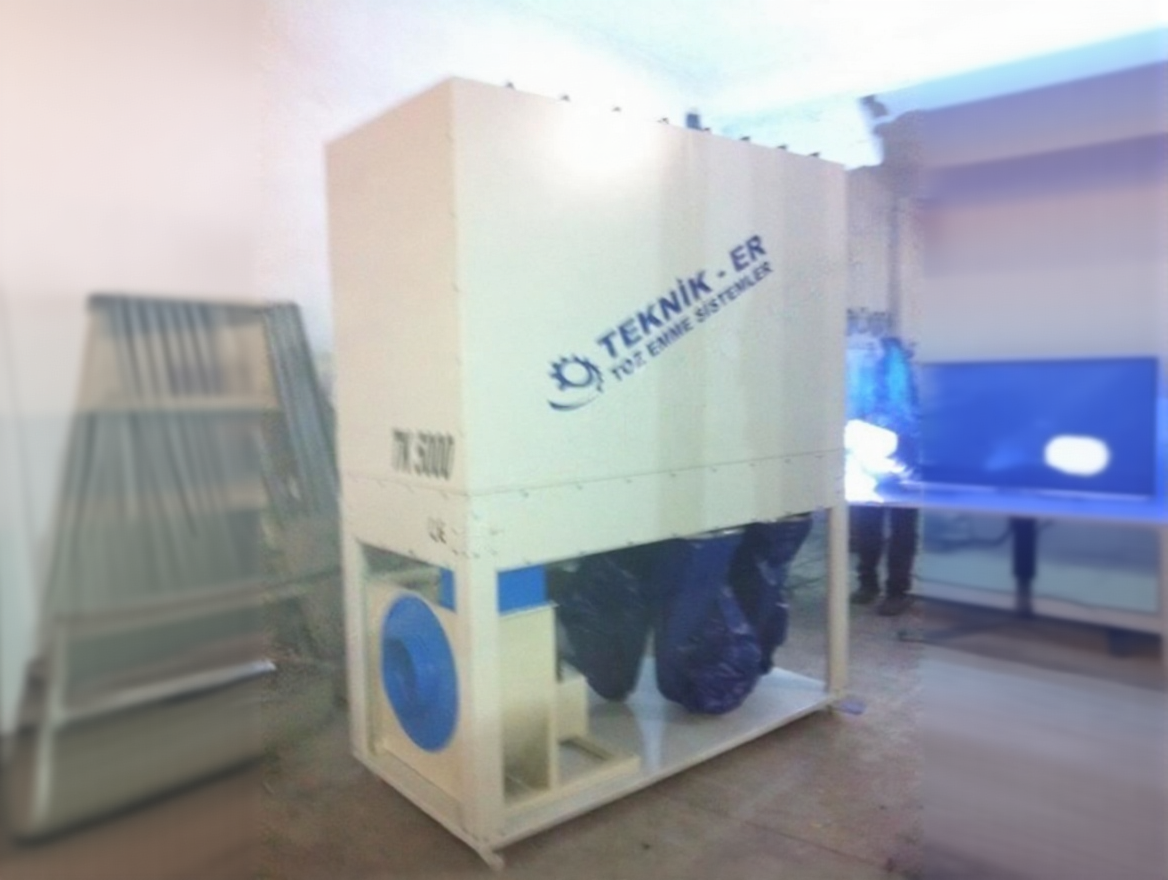

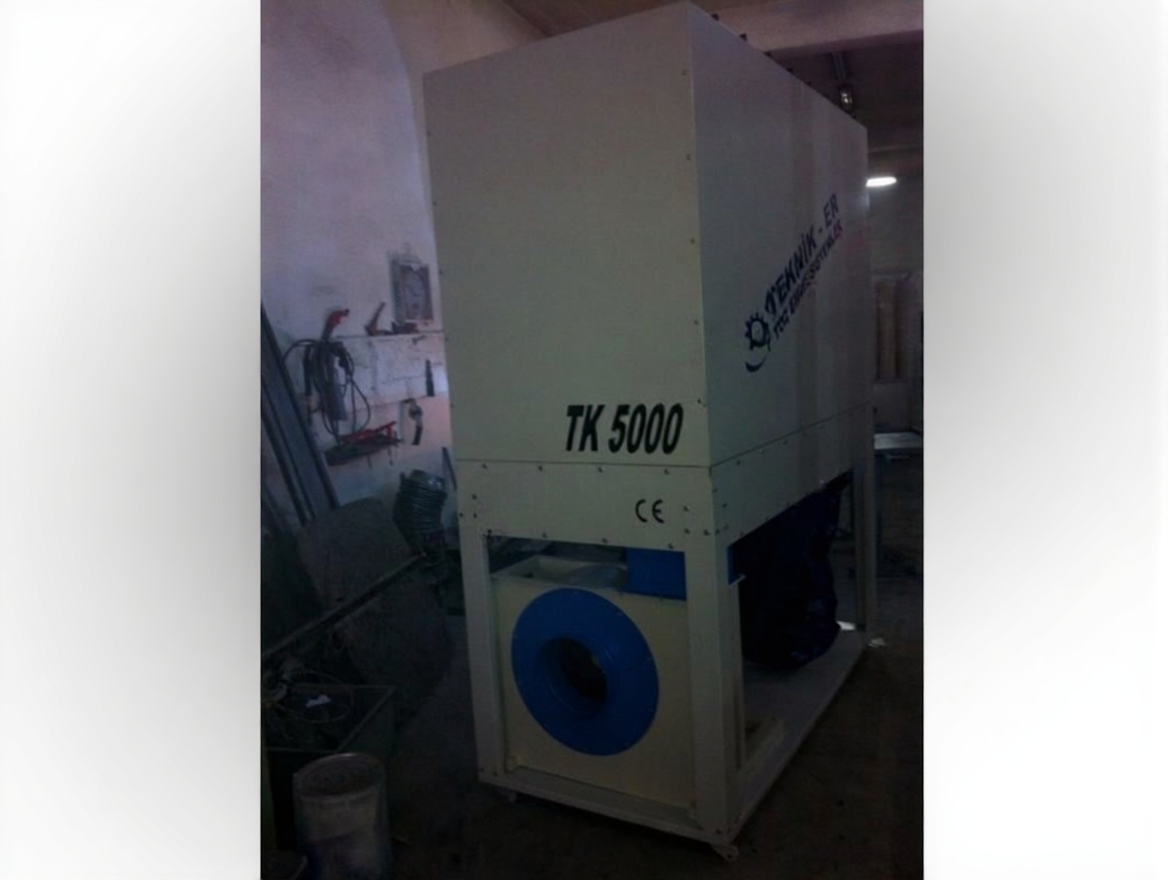

5000 m3/h Mobile Dust Collection System

Dust Collection Machine is generally used as a dust extraction system for CNC, edge banding, sizing machines, etc.

The product is manufactured economically in series.

Technical Specifications

• Flow Rate : 5000 m³/h
• Motor Power : 5.5 kw 7.5 hp 3000 rpm
• Suction Speed : 28 m/s
• Suction Diameter : Ø280 mm
• Filter Type : Needle Polyester or woven type
• Filter Permeability : 5 micron
• Filter Size : Ø180×935 (mm)
• Number of Filters : 26 Pieces
• Chips Accumulation Capacity : 4 Pieces Ø400×900 PVC Bags
• Electricity : 380 V
• Dimensions : 965x2085x2130
• Weight : 300 kg
