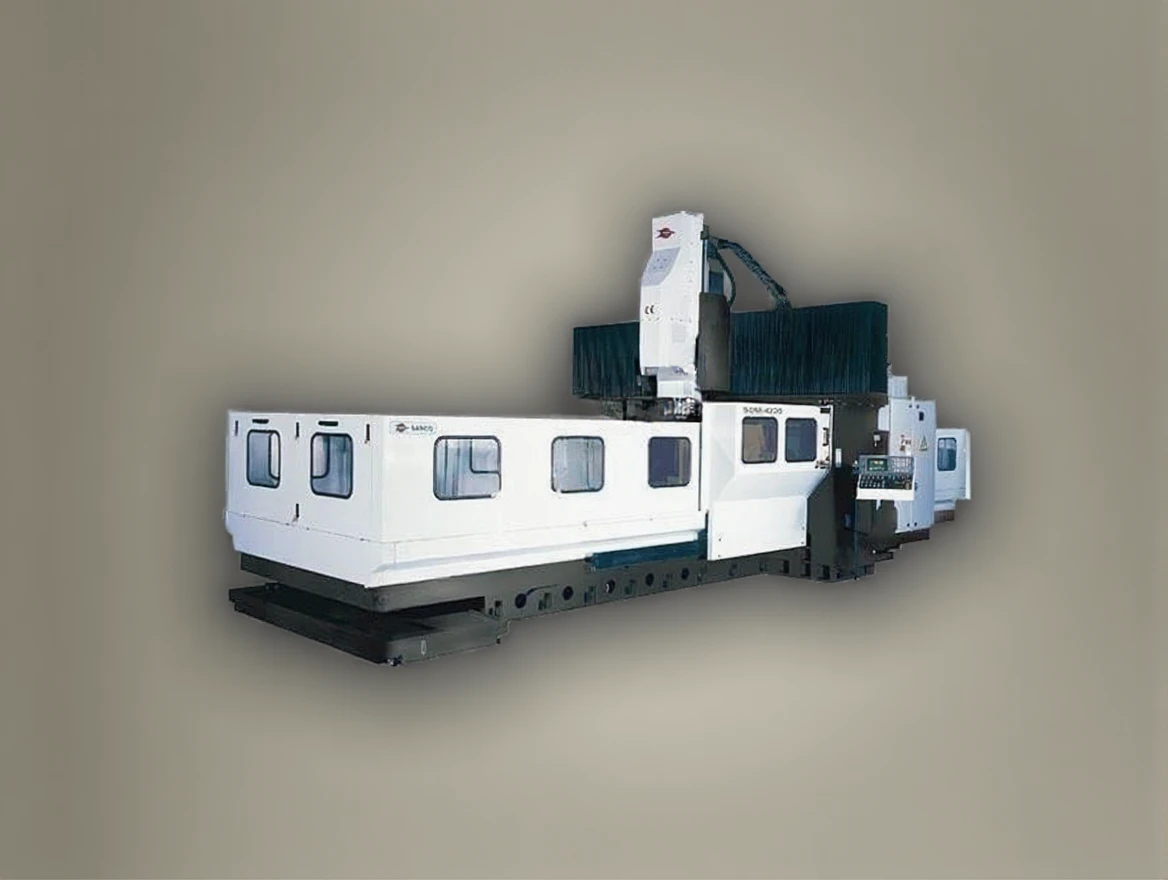

5000×2500 mm CNC Bridge Type Machining Center

5220

5225

5228

5232

5235

Working Area

mm

5000×1700

5000×2200

5000×2500

5000×2900

5000×3000

Max Load Capacity

ton

15

18

18

20

20

X-Axis Movement

mm

5200

5200

5200

5200

5200

Y-Axis Movement

mm

[ PHONE HIDDEN ])

[ PHONE HIDDEN ])

3300

3700

4000

Z-Axis Movement

mm

750 (900,1200)

750 (900,1200)

750 (900,1200)

750 (900,1200)

750 (900,1200)

Distance Between Columns

mm

2000

2500

2800

3200

3500

Spindle Nose to Table Distance

mm

 220-970 Z=750

Spindle Taper

BT50

Spindle Speed

 rpm

 4000(6000,8000, BT50)

Motor Fanuc

25/20

Cutting Feedrate

mm/min

1-5000

Rapid Traverse X/Y/Z

m/min

12/12/10

10/10/10

Minimum Movement

m

0.0001

Tool Capacity

20(24,32,40,60)

Max Tool Diameter

mm

Ø125 / Ø200 (350, without side tool)

Max Tool Weight

kg

18 (8,BT40)

Tool-to-Tool Change Time

sec

8 (Arm type)

Coolant Tank Capacity

liters

635

750

700

700

750

Positioning Accuracy

mm

ISO 230-2: A0.025MM

Repeatability

mm

ISO 230-2: R0.015MM

Circular Interpolation Accuracy

mm

[ PHONE HIDDEN ] MM diameter

Machine Net Weight

ton

38

48

53

55

56

Power Requirement

kva

50

Delivered with Fanuc Control Unit and Standard Accessories.
