500×300 mm CNC Vertical Machining Center
| Brand | Topper Tongtai |
|---|---|
| Model Type |
TMV-400+APC |
Description

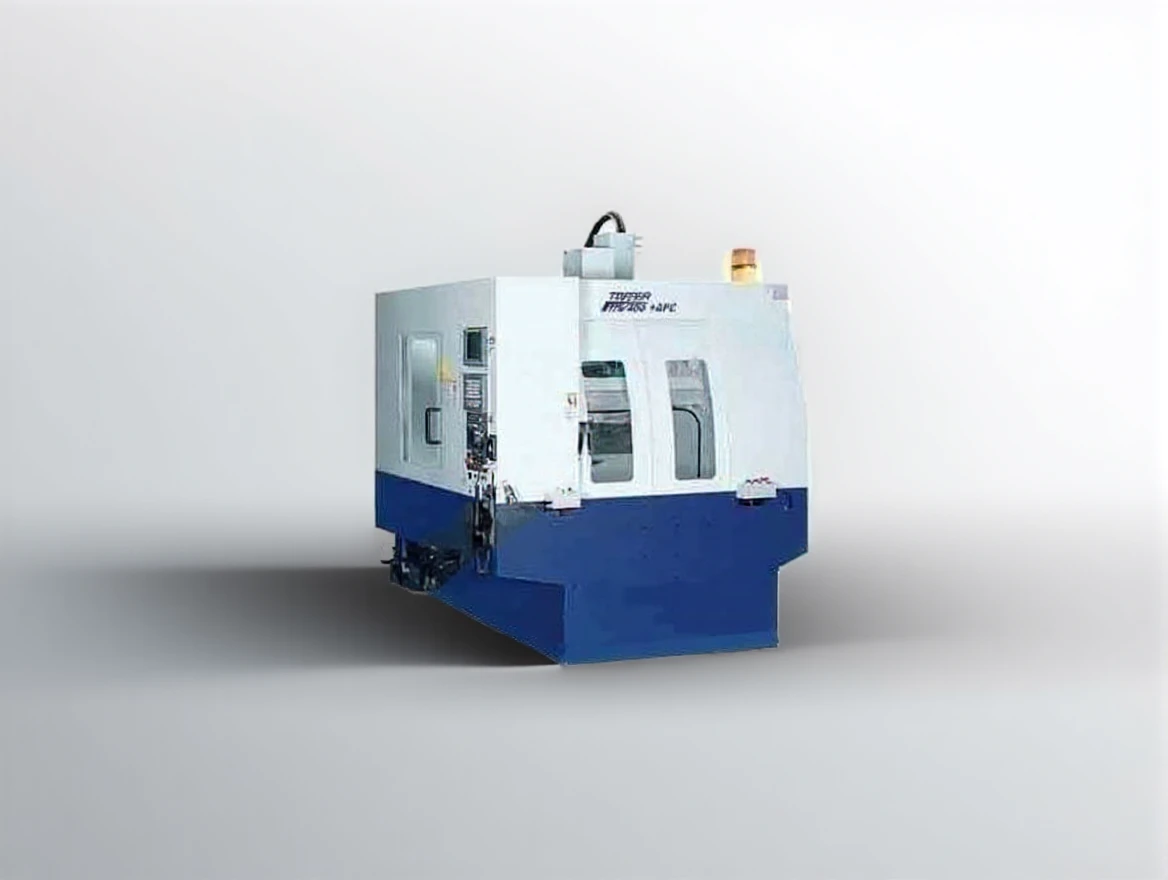

Topper Tongtai TMV-400+APC
500×300 mm CNC Vertical Machining Center
| TABLE | Table Size | mm | 500×300 |
| Maximum Load Capacity | kg | 200 (x2) | |
| Table Height | mm | 920 | |
| T Slots | mm | 18×3 | |
| Distance from Spindle Center to Table | mm | 200-500 | |
| SPINDLE | Spindle Taper | BT30 | |
| Spindle Speed | rpm | 240-8000 | |
| (360-12,000 ops.) | |||
| AXES | X Axis Travel | mm | 400 |
| Y Axis Travel | mm | 300 | |
| Z Axis Travel | mm | 300 | |
| Rapid Traverse Rates | m/min | 30/30/30 | |
| Cutting Feedrate | mm/rev | 1-10000 | |
| TOOL CHANGER | Tool Capacity | pieces | 14 |
| Maximum Tool Diameter | mm | 80 | |
| Maximum Tool Length | mm | 200 | |
| Maximum Tool Weight | kg | 3 | |
| MOTOR | Spindle Motor Power (%50 ED) | kw | 5.5 |
| Coolant Pump Motor | kw | 0.185 | |
| Axis Motor Powers (X,Y,Z) | kw | 0.9 | |
| MACHINE SIZE | Width x Length | mm | 1900×2930 |
| Height | mm | 2350 | |
| Net Weight | kg | 3000kg |
Fanuc OiMD Control and Standard Accessories included.
