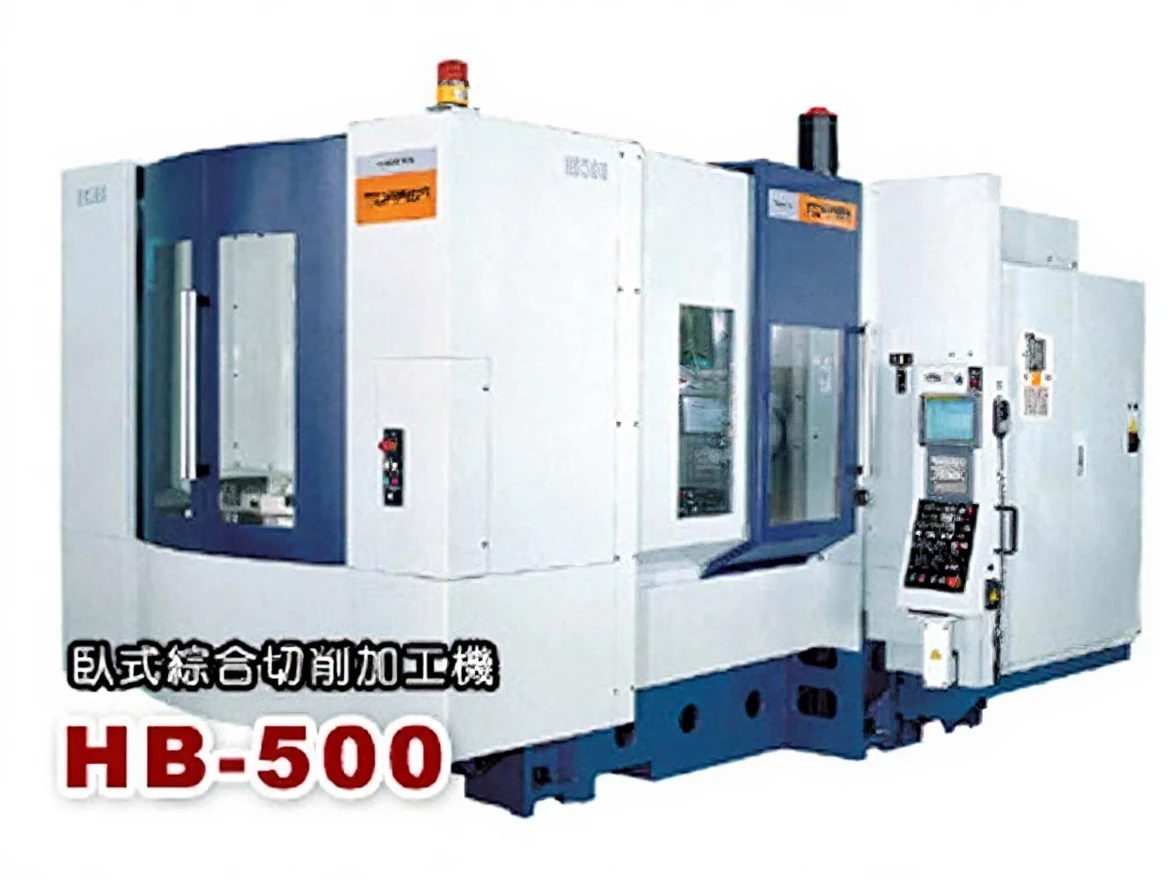

500×500 mm CNC Horizontal Machining Center

Pallet Size (WxL) (2 Pieces) mm 500×500 Maximum Workpiece Weight  kg 600

WORKING AREA

X Axis Travel mm 800 Y Axis Travel mm 710 Z Axis Travel mm 710 Distance from Spindle Center to Table mm 50-760 Distance from Spindle Nose to Table Center mm 150-760

SPINDLE HEAD

Spindle Taper ISO 7/24 NO.50 Spindle Diameter mm 100 Spindle Speed rpm 60-10,000 Spindle Motor Power (50% ED) kw 22/18.5 Rapid Traverse Rates m/min 40 Cutting Feed Rates         mm/rev. 1-20,000

AUTOMATIC TOOL CHANGE (ATC)

Number of Tools   60 Tool Change Method   Specified Tool Number Tool Holder   BT50 Maximum Tool Length mm 610 Maximum Tool Weight kg 15 Change Method   Rotation Maximum Tool Diameter (if adjacent tool) mm 130 Maximum Tool Diameter (if no adjacent tool) mm 260

MACHINE DIMENSIONS

Width x Length mm 4483×4709 Height mm 2942 Net Weight kg 14000

Equipped with Fanuc OiMD and Standard Accessories.
