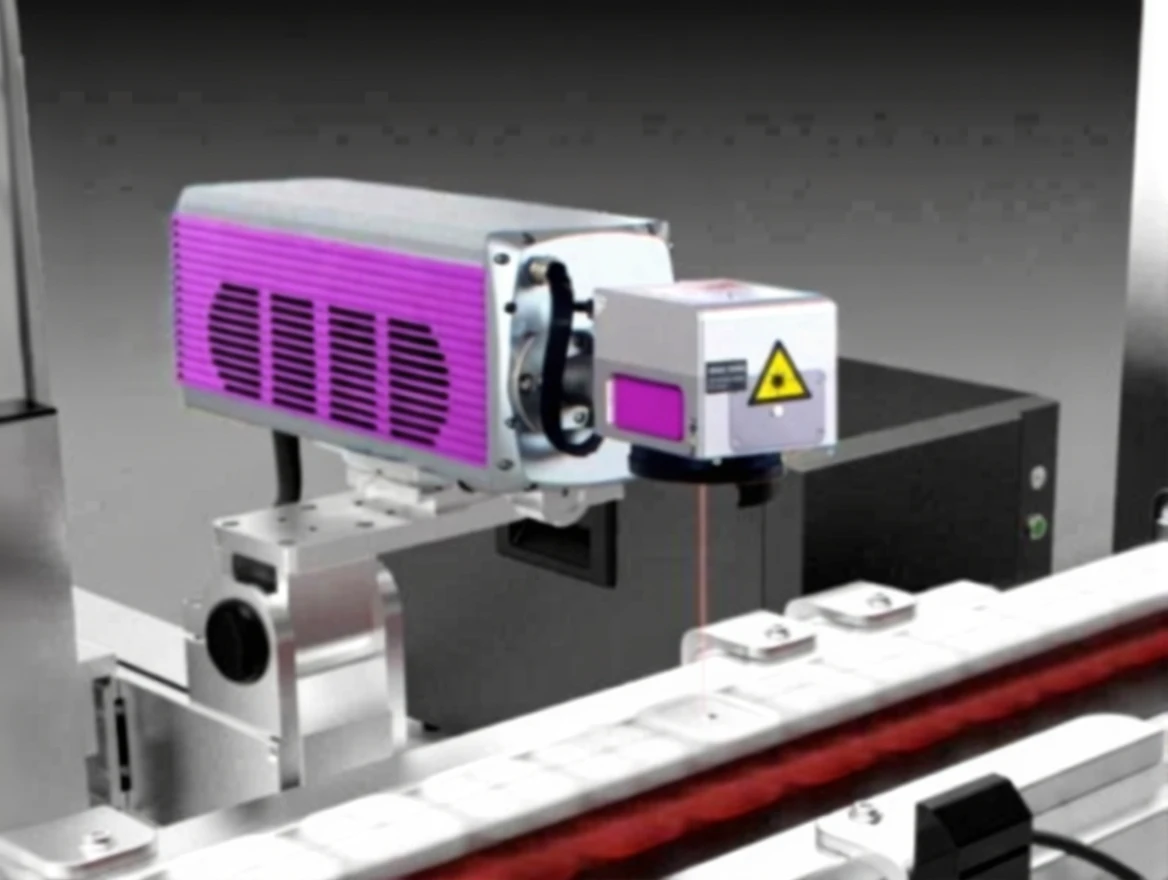

50W Fiber Dynamic Line Laser Marking Machine

Brand Flymark
Model Type

FLY50

Category:
Description

50W Fiber Dynamic Line Laser Coding Machine – FLYMARK application.

For more information, prices, and stock availability, please contact us.

There are very few products that cannot be covered with Fiber, Co2, and UV Flymark Dynamic Line applications. All current and future coding solutions will eventually adopt a more environmentally friendly laser solution. Ink-based systems lead to serious environmental pollution.

We take pride in serving 'Lean Production' with these machines.

• Design that does not require a computer or any external software.

• Faster applications with 50W.

• Turkish/English marking design interface.

• Ability to change marking quality with power, speed, frequency, and scanning frequency settings.

• Ability to reach speeds of up to 200 meters/minute depending on the application.

• Easy marking of different products at different power levels.

• Suitable reaction capability on many metals and plastics with UV, CO2, Pulsed Fiber, picosecond lasers.

• Much more economical and environmentally friendly compared to ink coding.

• Flexibility with All-in-one or Laptop computer options.

• Suitable for Steel, Aluminum, and some polymers.

• Ergonomic forward-backward Cartesian system.

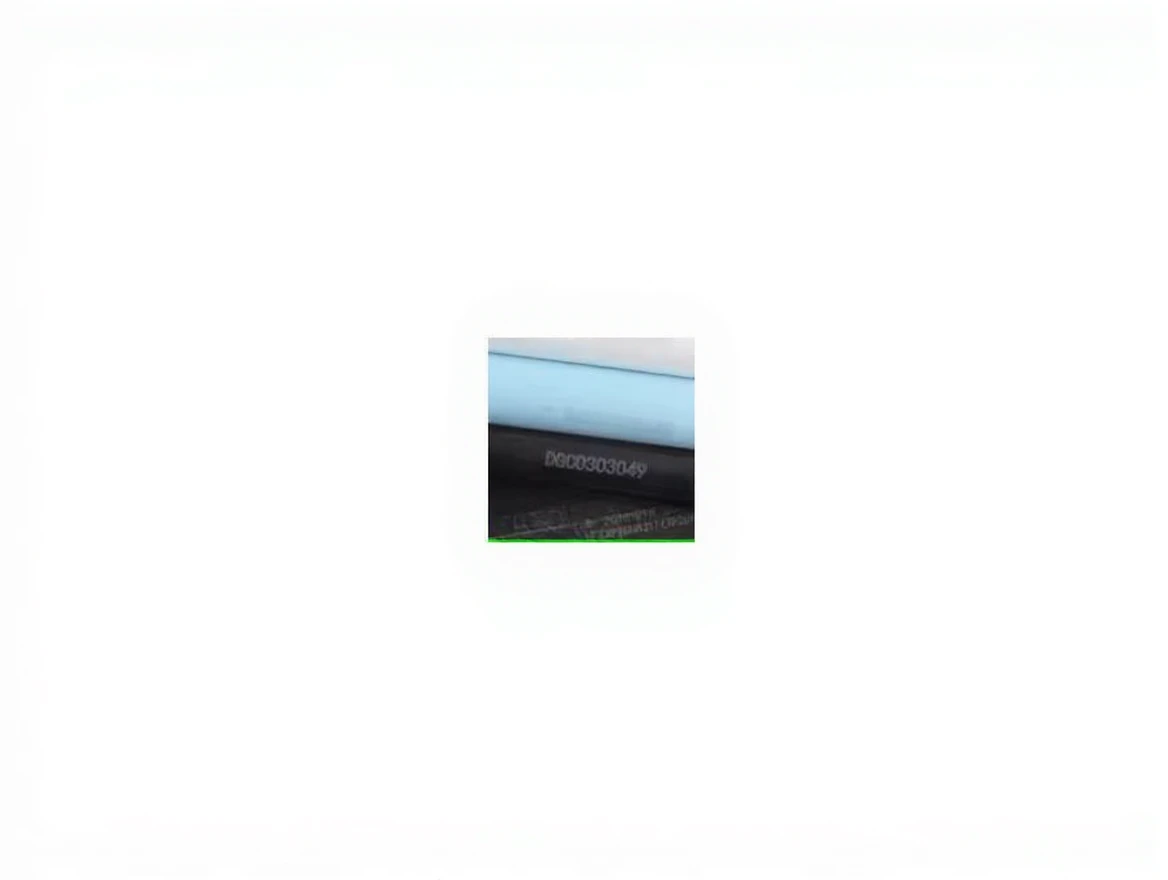

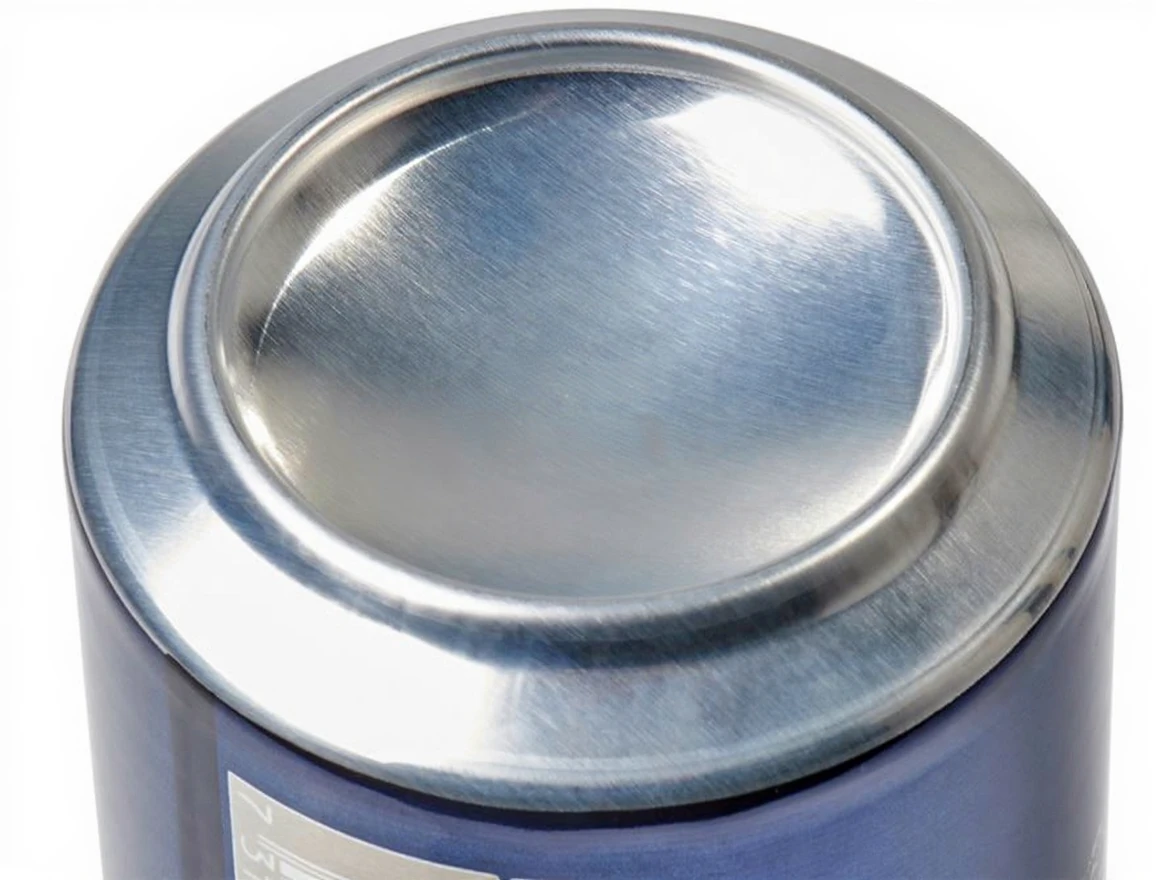

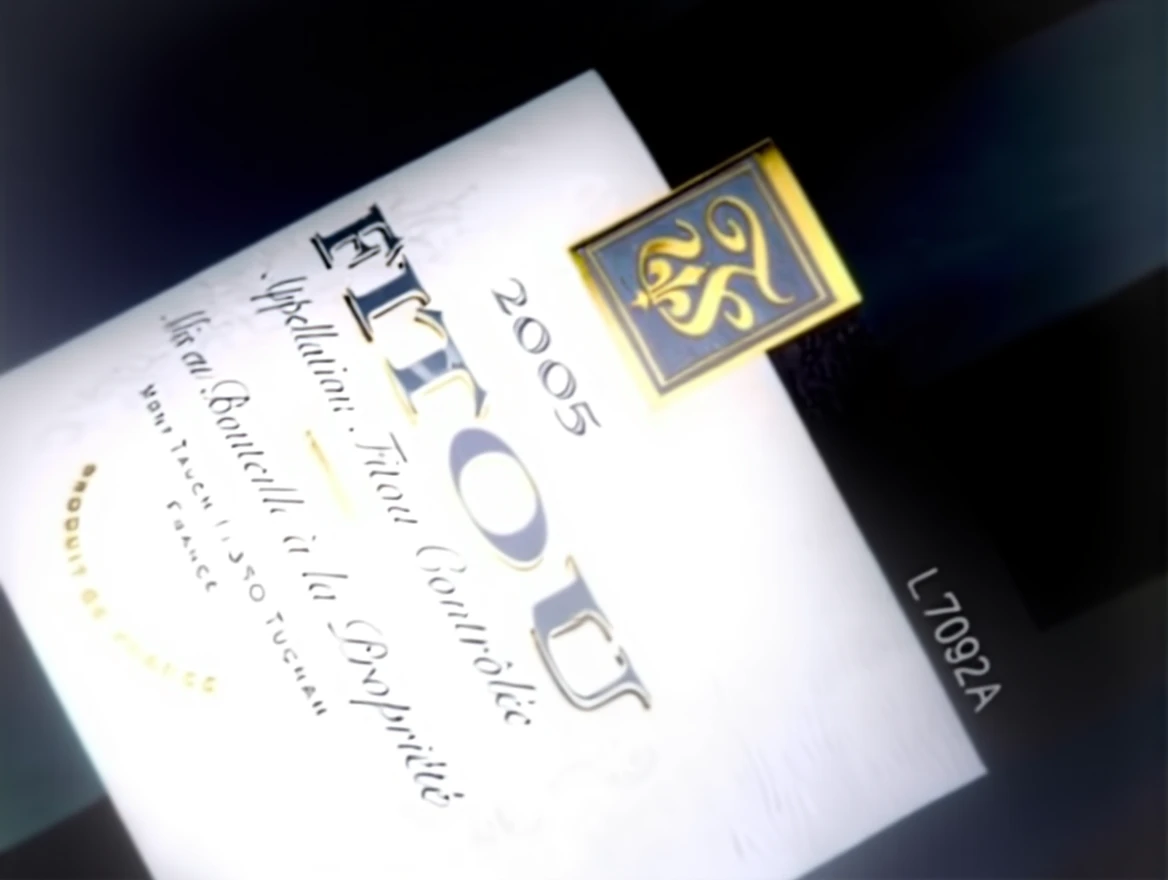

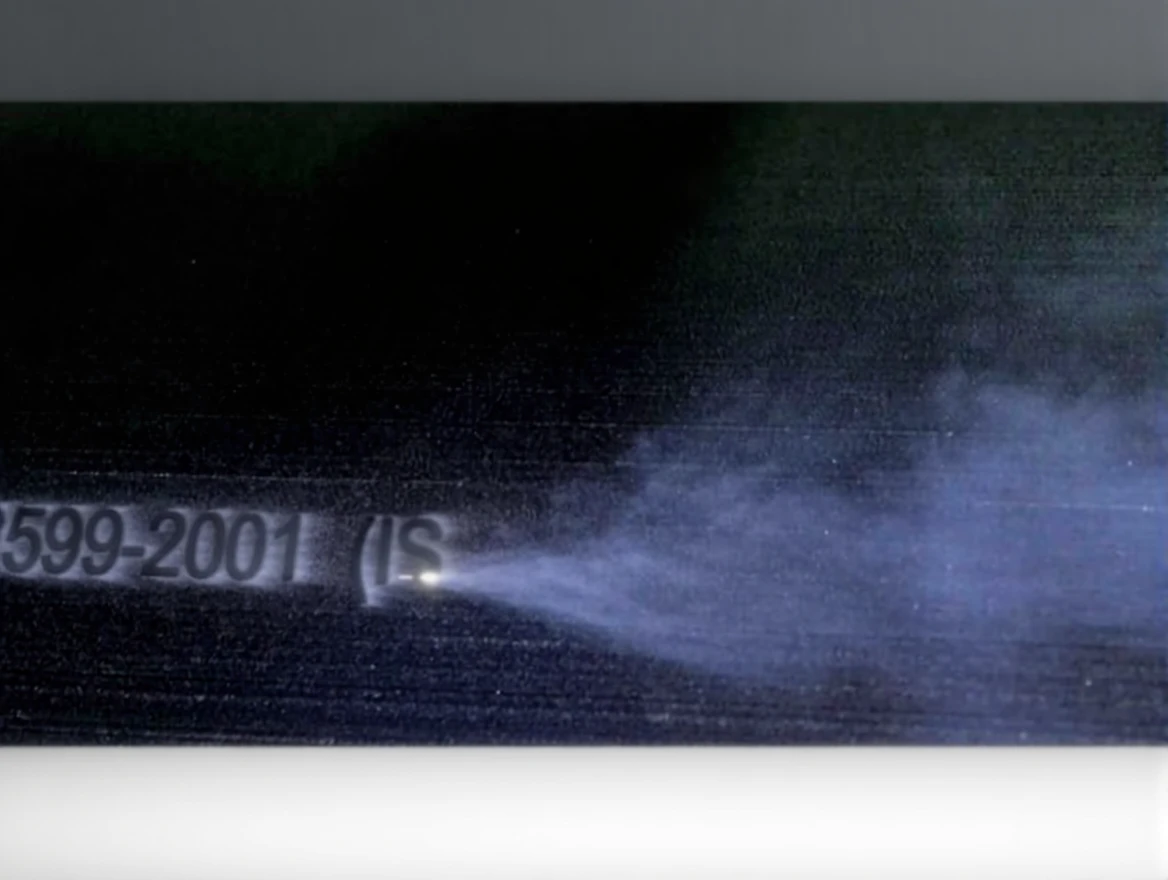

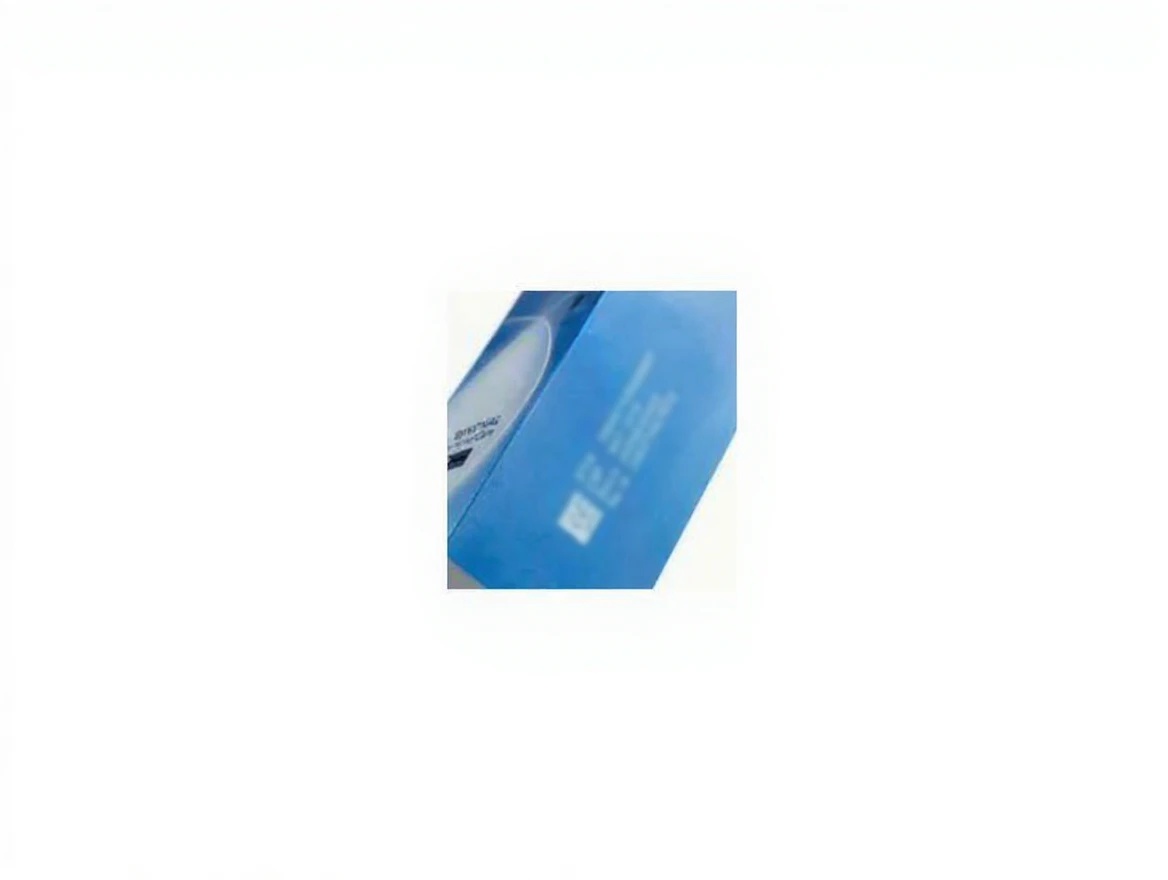

Applications: Can Marking, Pipe or cable marking, rubber marking, acrylic marking, HDPE, LDPE marking, PVC marking, Tin Bottle, Tin Can Marking, Painted Aluminum Marking, automotive part marking, clutch cable marking, and many untested materials or products are at your service.

Technical Data Values
Marking Area (X-Y) (On the ground) 70x70mm / 110x110mm (standard) / 150x150mm
Required Voltage – Current Values AC 220V – 50HZ*
Marking Speed 16000mm/s (High-Speed Scanner Head)
Laser Welding Output Power 30 W / 50 W
Laser Welding Lifetime 100,000* hours – JPT / Raycus Laser Source
PRF Rate 30-60 kHz (for 30W)
Pulse Lengths (ns) 120 – 150ns (for 30kHz)
Wavelength ~1064 nm
Cooling Type Air Cooled (Fan Supported)
Power Consumption 400W (at 20°C for 30 W)
Environmental Humidity and Temperature 80% – 0°C ~ 45°C
Certification and Warranty Period CE Certified and 2 years Warranty
Focus (Focusing) System Manual
Communication Methods RS232, Ethernet, data acquisition compatible with marking

Like any other machine, it requires grounded network voltage. It is guaranteed for 2 years. It easily communicates with automation-friendly command signals such as cutting signal, marking signal, marking finish signals, and more.
