53,500 kCal/h Atmospheric Burner Hot Air Generator
| Brand | Termonem |
|---|---|
| Model Type |
A63 |

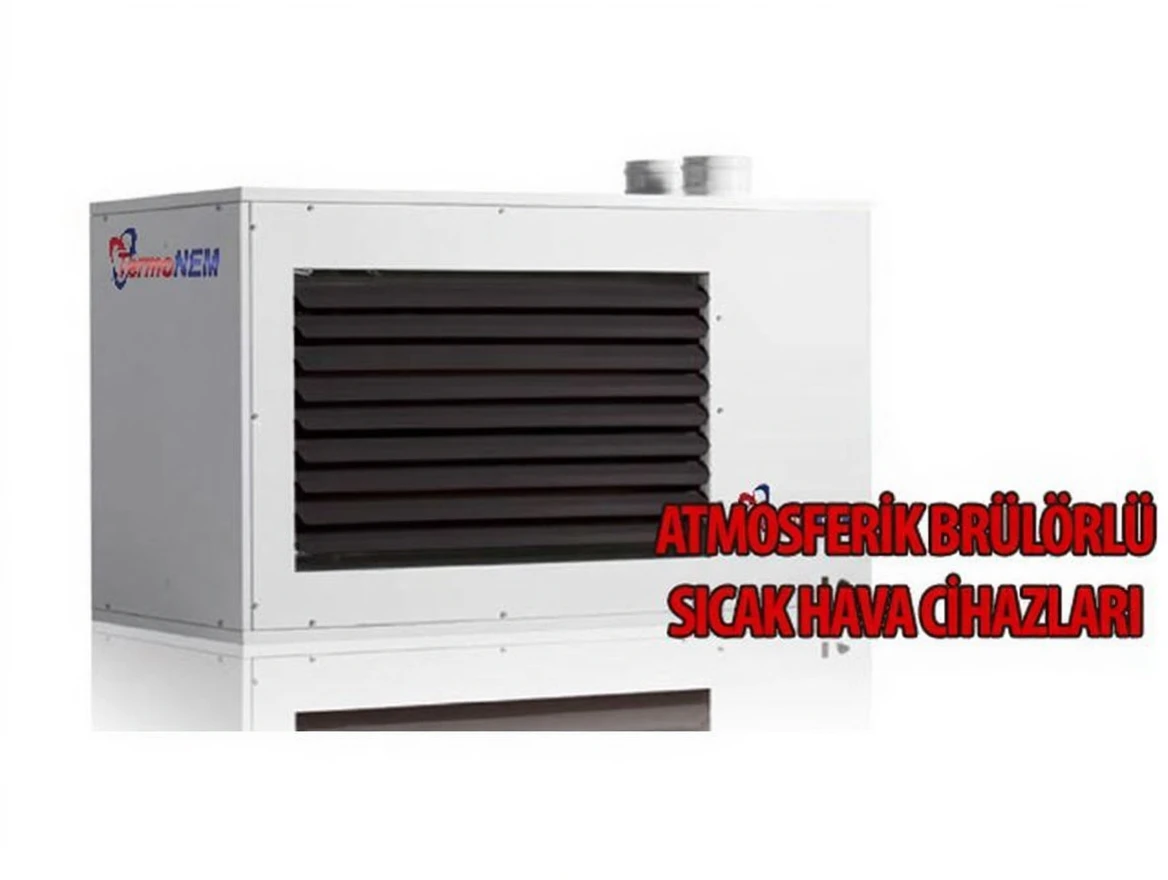

Termonem 53,500 kCal/h Atmospheric Burner Hot Air Generator (Model A63)
Termonem A63 is an atmospheric burner hot air generator that provides safe, efficient, and hygienic heating. It produces heat at the required point and time; it transfers directly from air to air without the need for any medium like water or steam.
Features
-
Electronic ignition, ionization-based flame detection, silent and comfortable combustion
-
Pressure switch controlled solenoid valve for safe combustion and air supply
-
Thermostatic control for activating the fan as needed
-
-
Level safety limit thermostat: 80°C
-
-
-
Level safety limit thermostat: 100°C
-
Advantages
-
No need for a boiler or pipe system; minimal energy loss
-
No preheating required; instant and on-demand hot air production
-
Mountable on wall, saving space
-
Mountable 2.5m above ground, no loss of space in the production area
Technical Specifications (Model A63)
|
Feature |
Value |
|---|---|
|
Nominal Heating Capacity |
53,500 kcal/h (62.2 kW) |
|
Nominal Output Capacity |
47,294 kcal/h (55 kW) |
|
Efficiency (%) |
88.4 |
|
Air Flow Rate (20°C) |
5,300 m³/h |
|
Delta T |
33°C |
|
Air Blowing Distance |
23 m |
|
Gas Consumption (Methane G20, 20 mbar) |
6.57 m³/h |
|
Gas Consumption (Propane 0°C, 1013 mbar) |
4.74 kg/h |
|
Fan Motor Power (1F 230 VAC) |
2 x 220 W |
|
Fan Speed/Minute |
1,300 rpm |
|
Noise Level (5 m) |
60 dB(A) |
|
Gas Pipe Diameter |
3/4" |
|
Exhaust Pipe Diameter |
100 mm |
|
Clean Air Inlet Diameter |
150 mm |
|
Length (A) |
1,350 mm |
|
Width (B) |
495 mm |
|
Height (C) |
875 mm |
|
Net Weight |
125 kg |
Areas of Use
-
Factories and production facilities
-
Warehouses and workshops
-
Large tents and event areas
-
Any industrial and commercial environment requiring hot air
Termonem A63 offers reliable heating solution with instant hot air production, low operating costs, and high energy efficiency.
