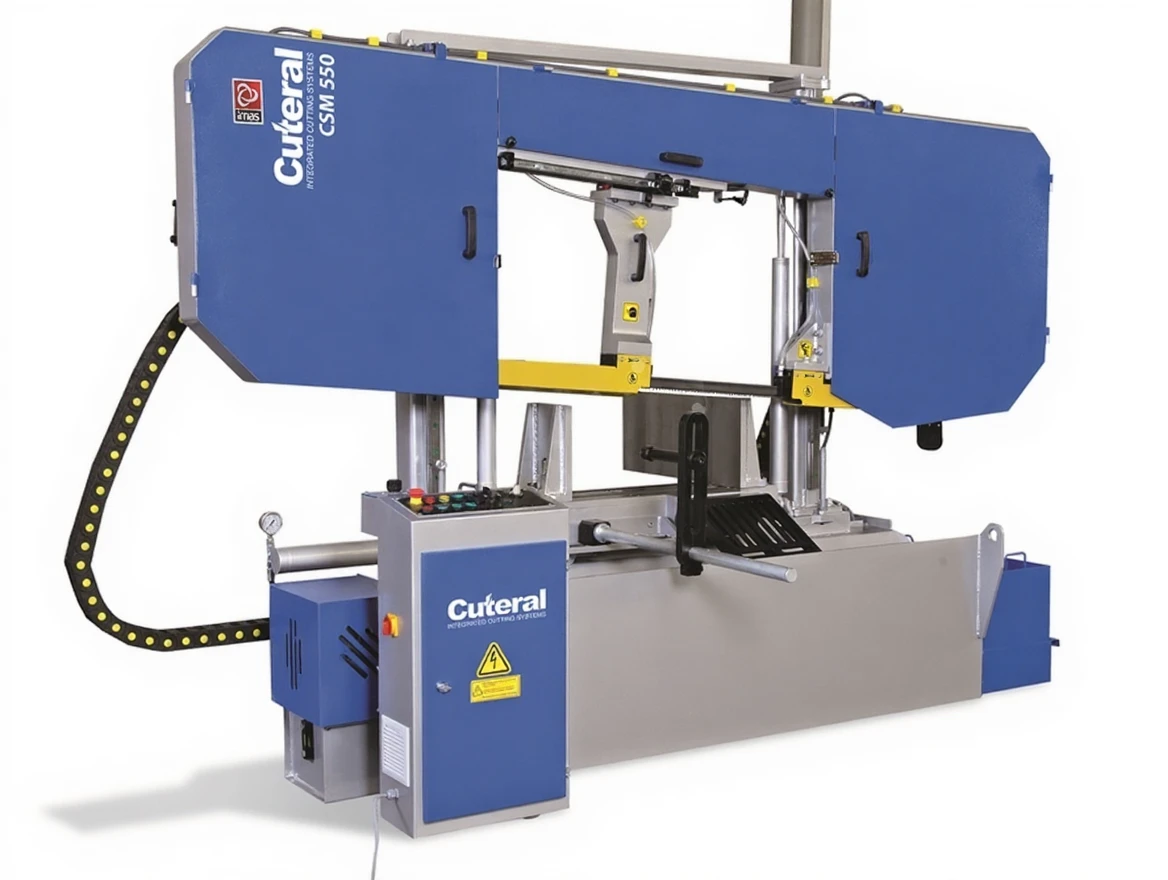

550 mm Semi-Automatic Hydraulic Column Saw Bench
| Brand | Cuteral |
|---|---|
| Model Type |
CSM 550 |
Description
Cuteral CSM 550
550 mm Semi-Automatic Hydraulic Column Saw Bench
Cuteral CSM 550 Technical Specifications
| A | 2215 mm | |||
| B | 3200 mm | |||
| C | 1460 mm | |||
| D | 765 mm | |||
| E | 1500 mm | |||
| F | 1690 mm | |||
| hmax | 2410 mm | |||
| Semi-Automatic | ||||
| Blade Size | 41 x 1.3 x 6850 mm | |||
| Blade Motor | 4 kW – 1000 rpm | |||
| Drive Motor | Manual | |||
| Hydraulic Motor | 1.1 kW – 1500 rpm | |||
| Cooling Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 5.22 kW | |||
| Cutting Speed | 15 m/min – 49 m/min | |||
| Weight | 2100 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydraulic | |||
| Cutting Capacity 90° Length | 400 mm | |||
| Cutting Capacity 90° Width | 450 mm | |||
| Cut Material Angle | -45° | 370 mm | 370 x 370 mm | 550 x 370 mm |
| -30° | 460 mm | 460 x 460 mm | 550 x460 mm | |
| 0° | 550 mm | 550 x 550 mm | 550 x 600 mm | |
| Model | Motor | Volume (m3) | Weight |
| VMX-P 200 | 11 | 0.5 | 855 |
| VMX-P 500 | 15 | 1 | 1270 |
| VMX-P 1000 | 22 | 2 | 1820 |
| VMX-P 2000 | 37 | 4 | 2810 |
| VMX-P 3000 | 2 x 37 | 8 | 4350 |
| VMX-P 5000 | 2 x 45 | 10 | 5700 |
