580×1050 mm Double-Sided Angled Cutting Column Semi-Automatic Band Saw Machine

MACHINE MODEL:

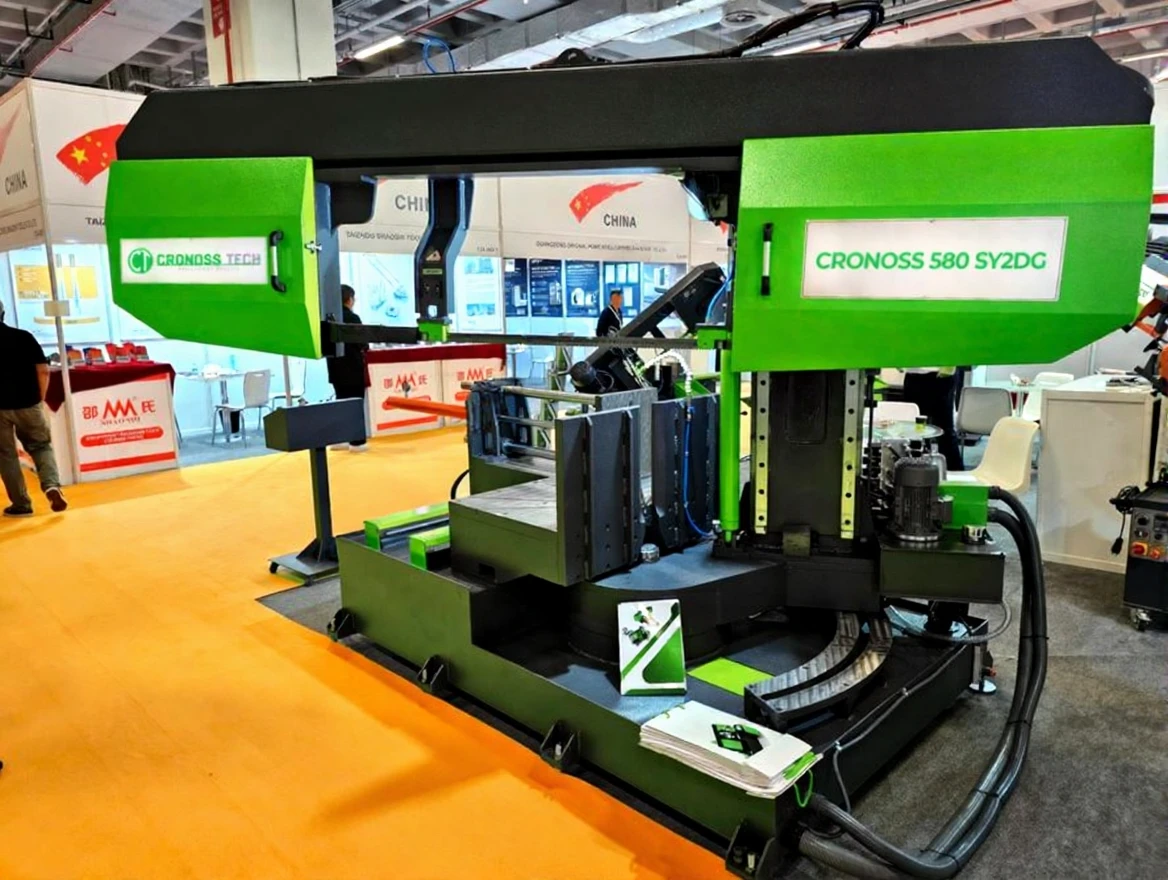

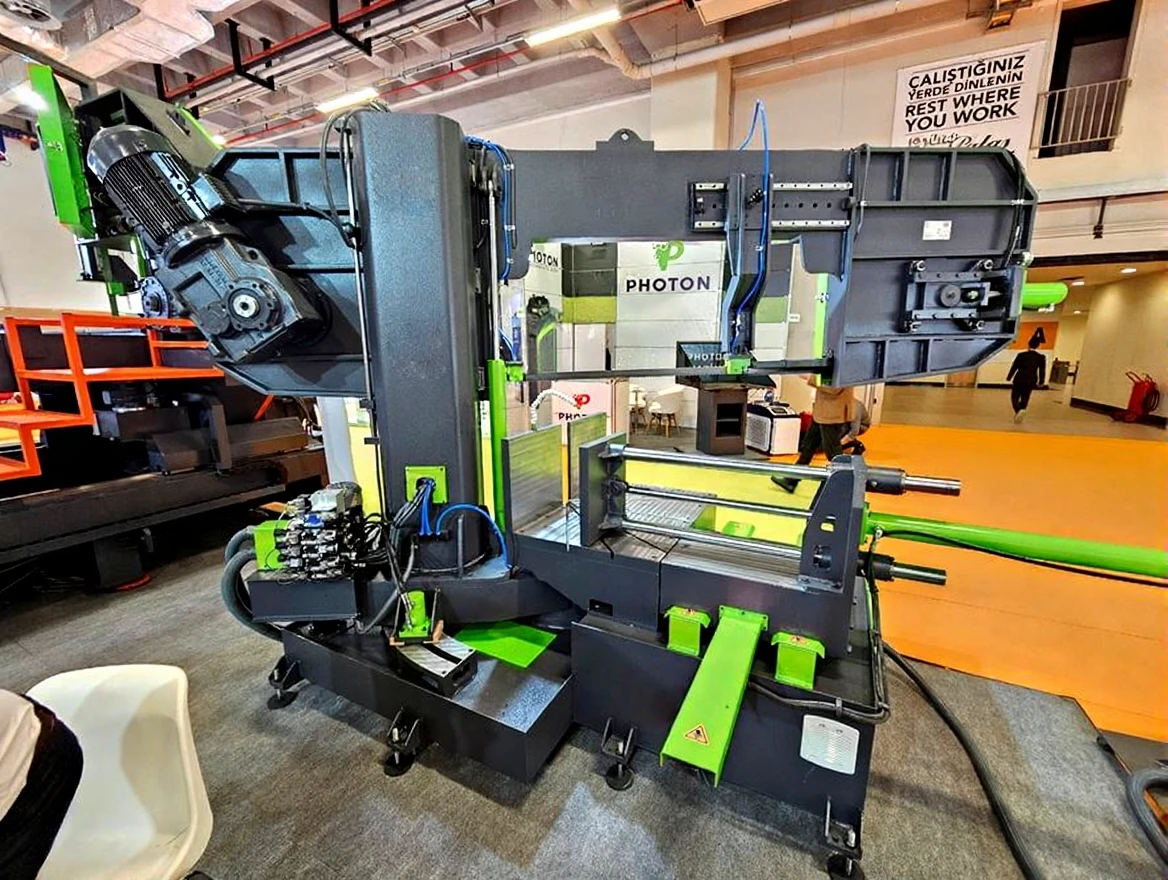

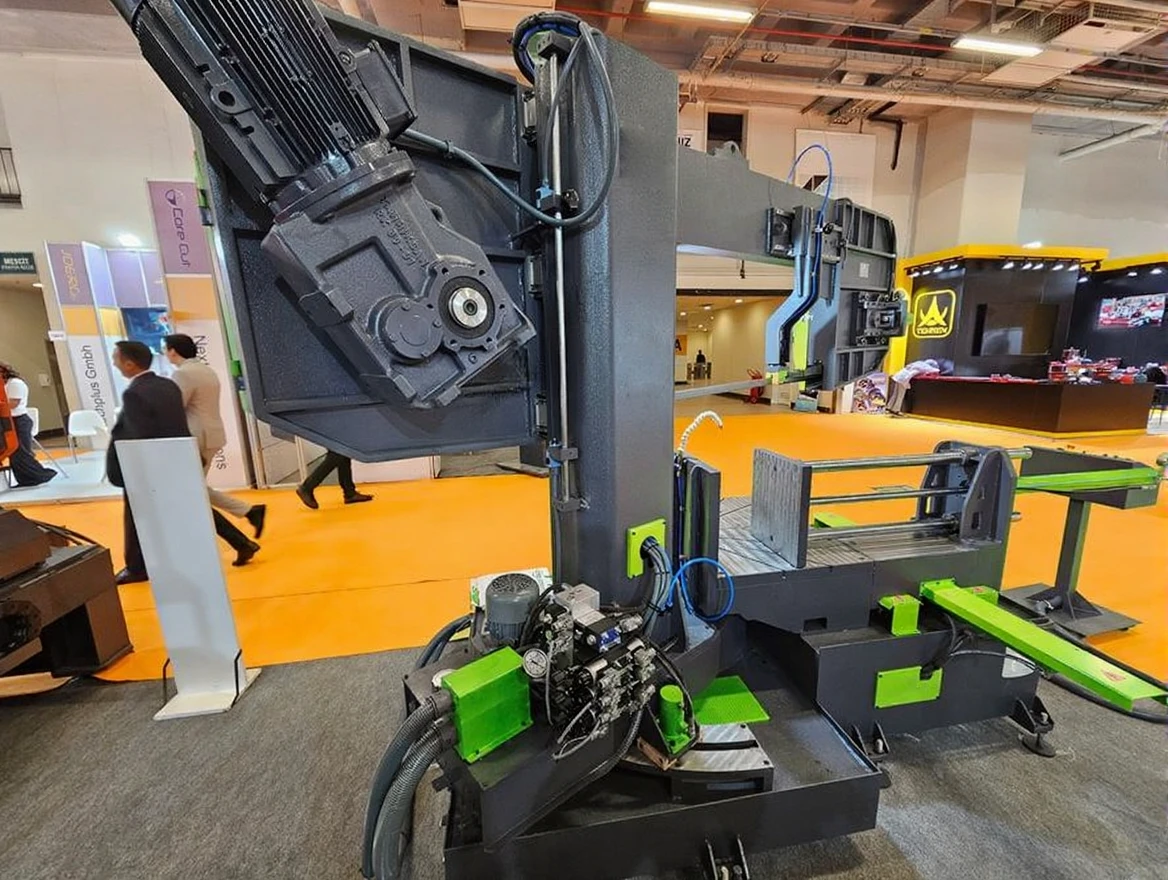

CRONOSS 580×1050 SY2DG – Column Semi-Automatic Band Saw Machine (Double-Sided Angled Cutting)

STANDARD FEATURES:

• Hydraulic Vice

• Column – Linear Sliding

• Variable Speed Control (Inverter)

• Safety Switches

• Hydraulic Blade Tensioning

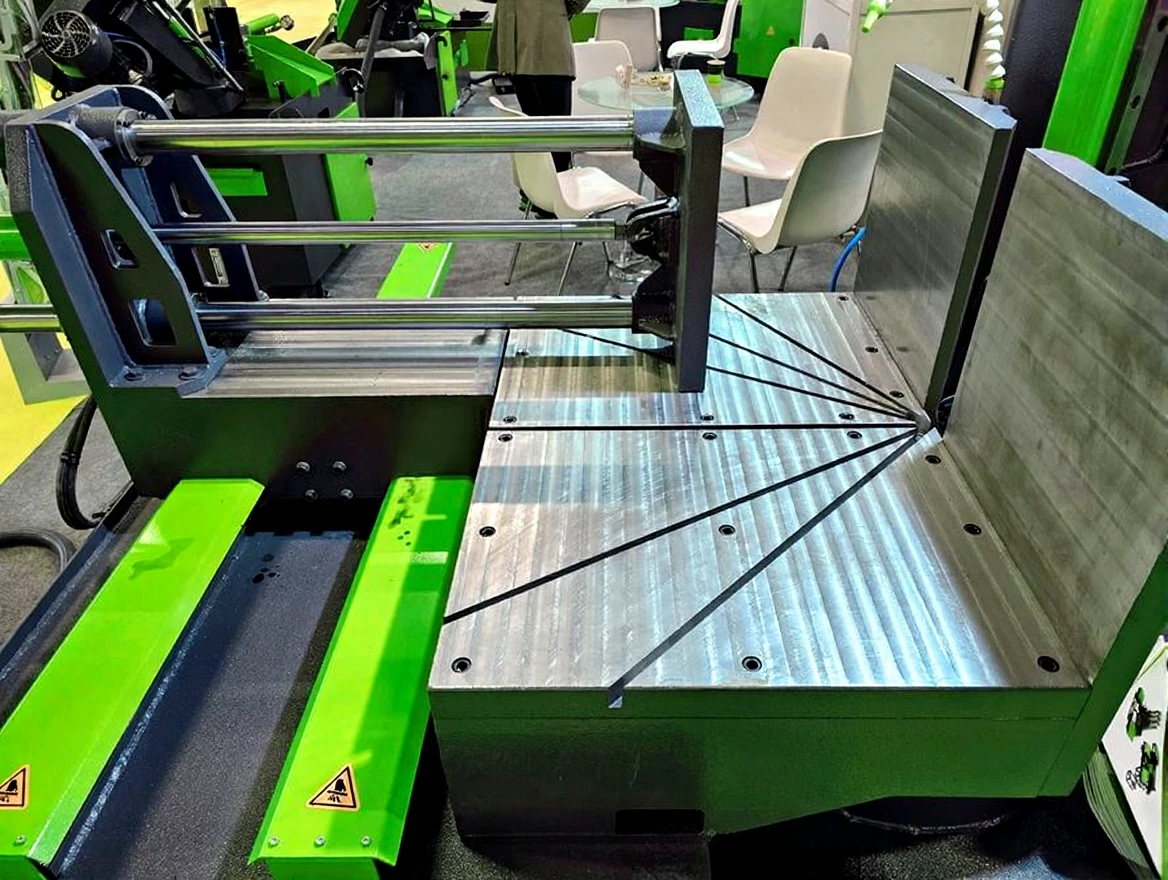

• Variable angle cutting between 0 and 60 degrees (Positive Direction)

• Variable angle cutting between 0 and 45 degrees (Negative Direction)

• Angle Gauge

• Adjustable Head Lowering System

• 1 Piece of Saw Blade

• 1 Piece of 2 m Material Carrying Table

• 24 Months Mechanical / 12 Months Electrical Warranty

• Country of Origin: Turkey

• Models produced between 220 mm diameter – 3000 mm diameter

CUTTING CAPACITIES:

TECHNICAL SPECIFICATIONS:

• Main Motor / Torque: 5.5 kW

• Hydraulic Motor: 1.1 kW

• Cooling Motor: 0.09 kW

• Band Saw Size: 54 × 1.3 × 7780 mm

• Material Feeding Height: 655 mm

• Vice Maximum Opening: 1050 mm

• Vice Maximum Closing: —

• Table Width: —

• Height × Width × Length: 3780 × 2240 × 1980 mm

• Weight: 4100 kg
