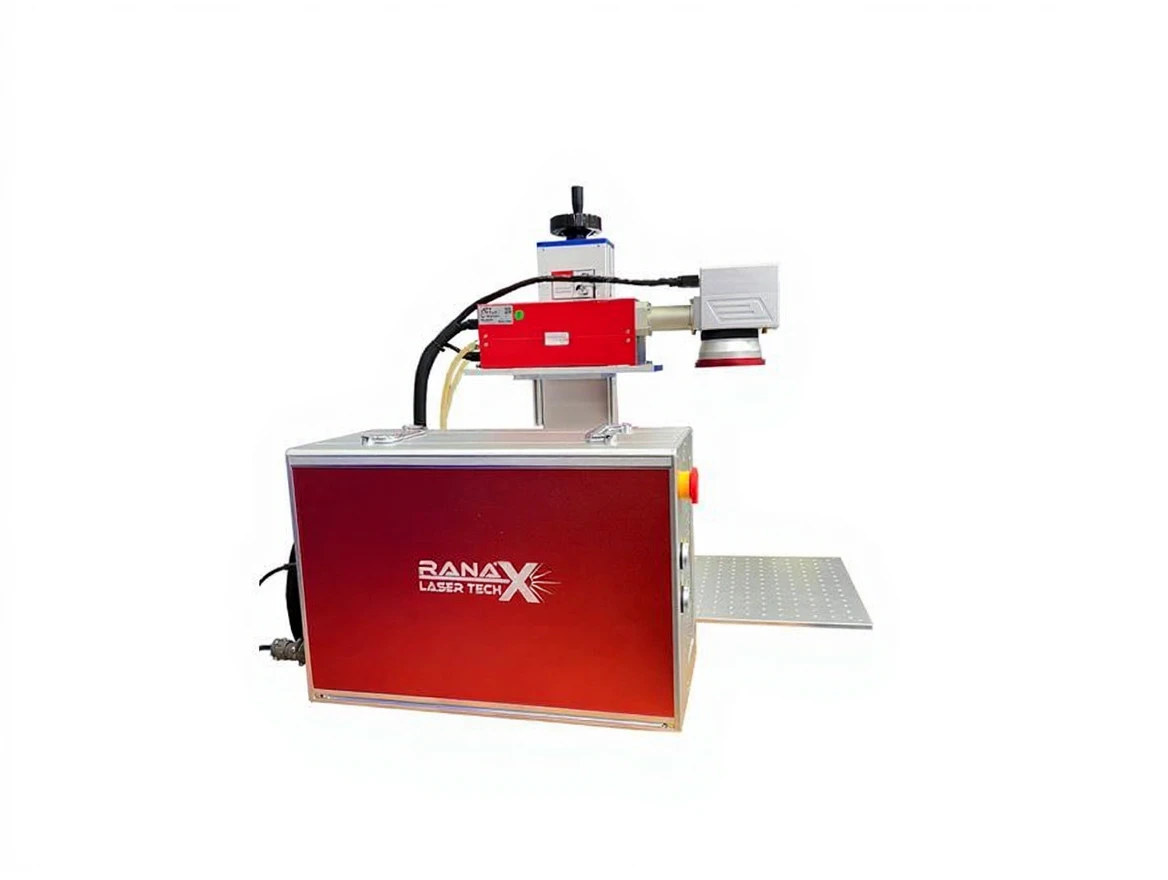

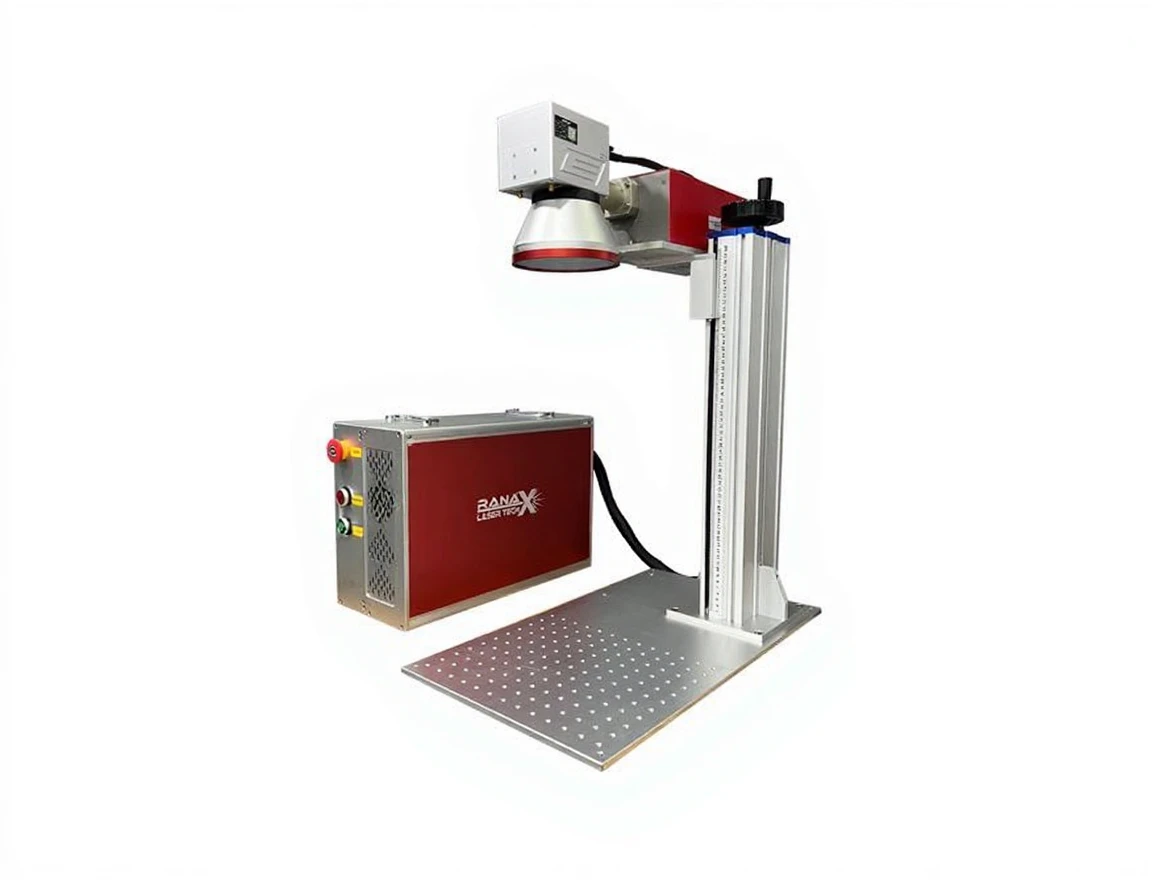

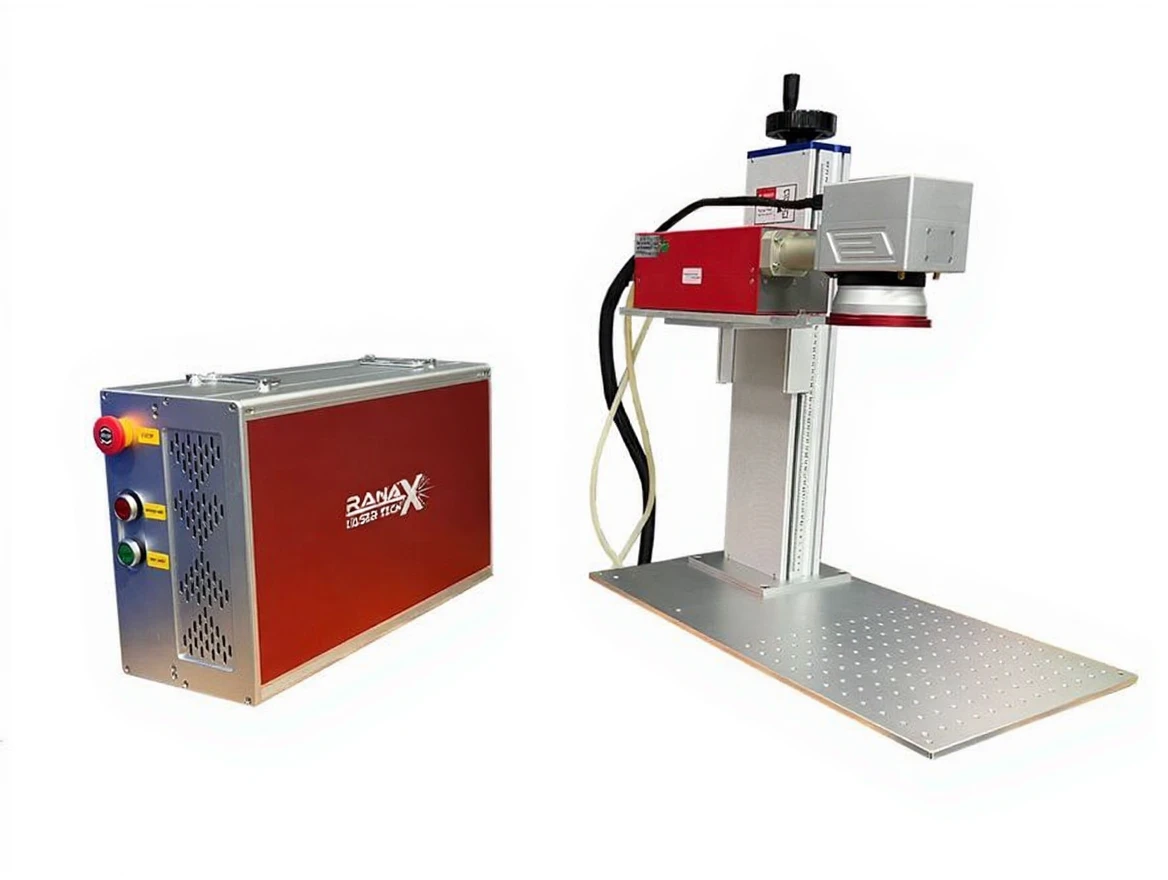

5W Laser Marking Machine
| Brand | Rana-X Laser |
|---|---|
| Model Type |
RN5W |
TRAINING – TRANSPORTATION and INSTALLATION ARE FREE
You can contact us for Detailed Technical Information, Our References, and Sales Information
We would be happy to host you at our Istanbul Office
2 YEAR WARRANTY
JPT 5W UV – JCZ Ezcad2 Control Card ( Turkish ) – Sino Galvo
12 Months Installment Option for Credit Card
AREAS OF USE
Glass, Transparent Plexiglass, Porcelain, Plastic Products, All Types of Metal ( Silver, Gold, Platinum, Copper, Aluminum, etc. ) Button Restoration, MDF, Parquet, Leather, Many Types of Plastic, Circuit Boards, Sheet Boards, Promotional Products, Mirrored and Acrylic Plexiglass, Phone Cases, Painted Products, Bank Cards, Carbon-Based Materials, etc.
GENERAL FEATURES AND INSTALLATION CONTENT
- More than 15,000 Patterns and Drawings
- Professional Drawing Program
- Protective Glasses
- Foot Pedal
- JPT Source
- Lens Options: 70X70 -110×110 – 150×150 – 200X200 – 300×300 mm
- Manual Focus
- Sino Galvo
- Portable Design
- 100,000 Hours Laser Life
- Low Energy Consumption
- Double Red Pointer
- Turkish Software
Get a Price for Computer, Divider and Additional Equipment
10 Year Spare Parts Guarantee
DETAILED TECHNICAL INFORMATION
Laser Power: 5W
Supported Graphic Format: PLT, BMP, JPG, PNG, AI, PCX, TGA, ICO, DXF
Beam Quality: M2<2
Power Stability: (8)<+1% rms
Pulse Repetition Frequency: 20KHZ—200KHZ
Power Consumption: <800W
Minimum Character: 0.1mm
Laser Wavelength: 355nm
Working Area: 70X70 -110×110 – 150×150 – 200X200 – 300×300 mm Lens
Total Machine Power: 500W
Cooling Method: Air Cooled
Operating Voltage: 220V + 10%, 50/60Hz
Ambient Operating Temperature: -35°C + 50°C
Red Marker: Double Laser Marker
Galvanometer: Sino Galvo
Laser Source: JPT
Control Card: JCZ Ezcad2 Turkish Software
