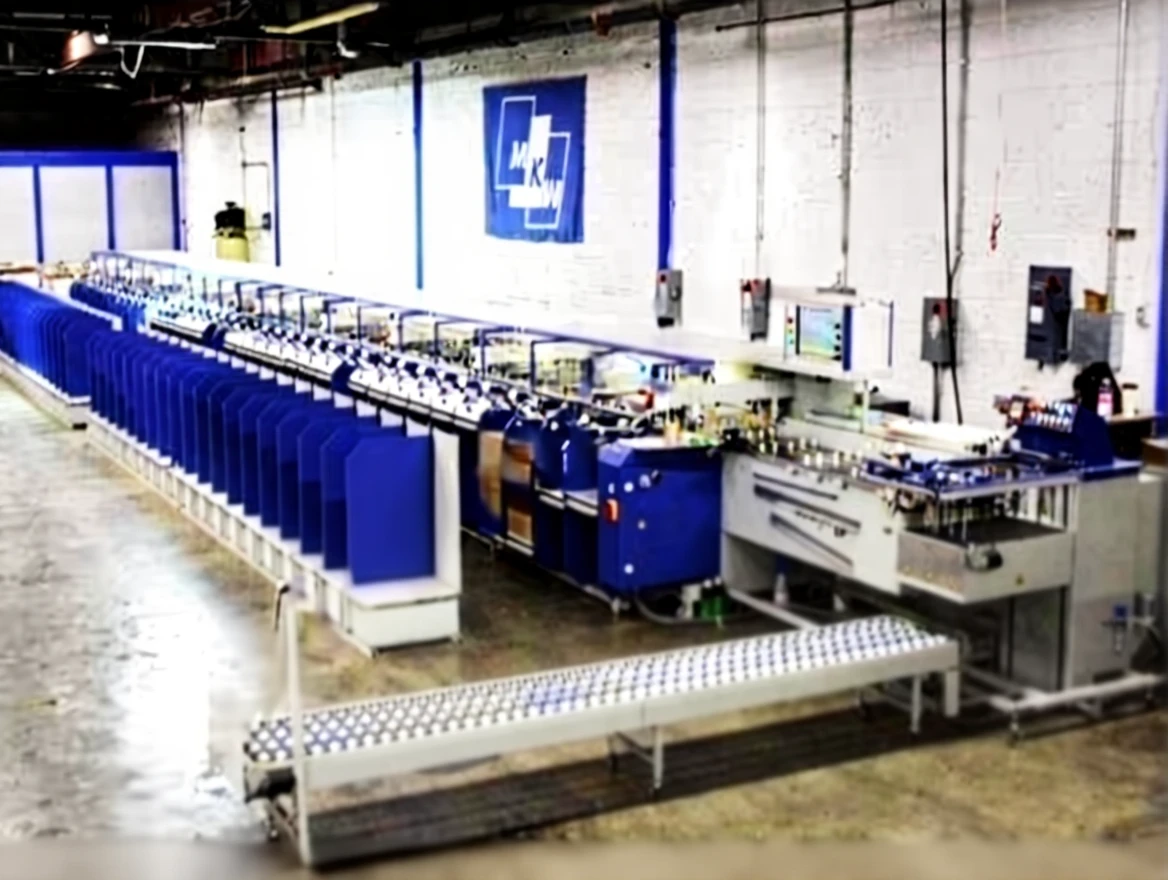

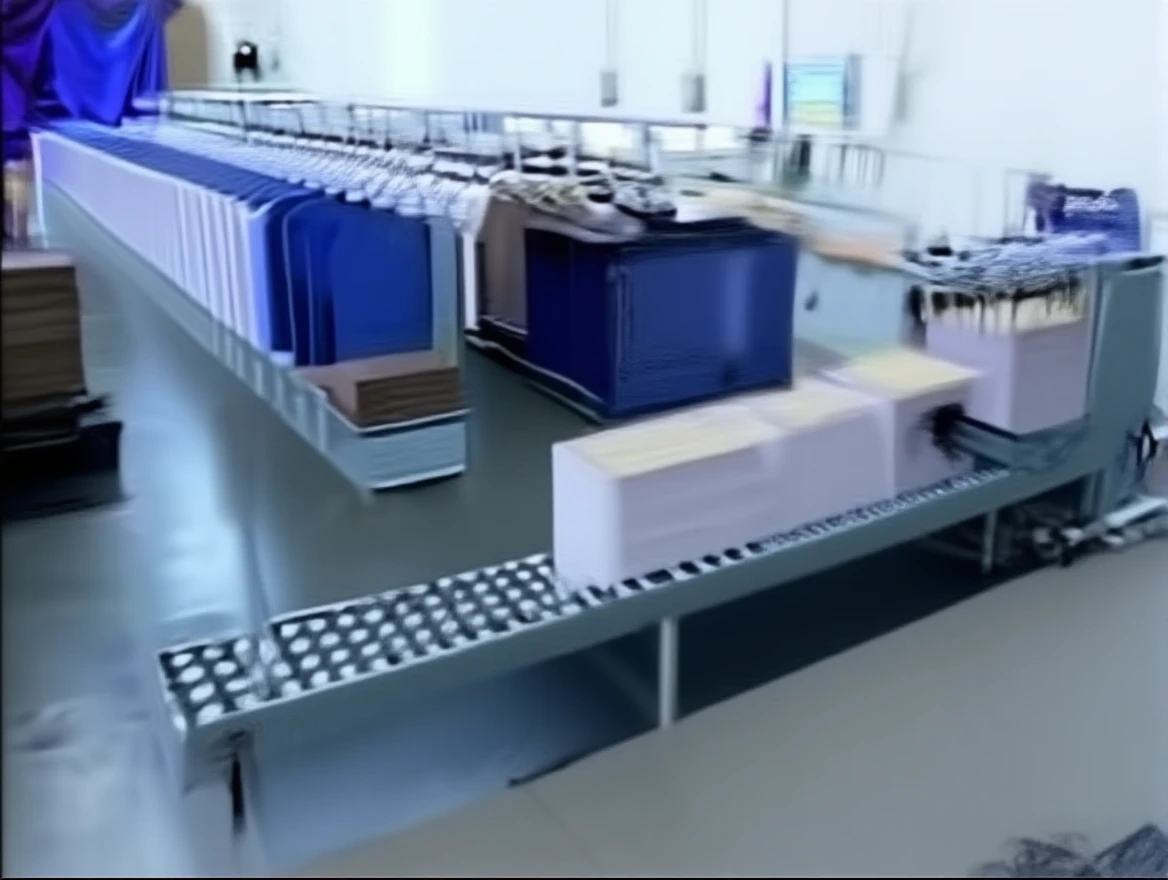

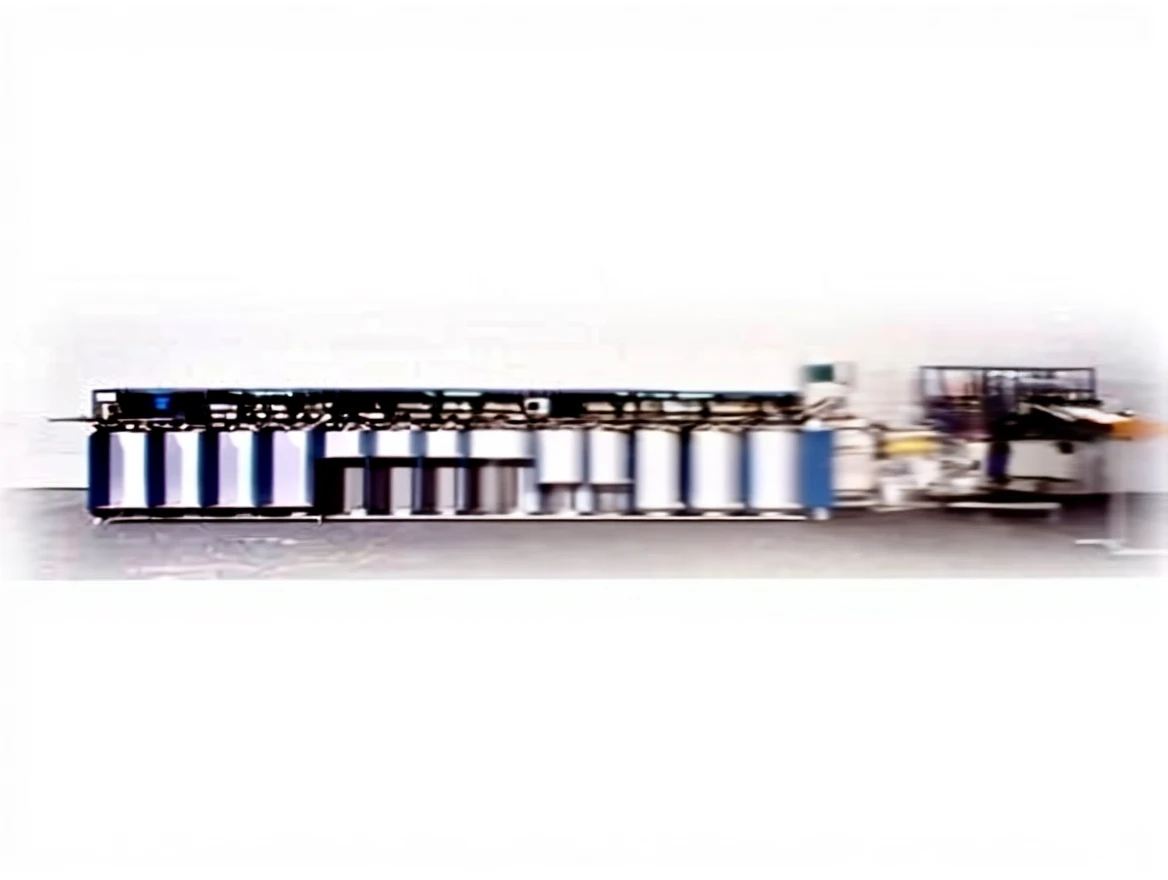

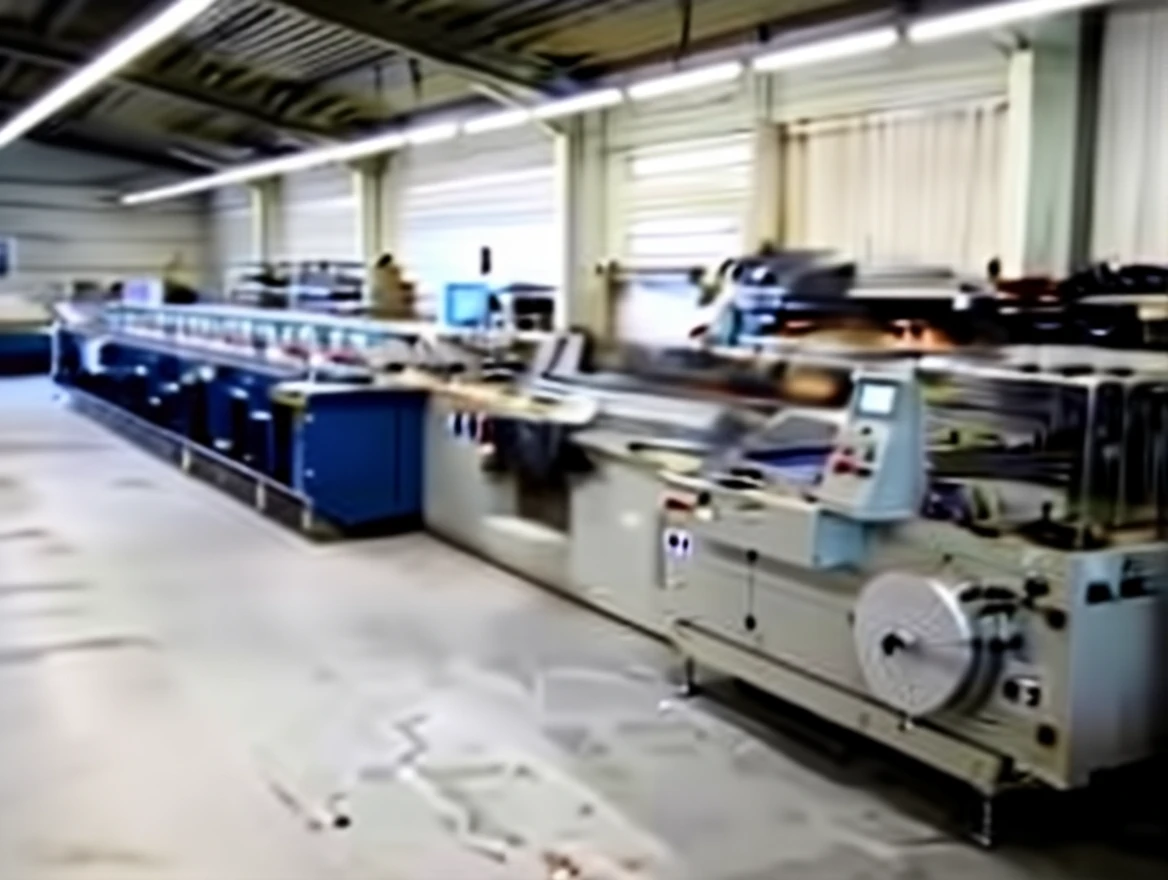

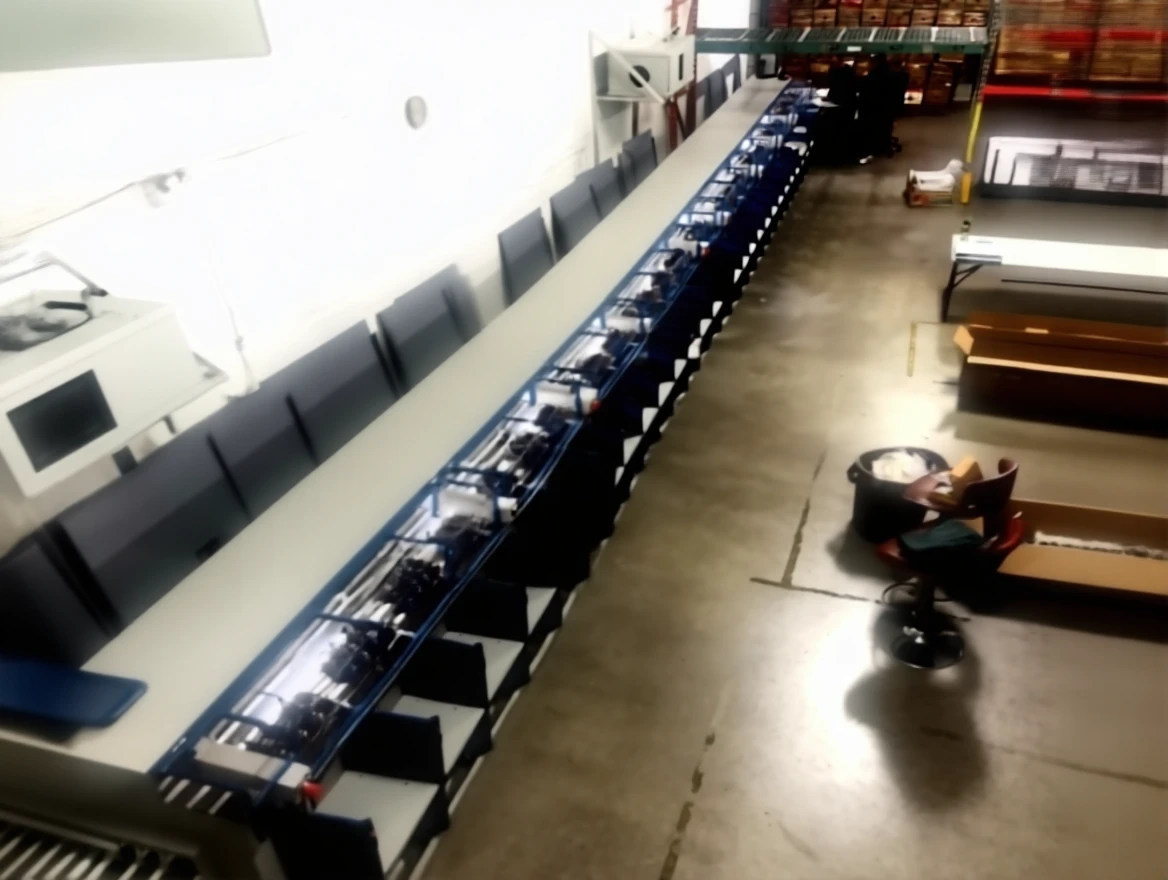

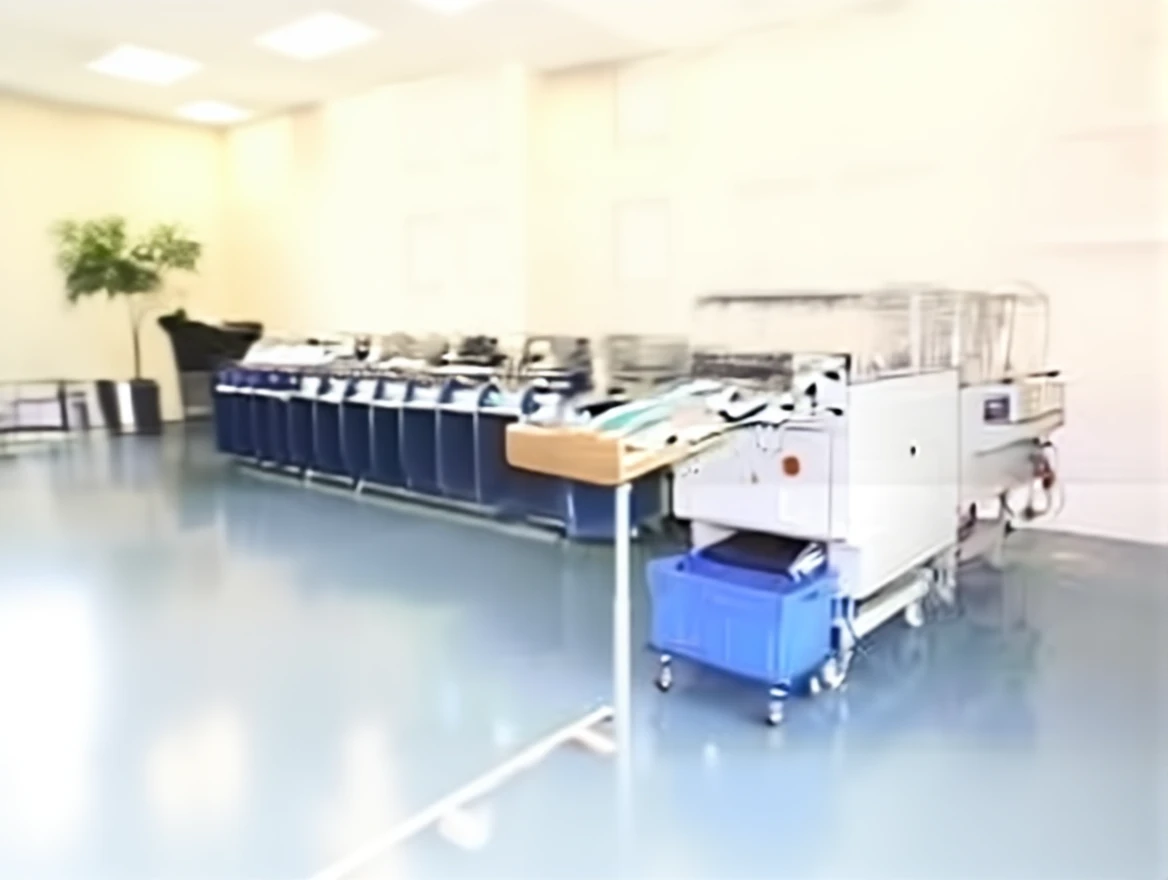

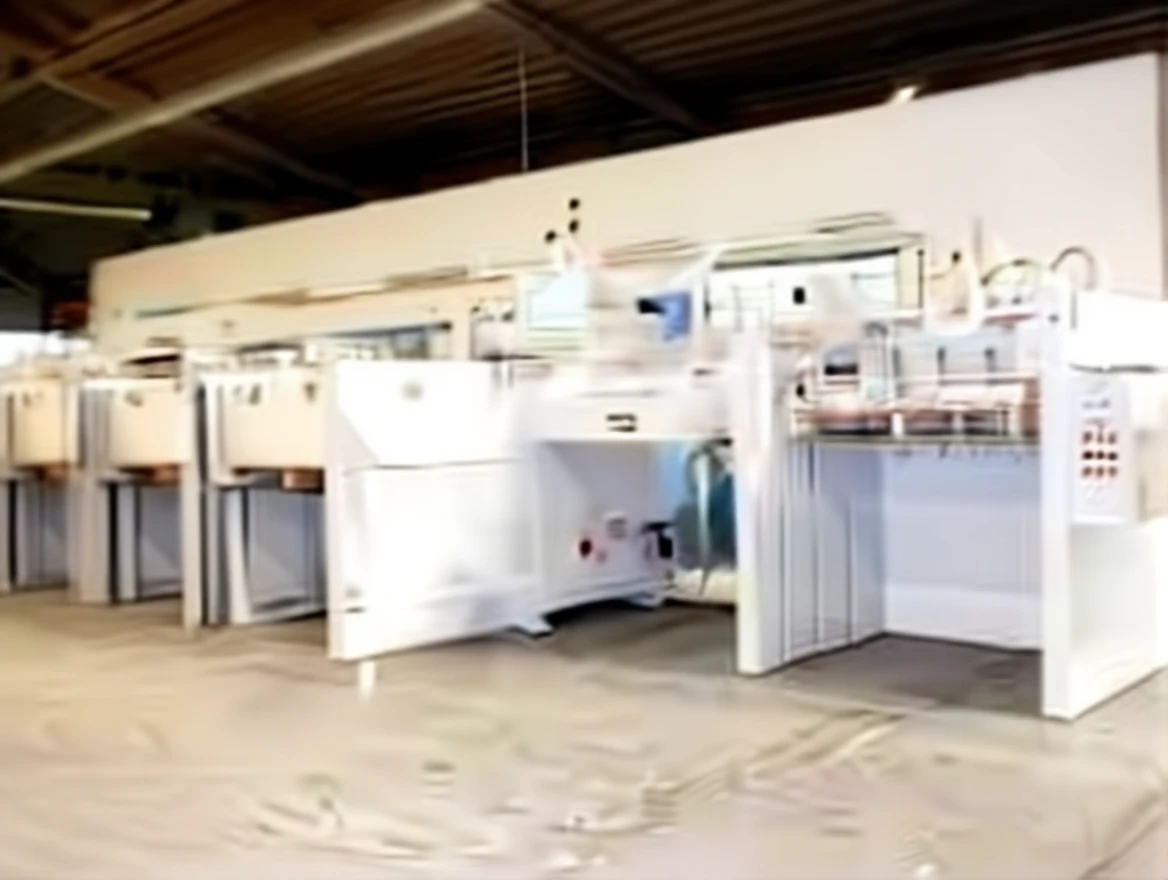

6-36 Station Collating and Binding Machine

Automatic Collating and Binding Machine

Mkw Rapıd Ut / B3 / Gs

• Manufactured between 6 – 36 stations as desired
• Paper Sizes Min. 6.5 x 10 cm, Max. 35 x 50 cm, B2 model 50 x 70 cm

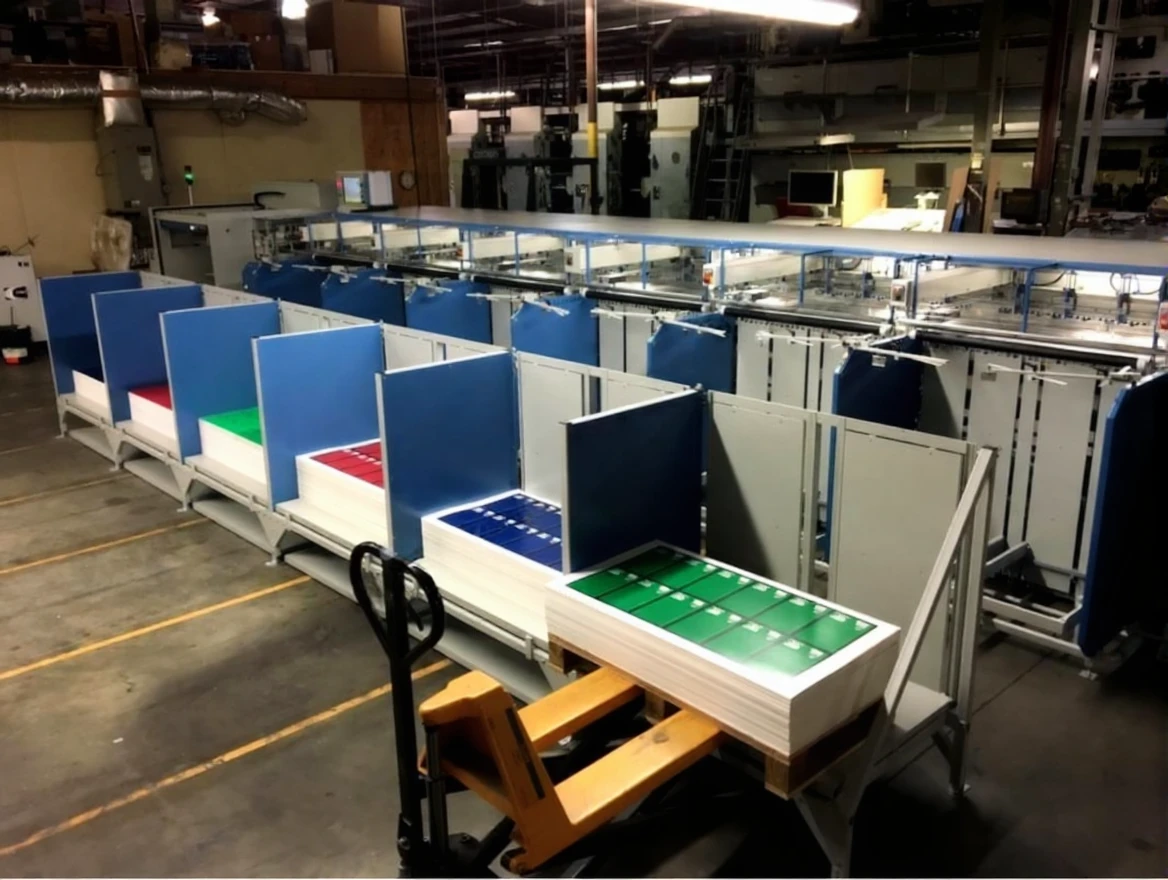

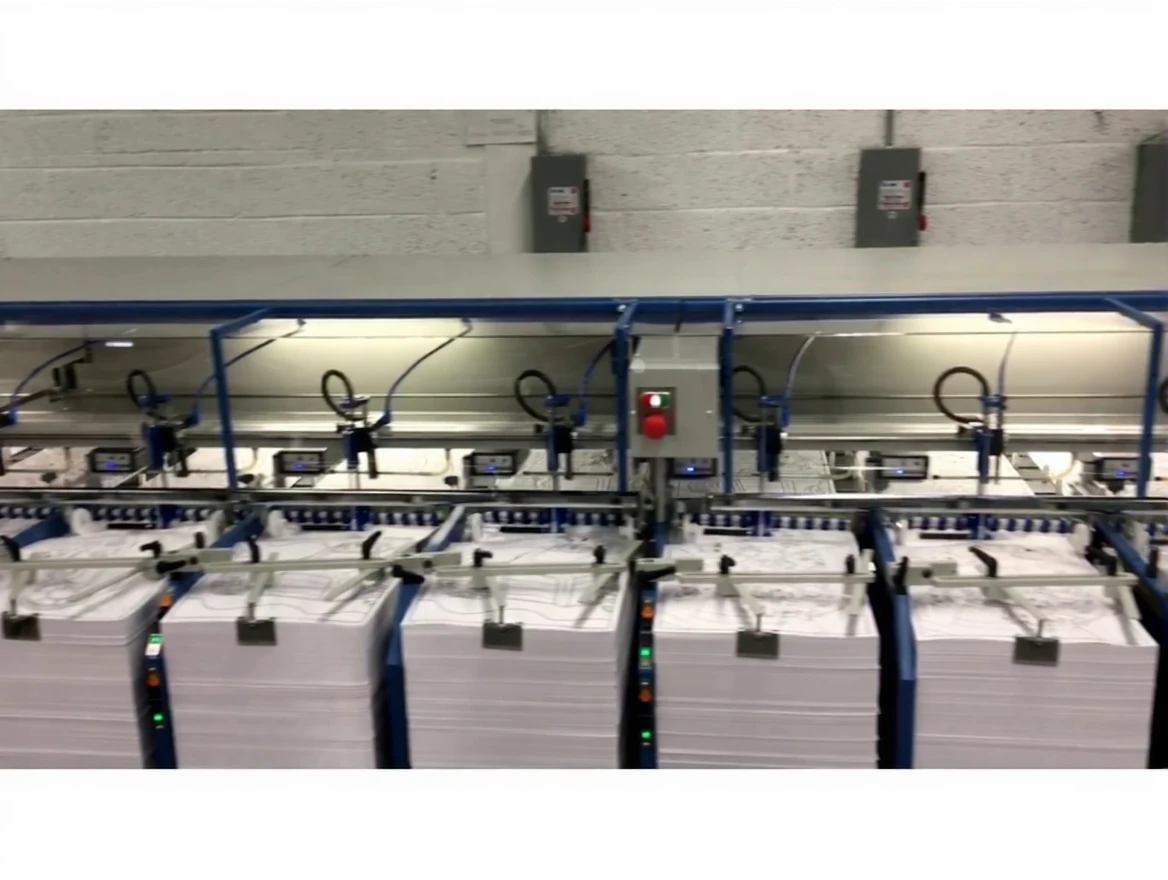

• High stack feeding stations with a stacking height of 70 cm
• Belted collating conveyor ensures safe and orderly paper flow
• Adjustable pins guiding the papers on the belted collating conveyor
• Adjustable slope paper suction nozzles
• Insulated press and vacuum pumps
• Automatic height-adjustable pre-blowing nozzles
• Height-adjustable side-blowing nozzles
• Nozzles that assist in separating and feeding long papers at high speed
• Computerized Control System (Full computer control)

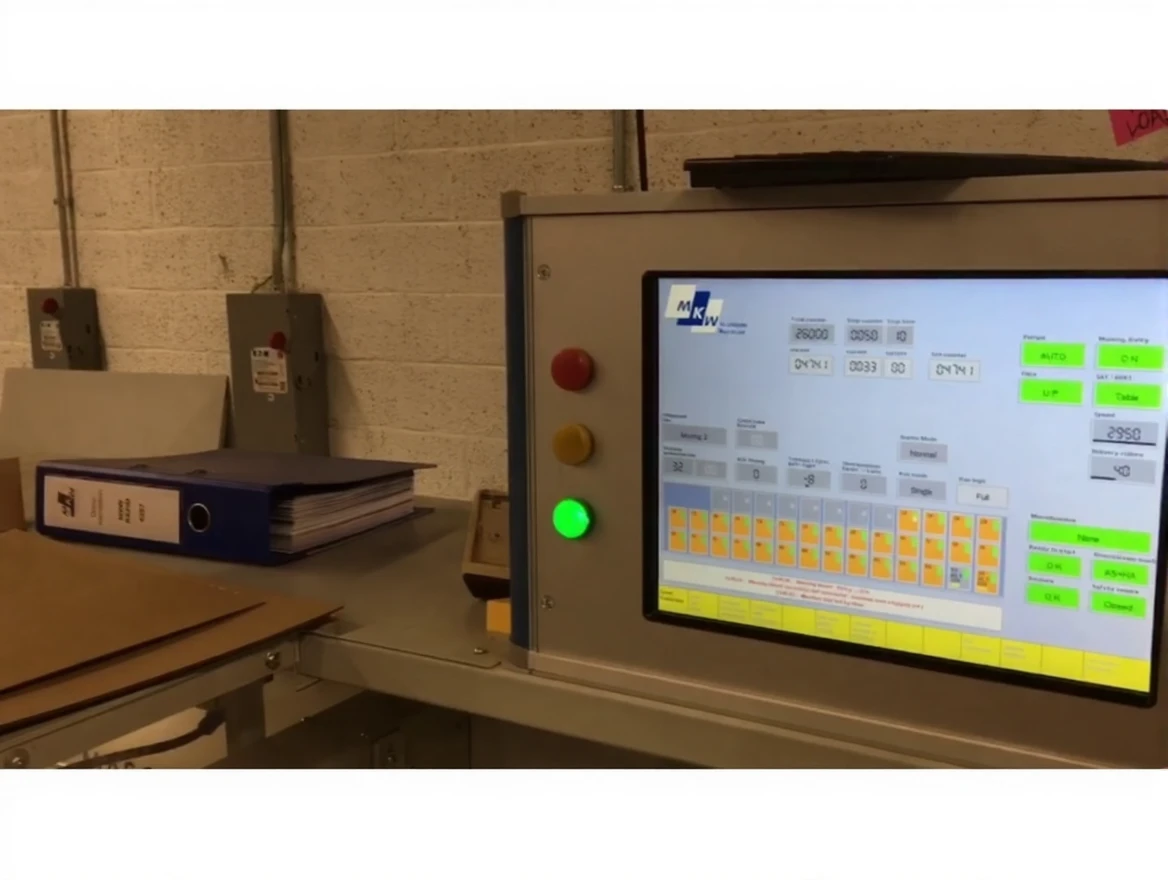

• Colored TFT monitor
• Automatic double and missing paper detectors at each station
• Program that corrects errors and resumes collating process in case of missing paper retrieval
• Program that increases production capacity by loading stations in 2:1 Synchronization
• Option to select automatic on/off stations
• Insertion from the desired station
• Cardboard working function on one station of each pair
• Ability to change speed while machine is running
• Selective and total counters
• Maintenance period and machine total operation counters
• Selector for cross collecting or straight collecting
• Memory and recall of set jobs
• Fluorescent lighting on the collating conveyor
• Intelligent software for service and maintenance, diagnostic program
• Energy-saving mode that puts pumps and motors on stand-by when the machine stops
• Automatic system that only operates necessary pumps

     Included options :

• Automatic separator system separating faulty sets
• Normal and Cross vibrating stacker
• Manual feeding station
• Sensor on the manual feeding station that does not operate the conveyor without feeding
• Sensors that stop the machine by warning about paper wrinkling on the collection conveyor
