6-Piece Dough Cutting and Rolling Machine

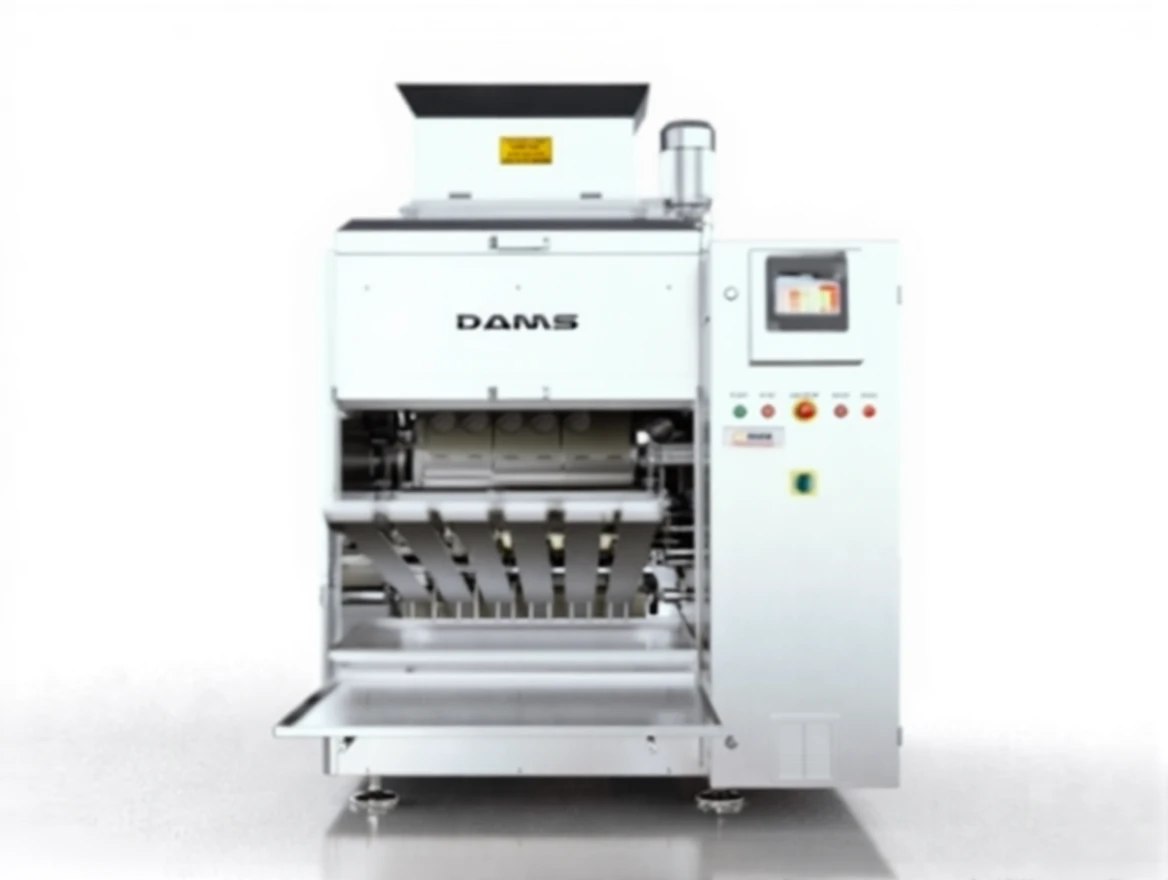

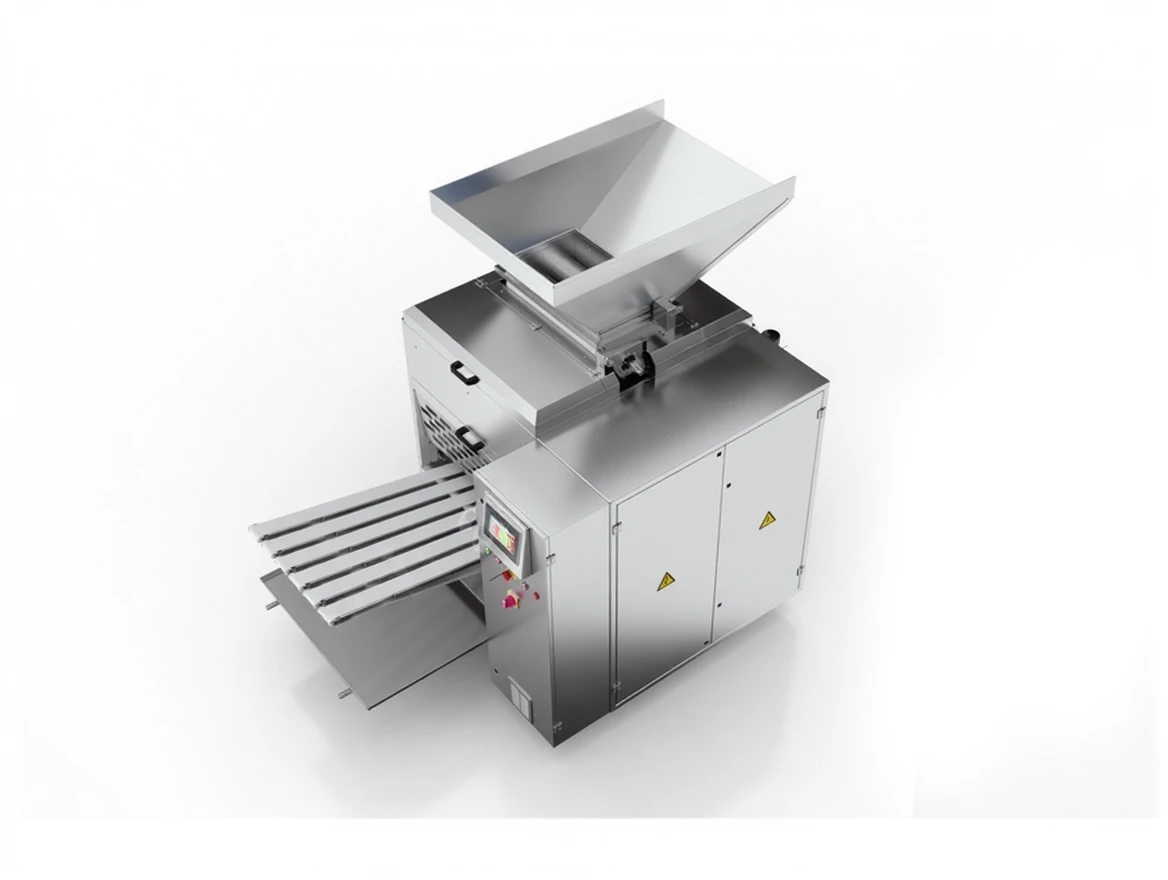

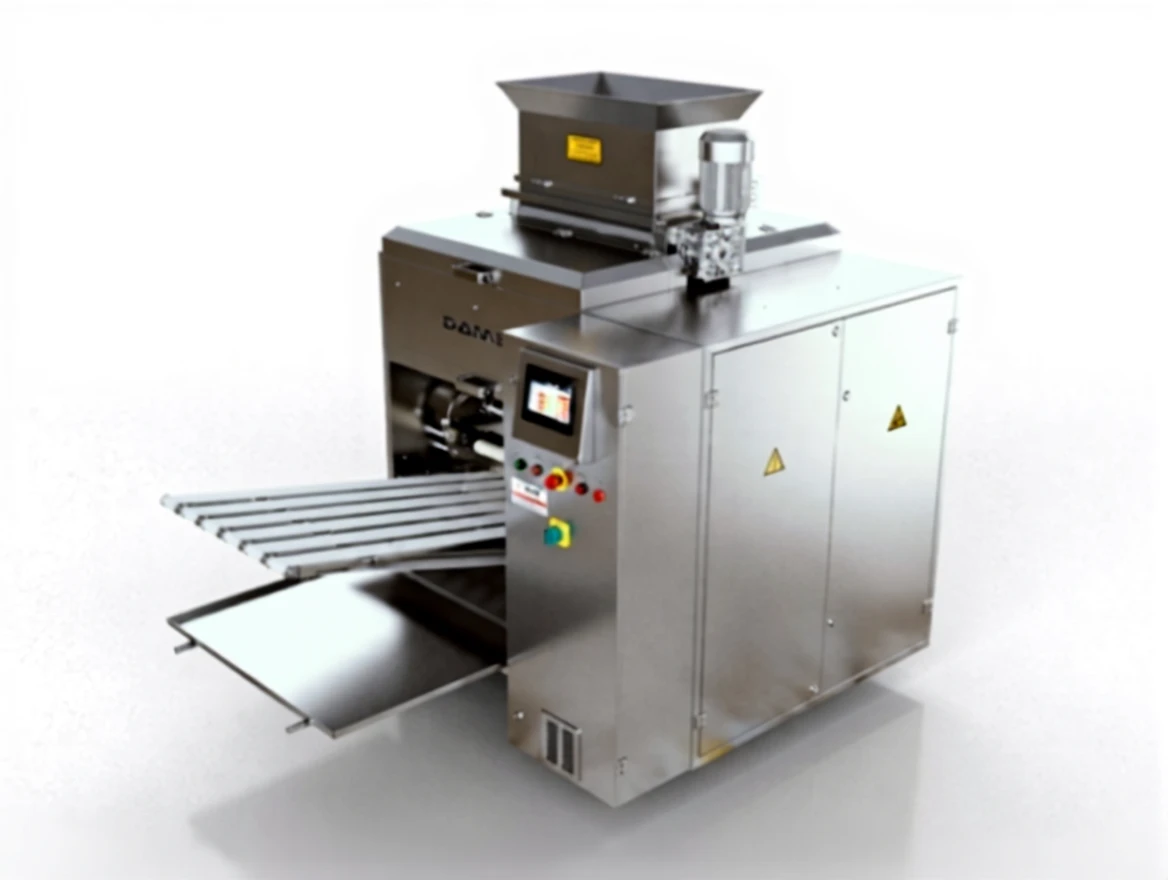

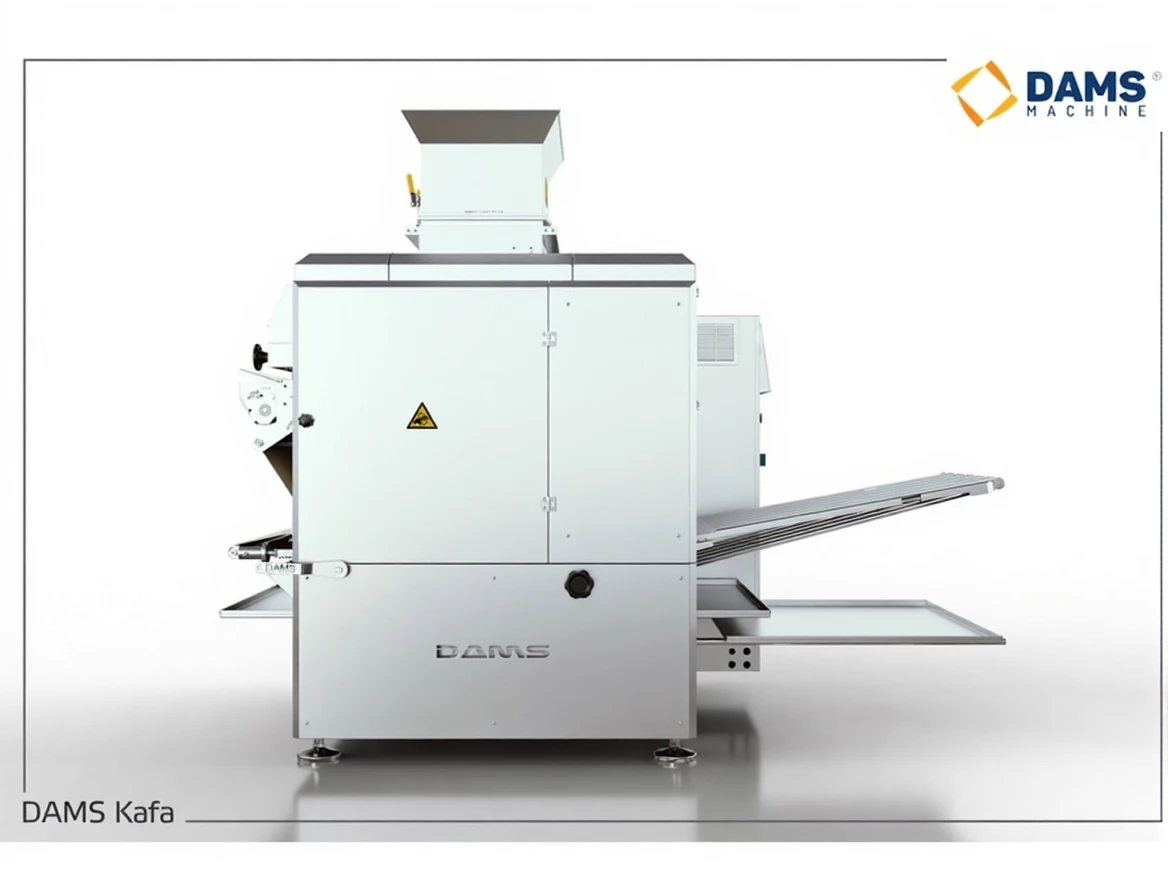

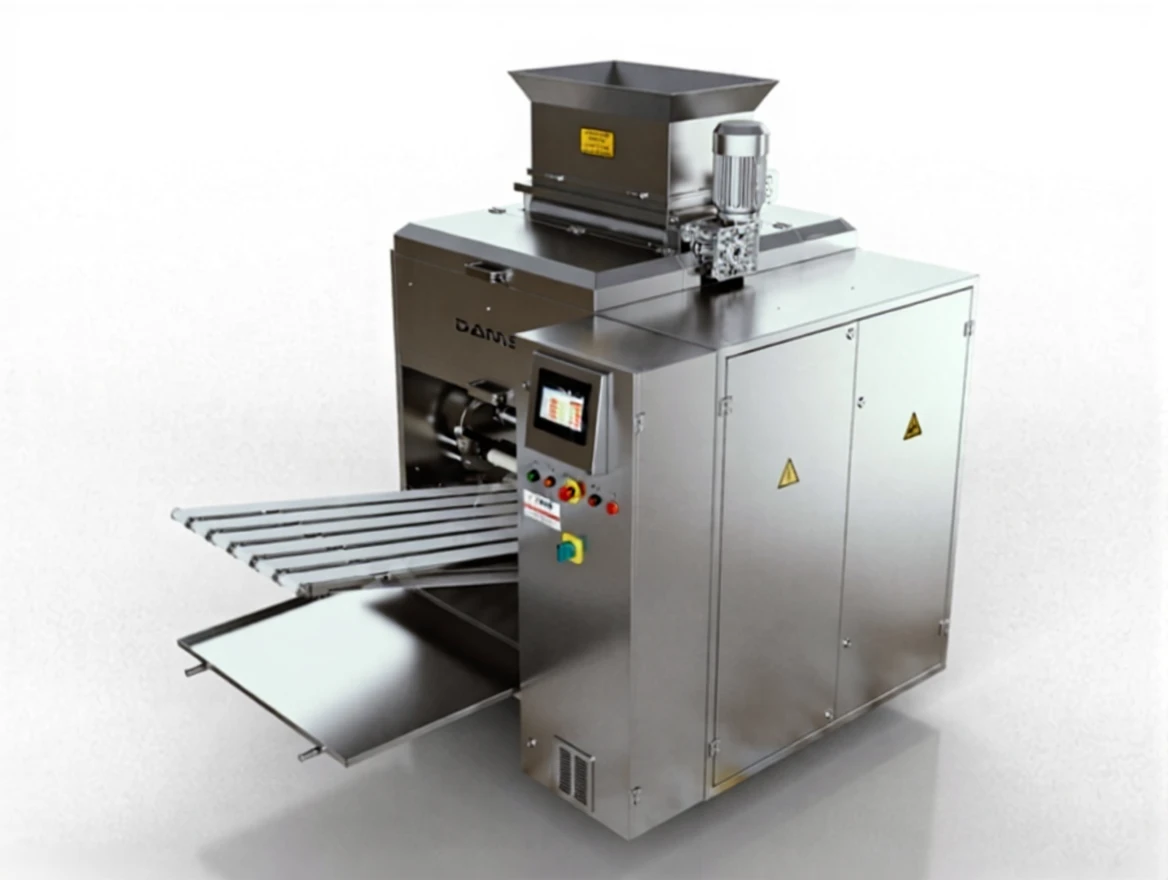

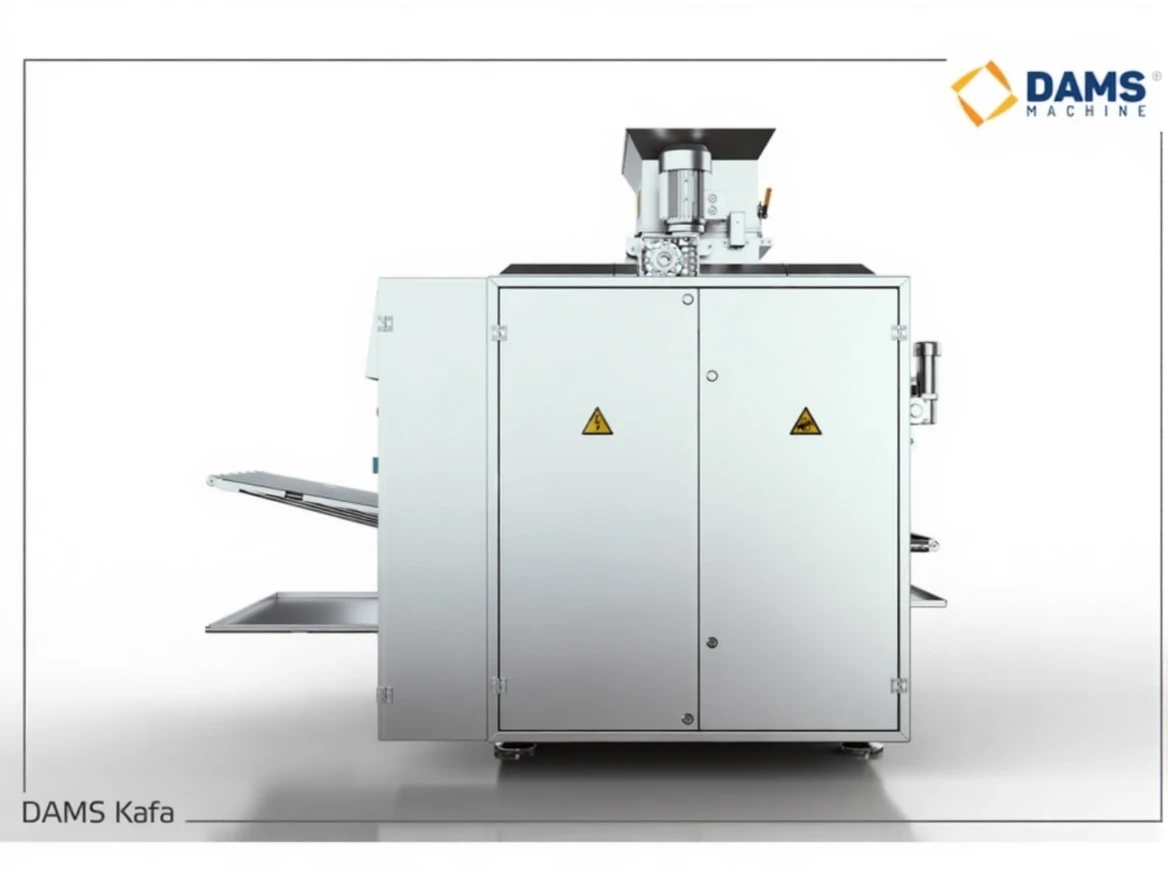

Dams DAKY-11 6-Piece Dough Cutting and Rolling Machine

The DAMS DAKY-11 dough cutting and rolling machine offers high efficiency with a production capacity of 11,000 pieces per hour. All settings can be easily adjusted via the PLC-controlled touch screen, and learning the mechanical adjustments is quite simple. Usage information can be saved in memory for continuous use. Daily cleaning is quite easy, and the belts and working parts can be easily disassembled and reassembled. All belt speeds can be adjusted to the desired level. Electrical and electronic faults provide warnings with images and text on the PLC screen. In case of a fault, remote access to the PLC program can be provided (Optional).

Cutting Section

The dough contact surfaces are made of 304 chrome and chrome-plated. Piston diameter options are available in Ø45 mm, Ø48 mm, Ø50 mm, Ø55 mm, Ø60 mm, and Ø65 mm. The cutting and rolling ranges vary between 25-220 grams. Various outer drums are used for different weight ranges, and the drums can be easily changed within a few minutes.

Technical Specifications

• Machine Width: 1480 mm

• Machine Length: 2220 mm

• Machine Height: 1840 mm

• Machine Weight: 1700 kg

• Voltage: 380 V

• Current: 25 Amper

• Frequency: 50 Hertz

• Max. Power: 5 kW

• Average Power: 4 kW

• Capacity: 11,000 pcs/hour

Production Capacity

• Roll Bread and Rolling Capacity: 11,000 pcs/hour

• Hamburger and Pastry Dough Capacity: 11,000 pcs/hour

• Bagel and Sandwich Dough Capacity: 7,500 pcs/hour

Additional Features

• Minimal flour usage in dough cutting provides a flour-free dough surface

• Ensures a clean working environment

• The amount of flour given to the cut dough can be adjusted

• Automatic lubrication system

• Does not damage the dough with pressure-free cutting

• A minimum of 4 bar air pressure is required for pneumatic pistons

• A 5*2.5 multi-cable should be drawn for electricity

• It is recommended to use a suitable regulator to prevent voltage fluctuations

The DAMS DAKY-11 dough cutting and rolling machine is designed to increase the efficiency of businesses, providing an easy-to-use, practical solution for maintenance and cleaning. Equipped with advanced technology, this machine is an excellent assistant in pastry production with its high production capacity and precision.
