60-100 Ton / Hour Mobile Stone Crushing and Screening Plant

General Machinery GNR640

60-100 Ton / Hour Mobile Stone Crushing and Screening Plant

IMMEDIATE DELIVERY MOBILE CRUSHER FACILITIES FROM GENERAL MAKİNA

General Makina has been producing domestically and abroad with ISO 9001 and CE quality certificates for 46 years.

GENERAL 640  MOBILE CRUSHER – WITH JAW CRUSHER CLOSED CIRCUIT CRUSHING AND SCREENING
New System Mobile Crusher Plant Capacity 60-100 tons/hour

GENERAL 640 mobile crusher, which is a Mobile Crushing and Screening System with Jaw Crusher, has been produced and offered to consumers as the most ideal crushing unit for crushing abrasive materials. The feeder system is supported by 2 vibromotors. In this way, trouble-free operation and minimum maintenance are offered to the consumer.
The feeder hopper is suitable for feeding with excavators and loaders as usual, and it has been developed to allow feeding with trucks with additional hoppers for long-term operations. All wear points in the feeder and hopper are replaceable and protected by wear armor.

There is also a sieving system in the feeder tray. Thanks to the by-pass conveyor, this sifted soiled material is made ready to be poured into the stock area. It is primary type, 600×380 mm in size, and its engine power is: 37 Kw. Additionally, the system has an adjustment mechanism and the jaw crusher can be easily adjusted.
The under-sieve stock conveyor is designed as 750 mm. The product, which uses a folding type Hydraulic System, has 4 hydraulic leg mechanisms, and after these legs are locked, they are reinforced with 6 fixed legs.

In order to open and close the crusher, two lifting pistons are used and these 6 pistons are controlled by a special control system. Panel material Siemens or Telemecanique brands are used.

The panel system includes the Abb Soft Starter system and even a special control system is available. The capacity of crushed material and feeding can reach up to 60-110 tons in accordance with the changes in product dimensions. The dust removal system prevents dust by spraying high pressure water into the nozzle to prevent dust on the conveyors.
The tires of the conveyor belt are entrusted to the Derby or Eksaş brand. When using bearings, SKF or equivalent bearings are preferred. In addition, when working with a generator, this device ensures non-disruption operation, low generator selection and low fuel consumption, and approximately fuel consumption varies between 21 – 23 Lt/Hour.

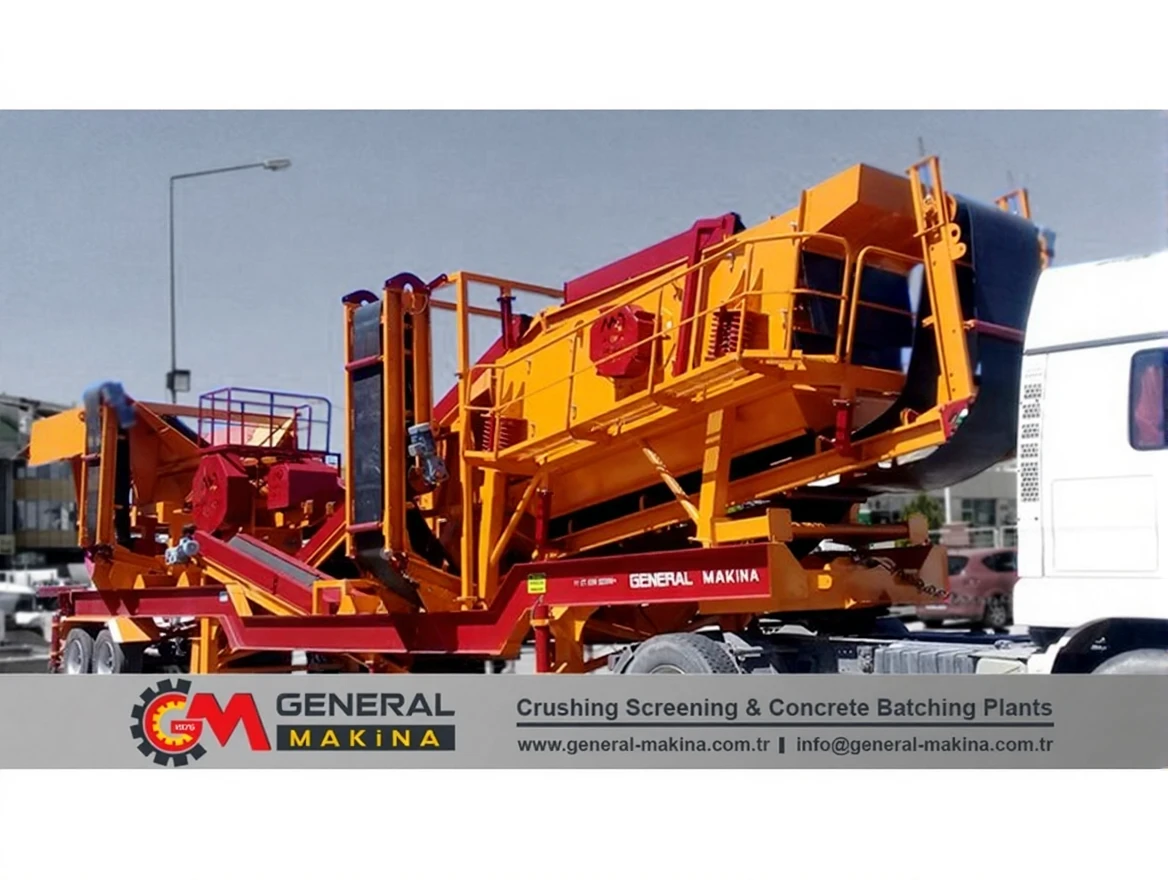

GENERAL 640 Closed Circuit Crushing System The entire system is collected on a single platform and can be transported with 1 Truck.
It is designed to be put into operation within 30 minutes.
It is one of the most suitable crushers for breaking hard and hard-to-break materials such as stones (Basalt, Granite) and minerals (Iron Ore, Chrome Ore, Quartz).
It is the most ideal crusher unit for crushing abrasive materials.

– Vibrating Feeder and Hopper
The feeder system is driven by 2 vibromotors. In this way, trouble-free operation and minimum maintenance are provided.
The feeder hopper is suitable for feeding with Excavators and Loaders, and in permanent operations, feeding can be done with trucks with additional hoppers.
All wear points in the Feeder and Hopper are protected by replaceable wear armor.
There is a screening system in the Feeder Table. Thanks to the by-pass conveyor, this sifted soiled material can be poured into the stock area.

– Jaw Crusher (Crusher)
Size: 600×400 mm Primary type
Engine power: 30-37 Kw
It has an adjustment mechanism and the jaw crusher can be adjusted easily.

– Main Conveyor Belt System 600 mm
Crawler type conveyor has tires.

– Vibrating Screen System High Capacity type
Size: 1300x4000mm
Engine Power 11 KW
Number of Floors: 3 Storeys

Secondary Impact Crusher (Hard Material Crusher)
1120 x 500 mm Special Type Secondary Impact Crusher system
Engine: 90 Kw – 110 Kw
According to Tonnage Request
1000 x 750 mm Special Type Secondary Impact Crusher system
Engine: 45 Kw

– Under-sieve Stock Conveyor 800 mm
Folding type
– Stock Conveyor 2 pieces of 500 mm Folding type
– 2. Crusher Main Belt Conveyor 5000 mm Folding type
– Mobile Chassis System 3-Axle Special Construction Chassis
– Hydraulic System
There are 4 hydraulic leg mechanisms in the system. After these legs are locked, they are strengthened with 6 fixed legs.

The crusher also has 2 lifting pistons for opening and closing, these 6 pistons are controlled by a special control system.
Hydraulic Power System 125 Liters
Magnetic Conveyor Belt 750 mm (Optional)
– Panel Material is Schneider Electric or Telemecanique Brand.
– The Panel System has Abb Soft Starter system and special control system.

All functions can be controlled with Remote Control (Radio Control System).
Generator System is Optional, 6 Cylinder diesel engine of Cummins,Perkins,Doosan,Deutz brands and Marelli Alternator.
Capacity: It varies according to the crushed material and feeding, final product dimensions and has a capacity of 60 – 100 Tons/Hour.
Dust Removal System prevents dust by spraying high pressure water into the nozzle to suppress dust on conveyors.
Feeders have vibromotors, Emtaş or Italvibras, Oli brand.
Drive Drums are Rubber Coated and Gear Type.
Electric Motors are Gamak, Emtaş and Inter Branded.
The reducers are special reducers with 3 transmissions.
Conveyor Belt Tires are Derby or Eksaş Brand.
Bearings: SKF or Equivalent Bearings
The flat product used is Ereğli Iron and Steel Product and is A1 Quality.

– All our products are European Union CE certified.
– Total Weight: 41,000 Kg
– Transportation Dimensions: Width 3000 mm x Length 15.000 mm x Height 4500 mm

GENERAL MACHINE

Priced considering our budget prices.

Please contact us for detailed price information.
