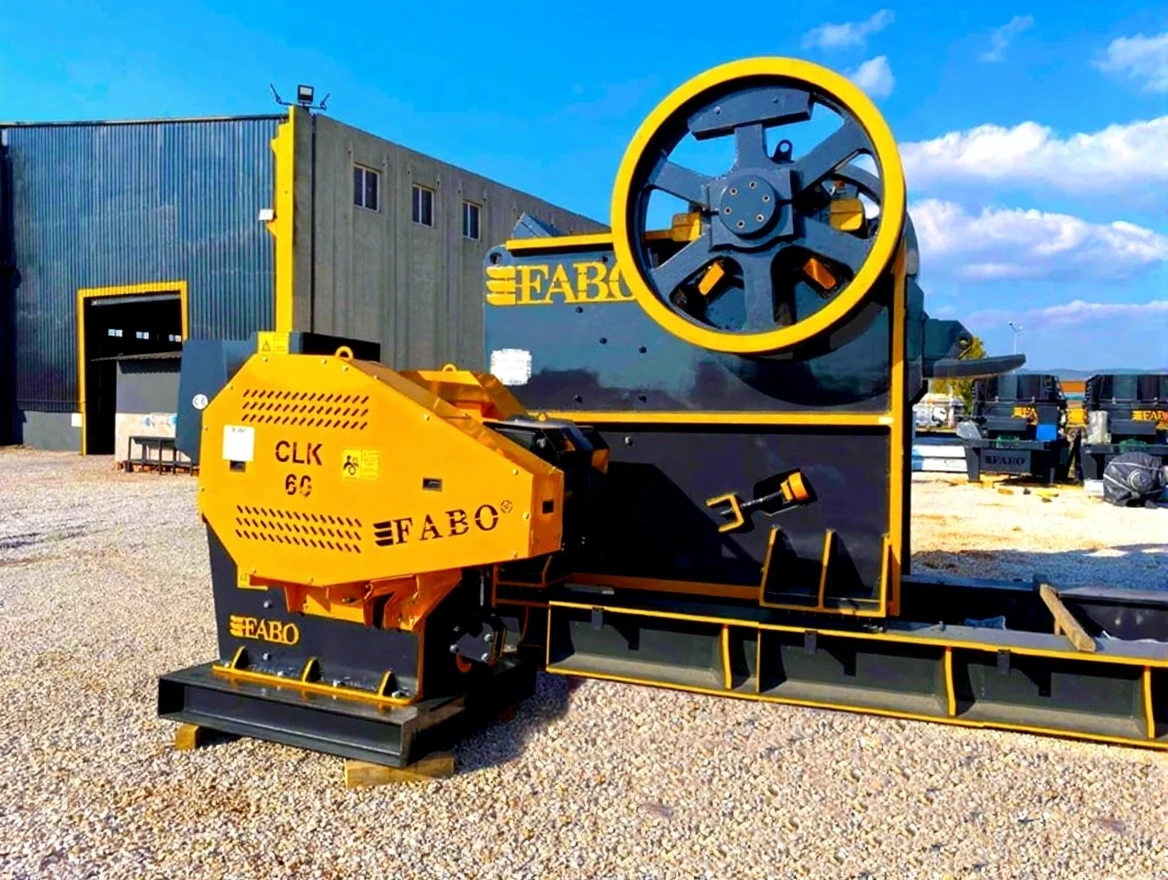

60-120 Tons / Hour Primary Jaw Crusher

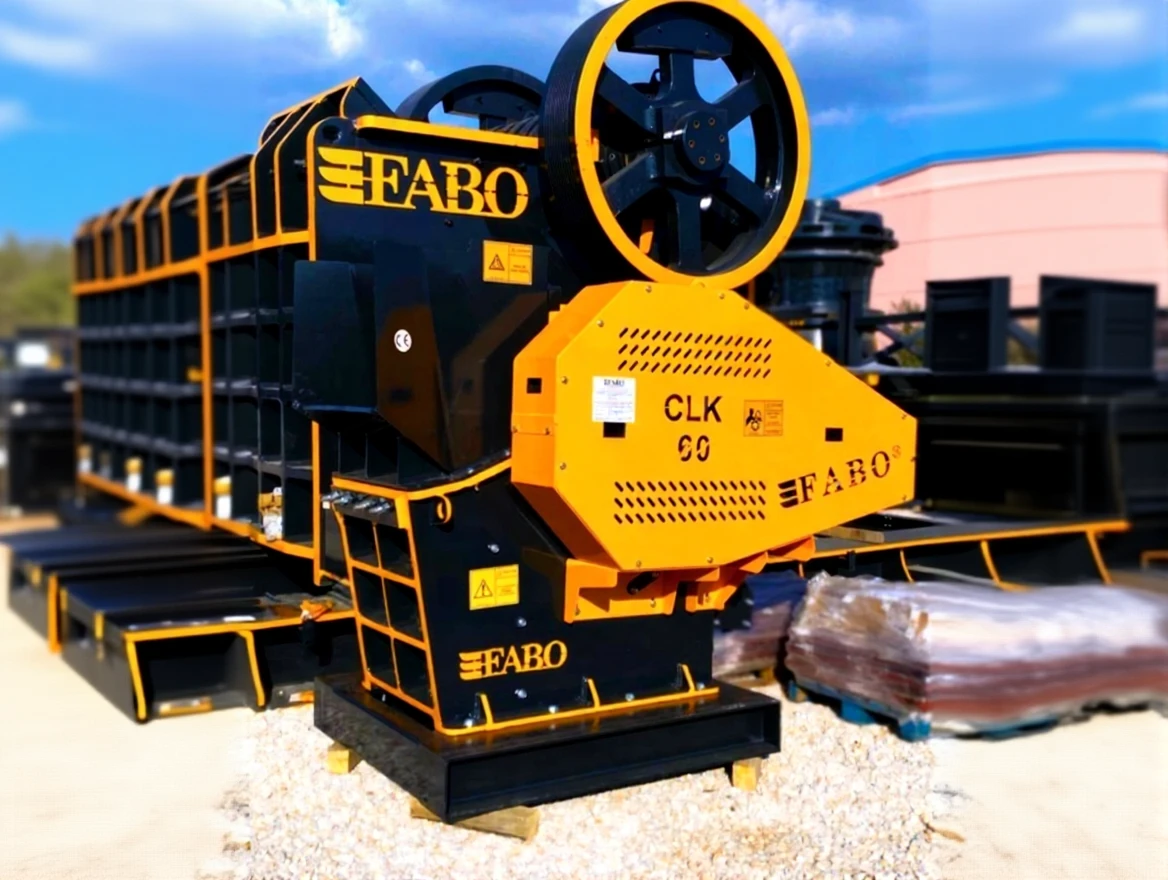

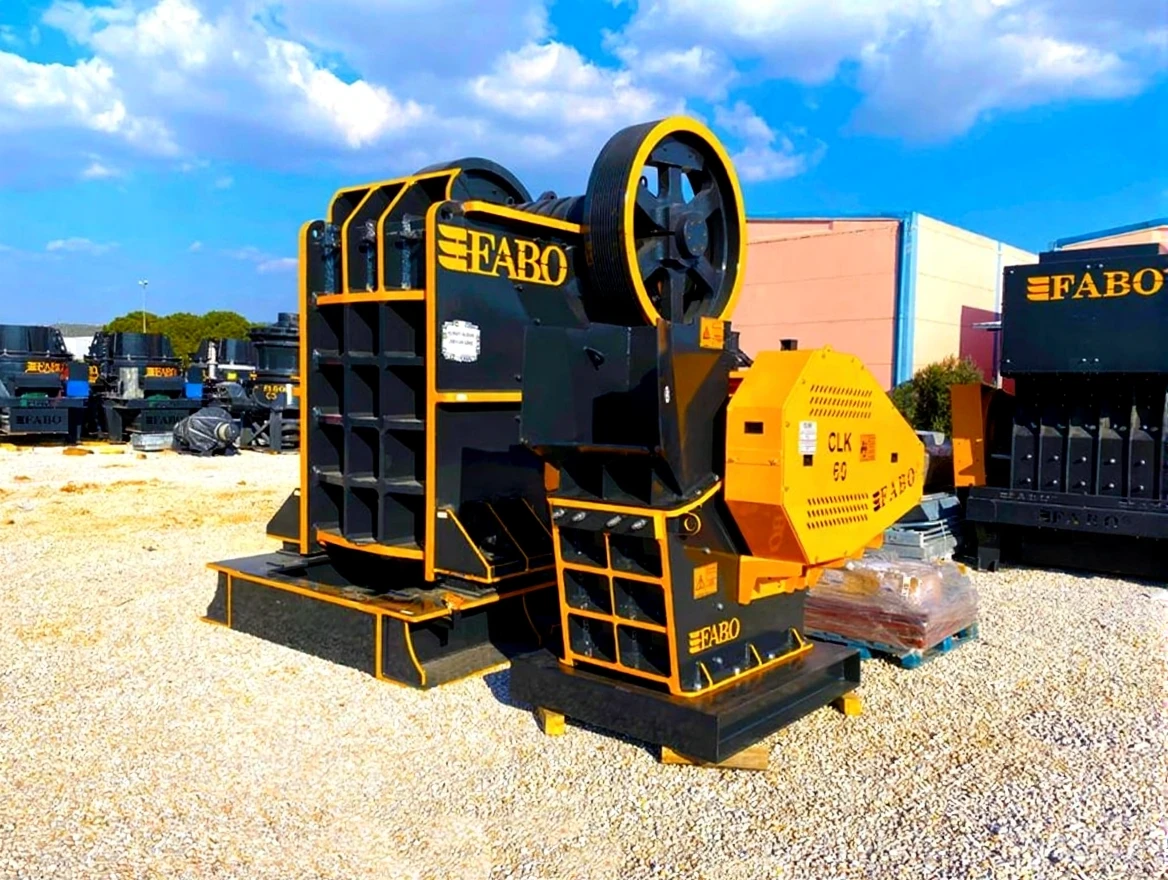

Fabo Machine CLK-60 60-120 Tons / Hour Primary Jaw Crusher

* All of our products are meticulously manufactured and are covered by a 1-year warranty!

* Installation and Operator Training will be provided free of charge.

Our jaw crushers generally crush between 60 tons and 600 tons per hour, depending on their capacities. If you wish, we can also produce special high-capacity jaw crushers. Jaw crushers are generally used to break the hardest rocks such as basalt, granite, and gabbro. With a strong and durable jaw structure, it has been one of the most preferred crushers in the mining sector for many years. You can achieve the desired product and capacities very well with the jaw adjustment. It can be easily adjusted thanks to hydraulic pistons.

GENERAL FEATURES:

– Vee-Belt drive system

– Specially manufactured high manganese steel cast jaw plates with high wear resistance

– Eccentric shaft made of forgotten steel alloyed with Cr, Ni, Mo

– Hydraulically adjustable jaw opening

– Use of transition plates for safety in case of overload

– Surfaces exposed to wear are covered with liner plates.

TECHNICAL SPECIFICATIONS:

• Model: FABO CLK-60

• Type: Primary Jaw Crusher

• Inlet Dimensions: 600 x 400 mm

• Jaw Opening: 30-100 mm

• Maximum Feed: 380 mm

• Capacity: 60-120 Tons per Hour

• Motor: Heavy-duty GAMAK, 37 Kw

• Bearings: Heavy-duty SKF-FAG

• Weight: 6900 kg

• Size: 2200 x 1100 x 1860 mm

• Includes motor and safety guards.

FOR DETAILED INFORMATION, PLEASE CALL US !!!
