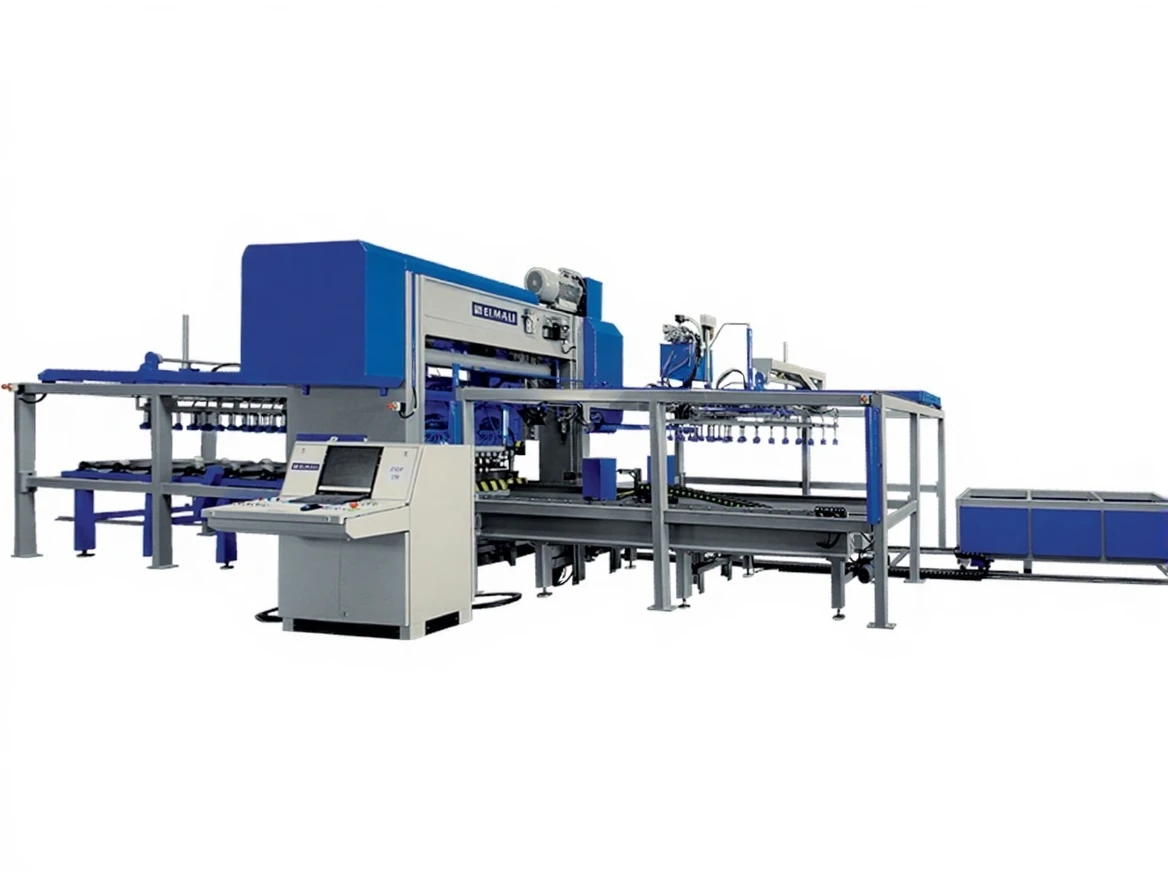

60 Fluted Silo Sheet Hole Drilling Machine
| Brand | Elmalı |
|---|---|
| Model Type |
ESDP-60 |
Elmalı ESDP-60
60 Fluted Silo Sheet Hole Drilling Machine
Elmalı ESDP-60 Technical Specifications:
– Steel construction body
– Pneumatic clutch and brake combination
– PLC application and screen
– Speed control unit
– Double ram
– Motorized table-ram adjustment
– Automatic central lubrication
– 8-surface supported ram
– T-slotted main table and ram
– Cushioning cylinders
– Photoelectric light curtain
– Compliance with CE directives
– Hydraulic fuse
– Non-standard table and stroke
– Servo driver
– Feeding and unloading system
Elmalı ESDP-60 Technical Specifications:
|
Model Code |
Ton |
Table-Ram Distance |
Between Walls |
Ram Adjustment |
Press Width |
Press Depth |
Press Height |
Table Size |
Ram Size |
Fixed |
Motor Power (kW) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
ESDP-60 |
60 |
350 |
1600 |
80 |
2750 |
1500 |
3100 |
600 1350 |
600 |
40 |
7.5 |
|
|
|
1350 |
|
||||||||||||
|
|
|
||||||||||||
|
ESDP-80 |
80 |
350 |
1800 |
60 |
2750 |
1530 |
3100 |
600 |
600 1350 |
40 |
11 |
|
|
|
ESDP-120 |
120 |
350 |
1800 |
100 |
2800 |
1600 |
3200 |
1350800 |
1350600 |
40 |
15 |
|
|
|
ESDP-150 |
150 |
400 |
1600 |
120 |
2900 |
1750 |
3250 |
oc0 1350 |
1350600 |
40 |
18 |
|
|
