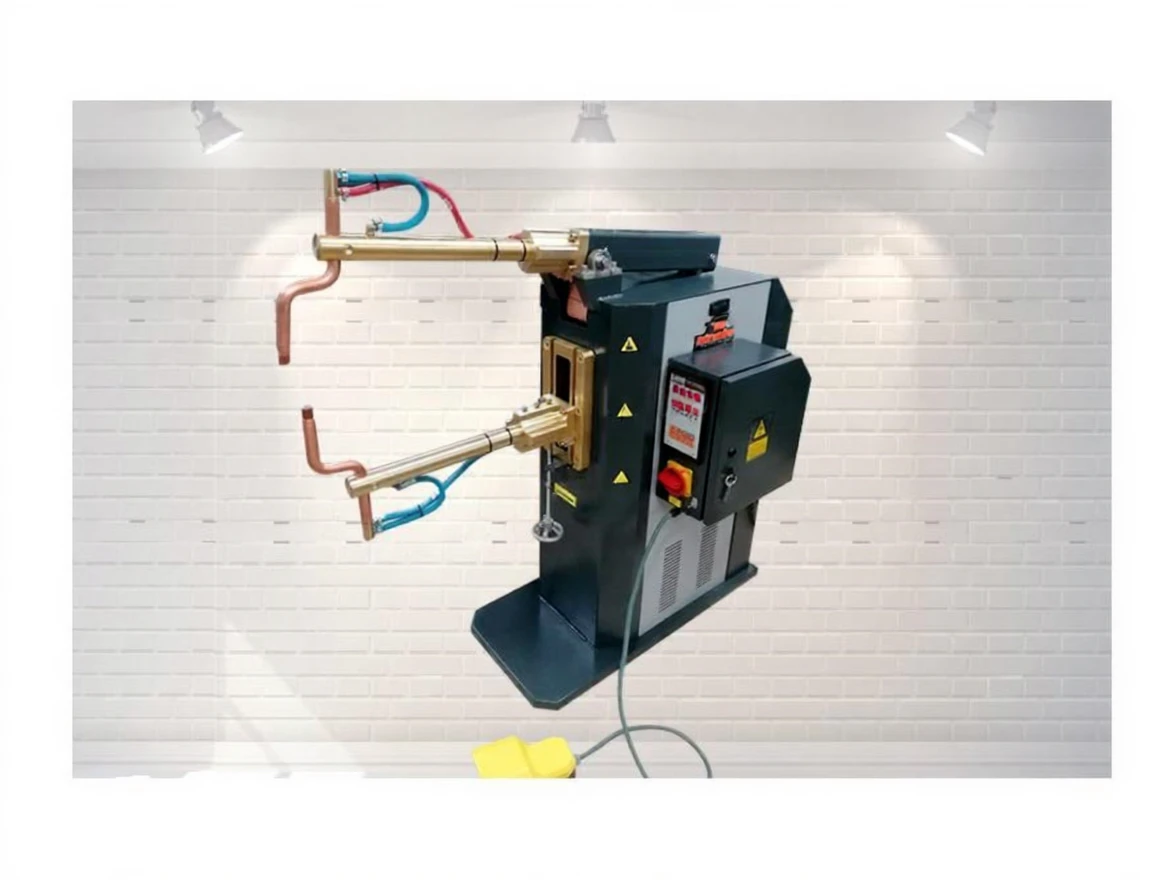

60 kVA Steel Goods Type Pneumatic Spot Welding Machine
| Brand | Fast Makina |
|---|---|
| Model Type |
FMCET – 60KVA |
Description
Fast Makina FMCET – 60KVA
60 Kva Steel Goods Type Pneumatic Spot Welding Machine
Pneumatic, microprocessor, water-cooled 2 phase 400v/50Hz Steel Goods Type Spot Welding Machines
-
Areas of use:
-
Ventilation
-
White goods
-
chandelier products
-
Electric heaters and stoves
-
billboard makers
-
shelf industry
* Special electrodes are made on the machine according to the work to be done.
FMCET – 60KVA Technical Specifications
|
|
FMCET – 12KVA
|
FMCET – 20KVA
|
FMCET – 30KVA
|
FMCET – 60KVA
|
|---|---|---|---|---|
|
Rated power (50%)
|
12 KVA
|
20KVA
|
30KVA
|
60KVA
|
|
Rated current
|
30A
|
50A
|
75A
|
150A
|
|
Secondary voltage
|
2.7V
|
3.3V
|
5.5V
|
5.9V
|
|
sleeve size
|
600mm
|
600mm
|
600mm
|
600mm
|
|
piston diameter
|
ø63
|
ø80
|
ø80
|
ø100
|
|
Electrode pressure force
|
115 daN
|
185 daN
|
185 daN
|
300 daN
|
|
air pressure
|
2/8 bar
|
2/8 bar
|
2/8 bar
|
2/8 bar
|
|
Cooling water inlet pressure
|
2/5 bars
|
2/5 bars
|
2/5 bars
|
2/5 bars
|
|
Cooling water inlet temperature
|
15/25 §C
|
15/25 §C
|
15/25 §C
|
15/25 §C
|
|
Cooling water inlet flow rate
|
15 lt/min
|
15 lt/min
|
15 lt/min
|
15 lt/min
|
|
Delayed mains fuse
|
63A
|
80A
|
80A
|
100A
|
|
Supply cable (up to 5 meters)
|
2×6 6
|
2×106
|
2×16 6
|
2×35 6
|
|
Machine dimensions (WxLxH)
|
600X1400X1500
|
600X1400X1500
|
600X1400X1500
|
600X1400X1500
|
|
Weight
|
200kg
|
260kg
|
310kg
|
380kg
|
