60 kVA Table Type Spot Welding Machine
| Brand | Fast Makina |
|---|---|
| Model Type |
FMPT – 60KVA |
Description

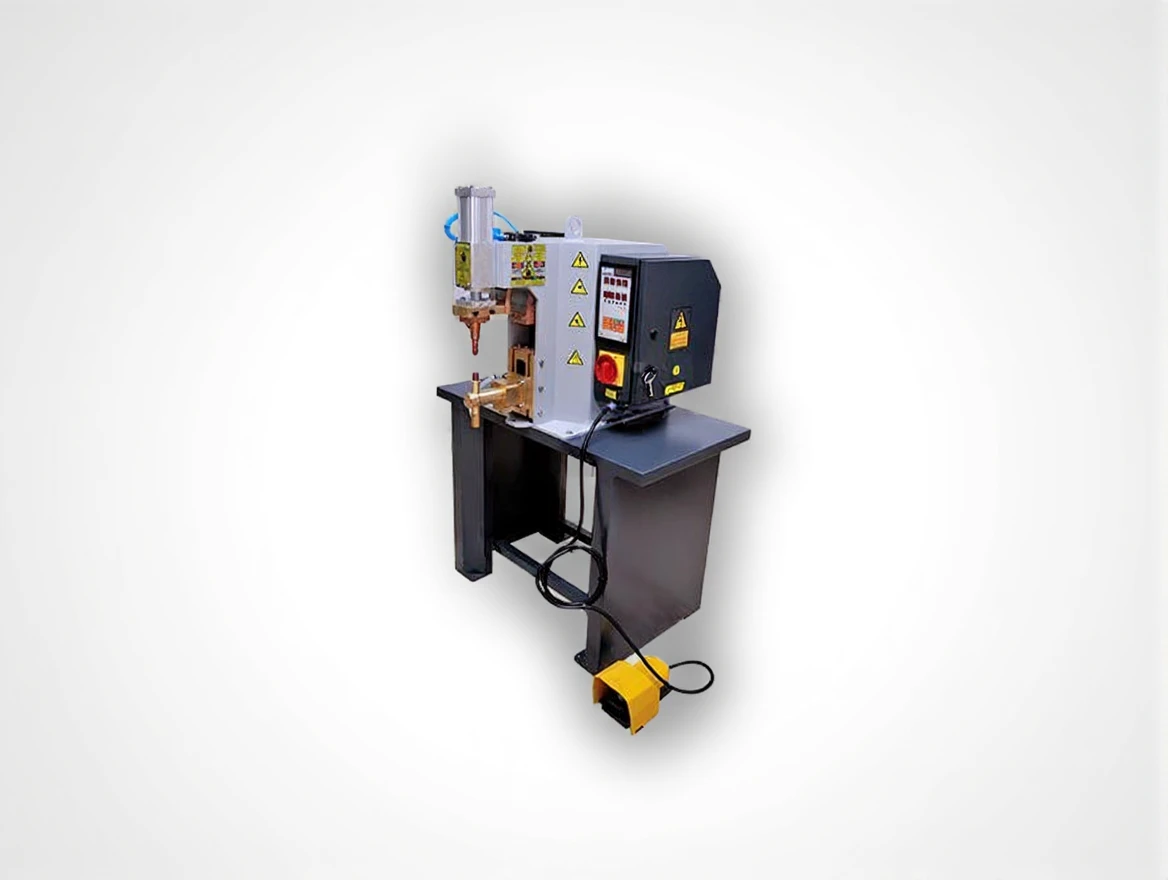

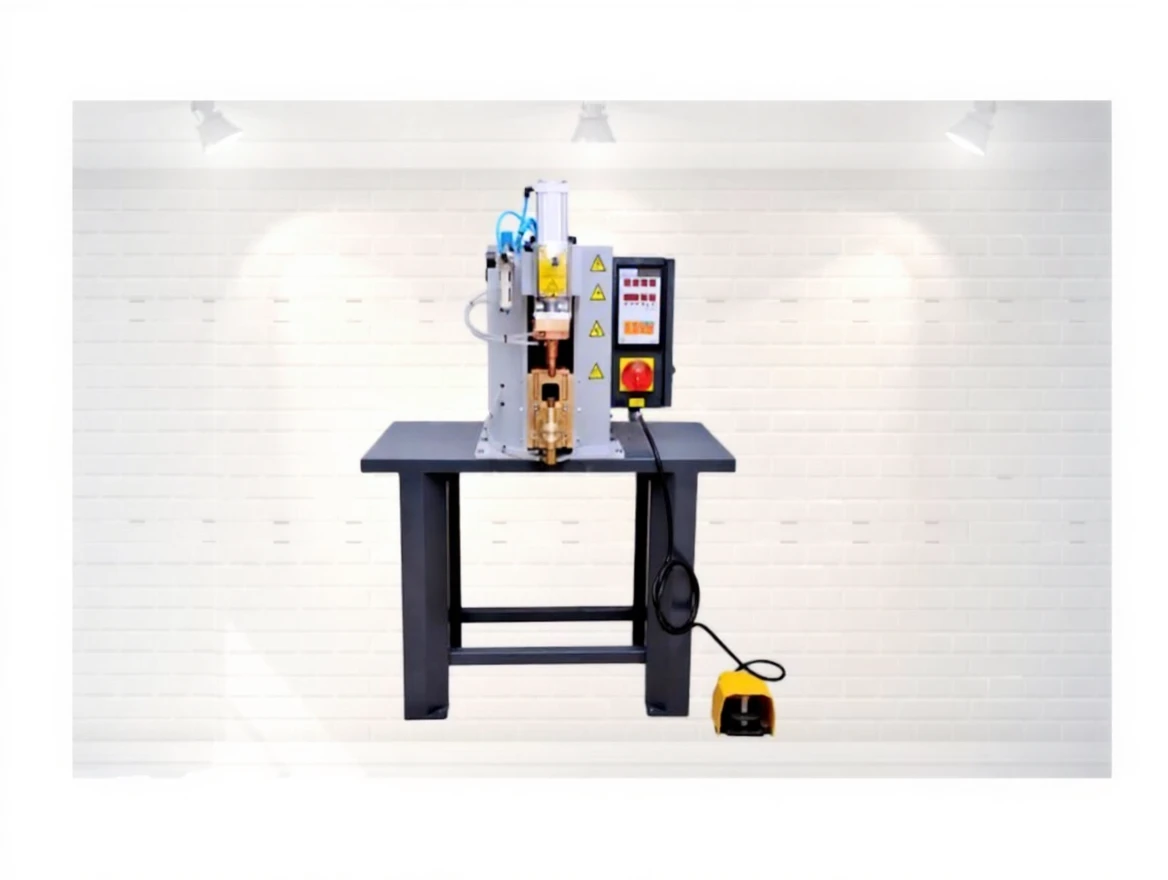

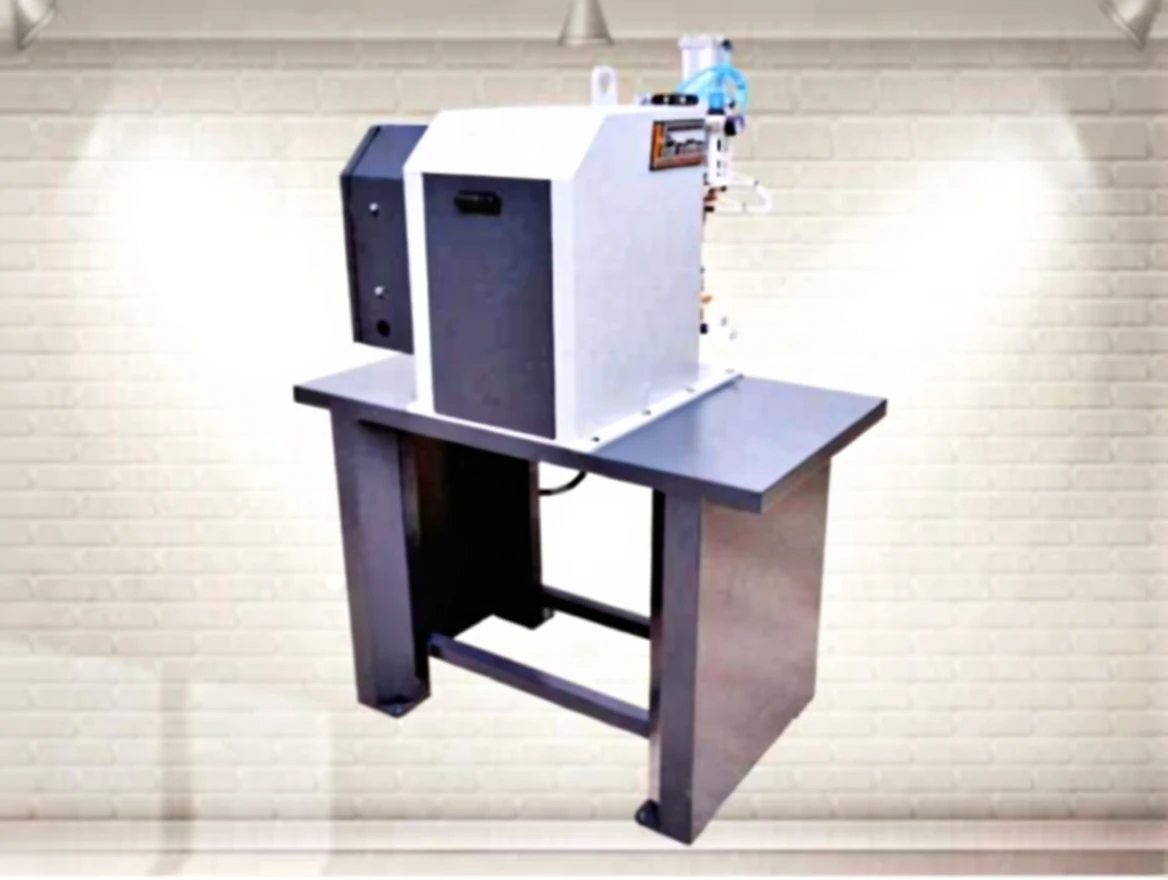

Fast Machine FMPT – 60KVA 60 kVA Bench Type Spot Welding Machine is a pneumatic, microprocessor-controlled, 2-phase 400V/50Hz machine. It is used in various industries, particularly for electricity, lighting, decorative items, and accessory products. Custom fixtures and molds can be made for the machine to support production.
FMPT Series Models:
- FMPT – 12KVA
- FMPT – 20KVA
- FMPT – 30KVA
- FMPT – 60KVA
Technical Specifications:
| Feature | FMPT – 12KVA | FMPT – 20KVA | FMPT – 30KVA | FMPT – 60KVA |
|---|---|---|---|---|
| Nominal Power (%50) | 12 KVA | 20 KVA | 30 KVA | 60 KVA |
| Nominal Current | 30 A | 50 A | 75 A | 150 A |
| Secondary Voltage | 2.7 V | 3.3 V | 5.5 V | 5.9 V |
| Arm Size | 200 mm | 200 mm | 200 mm | 240 mm |
| Piston Diameter | Ø50 mm | Ø63 mm | Ø63 mm | Ø80 mm |
| Electrode Pressure Force | 115 daN | 185 daN | 185 daN | 300 daN |
| Air Pressure | 2/8 bar | 2/8 bar | 2/8 bar | 2/8 bar |
| Cooling Water Inlet Pressure | 2/5 bar | 2/5 bar | 2/5 bar | 2/5 bar |
| Cooling Water Inlet Temperature | 15/25 °C | 15/25 °C | 15/25 °C | 15/25 °C |
| Cooling Water Inlet Flow | 15 lt/min | 15 lt/min | 15 lt/min | 15 lt/min |
| Delayed Network Fuse | 63 A | 80 A | 80 A | 100 A |
| Power Supply Cable (up to 5 meters) | 2×6+6 | 2×10+6 | 2×16+6 | 2×35+6 |
| Machine Dimensions (ExBxY) | 780x1000x1450 mm | 780x1000x1450 mm | 780x1000x1450 mm | 780x1000x1450 mm |
| Weight | 200 kg | 260 kg | 310 kg | 380 kg |
Standard Machine Features:
- Microprocessor control card
- Air conditioner
- Air tank
- T electrode
- Protected foot pedal
- Emergency stop button
- Special bearing piston
- Lower table lifting jack
Optional Features:
- Current reading control unit
- Proportional pressure regulator
- Double hand button
- Burr protection curtain
- Light barrier
- Special molds
- Approach piston
- Special electrodes
