60 Liter Powder Transfer Vacuum Transport Conveyor
| Brand | Thesis Makina |
|---|---|
| Model Type |
TH64-80 LT |
Description

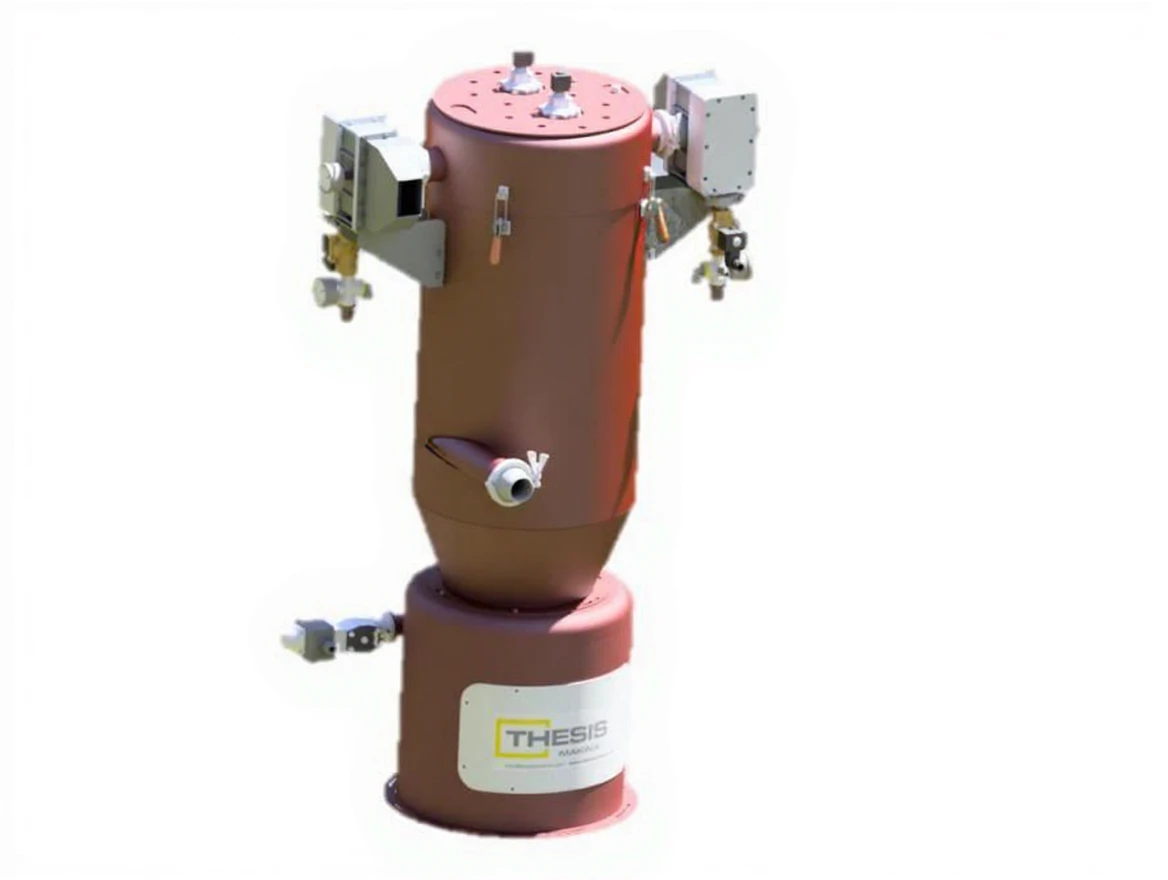

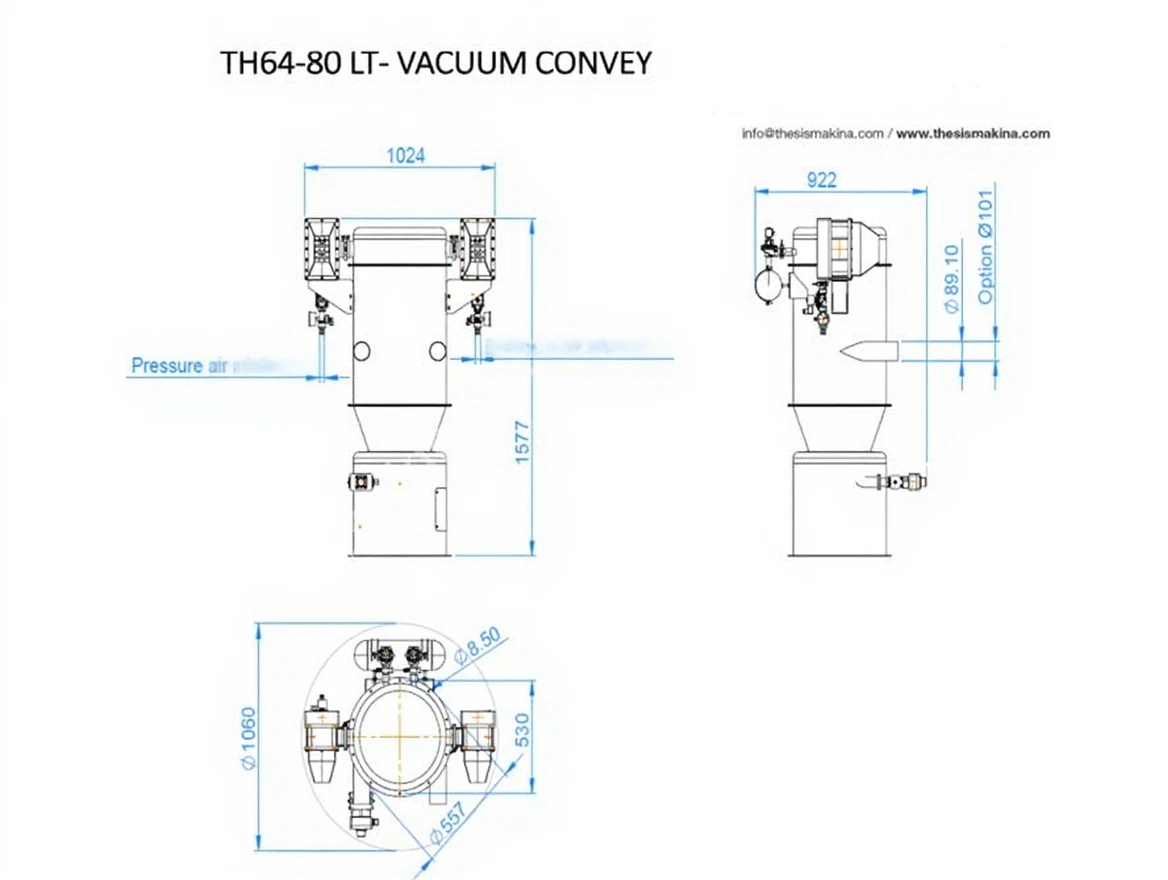

Thesis TH64-80 LT Vacuum Transport Conveyor
• Turnkey conveyor that is easy to install and commission.
• Can be disassembled and cleaned manually.
• It operates at low noise levels.
• It is a completely pneumatic system.
• It has a polyester bag filter (0.5 – 5 – 20 micron options are available)
Thesis TH64-80 LT Technical Data
|
Explanation |
Unit |
Value |
|---|---|---|
|
Supply Pressure Range |
Bar |
4–6 |
|
Air Consumption Range |
nl/min |
4200–4410 |
|
Vacuum Range |
-kPa |
60–72 |
|
Material |
— |
DKP Steel |
|
Temperature Range |
°C |
0–60 |
|
Filter Area |
m² |
3 |
|
Material Batch Volume |
Lt. |
60 |
|
Minimum Particle Size |
µm |
5 or 20 |
Capacity at different transport distances (tons/hour)
|
Transport Distance (m) |
Capacity (ton/hour) |
|---|---|
|
5m |
8.5 – 9 |
|
10m |
4.2 – 4.5 |
|
20m |
1.9 – 2.3 |
|
30m |
1.2 – 1.5 |
