60 m3/Hour Mobile Concrete Plant

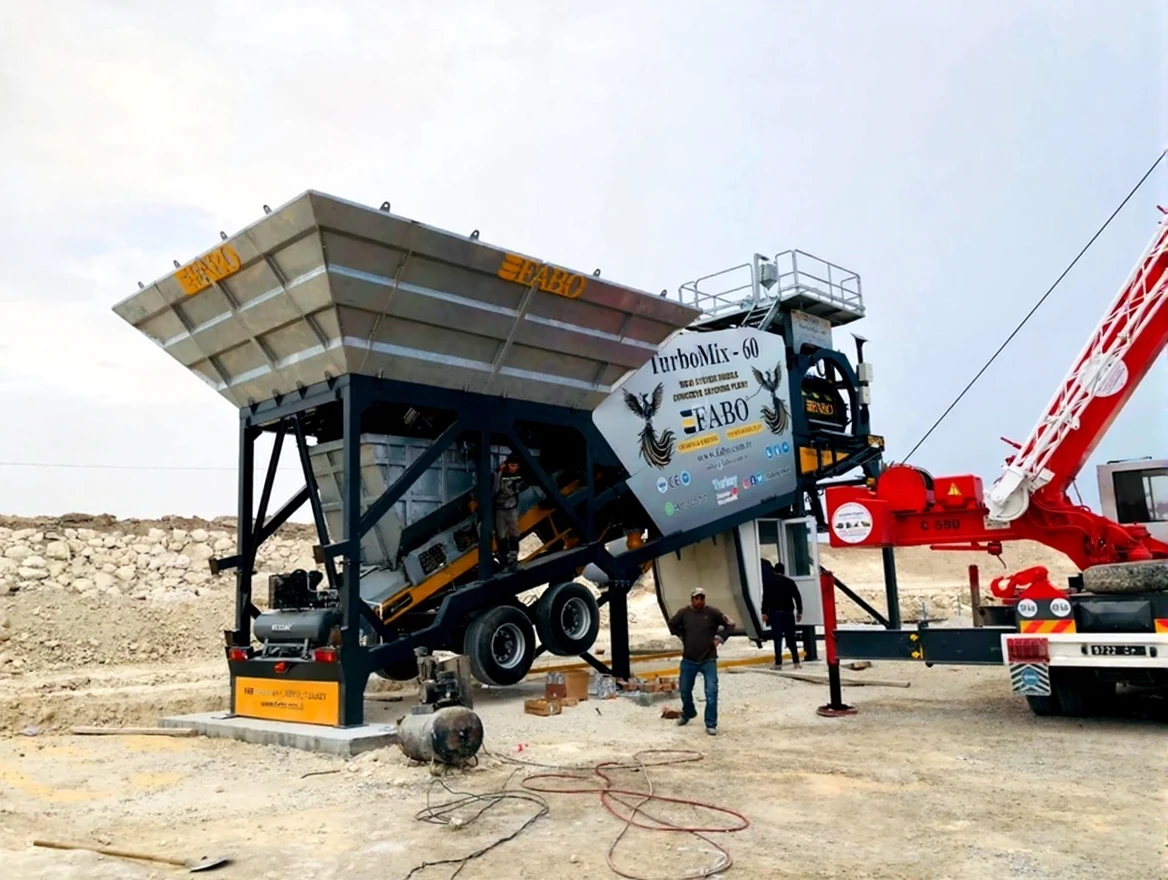

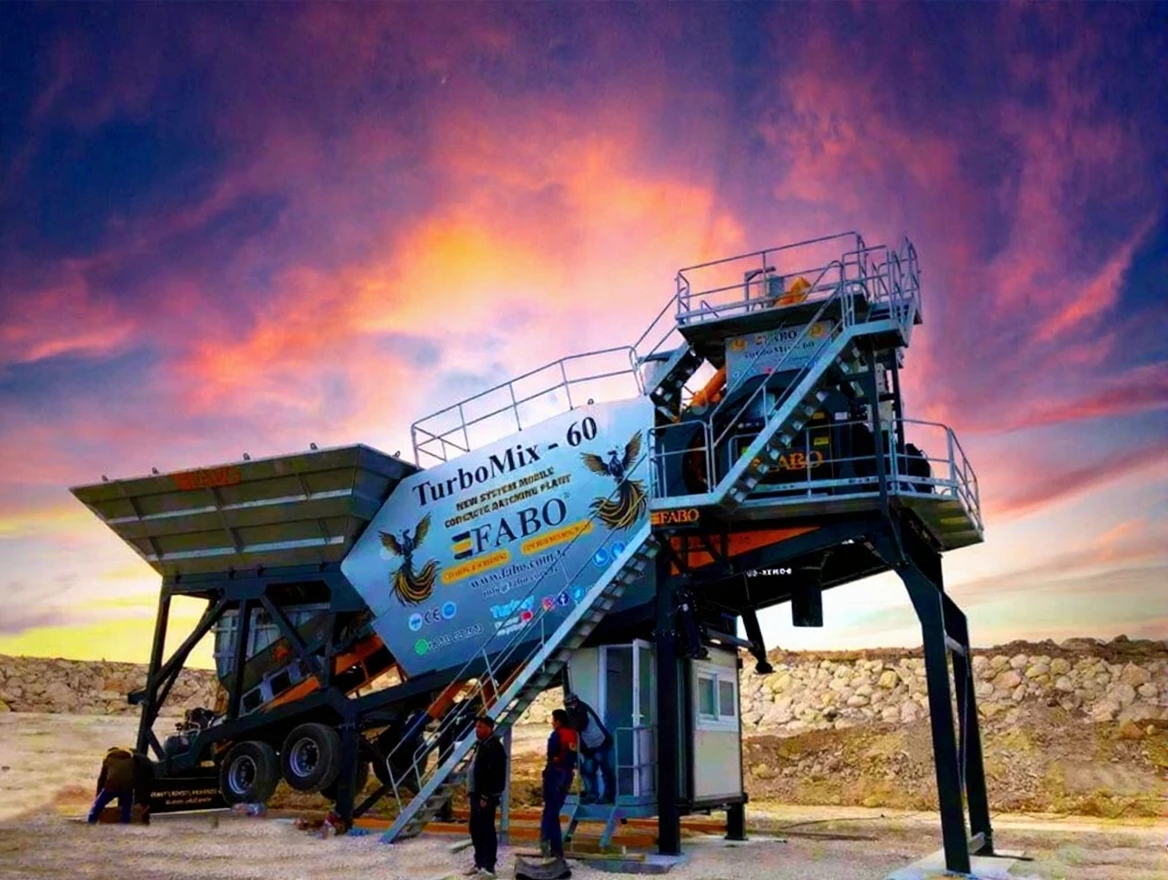

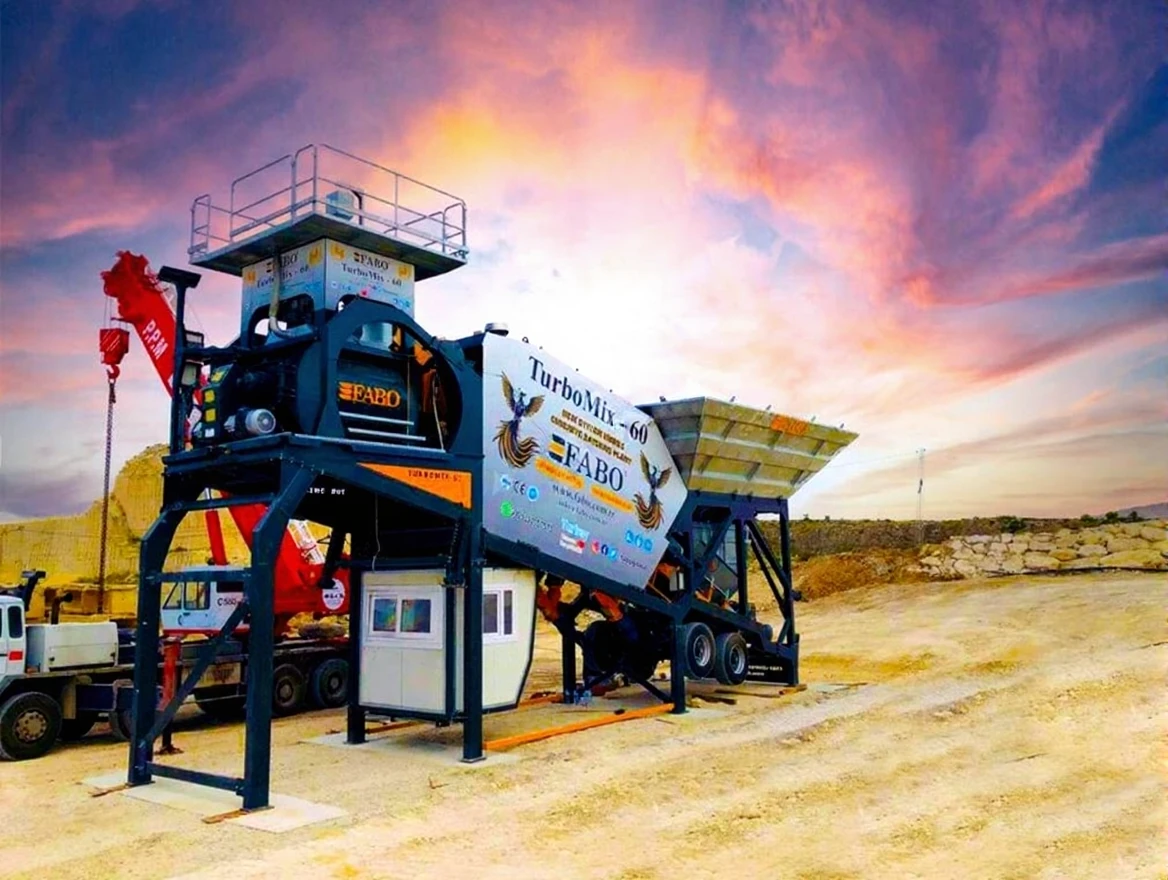

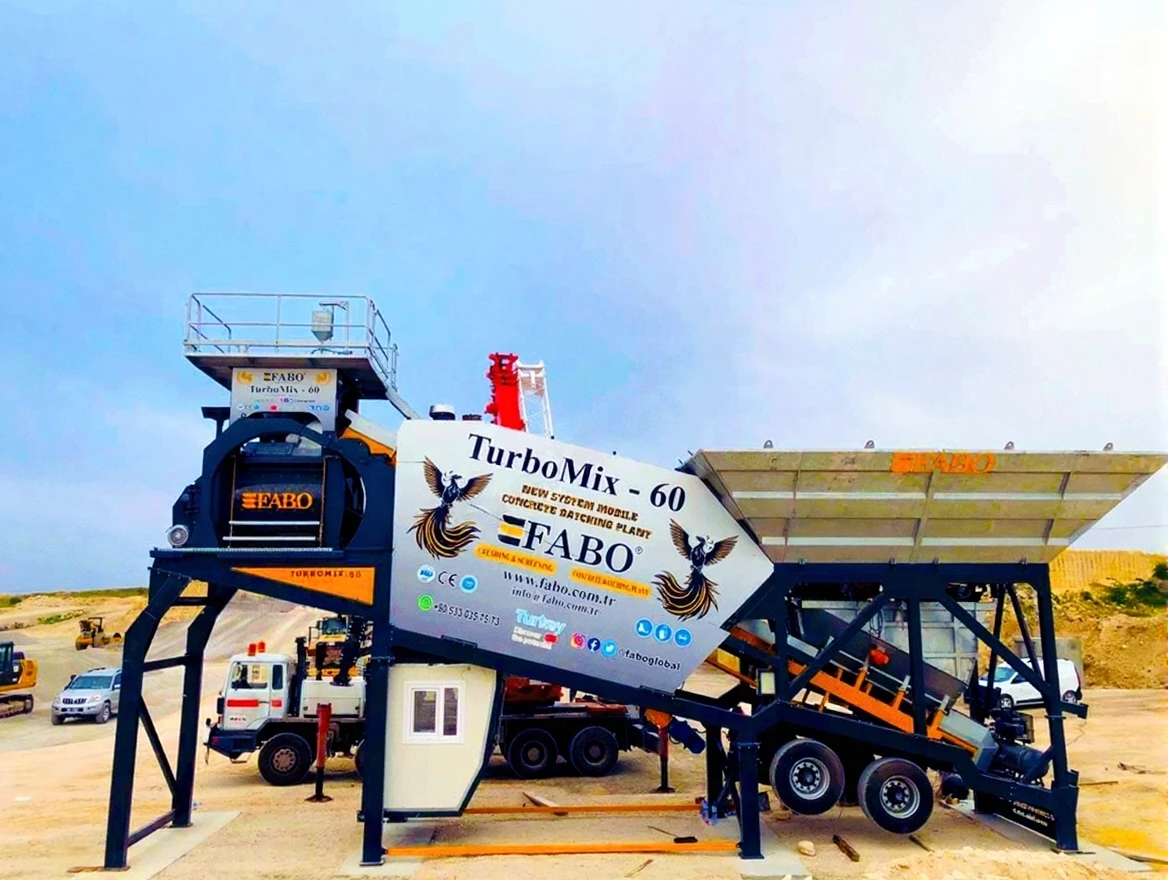

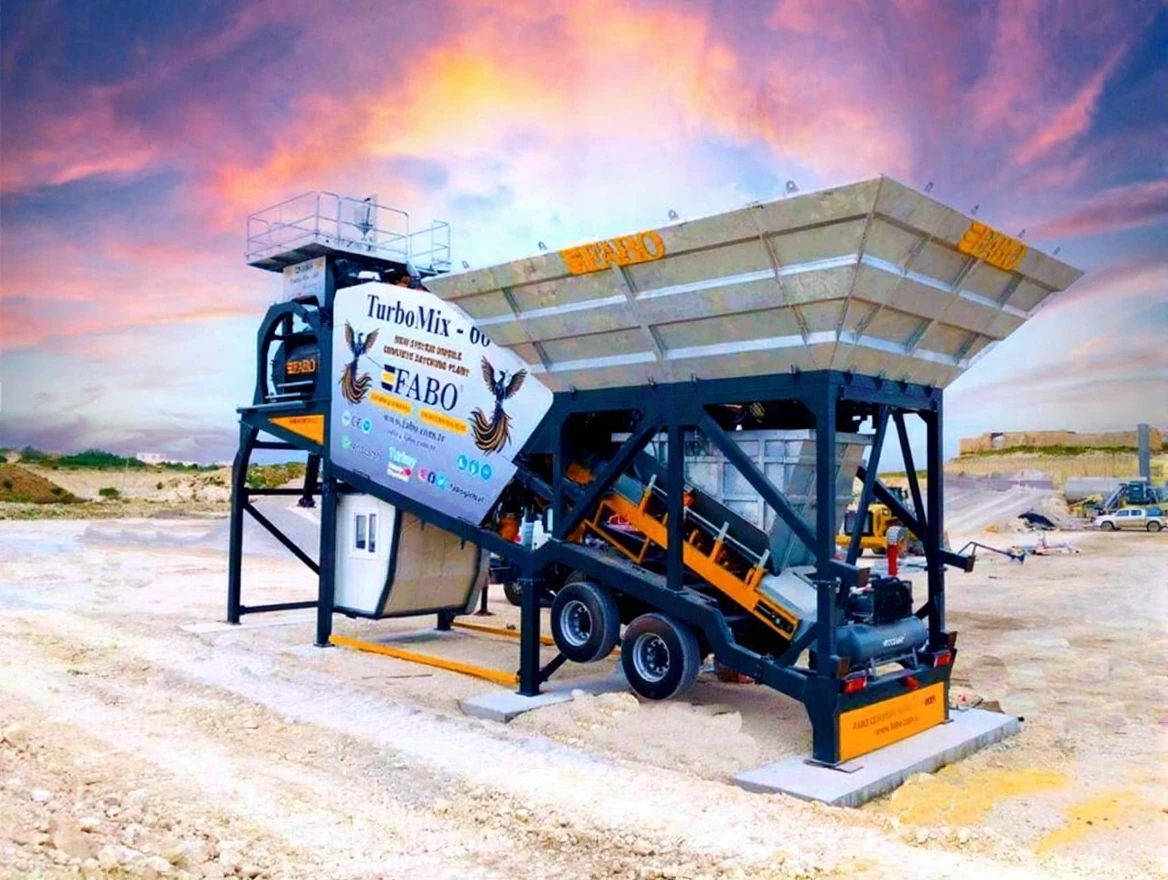

Fabo Machine Turbomix-60 60 m3/Hour Mobile Concrete Plant

FABO TURBOMIX series Mobile Concrete Plants provide satisfaction at every level needed with practical and effective solutions and can easily and efficiently achieve high-capacity production of a homogeneous concrete mixture.

FABO TURBOMIX Series has an easy operating system and the lowest investment costs. In addition, the plant ensures the correct use of corporate resources, thus saving time will turn into more profit. They are ideal solutions for projects that require placement in a narrower area on a short-term and special construction site. Since all equipment of a concrete plant is mounted on a single mobile chassis, the plant can be easily moved with a single tractor. The production capacity of TURBOMIX mobile concrete plants ranges from 30 m3/h to 150 m3/h.

FABO TURBOMIX series mobile concrete plants have automatic control of aggregate materials and additives, static/dynamic Load Cell Weighing. Concrete plants have a high-capacity quality and powerful concrete mixer that provides a homogeneous mixture.

TECHNICAL SPECIFICATIONS:

Model: TURBOMIX 60

Production capacity: 60 m3

Aggregate bunker: 4×10 m3

Transfer conveyor: 2500 kg

Cement weighing: 500 kg

Additive weighing: 30 kg

Water weighing: 200 lt

Cement silo, top integrated cement silo (30 tons) and ground feeding bunker (7m3) are optional.

Turbomix 60 consists of:

• Bulk Storage Hopper

• Aggregate Weighing Hopper

• Aggregate Transfer Conveyor

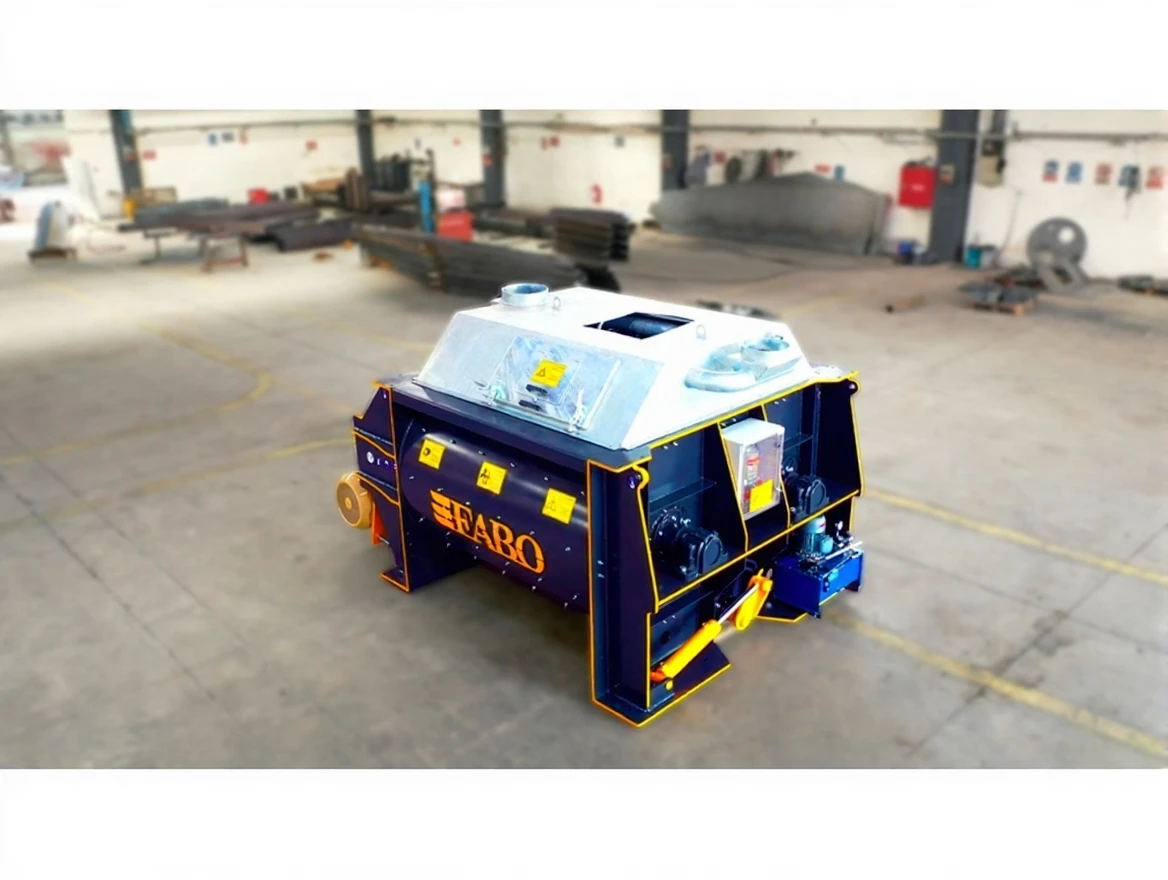

• Twin Shaft or Pan Mixer

• Mixer Chassis, Walking Platforms, Ladder

• Water Weighing Hopper

• Cement Weighing Hopper

• Additive Weighing Hopper

• Air Compressor

• Cement Screw Conveyor

• Bolted Cement Silo

• Top Filter, Safety Valve and Accessories

• Control Cabin

• PC and Automation System

• Control and Power Panel

FOR DETAILED INFORMATION, PLEASE CALL US !!!
