60 Ton 2100 mm NC Bending Press

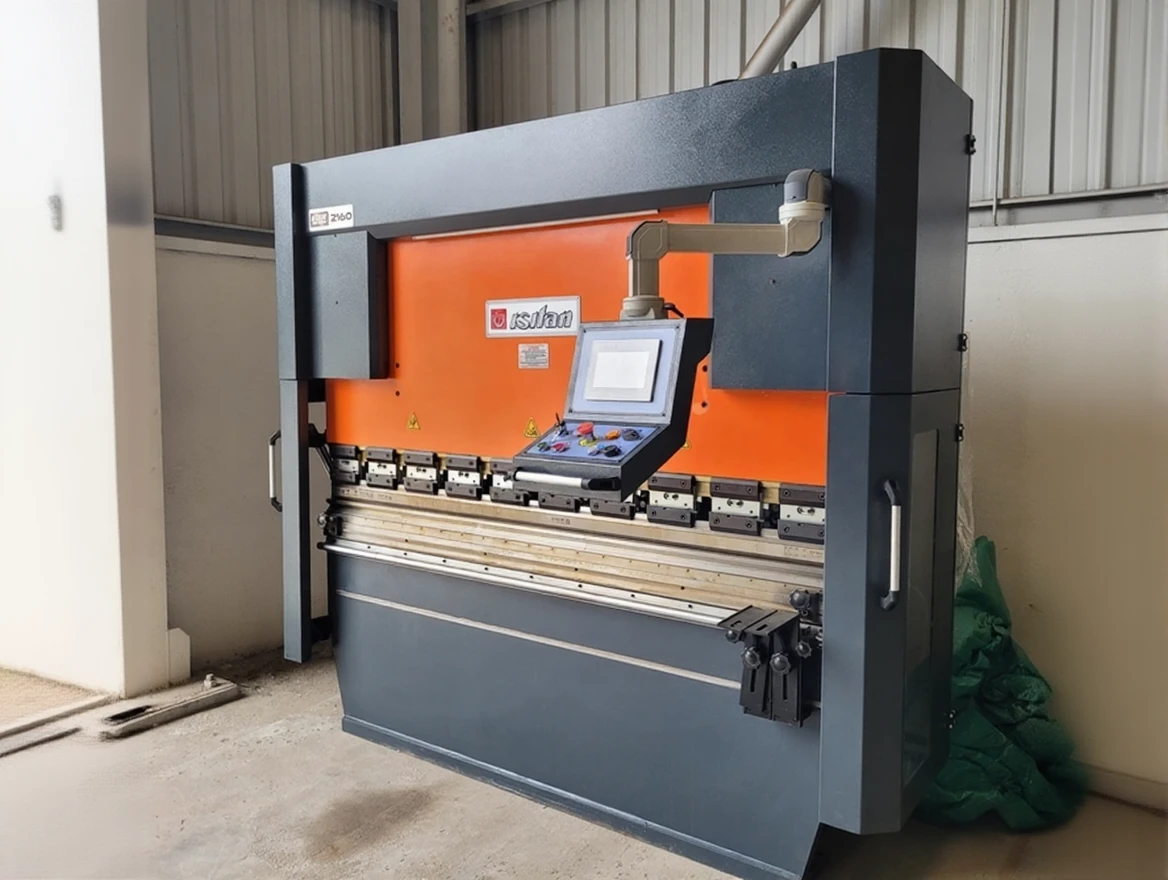

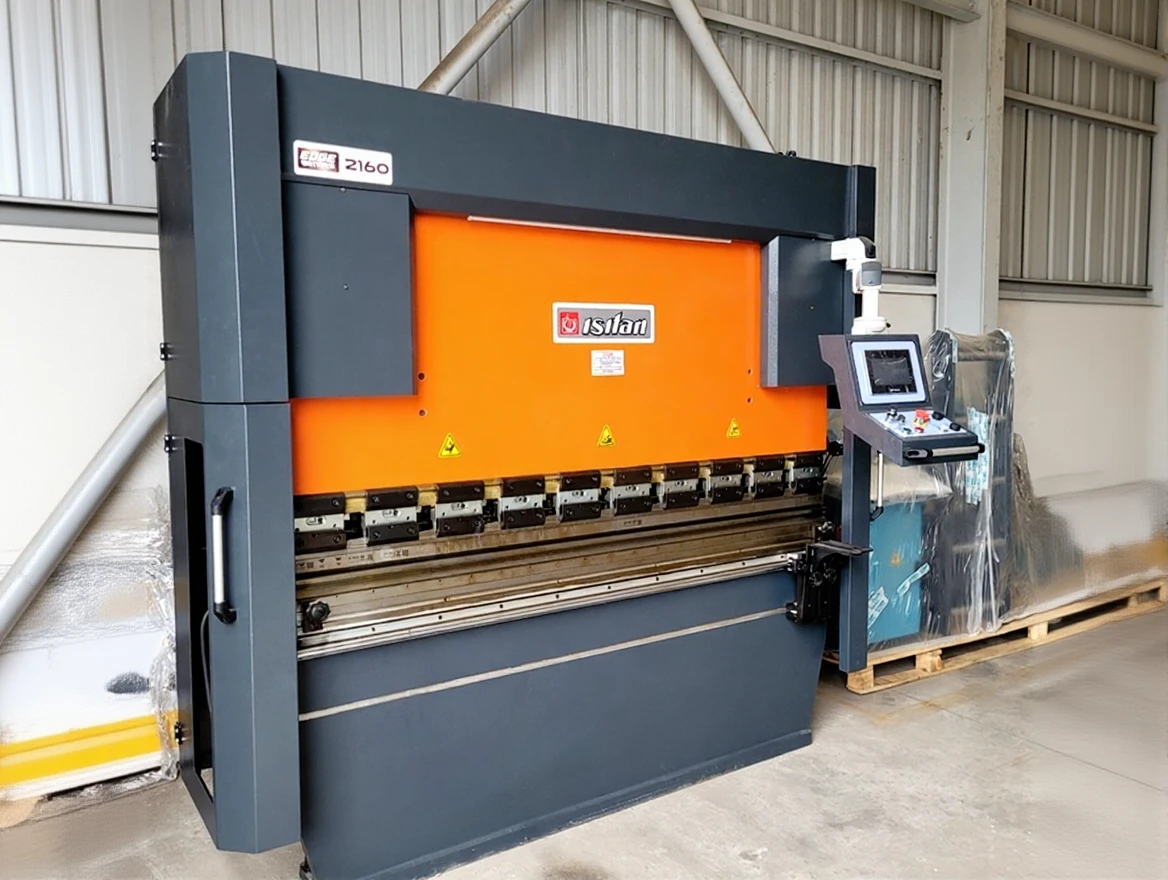

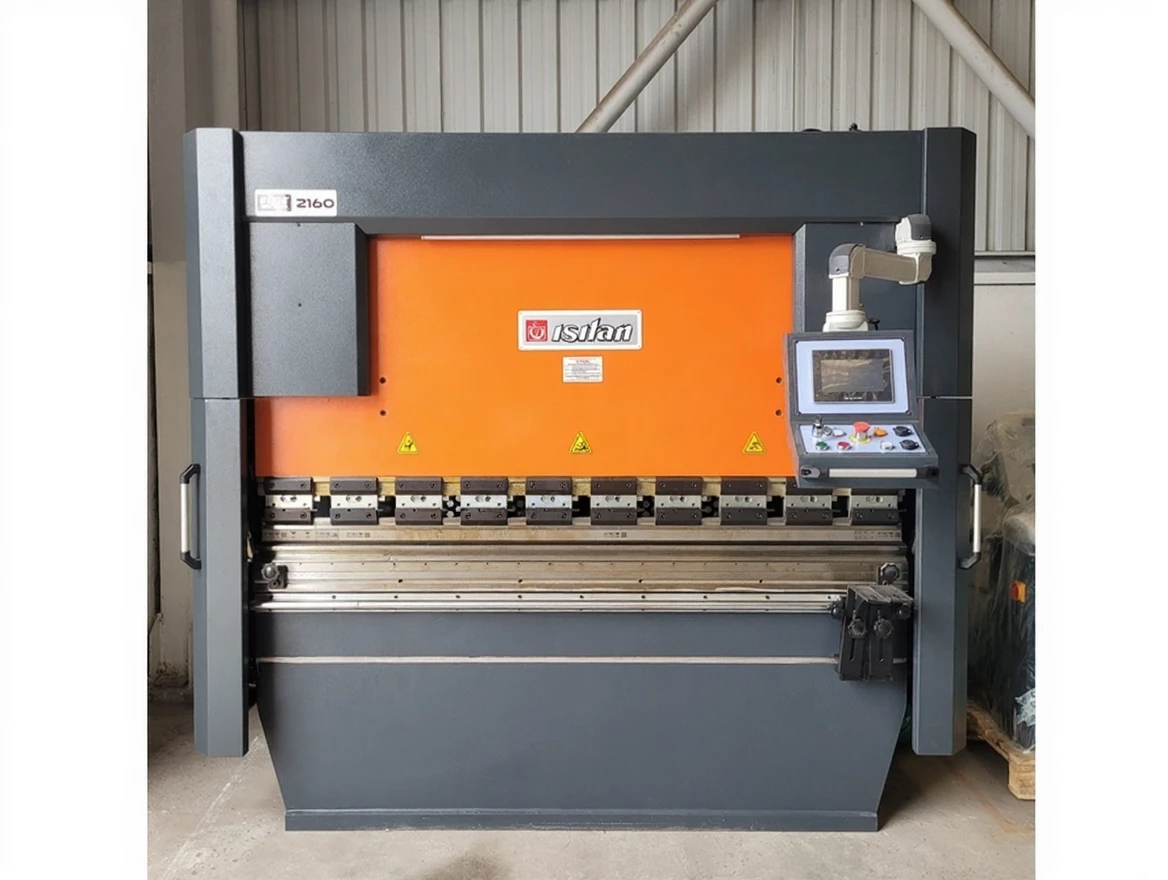

ISITAN EB 2160 NC BENDING PRESS

Isıtan EB 2160 NC Bending Capacity

Bending force is 60 tons, full length bending capacity is 4mm, bending length is 2100mm. The distance between the legs is 1700mm, throat depth is 320mm.

Isıtan EB 2160 NC Bending General Features

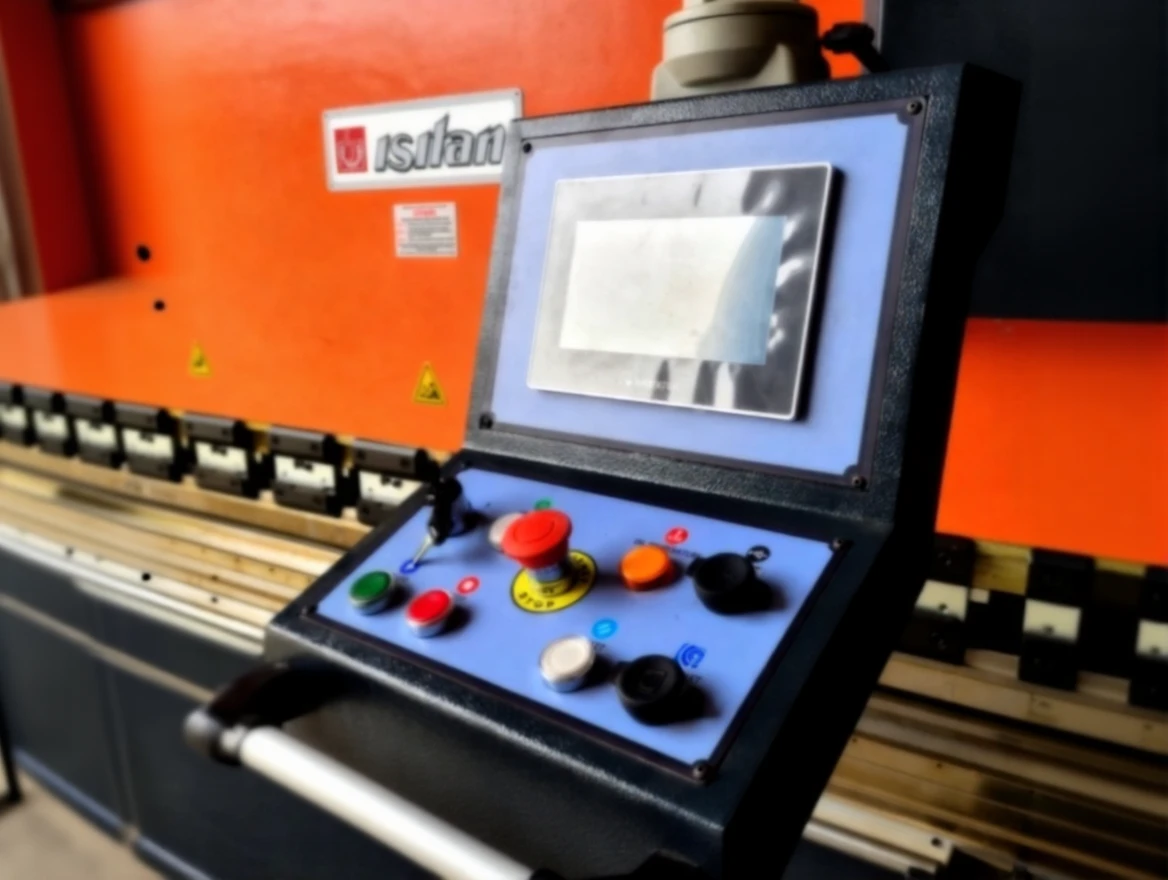

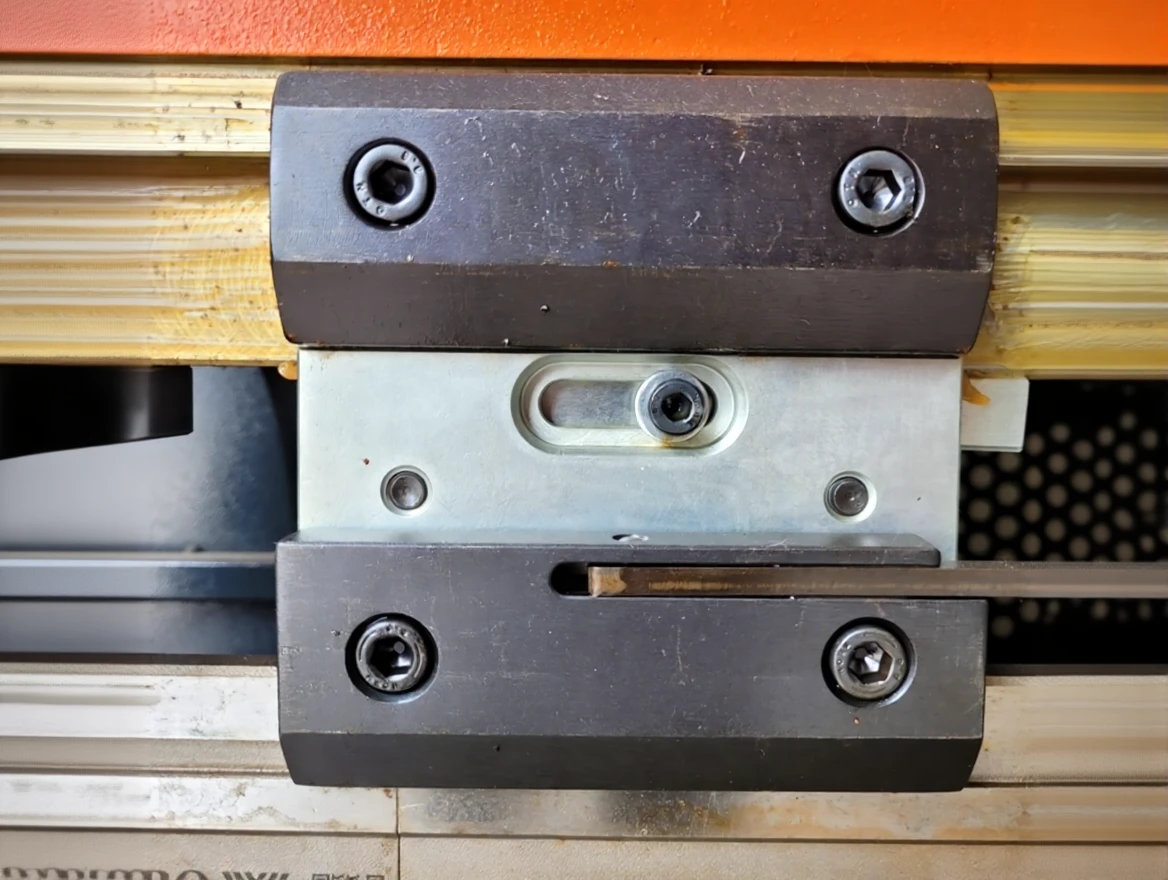

Y-axis angle adjustment with motor and NC control, manual bulging capability thanks to PROMECAM used for quick die removal and installation, front support arms that can be easily moved with linear slide and bearing system, clamping and fixing bolts to center the lower die.

Isıtan EB 2160 NC Bending Materials Used

The compact, low-maintenance HAWE or REXROTH hydraulic system unit located on the upper side of the machine, remote connection service solution thanks to European-origin SIEMENS and PIZZATO, BALLUF electrical equipment, LEUZE brand safety system and learning mode for bending in different forms.

Isıtan EB 2160 NC Bending Technical Specifications

Bending force   ton         60

Bending capacity            mm        4

Bending length      mm        2100

Distance between legs      mm        1700

Stroke     mm        160

Bending speed         mm/s    10

Idle descent speed  mm/s    90

Throat depth   mm        320

Daylight               mm        380

Table Width (f)            mm        100

Table Height ©          mm        845

Motor power pump         kw          7.5

Motor power X axis        kw          0.75

Motor power Angle Adjustment       kw          0.37

Motor power R axis       kw          0.2

X axis distance              mm        600

Length (A)  mm        2450

Width (B)         mm        1600

Height (H)      mm        2235

Weight    kg           4340
