600/200 Ton H Type Hydraulic Deep Drawing Press

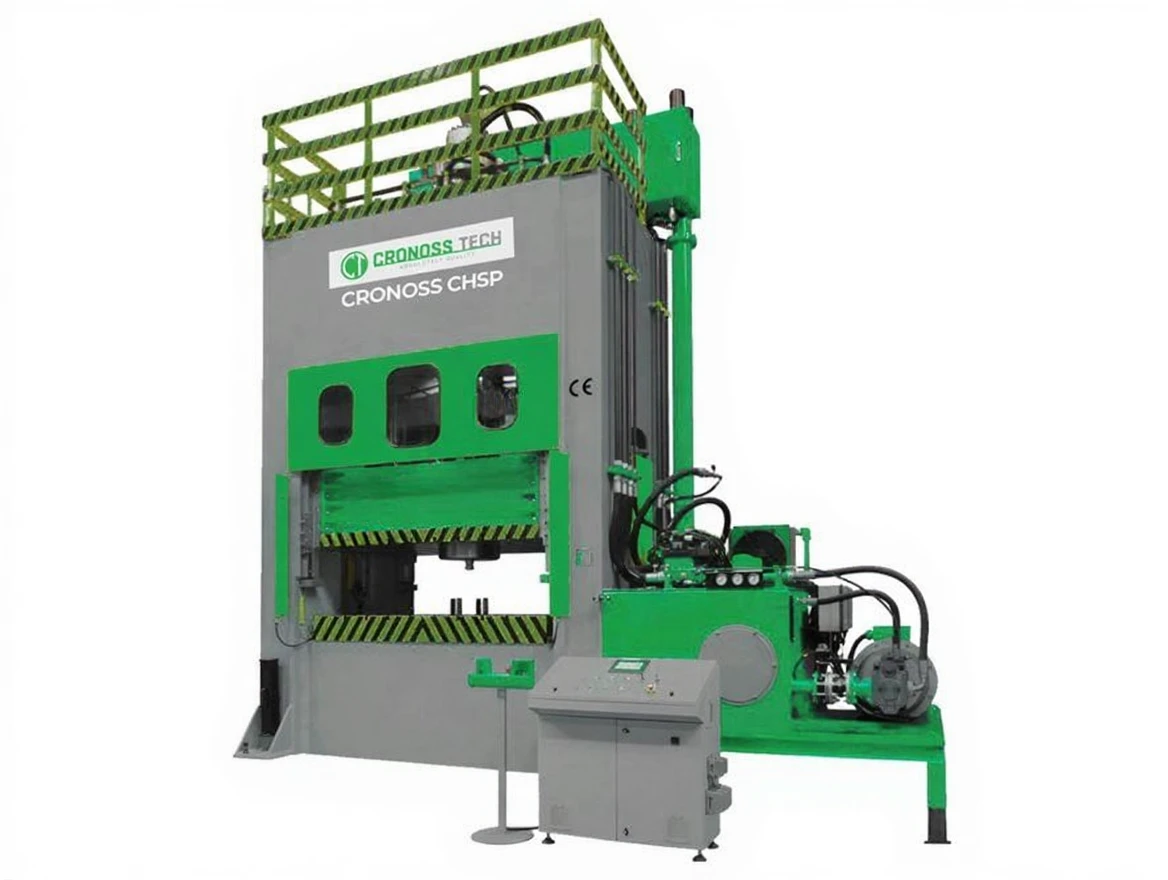

CHSP 600/200 – H TYPE HYDRAULIC PRESS MACHINE

STANDARD FEATURES

• Steel construction, 8 slide H type press body structure

• Body material St52 – ERDEMİR

• Bronze Zr14 slide bearing

• Piston capacity: 600 tons

• Die capacity: 200 tons

• Vibration stress relief

• WPQR & WPS approved EN ISO 15614-1:2017 welding application
  (Welding applications are monitored by certified welding coordination engineers according to EN ISO 14731)

• Max. working pressure: 250 bar

• Rexroth or Parker hydraulic system

• Main pump: 70 cm³ (Rexroth or Parker)

• Total motor power: 55 kW – IE3

• Automatic lubrication system (adjustable from the screen)

• Piston stroke adjustment (adjustable from the screen)

• Die stroke adjustment (adjustable from the screen)

• Piston tonnage (pressure) adjustment (adjustable from the screen)

• Die tonnage (pressure) adjustment (adjustable from the screen)

• System error information can be monitored from the screen

• Press status information can be monitored from the screen

• Mold memory

• Hydraulic unit oil temperature information can be monitored from the screen

• Linear distance measuring device (Novatechnik or Turck)

• PLC: DELTA

• Touch panel: DELTA – 7”

• Siemens – Schneider switchgear materials

OPTIONAL FEATURES

• CE application

• Safety PLC (Siemens Failsafe / Pilz PNOZ Multi)

• Light barriers (Leuze / Pilz / Sick)

• Traceable feedback valves

• Hydraulic piston locking system

• Proportional speed and pressure control system

TECHNICAL SPECIFICATIONS

Moving Table Size : 1200 × 1500 mm
Fixed Table Size : 1200 × 1500 mm

Parallelism Tolerance : 120 micron/mt
Perpendicularity Tolerance : 60 micron/mt

Piston Stroke : 1000 mm
Die Stroke : 350 mm

Min. Gap : 100 mm
Max. Gap : 1100 mm

Moving Table Fast Descent Speed : 150 mm/s
Moving Table Pressing Speed : 12 mm/s
Moving Table Return Speed : 170 mm/s
Die Table Forward Speed : 30 mm/s

Main Cylinder Inner Diameter : Ø550 mm – CK45
Die Cylinder Inner Diameter : Ø320 mm – CK45
Auxiliary Acceleration Cylinders : 2 pieces

Approximate Height of Press : 5900 mm
Approximate Width of Press : 3250 mm
Approximate Depth of Press : 2300 mm
Height of Lower Table from Ground : 1400 mm

Approximate Weight : 35 tons

🔒 PRODUCTION NOTE (FIXED USE)

This machine is produced in Turkey by CRONOSS, with its own engineering and production infrastructure.
