600 Kg Battery Powered Vacuum Lifting System for Marble Ceramic Glass

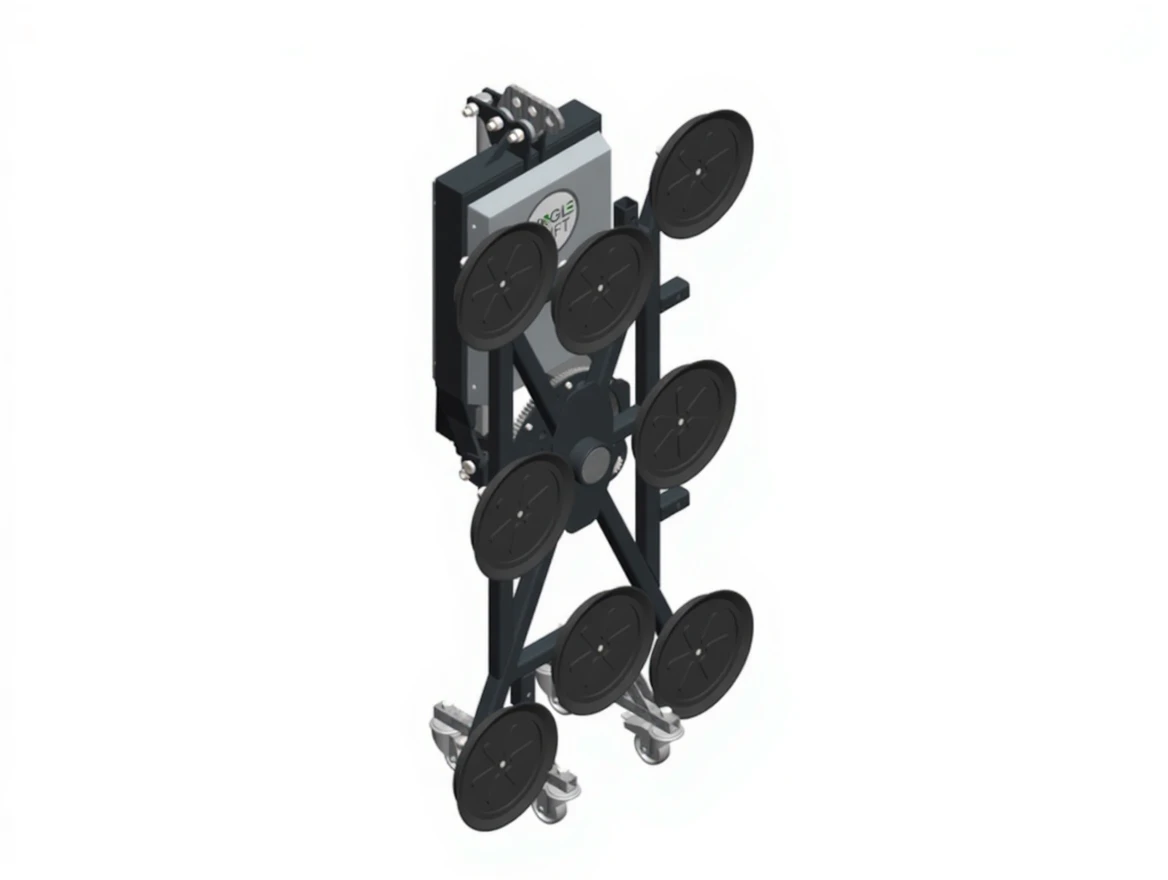

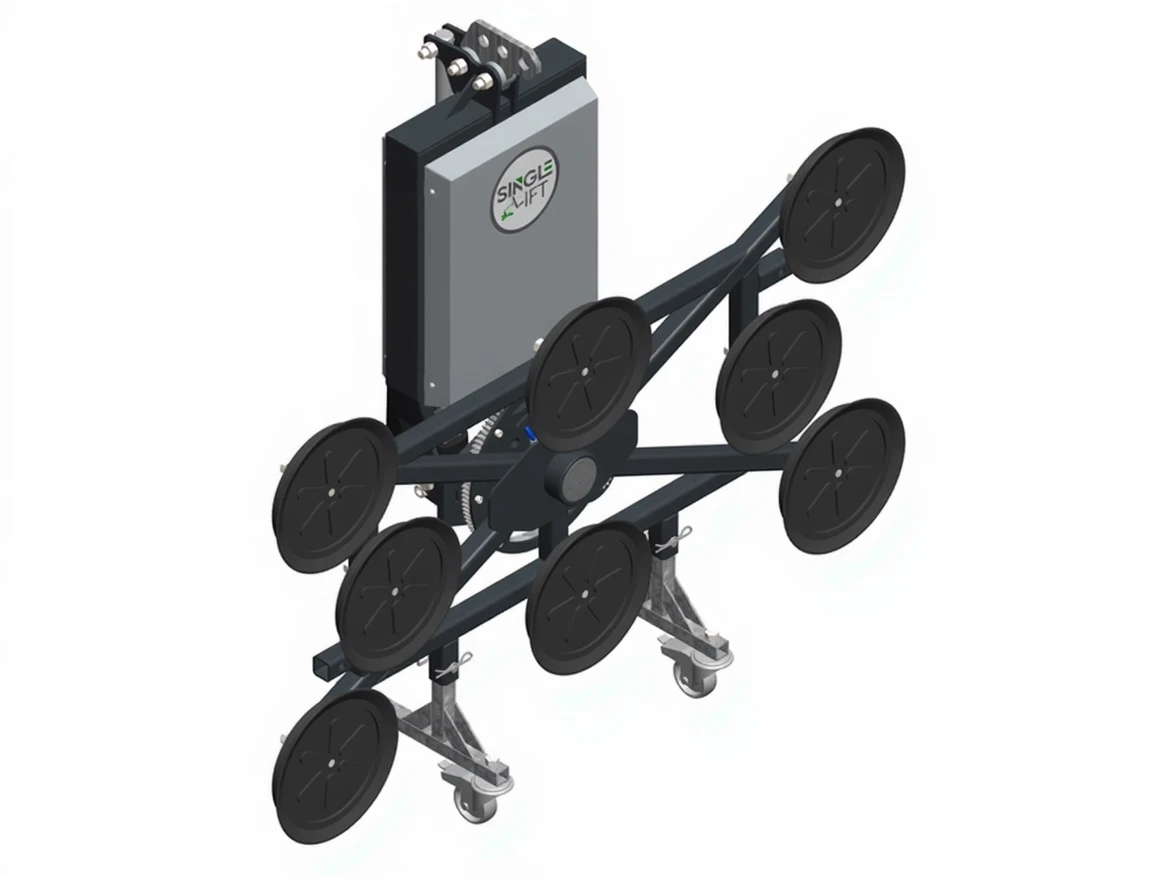

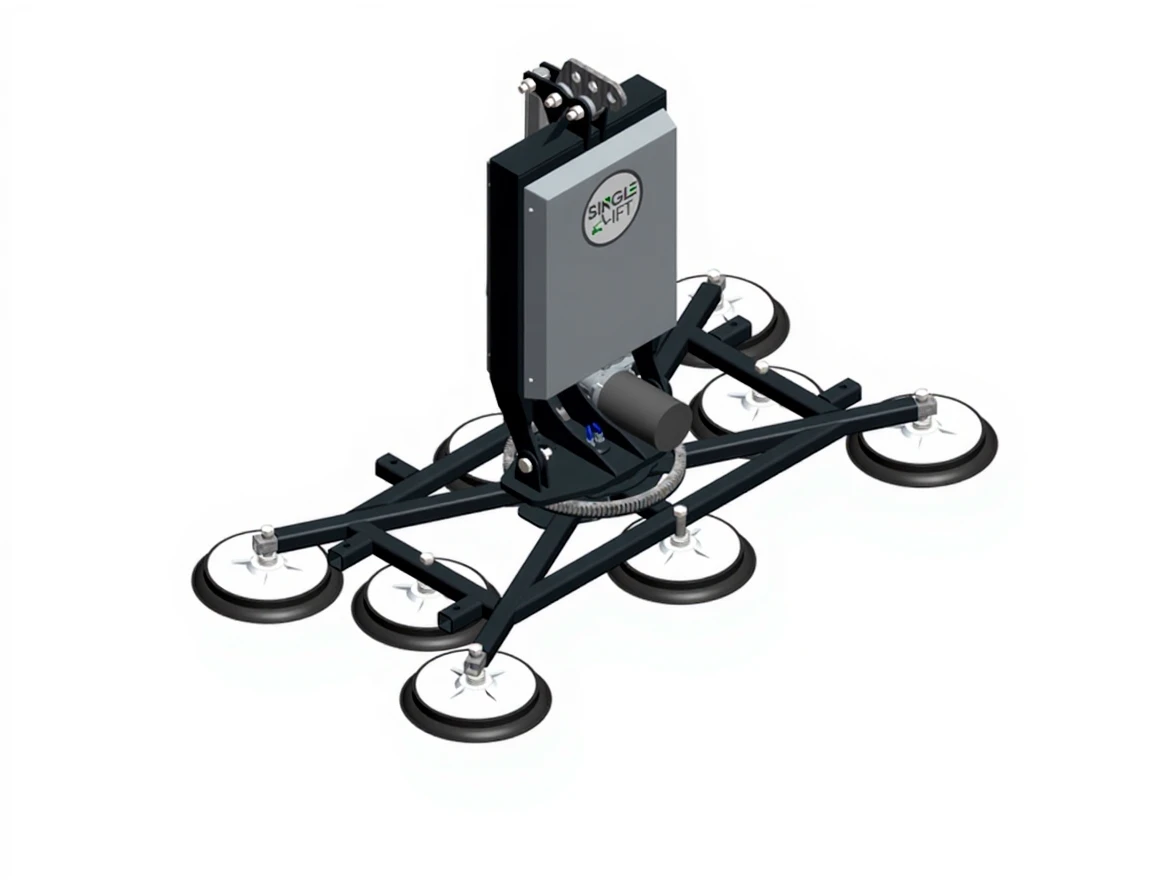

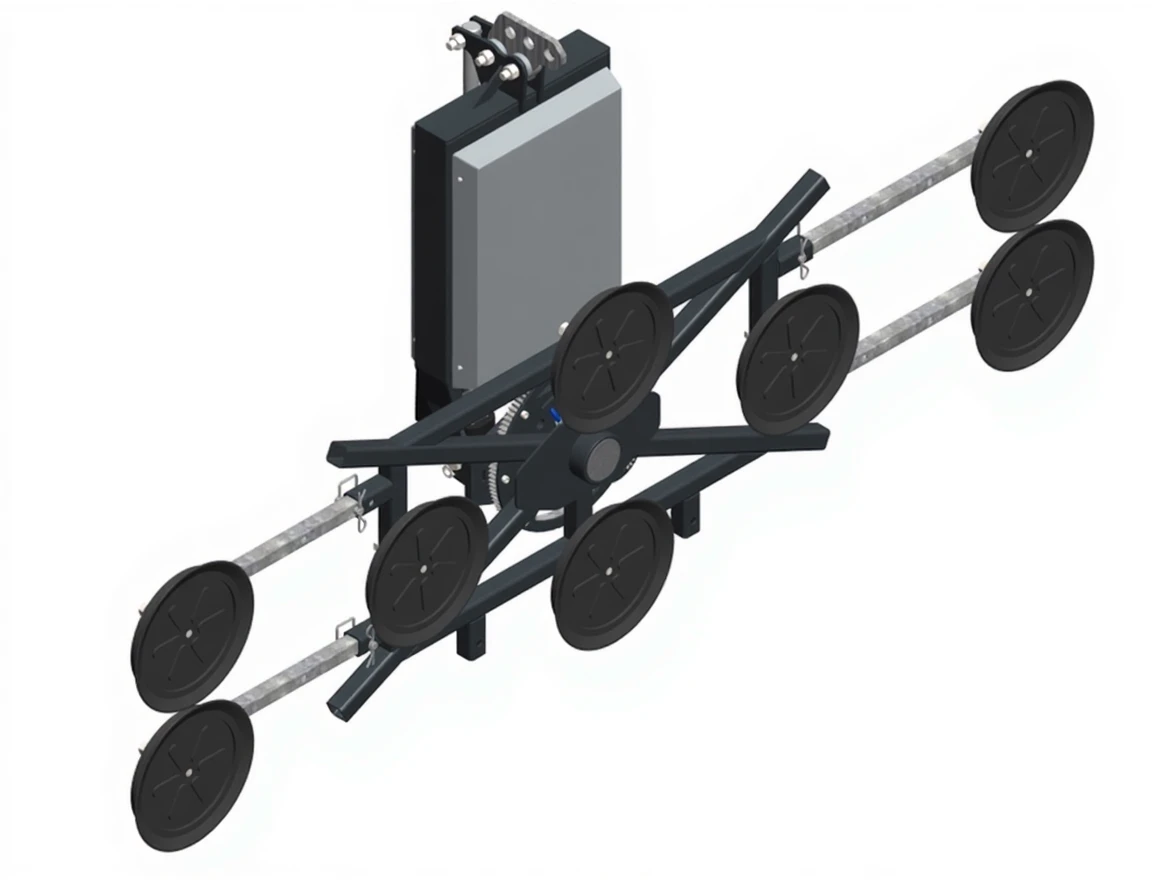

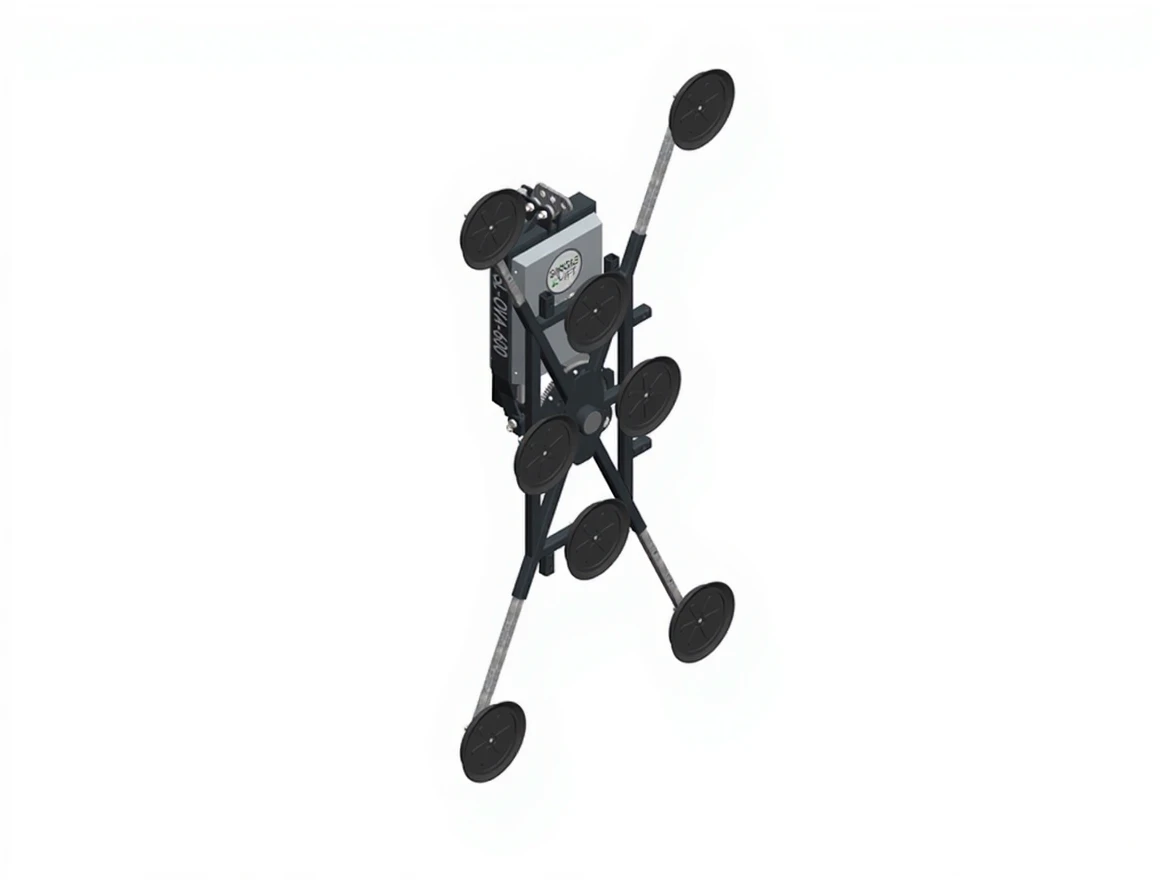

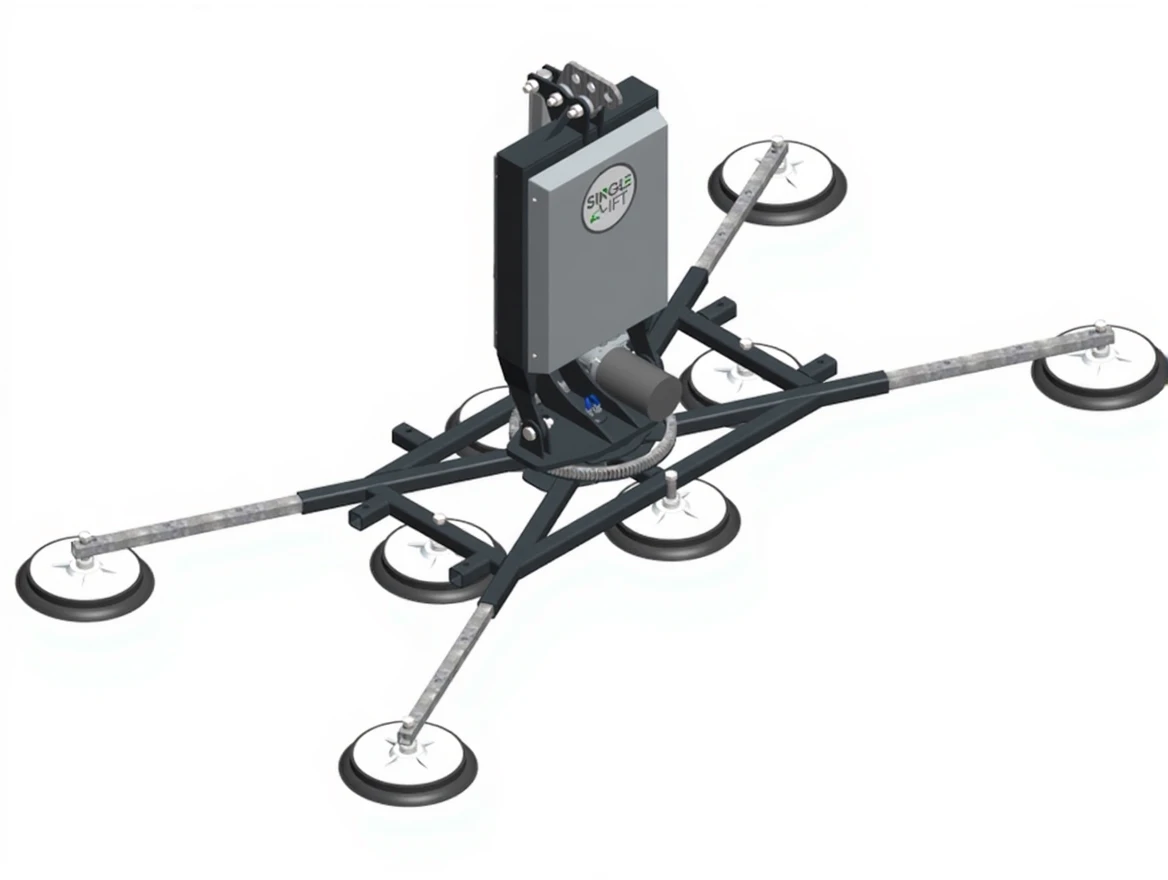

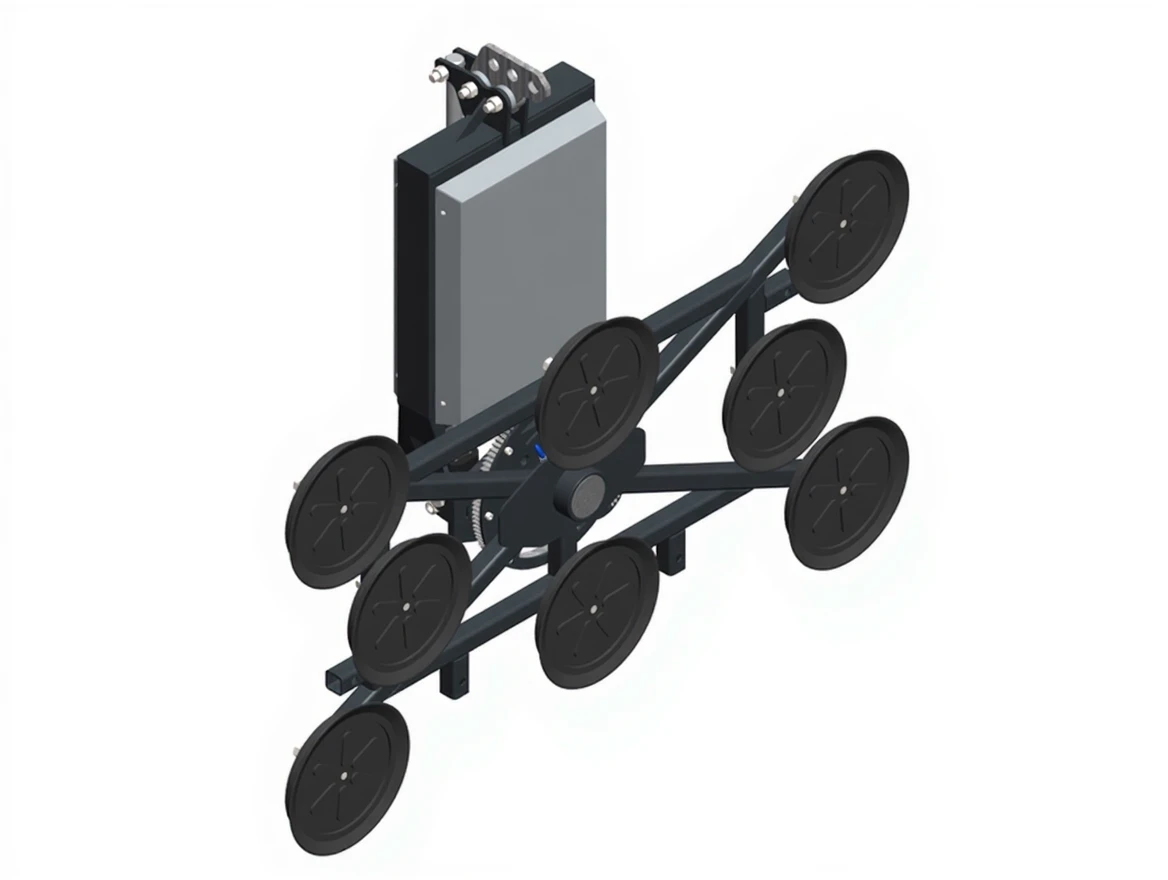

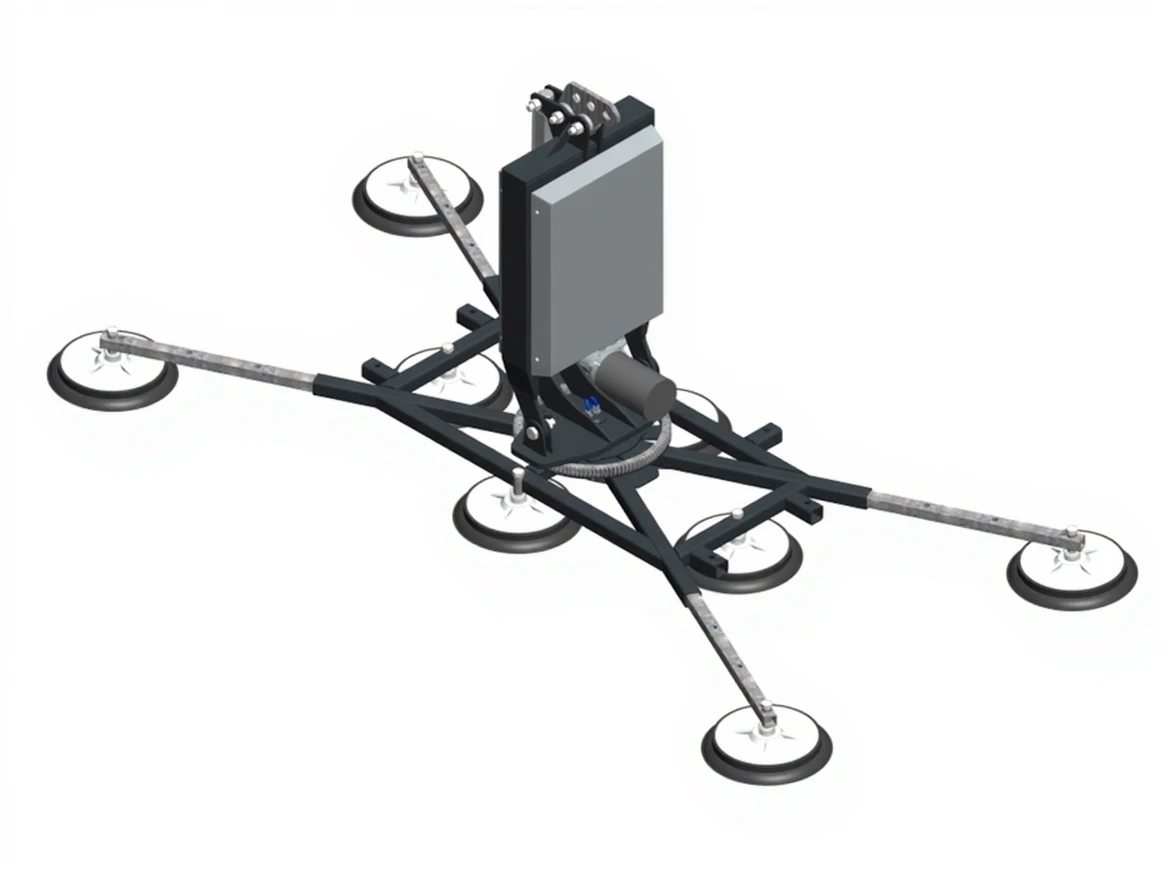

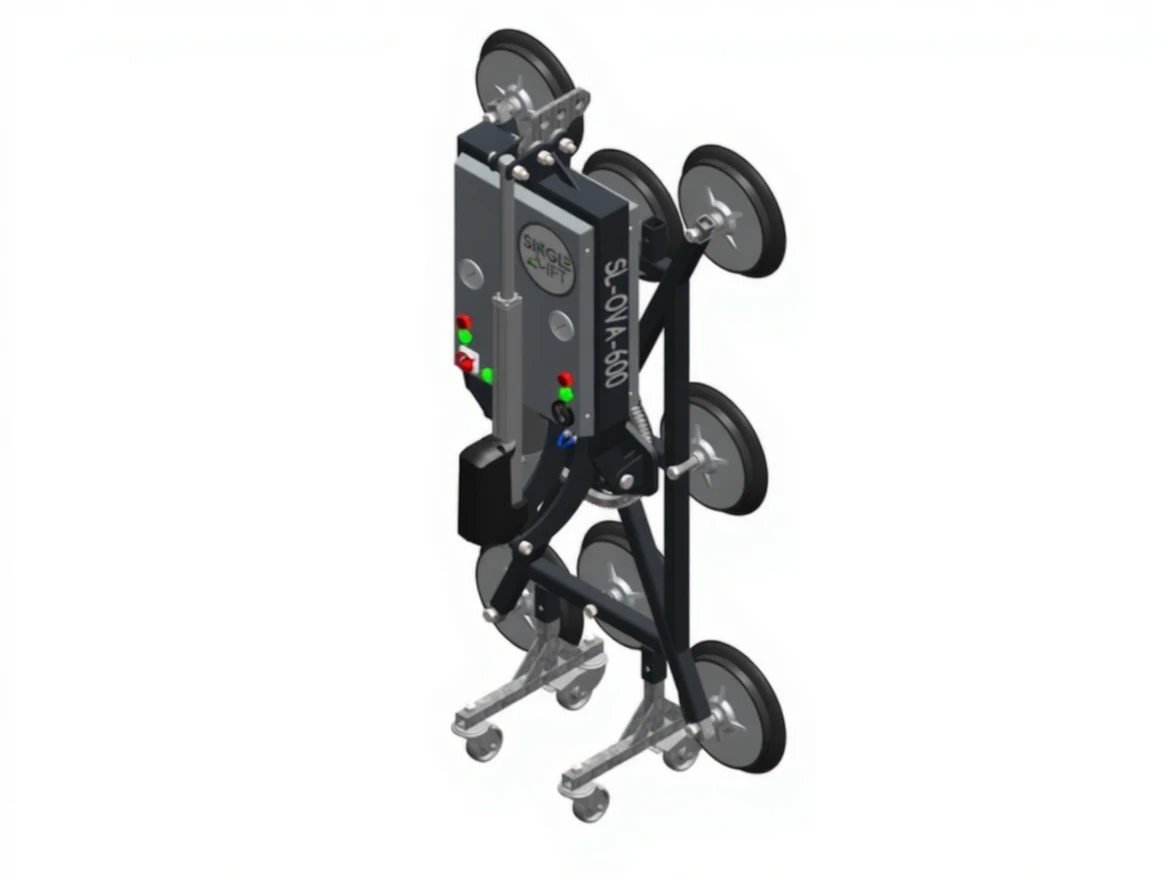

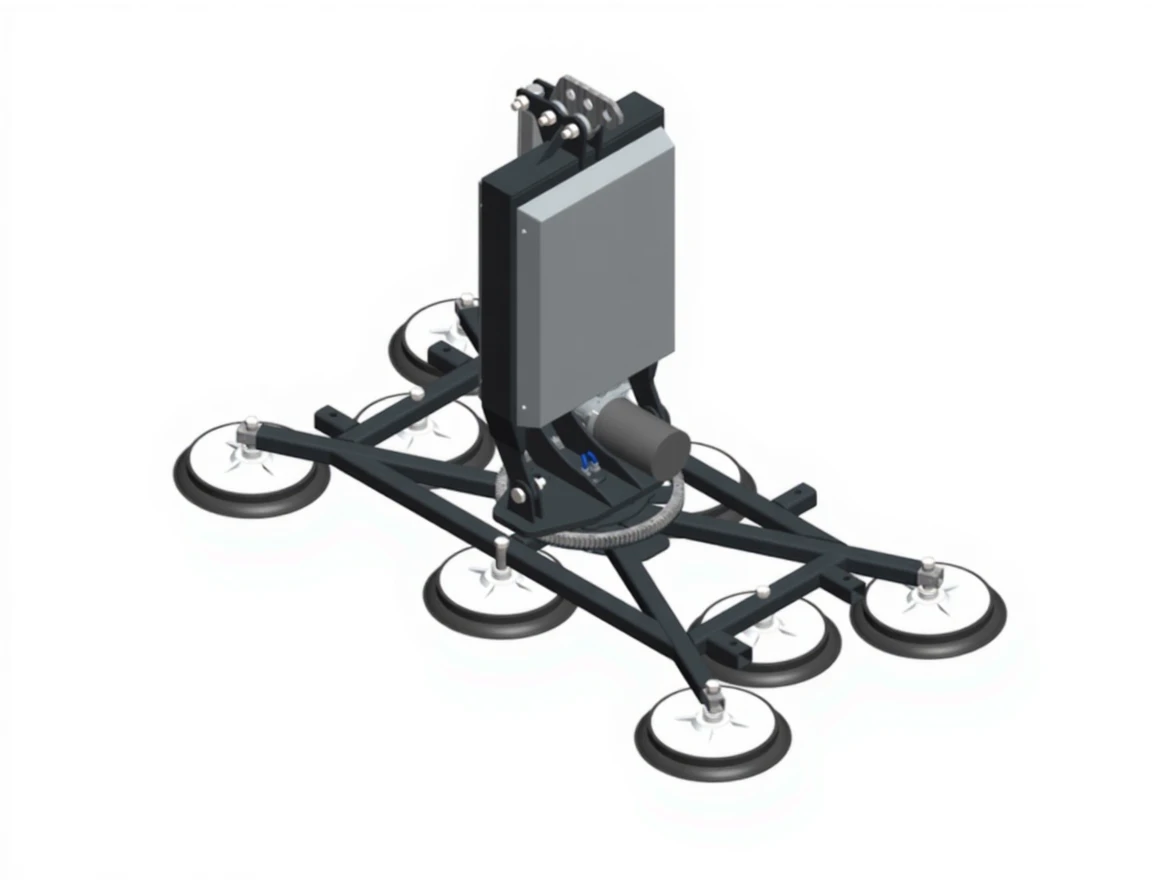

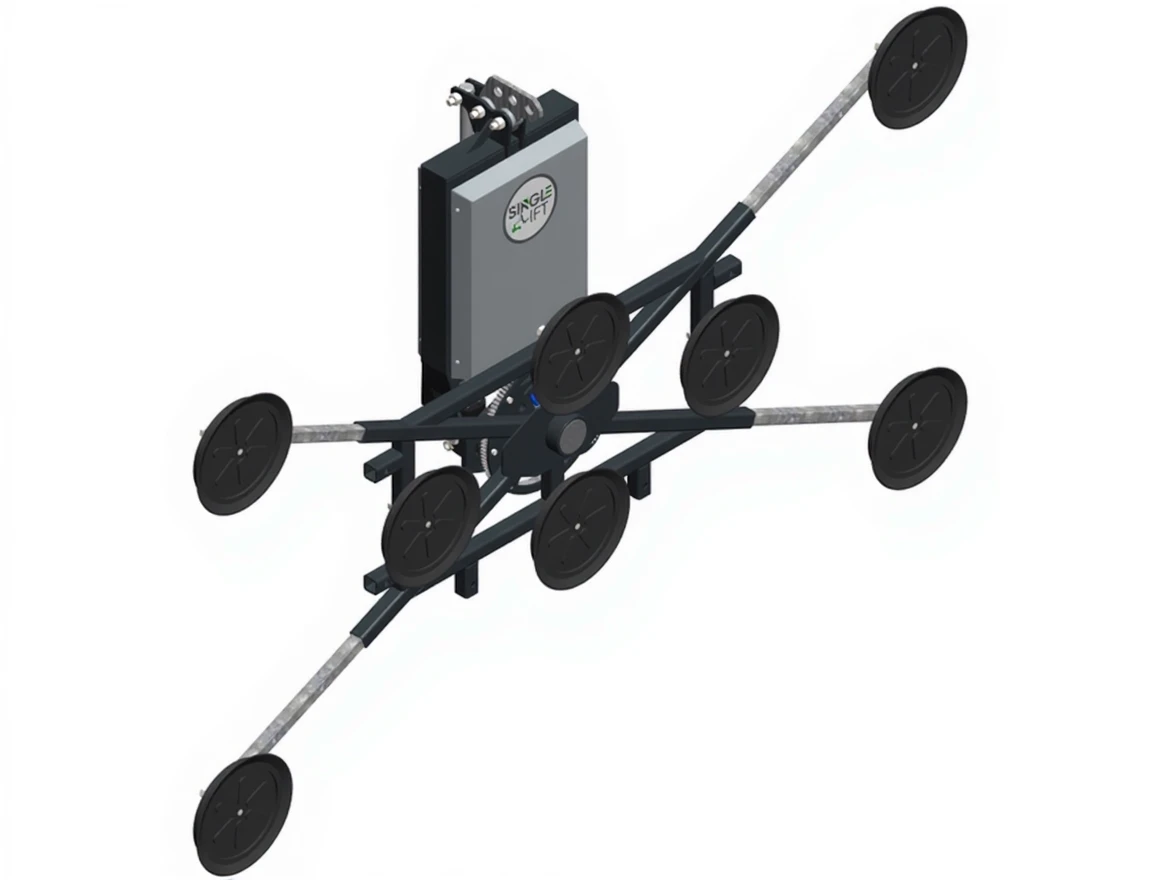

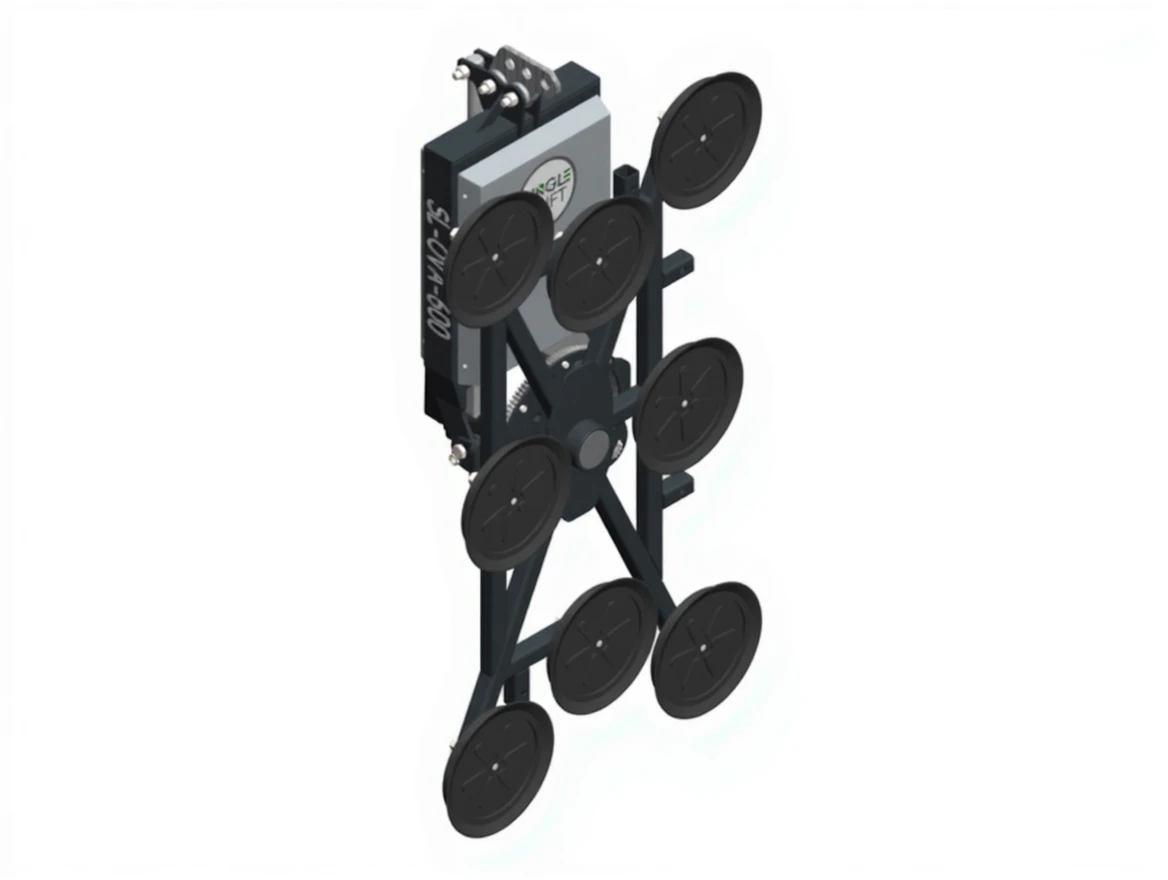

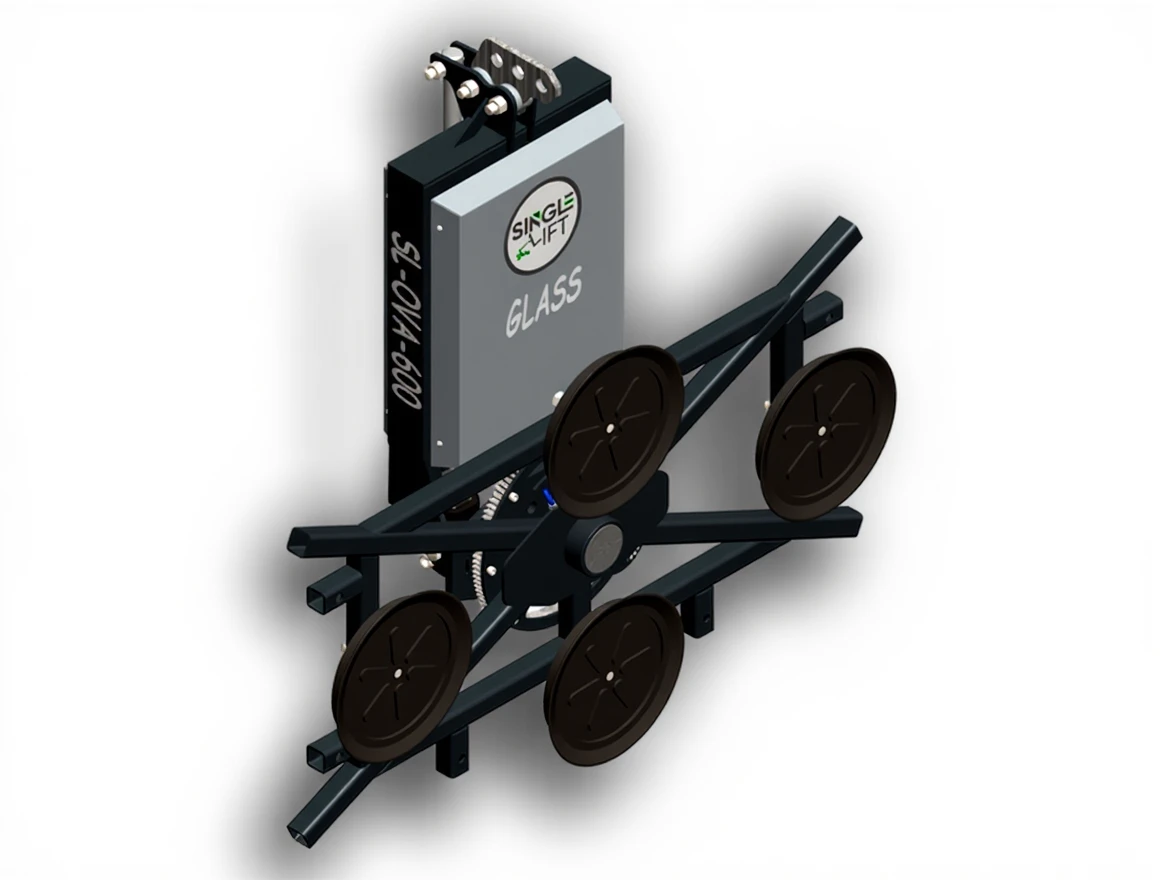

SL-OVA-600 Vacuum Lifting System

The compact model SL-OVA-600 of the SingleLift OVA series is specially designed to lift loads up to 600 kg easily and safely. Thanks to its automatic control feature, it offers the ability to rotate loads continuously 360 degrees and tilt 90 degrees.

With dual circuit vacuum technology, it ensures maximum safety in handling operations. The device, which operates with standard 220 V electricity inside factories, continues to work seamlessly with an integrated 24 V power system at construction sites or outdoor areas.

Its lightweight structure makes it easily portable and provides ease of use even in limited spaces.

Technical Specifications

• Device Dimensions: 470 x 650 x 1530 mm

• Maximum Carrying Capacity: 600 kg

• Device Weight: 115 kg ± 10 kg

• Number of Pads: 4+4 pieces (total 8 pads)

• Suction Pad Diameter: 290 mm

• Electrical System: 24 V / 28 Ah (battery operated)

• Automatic Tilt Angle: 0° / 90°

• Automatic Rotation Angle: 360° continuous rotation

Areas of Use

• Transportation of glass, metal, wood, and composite panels

• Construction and facade cladding applications

• Usage in small and medium-sized manufacturing facilities

• Load carrying and assembly operations in workshops

• Loading/unloading operations in warehouses and logistics centers
