600 Kg Battery Powered Vacuum Panel Transport and Lifting System
| Brand | Single Lift |
|---|---|
| Model Type |
SL-OVA-600 Panel |

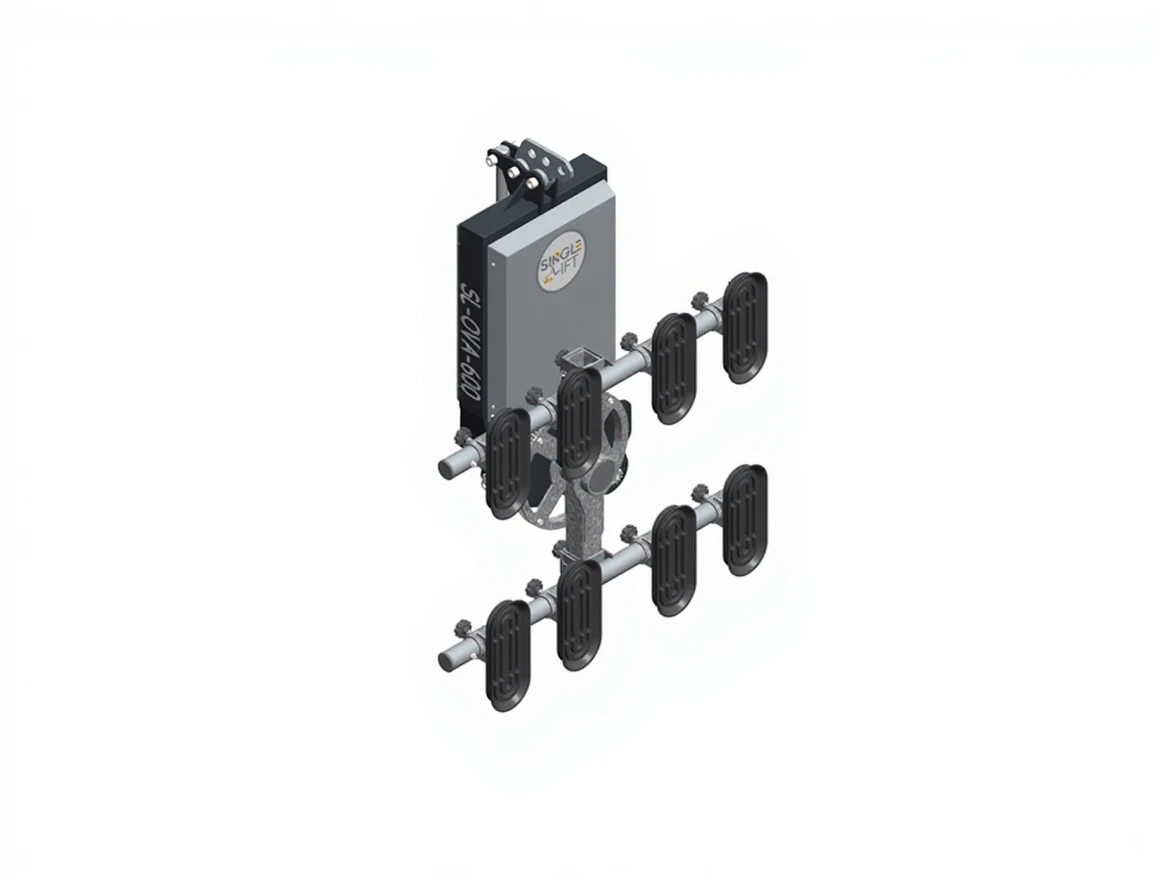

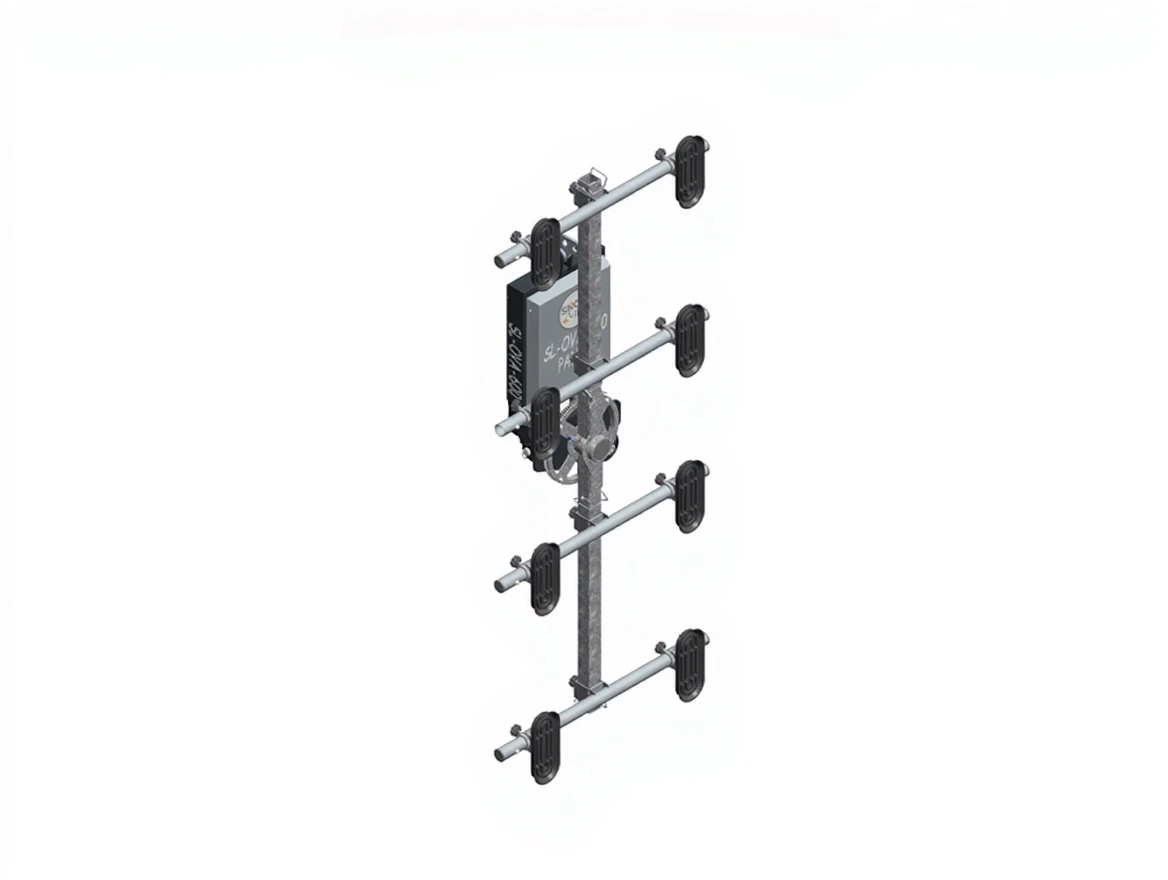

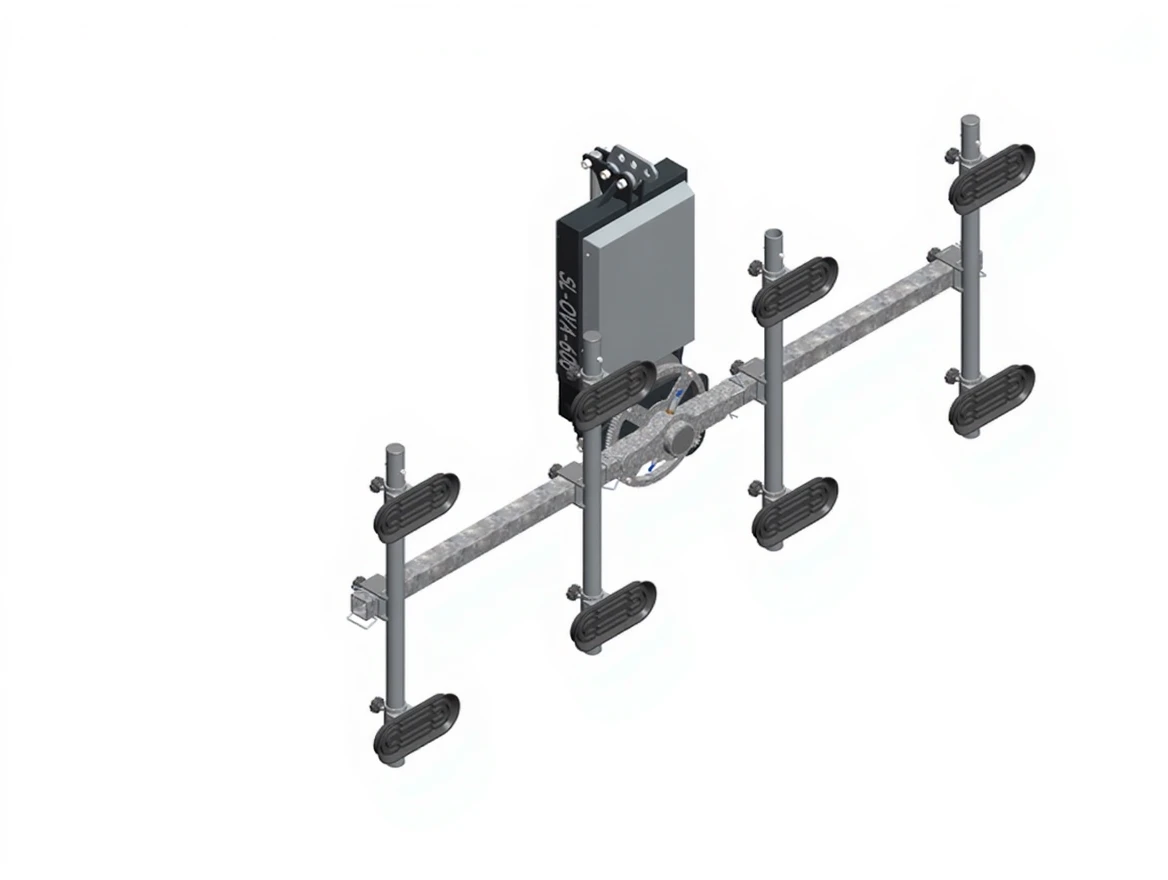

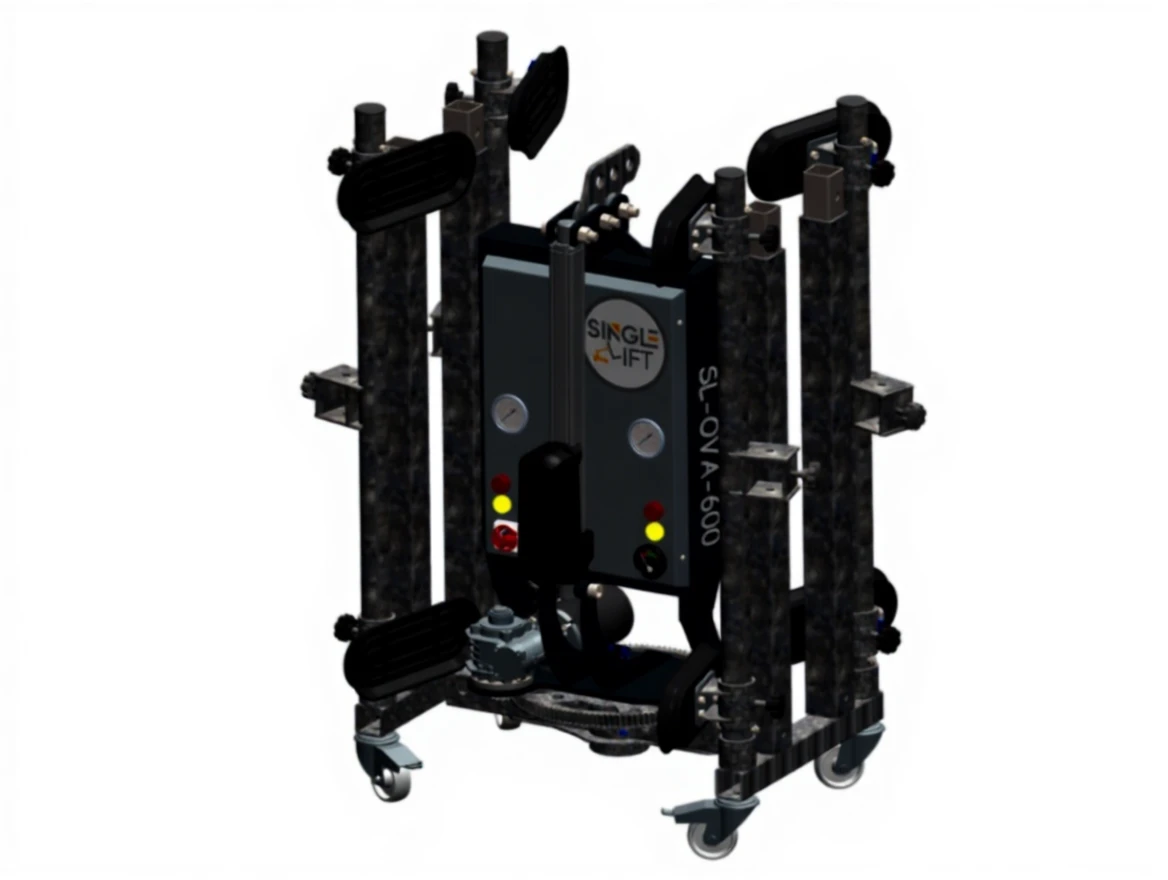

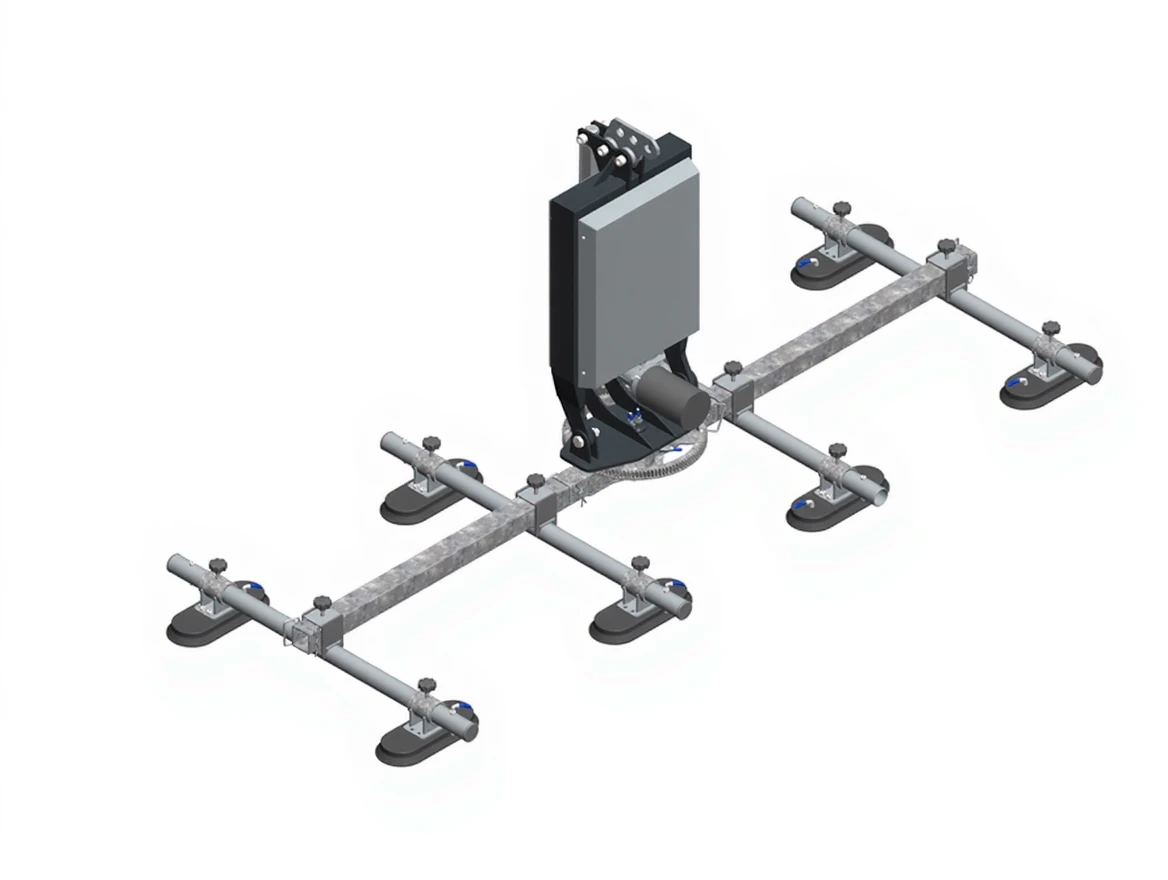

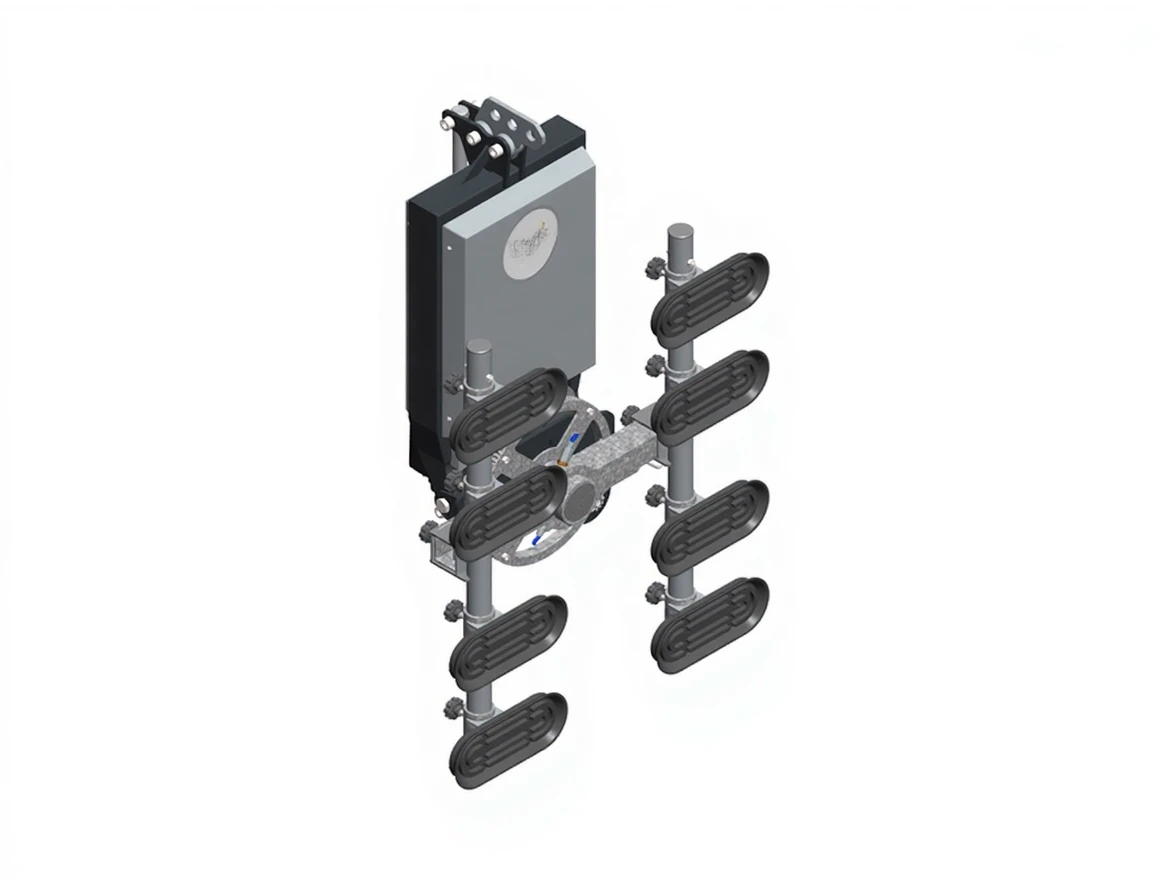

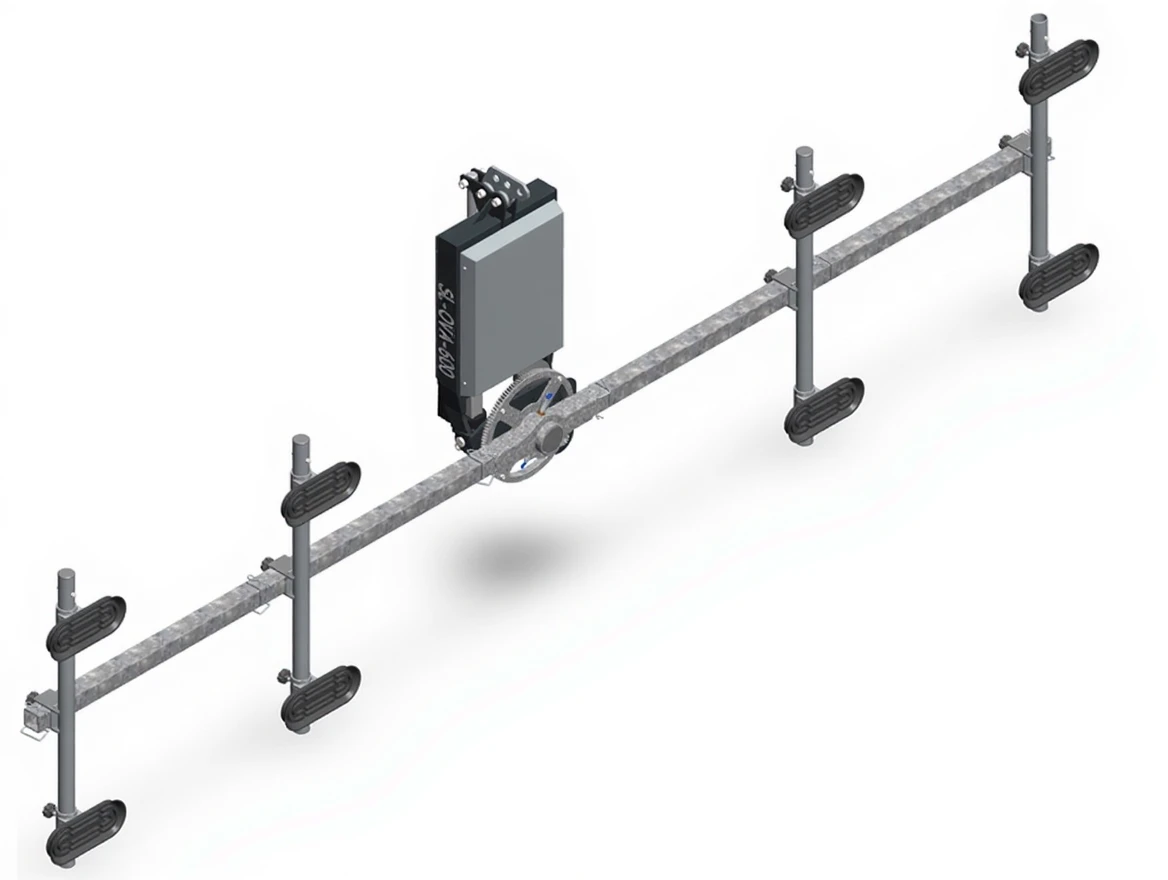

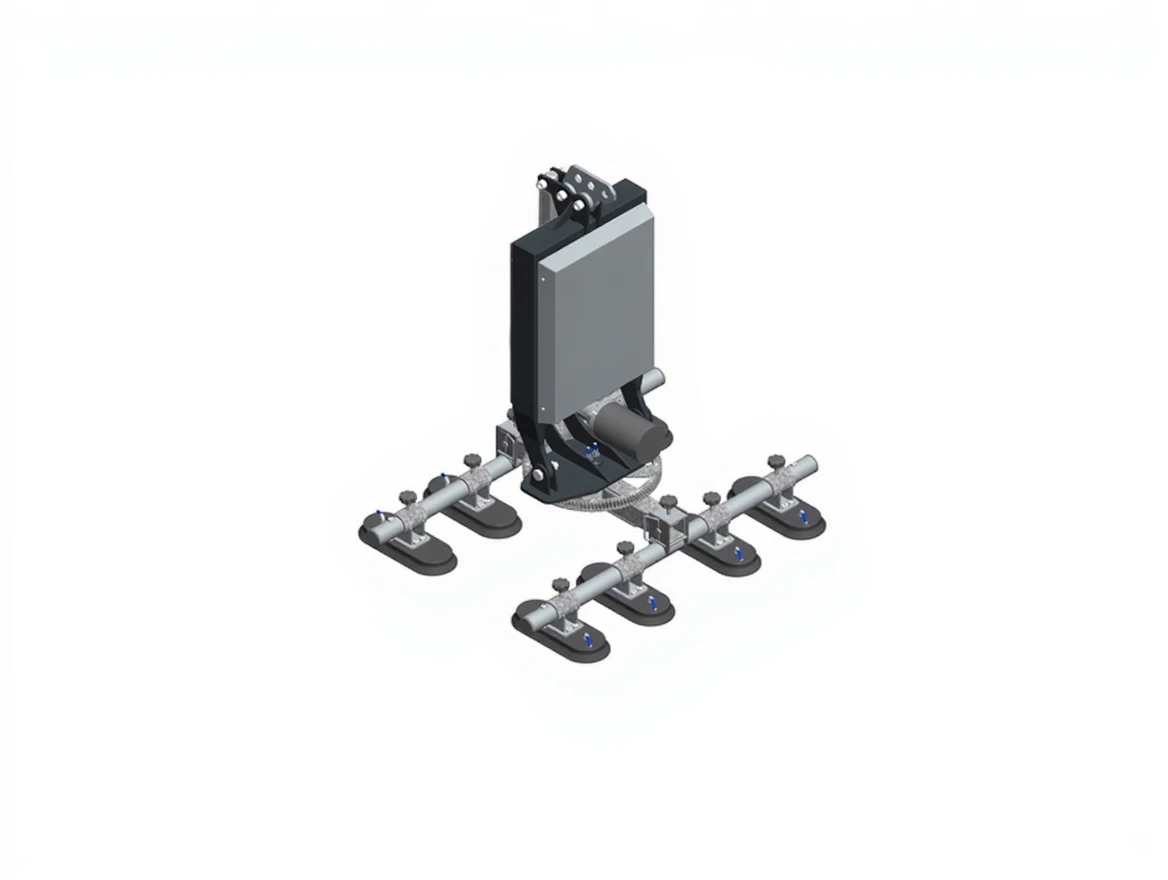

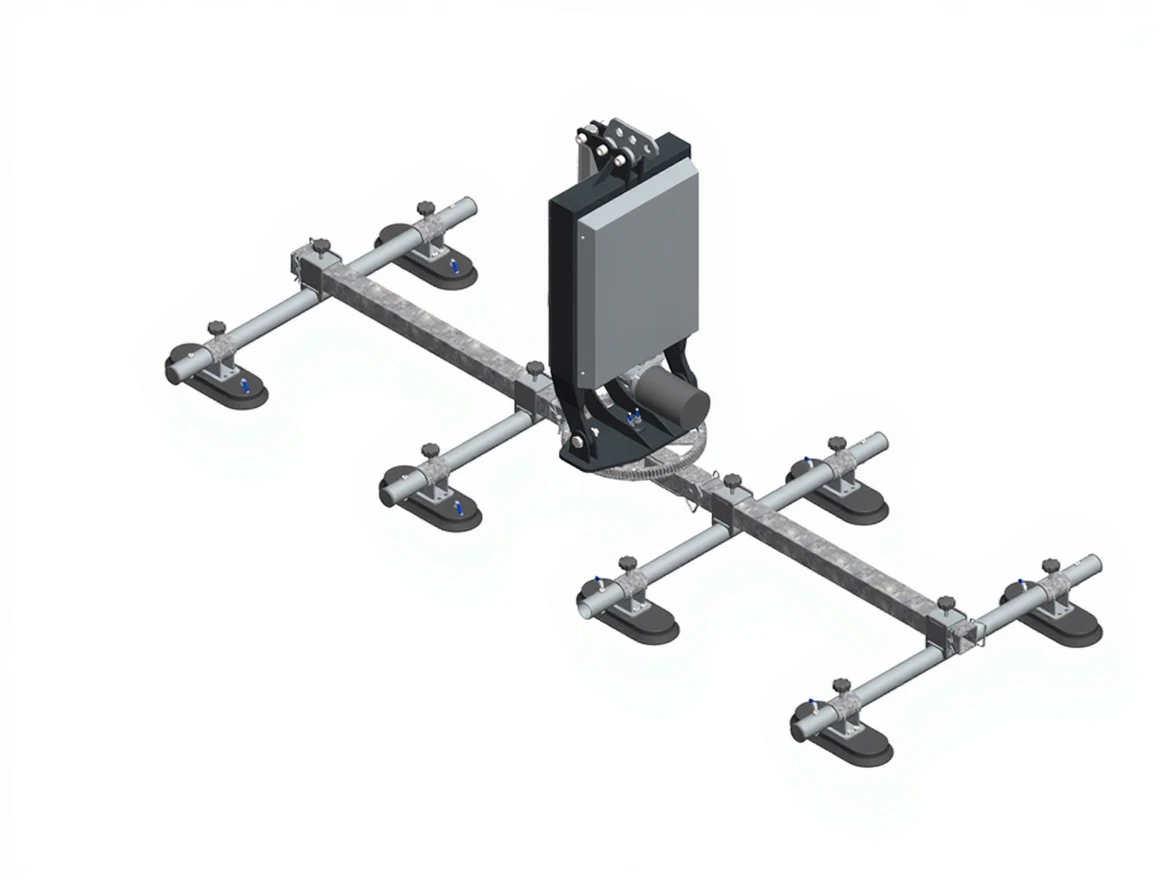

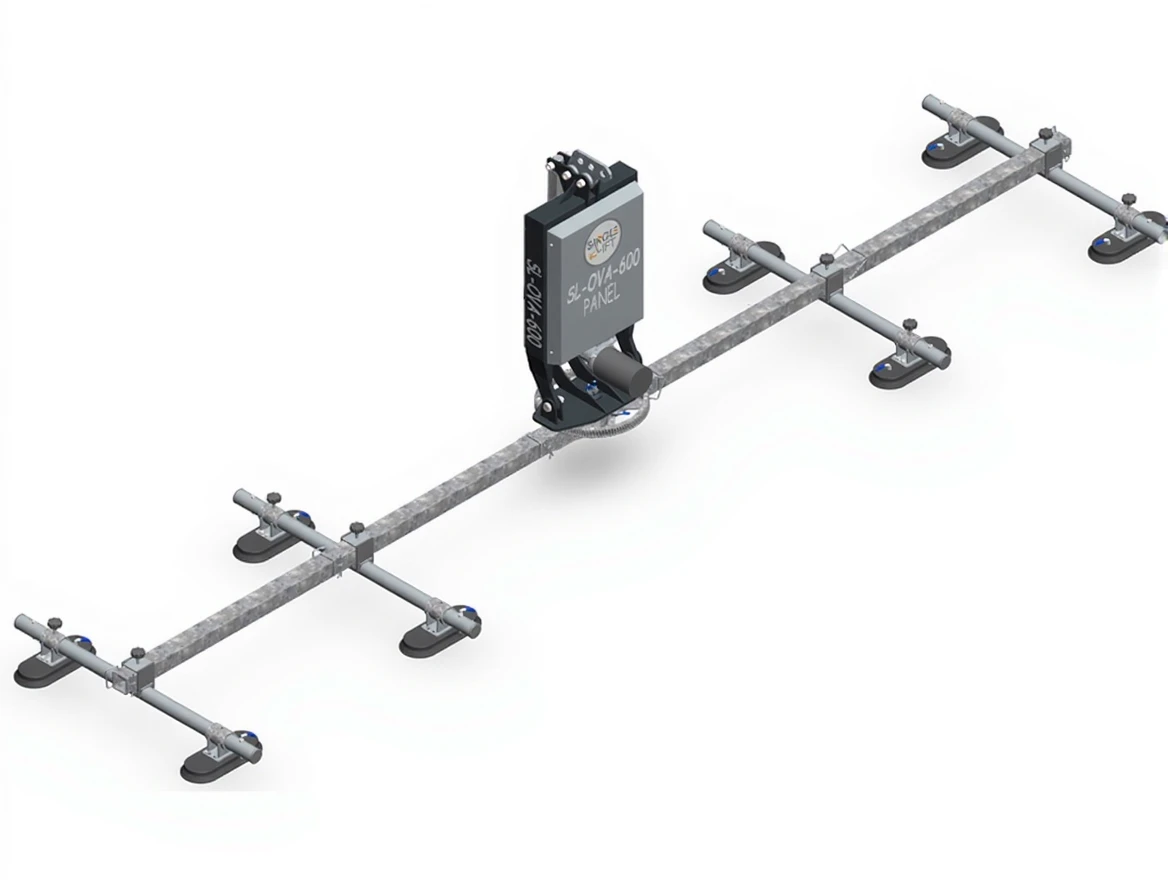

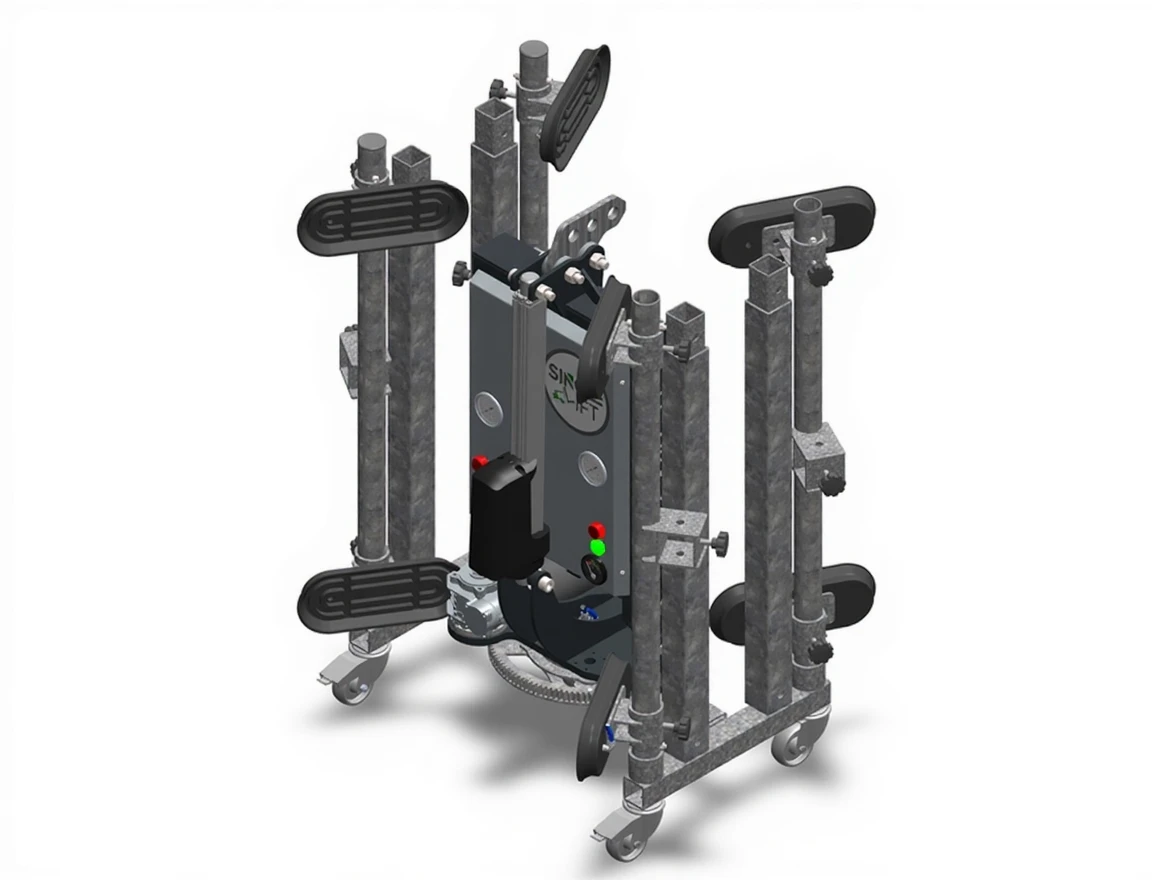

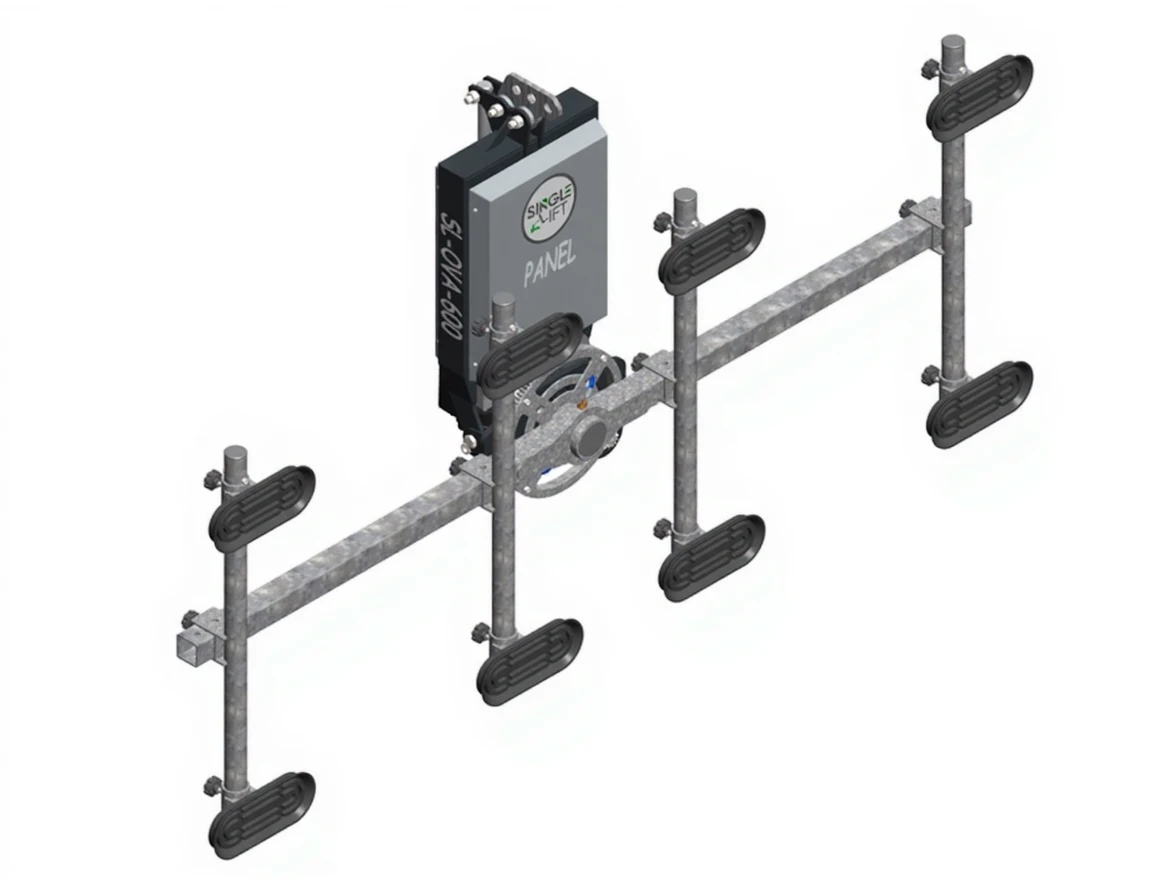

SL-OVA-600 PANEL – Automatic Vacuum System for Panel Transport and Installation
SL-OVA-600 PANEL is an automatic vacuum lifting system designed especially for panel transport and installation tasks. With a 600 kg carrying capacity, this model offers superior performance in both construction site and factory applications thanks to its ergonomic design and advanced control features.
This system features automatic 360° rotation and 0°/90° tilting capabilities. All these operations can be controlled via remote control, ensuring operator safety and ease of use.
It securely holds panels with 4+4 vacuum pads and 125×300 mm suction cups. The vacuum system operates with a 24 V 28Ah electrical system providing high efficiency for extended periods of use.
Technical Specifications
| Feature | Value |
|---|---|
| Box Dimensions (LxWxH) | 900 x 650 x 1250 mm |
| Box Weight | 38 ± 2 kg |
| Vacuum Pad Quantity | 4+4 |
| Machine Weight | 130 ± 3 kg |
| Electrical System | 24 V 28 Ah |
| Pad Size | 125 x 300 mm |
| Maximum Carrying Capacity | 600 kg |
| Automatic Tilting Angle | 0° / 90° |
| Automatic Rotation Angle | 360° |
Areas of Use
-
Installation and transport of sandwich panels
-
Industrial roof and facade cladding works
-
Vertical-horizontal positioning of lightweight structural elements
-
Factory internal panel production and assembly lines
-
Safe, fast, and ergonomic panel applications at construction sites
