600 Kg Curved Battery-powered Vacuum Marble Ceramic Glass Lifting System

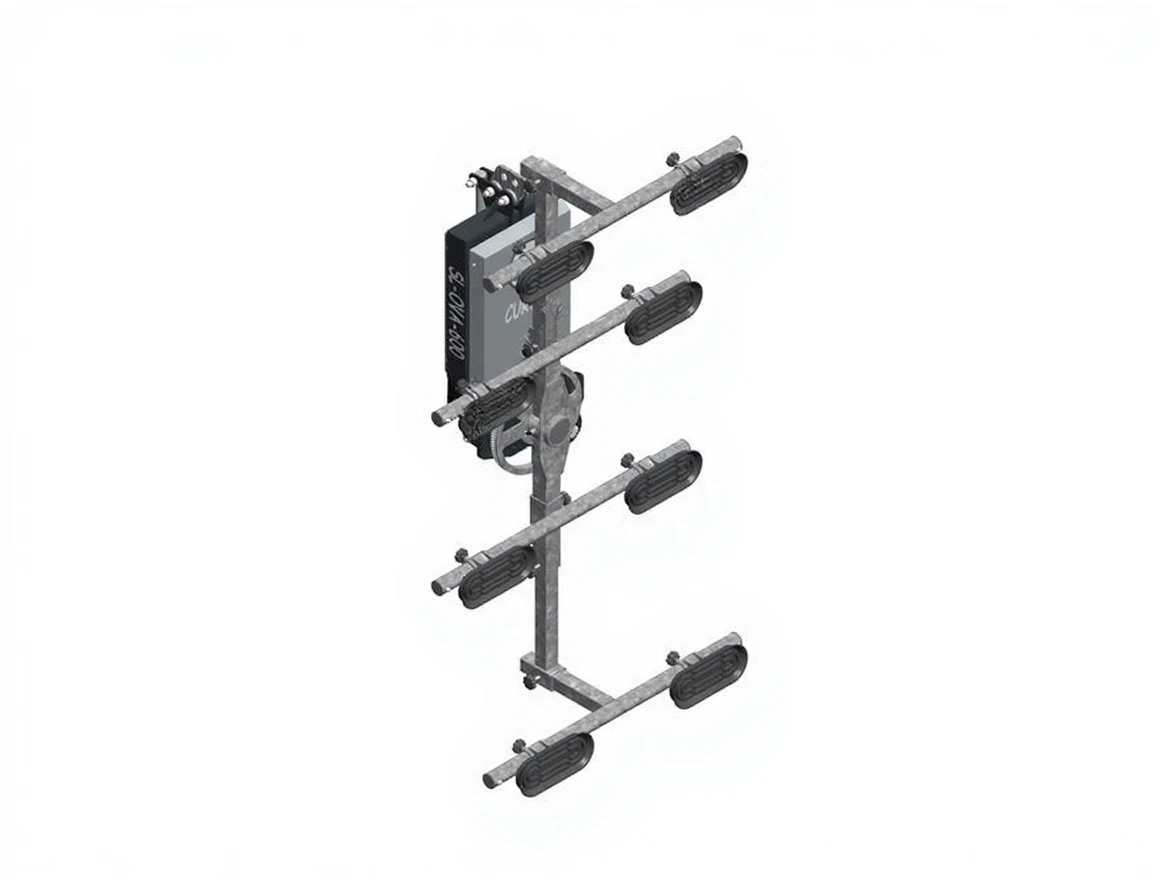

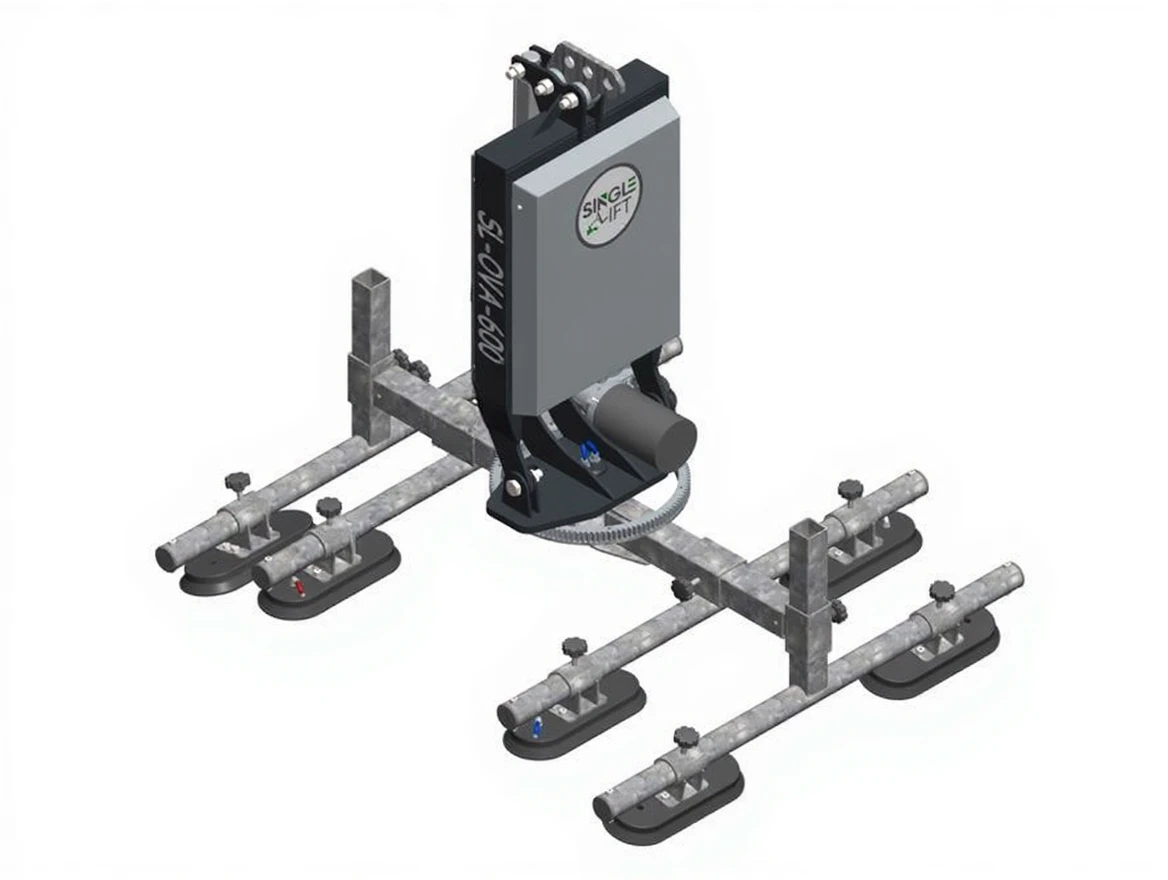

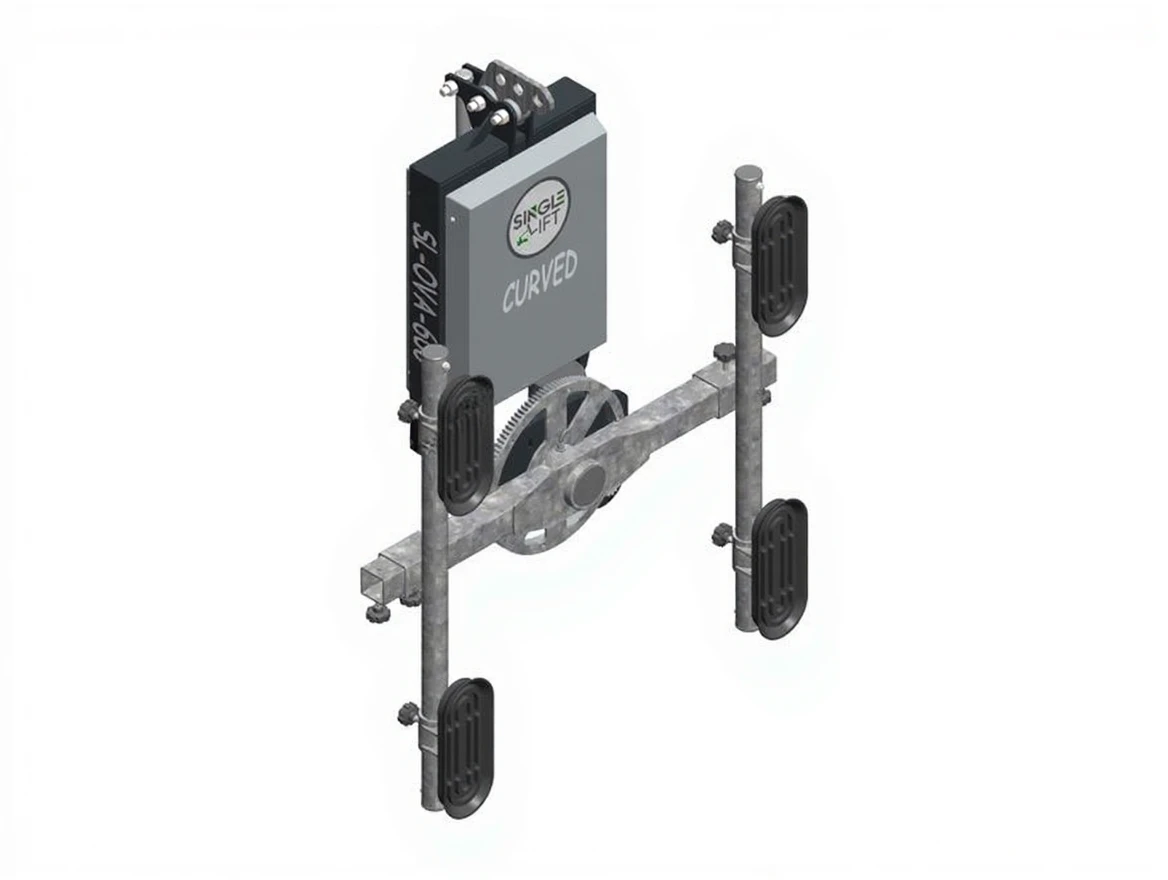

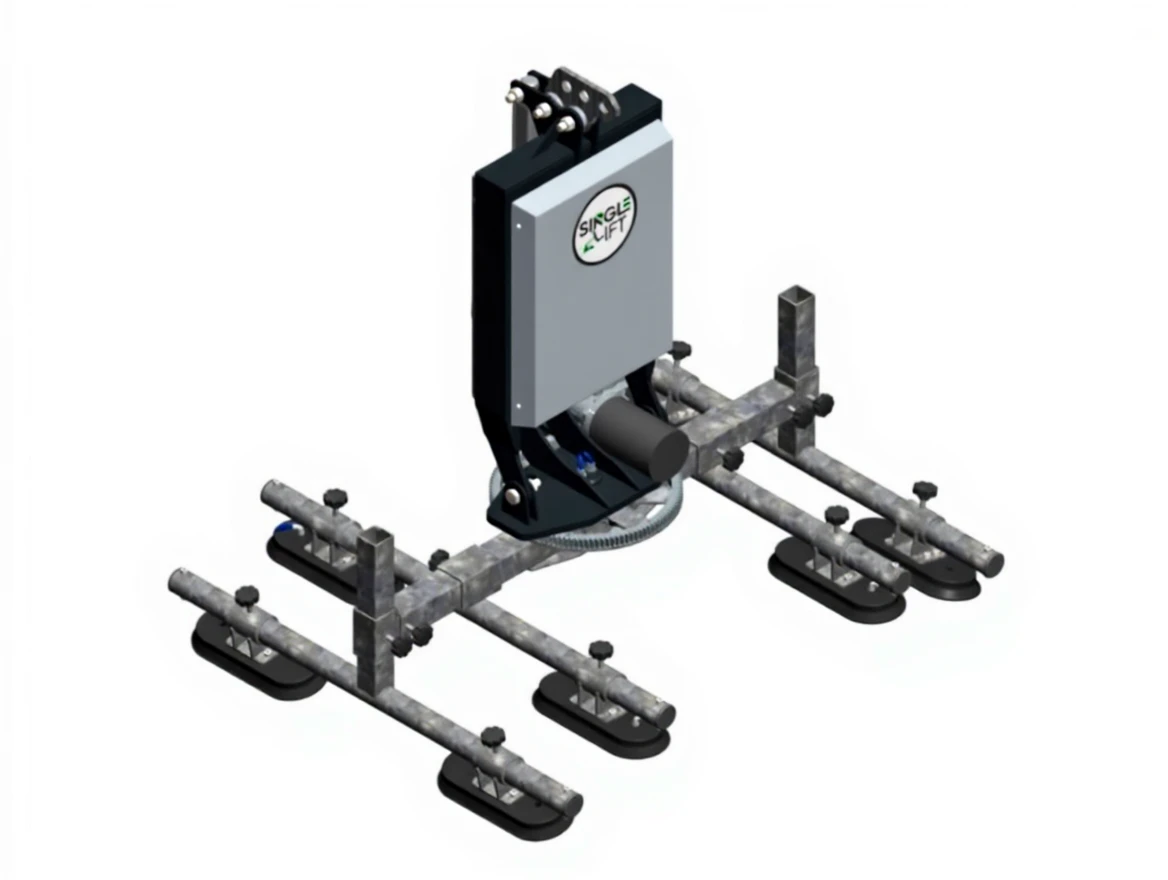

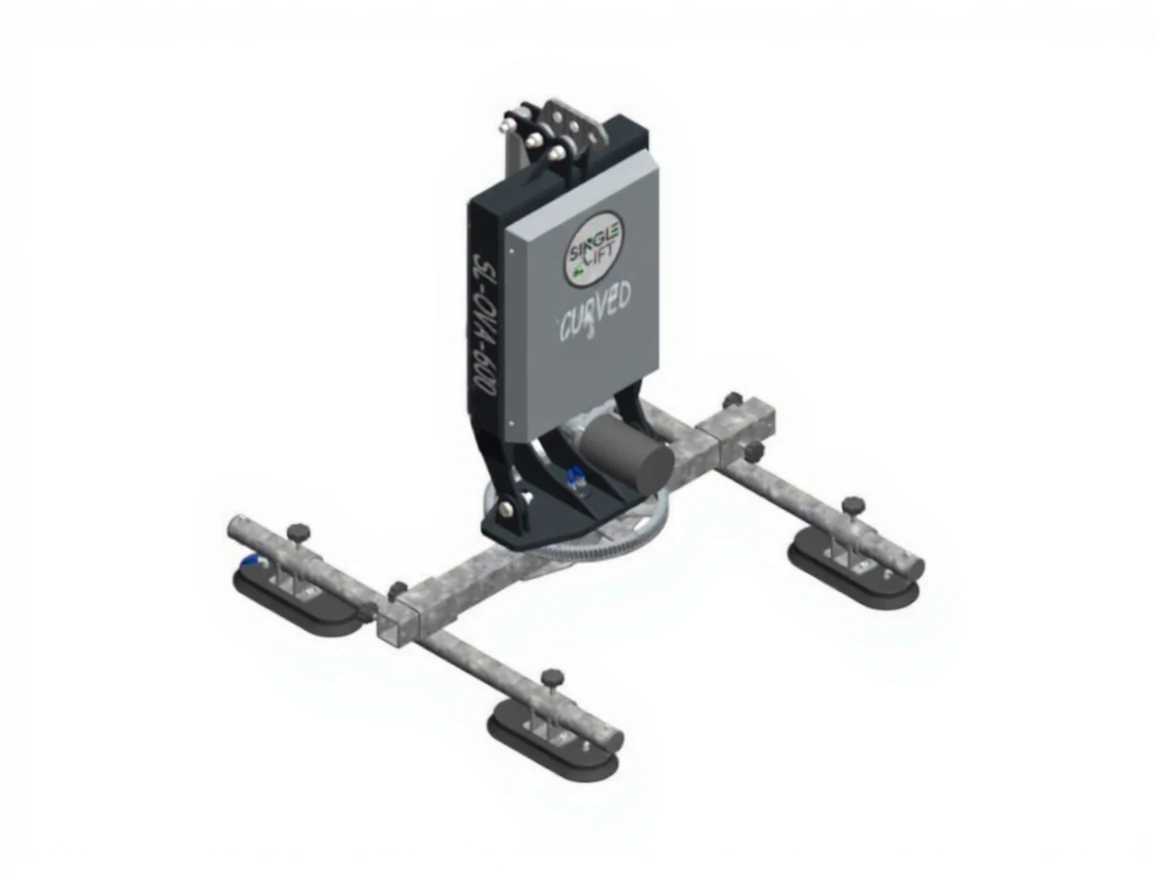

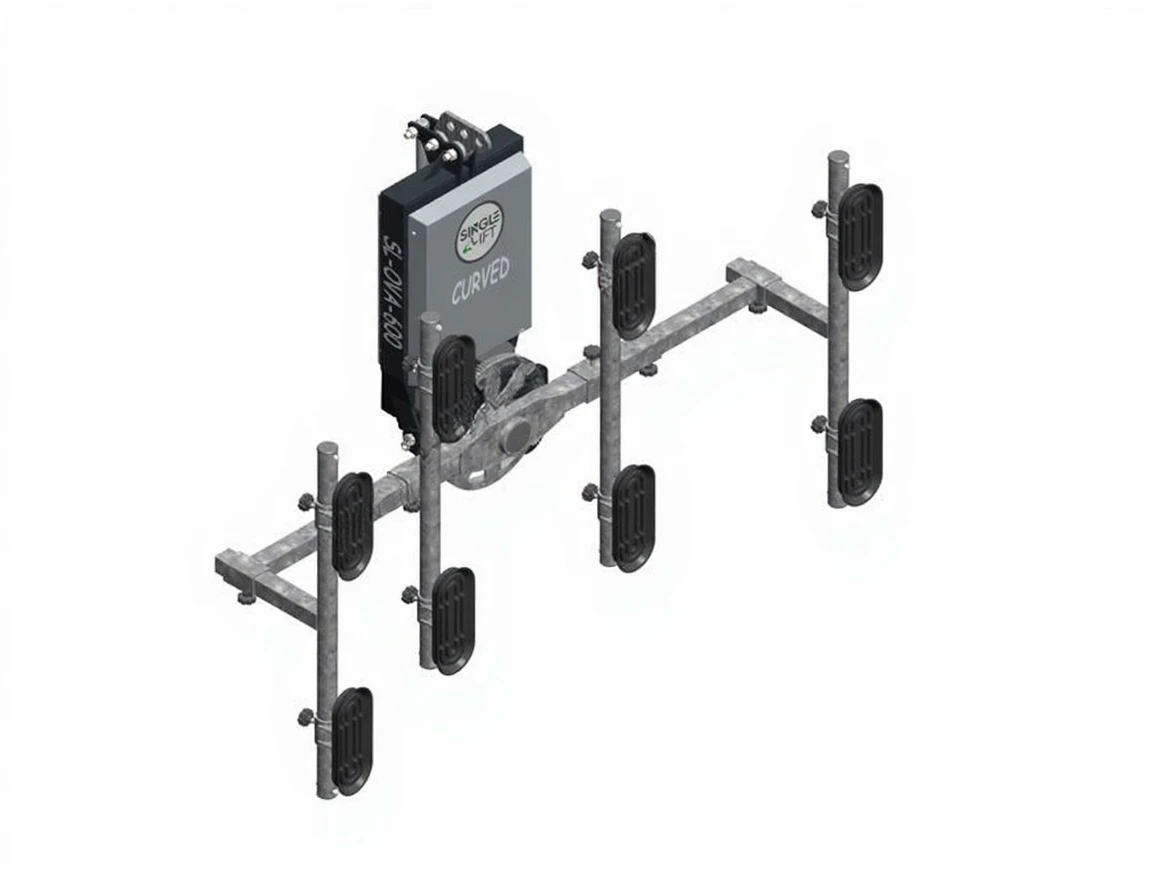

SL-OVA-600-CURVED Vacuum Lifting System (For Curved Glass)

The SL-OVA-600-CURVED model is a special vacuum lifting system developed to safely carry curved glass and similar inclined surfaces. With a carrying capacity of up to 600 kg, the product is equipped with special suction cup pads providing strong grip and safety systems. With manual operation feature, loads can be rotated 360 degrees and tilted 90 degrees, making the precise and easy installation of glass or inclined surfaces possible.

It provides practical use on construction sites and within operations thanks to its modular and portable design. It offers long working hours with a powerful 24V battery system. Additionally, it ensures transport safety by adapting to curves with a maximum diameter of 1500 mm.

Technical Specifications

• Dimensions: 511 x 850 x 1654 mm

• Number of Suction Pads: 4+4 (8 pieces)

• Total Weight: 125 kg ± 3 kg

• Box Weight: 29 kg ± 2 kg

• Electrical System: 24 V / 28 Ah (Battery)

• Pad Diameter: 290 mm

• Maximum Carrying Capacity: 600 kg

• Manual Tilting Angle: 0° / 90°

• Manual Rotating Angle: 360°

• Maximum Curve Diameter: R1500 mm

Applications

• Transportation and installation of curved glass

• Facade and interior decoration applications

• Special applications in construction and architectural projects

• Transportation of curved surfaces in automotive and industrial production areas
