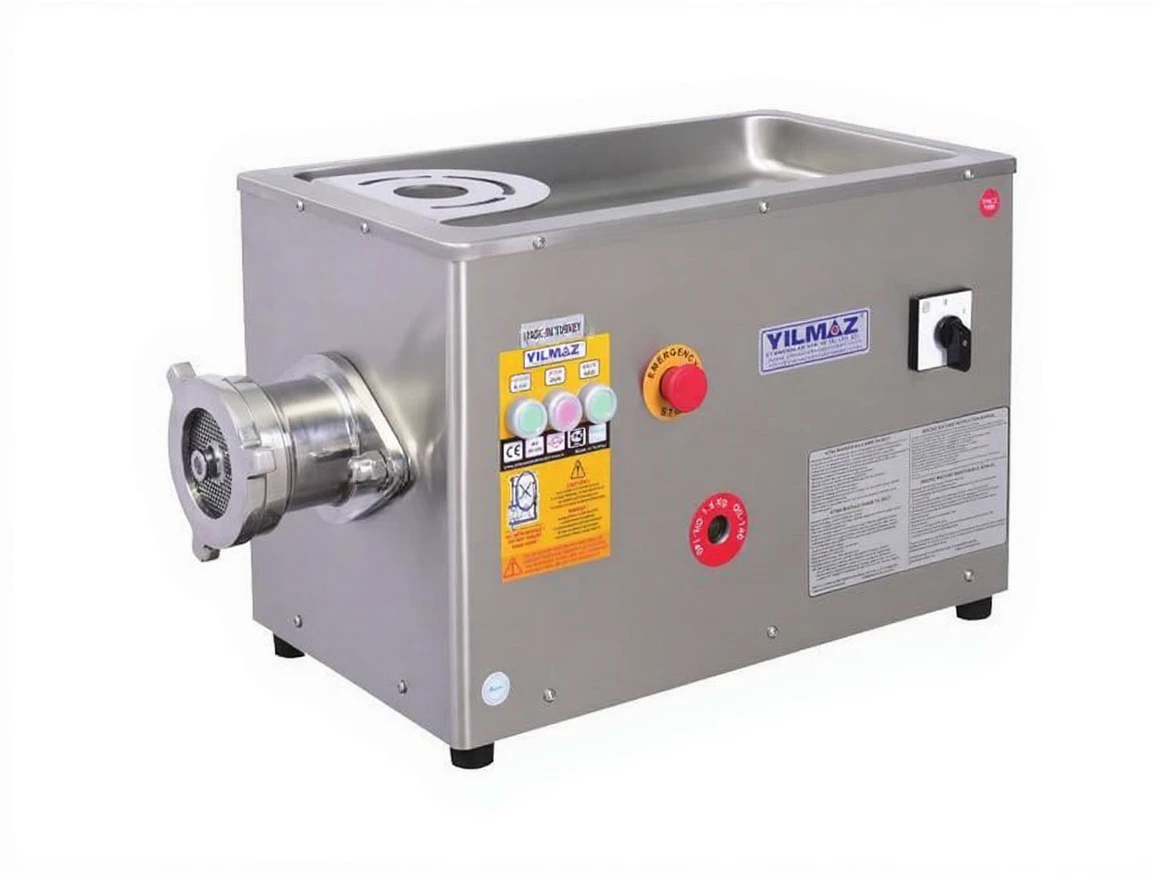

600 Kg / h (32 No 100 mm) Soğutmasız Et Kıyma Makinası

Designed by our company for the first time to comply with CE standards with consideration for hygiene and human health.

The machine has a 3 Kw 4 Hp three-phase motor.

Capacity; When used with a 4.5 mm plate, it is 600 kg/hour.

The machine uses 2 (two) contactors as motor protectors.

The gearbox body is aluminum die-cast. The gearbox front cover is made of steel to prevent the bearing seat from oxidizing.

All connection equipment of the meat processing units in the machine are made of 304 quality stainless steel.

The upper tray (meat loading hopper) and body are made of 304 quality stainless steel sheet.

Heat insulating insulation is applied to the lower surface of the upper tray.

The edges of the upper tray are designed oval to prevent bacteria retention.

There is a hand protection device made of 304 quality stainless steel with a thickness of 3 mm on the upper tray.

The casing (meat outlet hopper), screw (auger or ball), flange (nut), and meat inlet throat are made of 304 quality stainless steel casting.

2 M16 stainless bolts and 2 M16 stainless nuts are used to attach and detach the meat outlet hopper. A closed cap nut is used on the front surface to prevent dust-dirt, etc. from coming in.

The meat outlet hopper can be easily removed for cleaning and hygiene.

There is a stainless steel wrench to attach and remove the flange (nut) and meat outlet hopper.

There is a carrying handle on the back cover for easy transportation.

There are forward-reverse-stop buttons and an emergency stop button for emergencies.

Stainless steel plate and blade are used.

There is a protective enclosure wire on the bottom surface of the machine to prevent unwanted insects from entering.

The machine has an oil and flame resistant electrical connection cable.
