600 Kg Mobile Vibrating Big-Bag Filling System
| Brand | Tuna |
|---|---|
| Model Type |
T-BBF 600 |

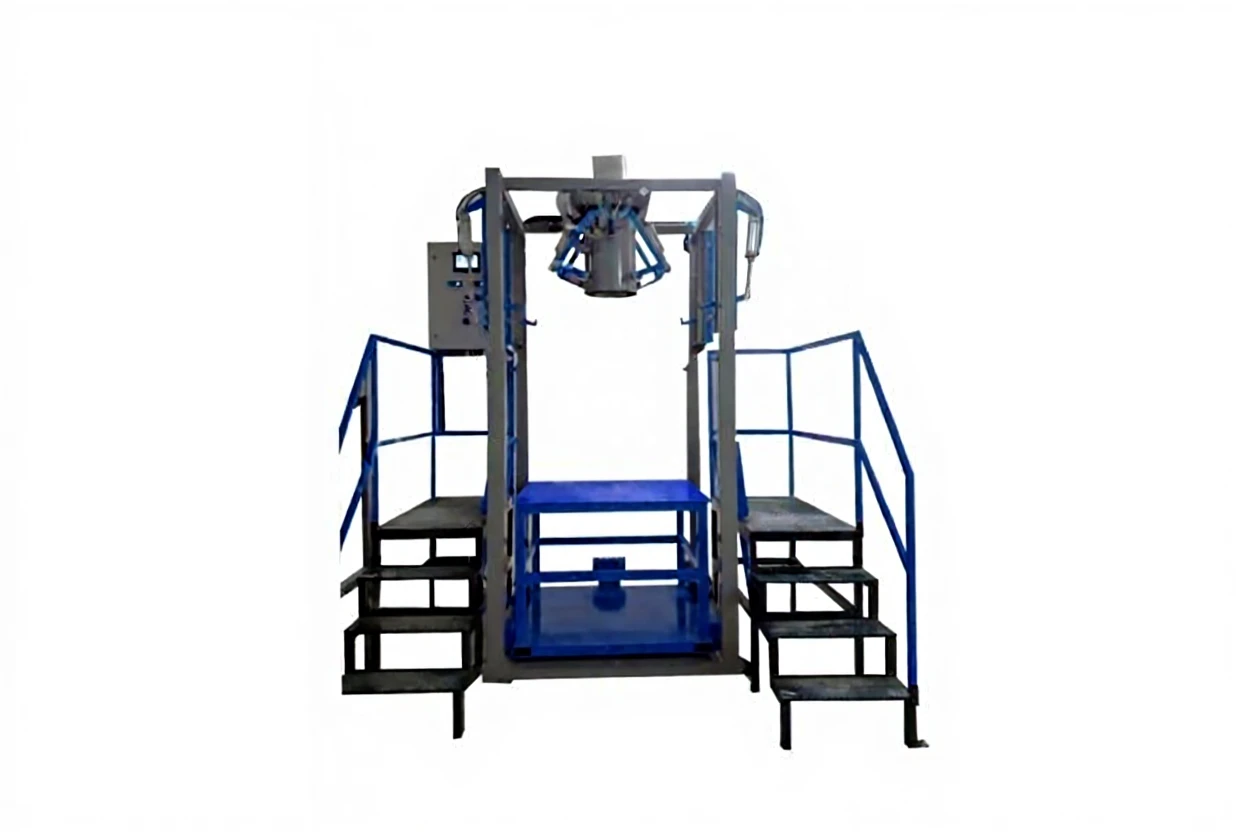

600 Kg Mobile Vibrating Big-Bag Filling System

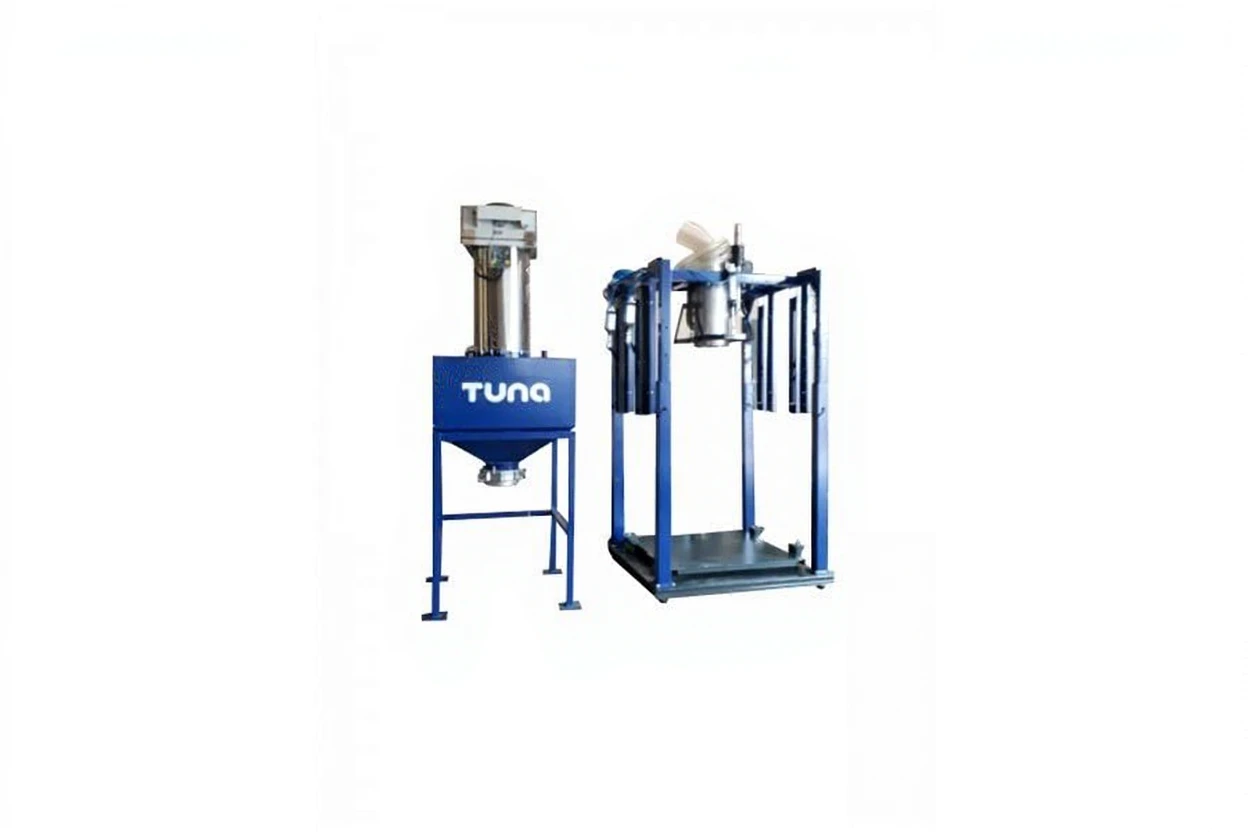

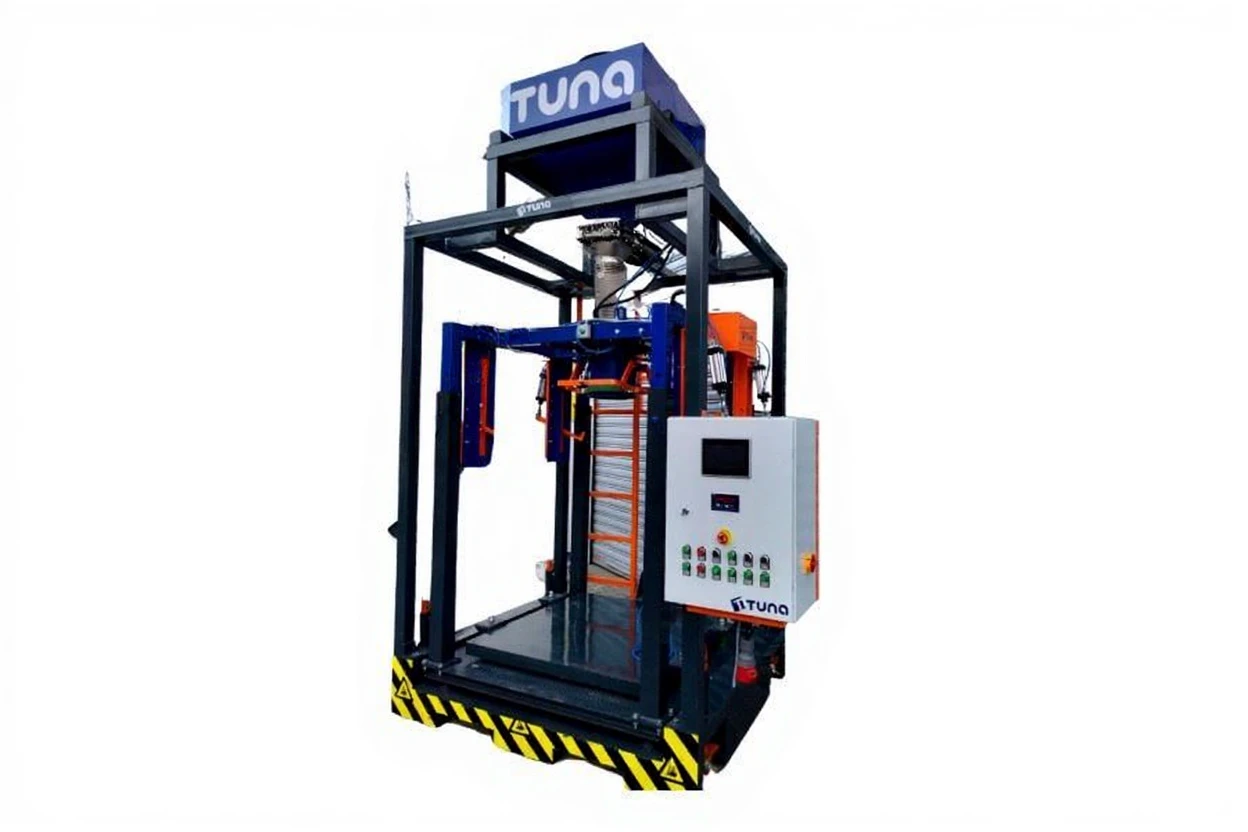

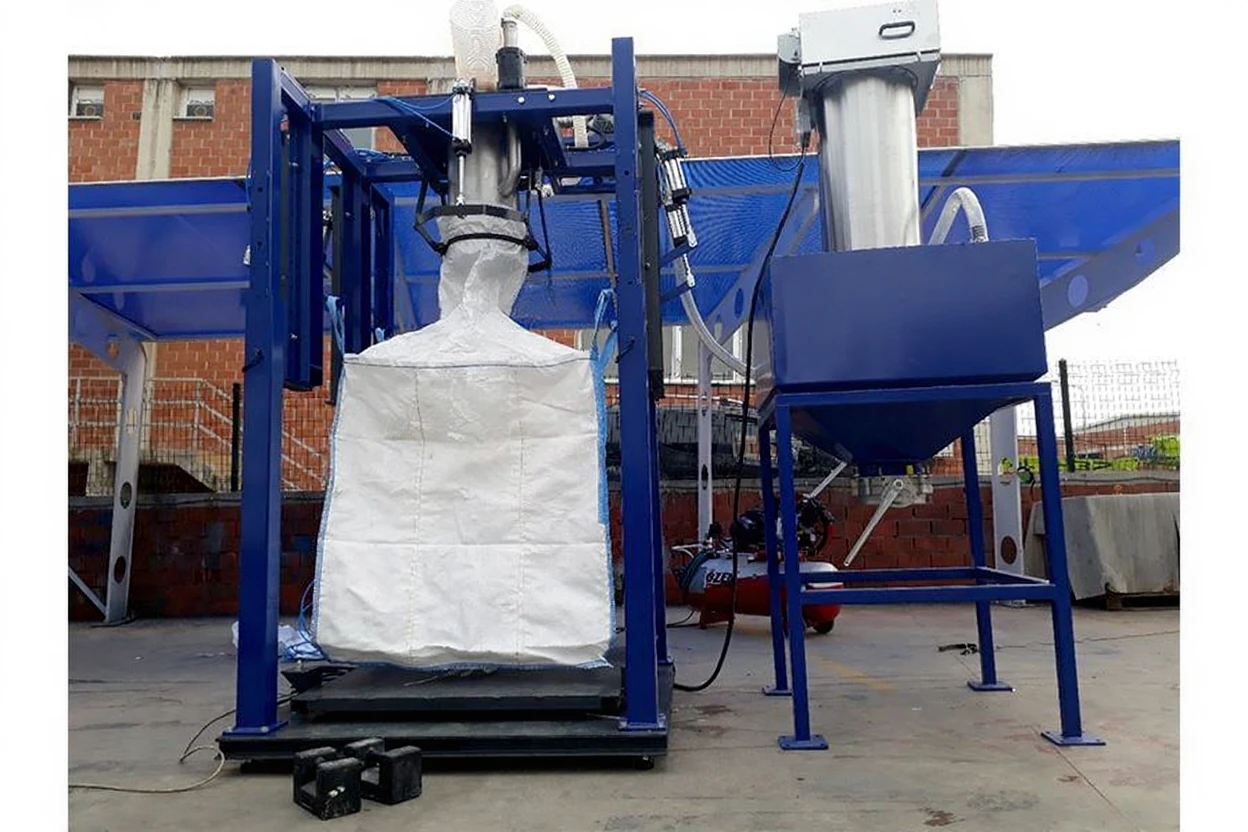

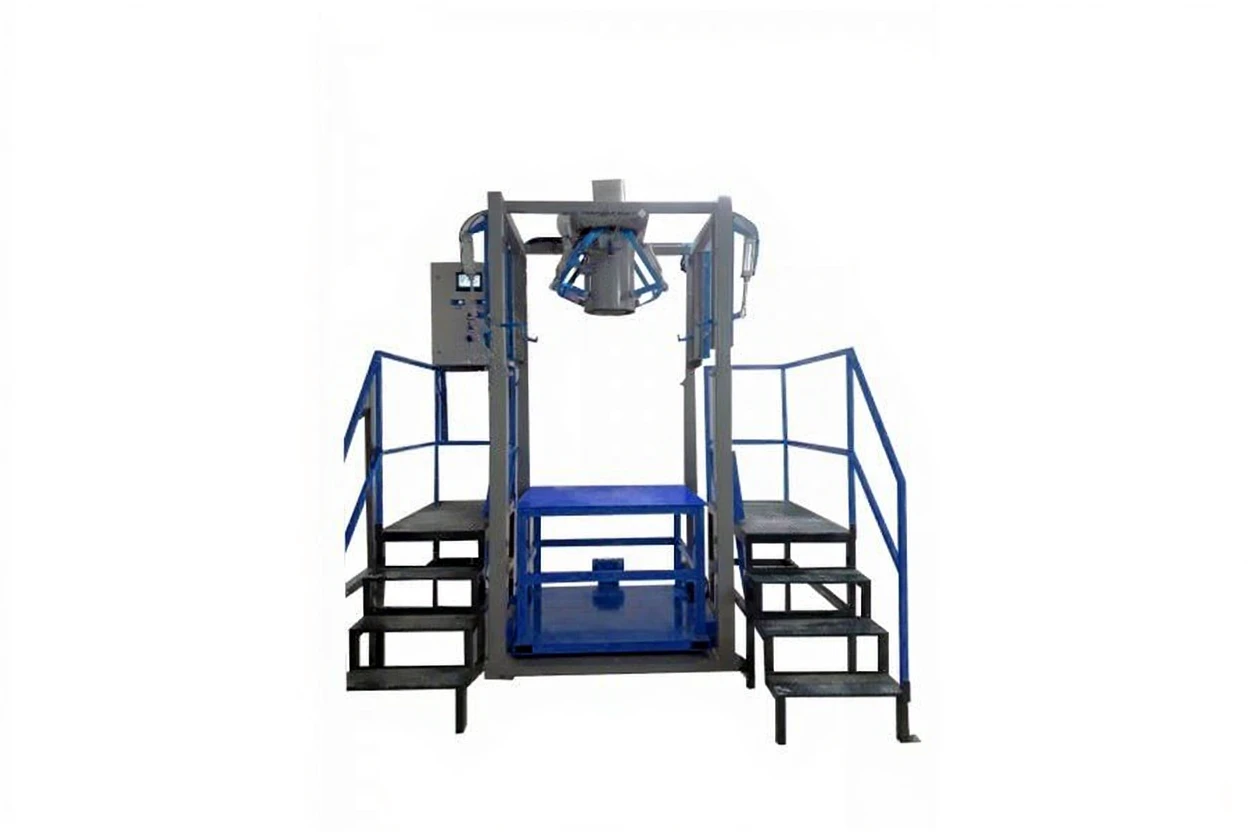

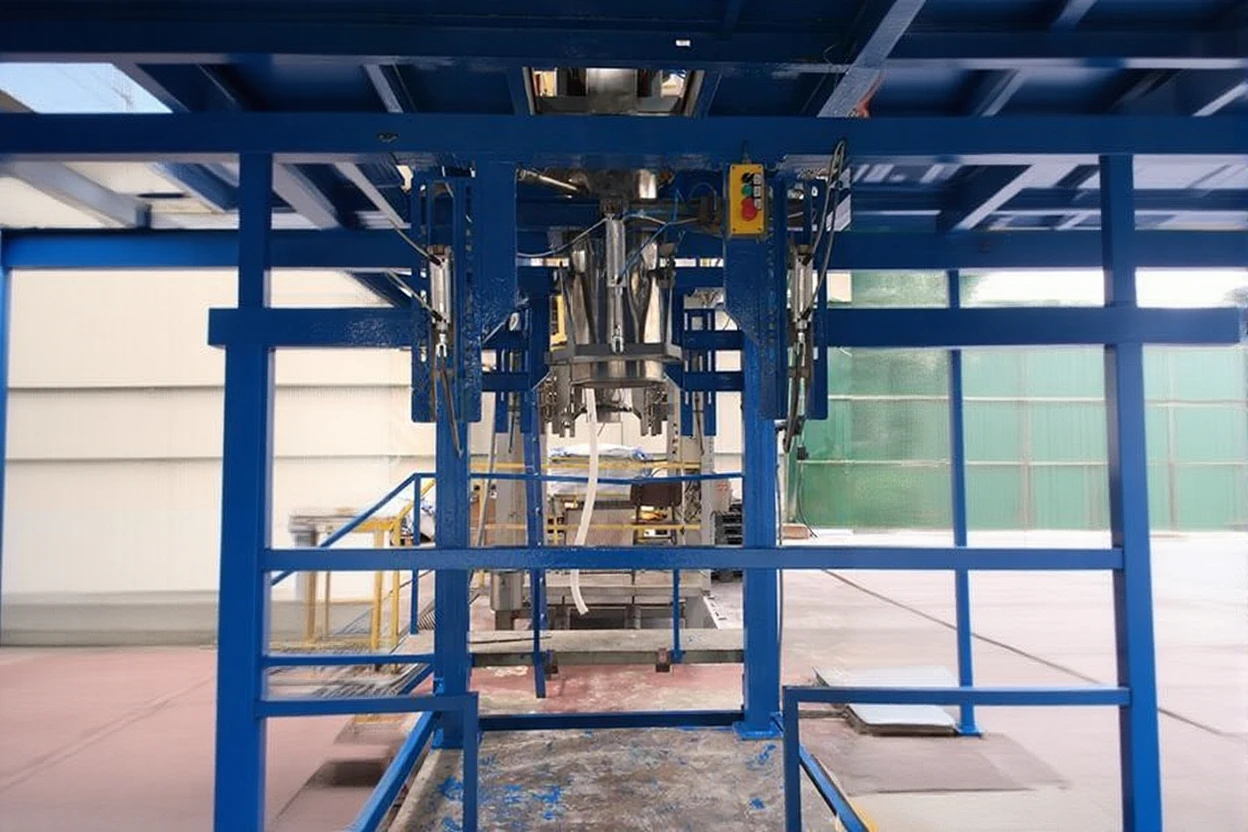

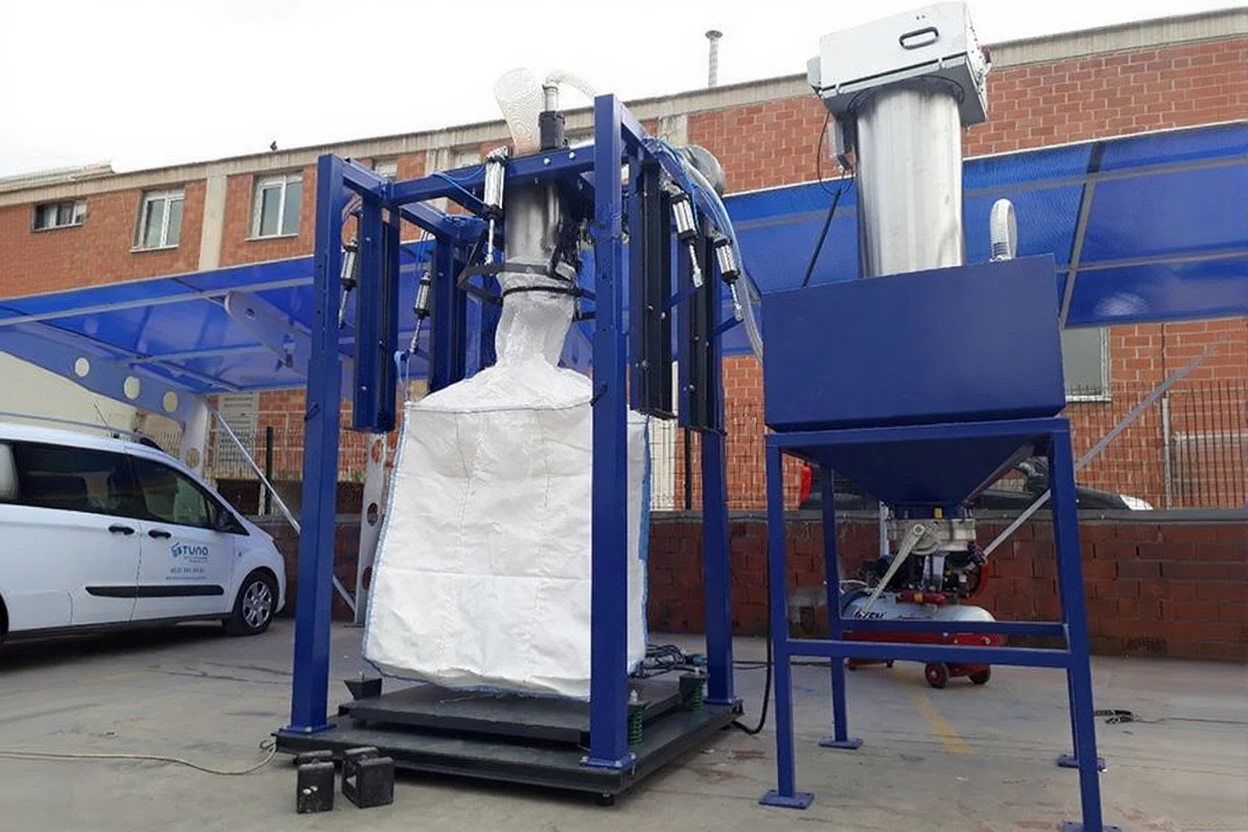

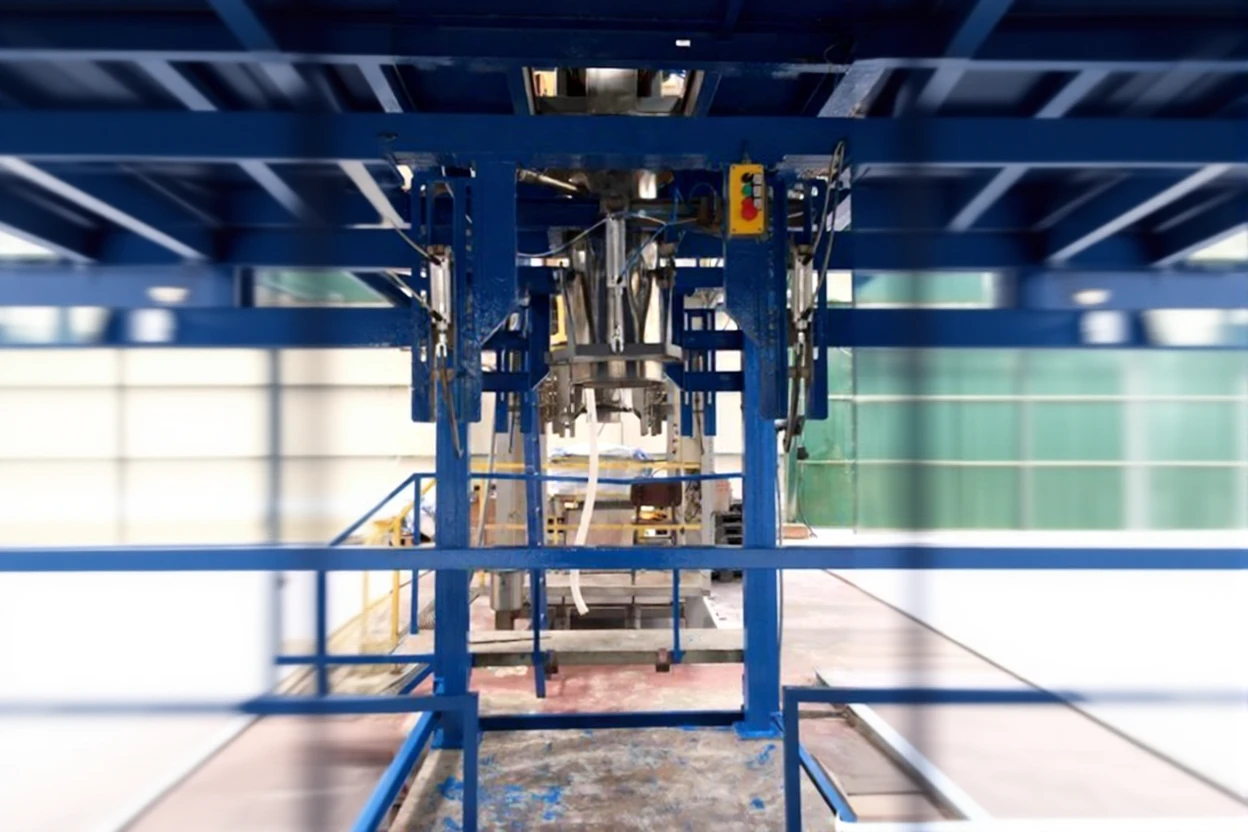

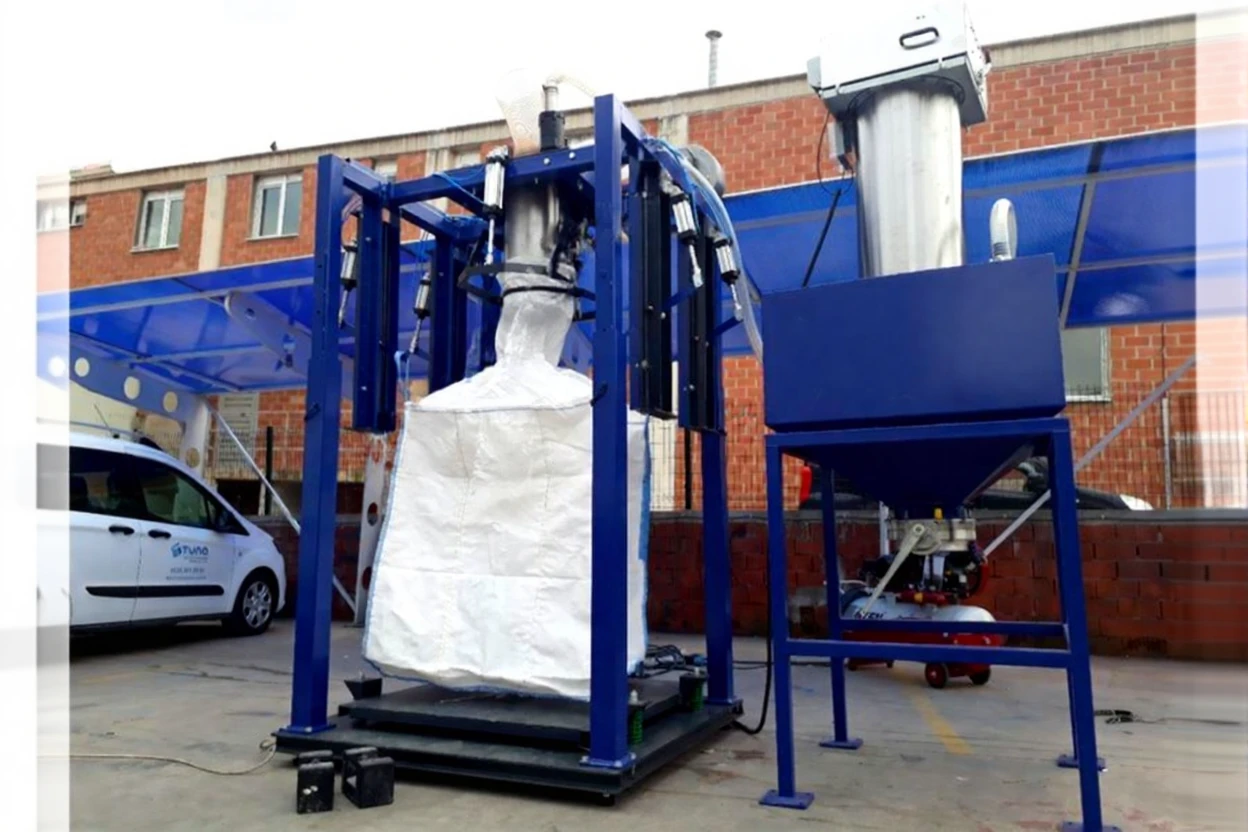

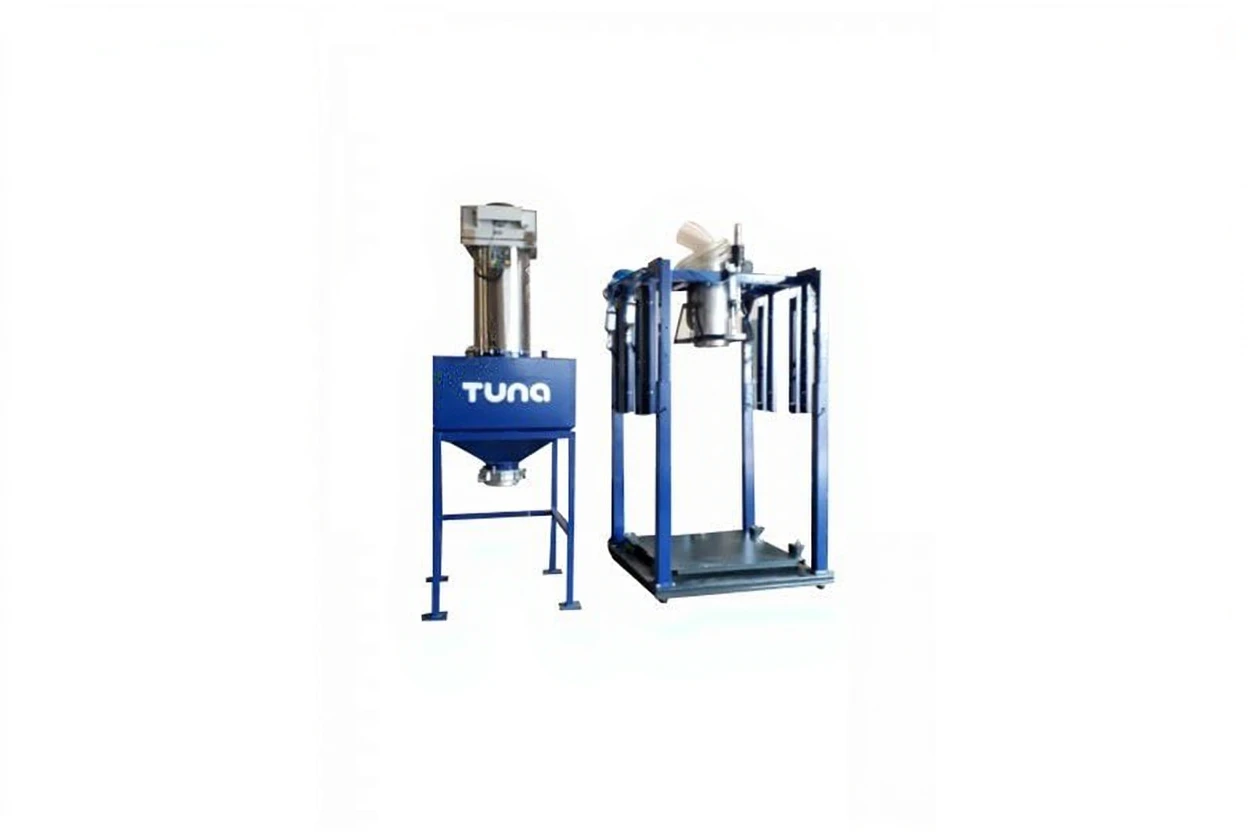

The Tuna Big-Bag Filling System is designed to operate in industrial heavy conditions. Semi-finished products in the factory area can be bagged as Big-Bags. The system consists of a sturdy body, hydraulic elevator, weighing unit, conveying unit, and control panel.
In the weighing system section, SB stainless steel load cell, Tuna T360L Indicator are used. It can fill from 0 kg to 2,000 kg as needed. The system is hydraulic and is an Automatic Weighed Big-Bag Filling System. The system has the ability to fill at a capacity of 20-40 t/h with 1/1000 precision
Designed to be used in full industrial and heavy conditions. Thanks to its hydraulic system, it ensures that the product being filled sits perfectly. After filling, Big-Bag transfer is easily done thanks to the euro pallet design. It is a system with no space or height problems. With the control panel on it, daily, weekly, monthly.. weighing information can be obtained, these weight information are automatically recorded on a flash disk or transmitted to weight systems such as MRP, SAP via Ethernet.
It is designed for use in sectors such as Petrochemical, Cement, Food, Agriculture.
Features
- Industrial Use
- Stainless steel contact points
- IP68 Protection Class
- Easy to use and install
- Resistant to harsh conditions
- Domestic Product
- OIML-CE Certified
Applications
- Petrochemical plants
- Port and storage facilities
- Cement factories
- High capacity, 20 t/s filling speed
- Precise weighing, 1/1000 accuracy
- 0 kg – 2,000 kg big-bag filling
- Hydraulic suspension system
- Continuous weight recording and information transfer via control panel
- Filling carried out precisely in fast-slow filling logic,
- Authorization and user identification, reporting in date-time format via the panel,
| MODEL | T-BBF 600 | T-BBF 1000 | T-BBF 2000 |
| CAPACITY | 600 kg | 1000 kg | 2000 kg |
| ACCURACY | 1/1000 | 1/1000 | 1/1000 |
| FILLING CAPACITY | 20 tons/hour | 20 tons/hour | 20 tons/hour |
