600 Kg Vacuum Lifting System Compatible with Electric Crane Systems

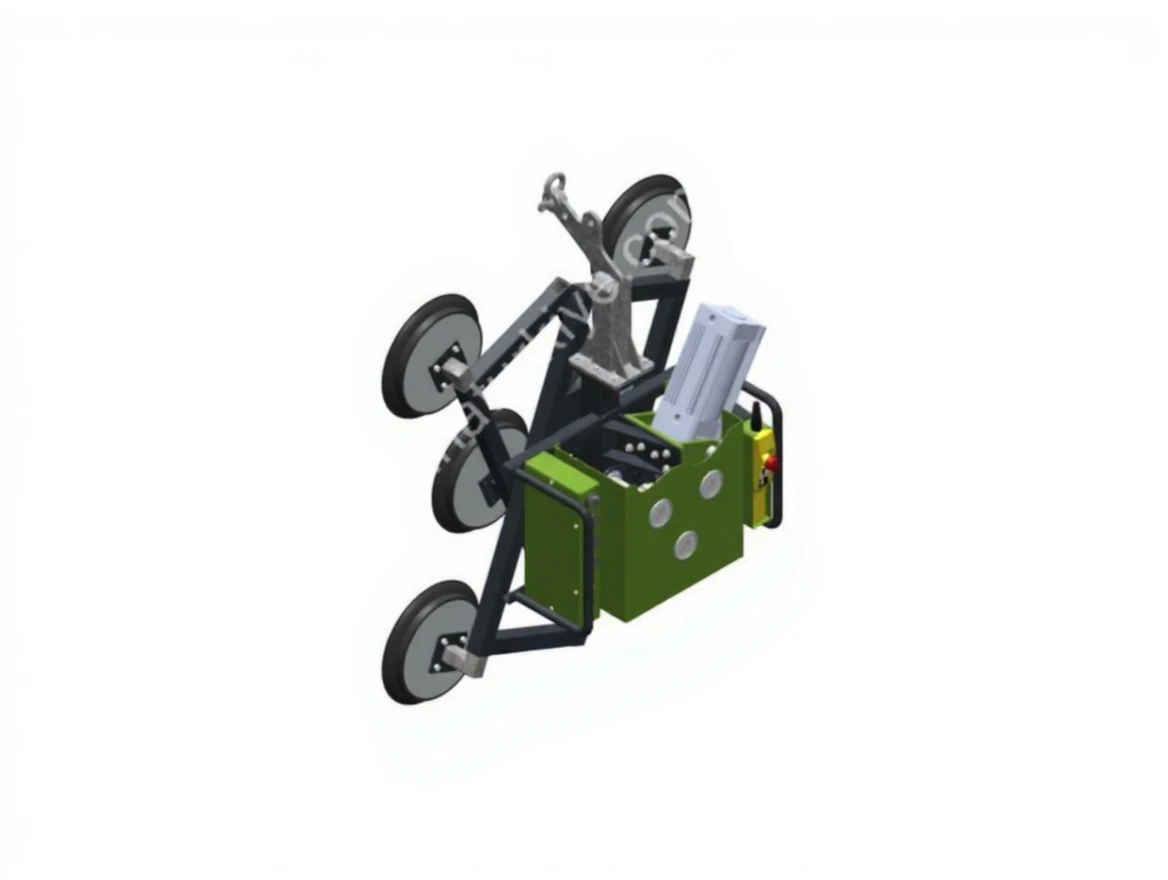

SL-PVL-600VR/EW – Vacuum Vertical Lifting and Rotating System Compatible with Cranes

Developed within SingleLift's Bat Series, this is a vacuum lifting system with a 600 kg carrying capacity and 90° vertical rotation feature. This special model is specifically designed to work in integration with electric crane systems, making it ideal for performing high lifting operations more safely and controlled in factories and workshops.

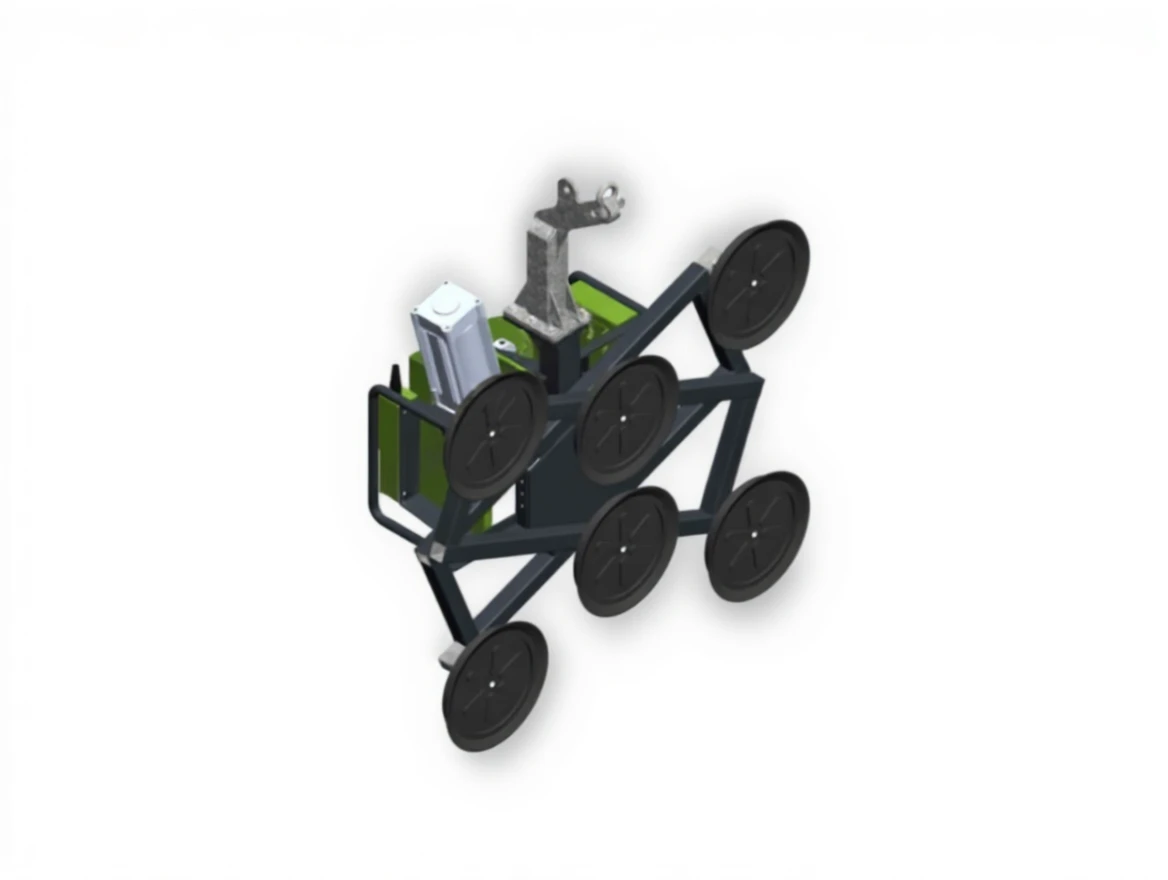

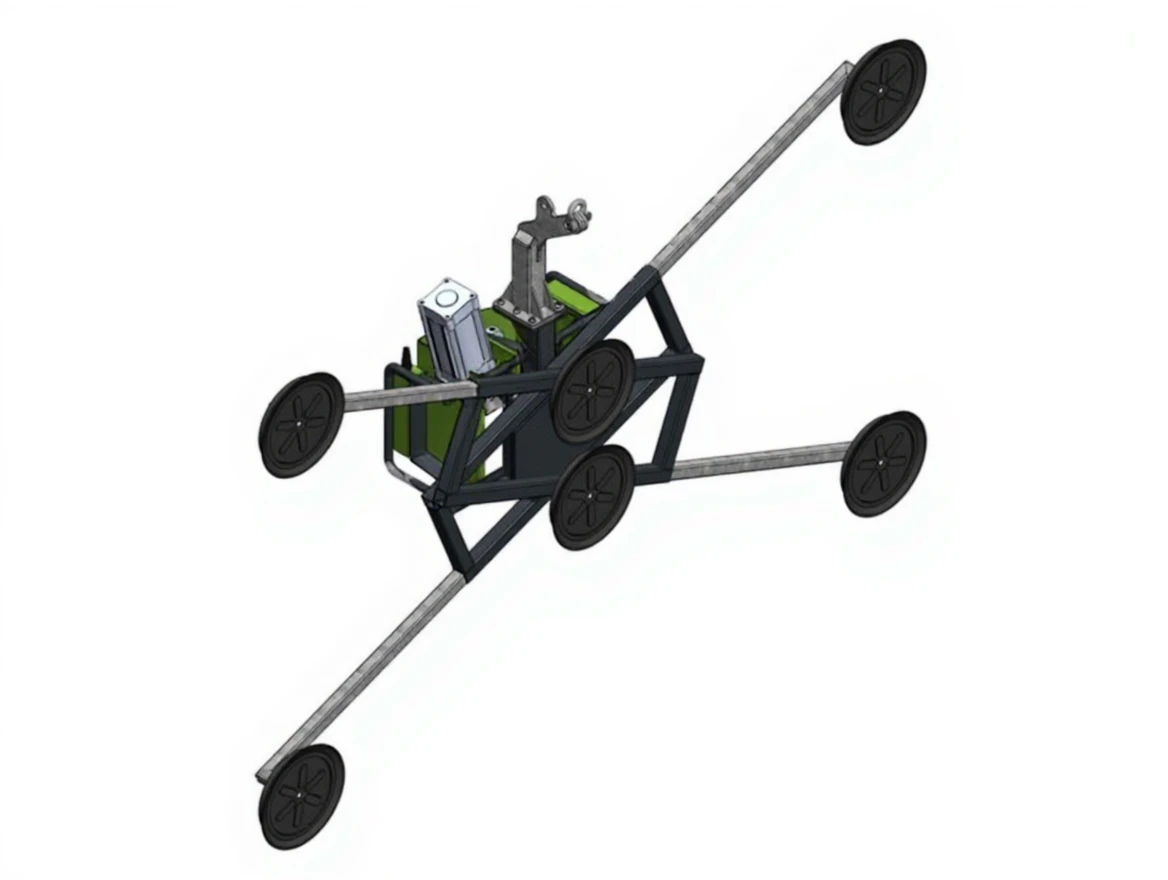

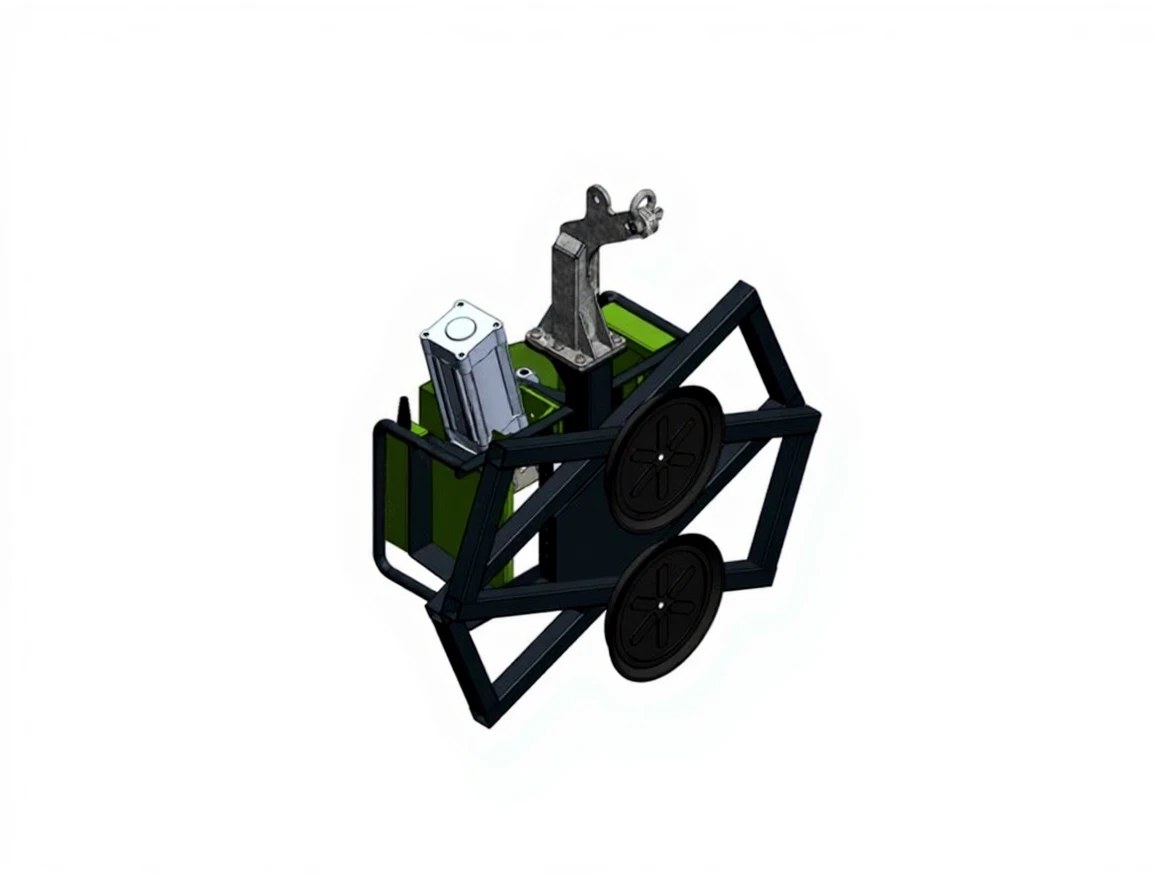

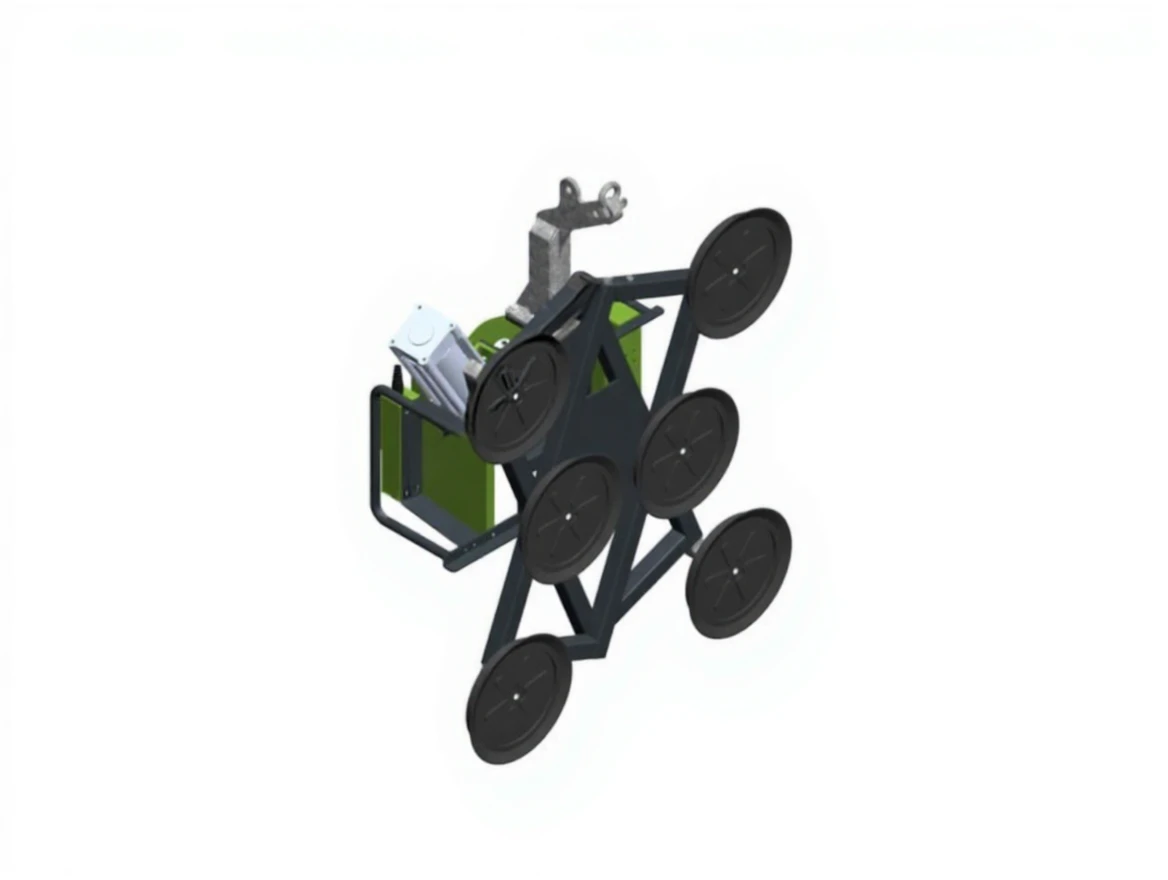

With a total of 6 suction cups (290 mm in diameter), 2 in the center and 4 around the edges, it securely grips large surface delicate materials such as glass, ceramics, and marble. The special lifting ring on it allows the SL-PVL-600VR/EW model to be directly attached to electric crane systems.

The dual circuit vacuum system ensures that the transported material is always held securely and in place. The shape and topology optimization used in the body design increases the product's lightness and ergonomics, reducing operator fatigue.

Technical Specifications

• Carrying Capacity: 600 kg

• Number of Suction Cups: 6 (2 center + 4 around)

• Suction Cup Diameter: 290 mm

• Rotation Angle: 90° (vertical rotation)

• Compatibility: Special lifting ring for electric crane systems

• Safety: Dual circuit vacuum system

• Design: Lightweight and ergonomic body structure

Areas of Use

• Production lines operating with crane systems

• Vertical transport and assembly of glass, marble, and ceramic panels

• High-level lifting operations in industrial facilities

• Facade applications and installation processes of delicate materials
